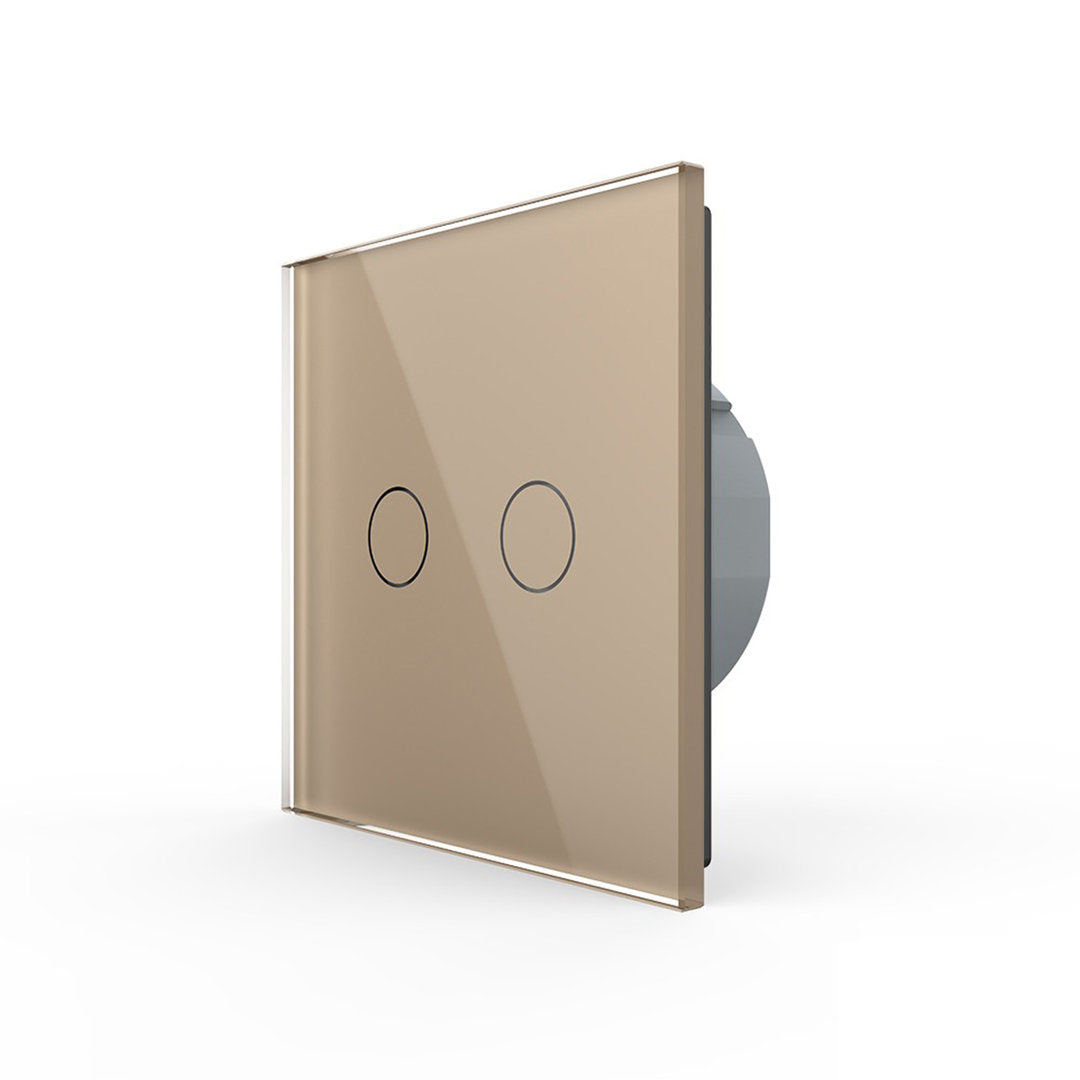

Livolo double push button module for 12-24V with glass cover in gold

This is a double Livolo push button, not to be confused with a light switch. After being switched on by the push button, the signal is passed to a relay in the electrical box. This push button is suitable for low voltage.

This push button is primarily intended for use in intelligent smart home systems (such as KNX, Shelly, etc.) that require a so-called "dry contact relay". A dry contact or potential-free contact is a contact that has no direct connection to the power source but to a relay or a module. This means that no voltage is applied to the dry contact terminals

The contact push button requires a supply voltage of 12/24V DC and connection to a neutral conductor.

The button operates in bell mode, the output contact is only closed (active) when the sensor is touched. With the button you can perform single, double or multiple pulses and long presses to assign various smart functions to your smart wire system.

The low voltage push button can also be used for the doorbell system or as a door opener.

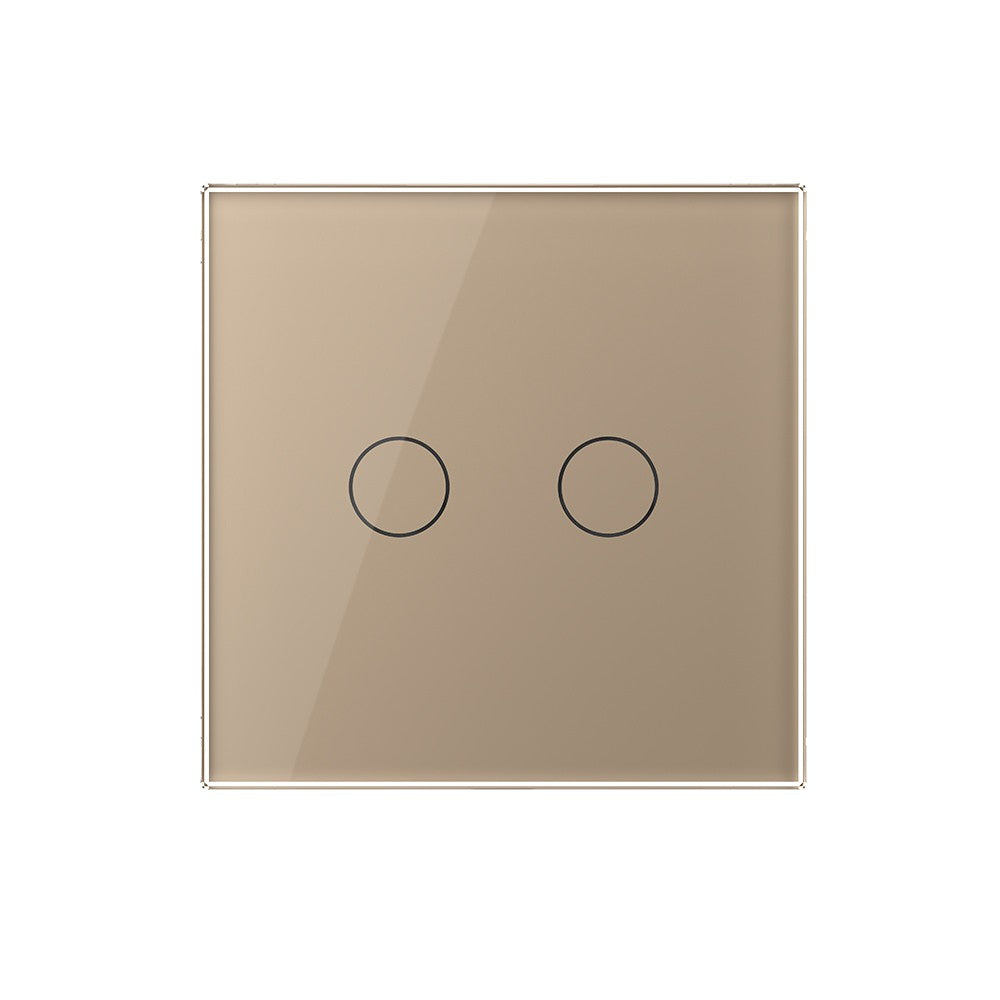

Thanks to the glass cover, this push button with modern sensor technology becomes a real eye-catcher.

Easy and quick installation, both vertically and horizontally.

By lightly touching the circular surface, the light switch is operated. The contour of the touch surface is subtly illuminated, so that easy operation is possible at any time of day. Especially in the dark it is easy to find the switch.

Our touch light switches can be used with all types of lamps, including incandescent bulbs, halogen lamps & energy-saving bulbs, as the control runs via the relay.

Compatible smart wiring systems:

LOXONE - 24V push button system (push button supply is 24VDC / output contacts switch 24VDC)

all other 12V / 24V systems that support classic 1/2/0

In our shop you will also find spreading claws (LG-01) in a 2-pack, for flush-mount boxes without screw-in possibility. Suitable for hollow walls and older houses (built before 1970). When using spreading claws, flush-mount boxes with a diameter of 68 mm are better suited.

The modules are attached to the flush-mount boxes with screws using the included metal frame.

The replacement is carried out like with other rocker switch manufacturers. Simply replace your old rocker switches with a new, durable design. The wiring remains the same.

The light switch and socket modules are suitable for flush-mount boxes with a diameter of 60-68 mm. The hole spacing for multiple covers is 71 mm.

With us you get the complete Livolo range; from a simple rocker light switch to a smart home-capable touch roller shutter switch.

Questions? Call us or send us an email.
We are happy to advise you!

Technical data:

Supply voltage: 12 / 24V

Standby consumption: max. 1 mA

Operating environment: Temperature -30 ° C / + 70 ° C max. RH 95%

Service life (number of cycles): 100,000 MTBF cycles

Attention! Neutral conductor required

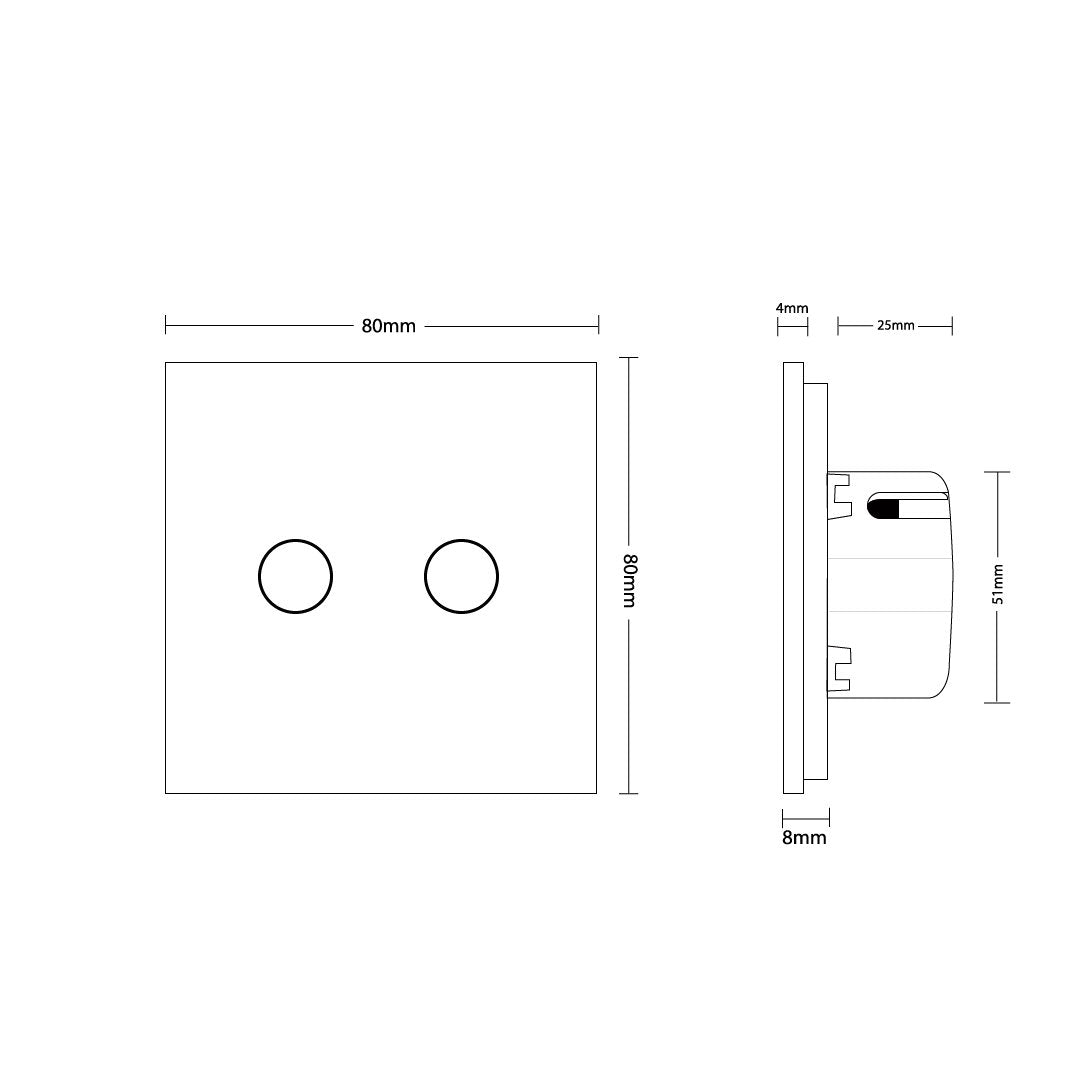

Dimensions:

80 x 80 x 34 mm

Scope of delivery:

The delivery includes:

· 1 x Livolo Touch Push Button Internal Module, as ordered

· 1 x Livolo Single Glass Cover, as ordered

· Operating instructions

Installation info: the connection is made WITHOUT power and glass cover, after installation you can place the glass cover and switch the power back on. Let the touch switch rest for 3 minutes before operating. After the time has elapsed, the light switch can be operated. If you do not follow these instructions, the light switch may not respond.
