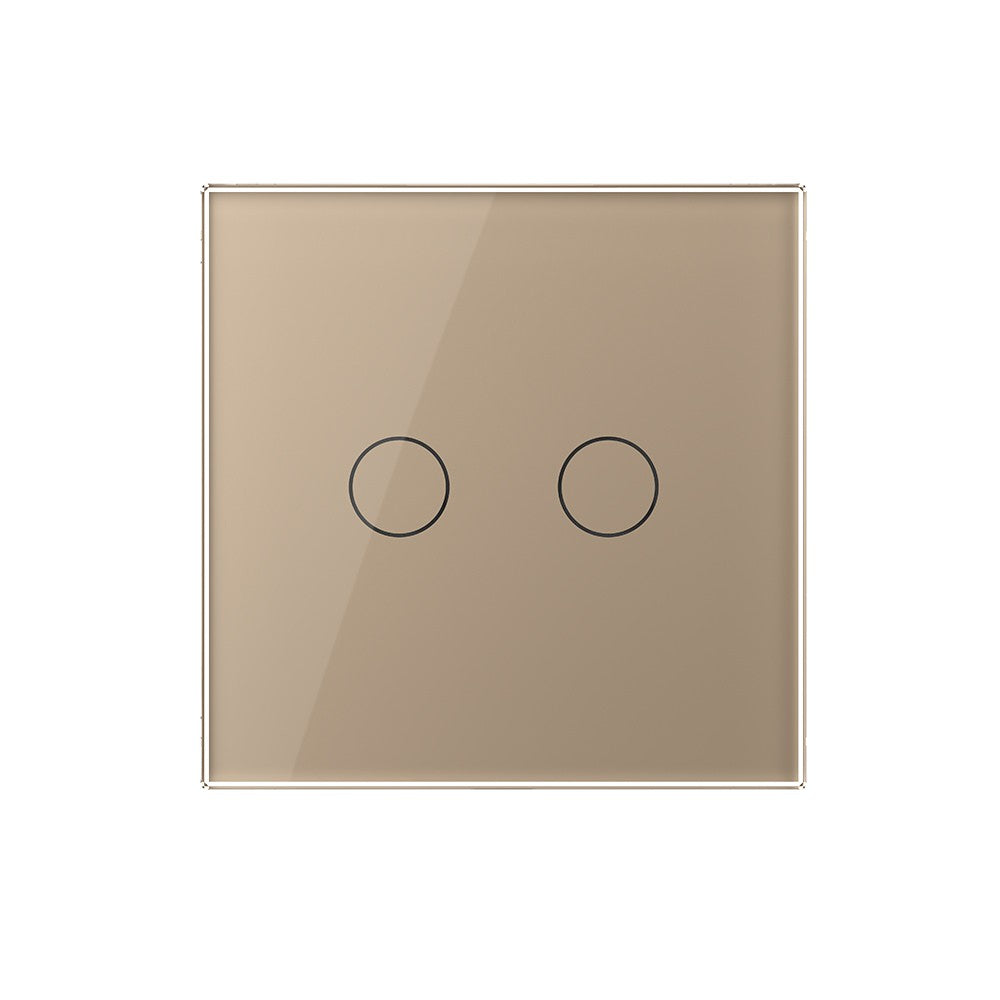

Livolo double push-button module for home automation with glass cover in gold

This is a double Livolo push-button, not to be confused with a light switch. After being switched on by the push-button, the signal is passed to a smart home relay (e.g. Fibaro, Loxone, eModul etc.) in the electrical panel. With this push-button, two relays can be controlled independently.

This type of push-button is mainly designed for use with smart systems that require smart home systems. The so-called "dry contact relay" is mandatory for most of these systems. With this type of impulse switch, you can switch 12 V, 24 V, 115 V or 230 V.

The LIVOLO C702IH contact push-button with a potential-free contact requires a supply voltage of 230 V AC as well as a neutral conductor N.

The push-button operates in chime mode, the output contact connects (active) only when the sensor is touched. With the button you can perform a single, double or multiple impulse and a long holding time to assign different smart functions to your smart cable system.

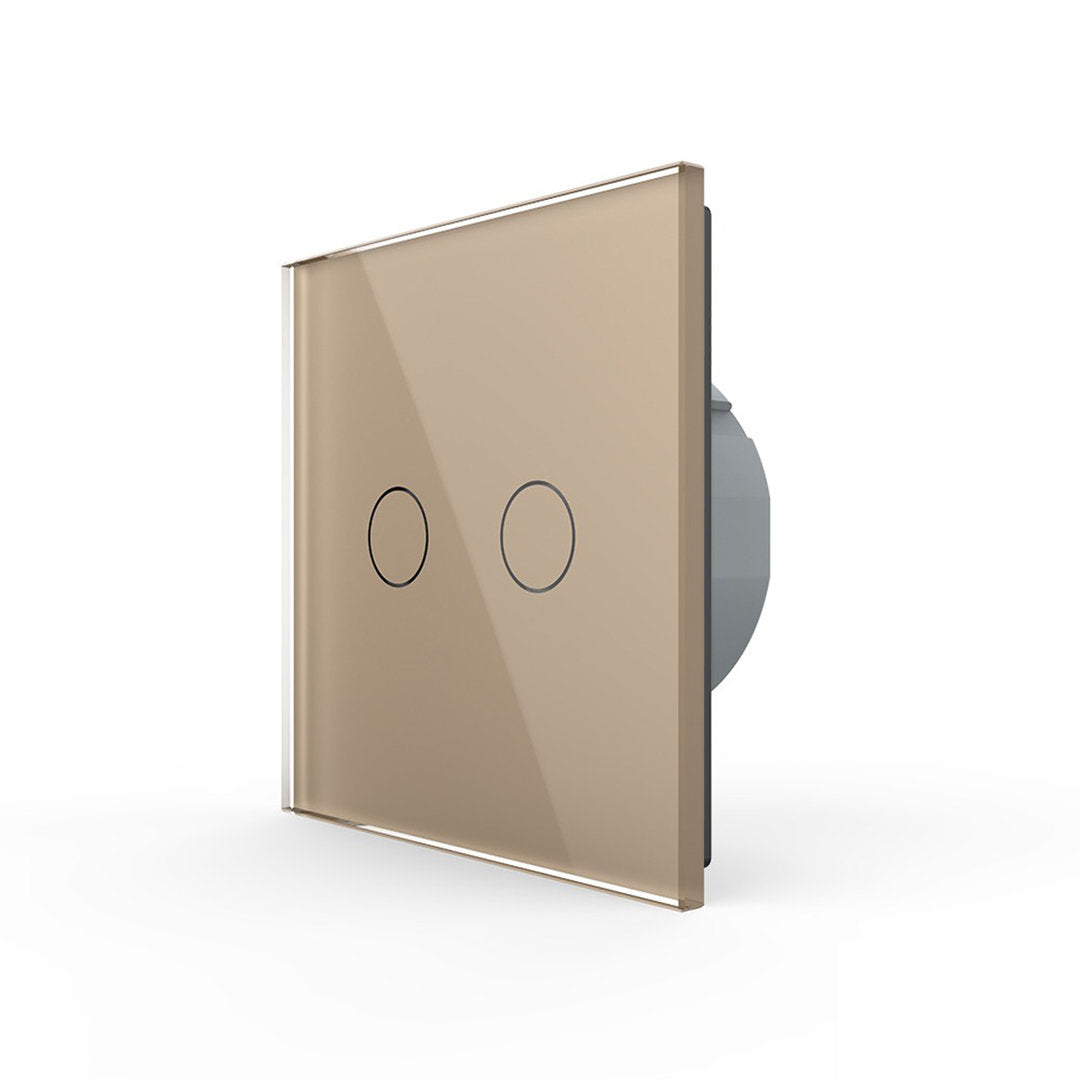

Thanks to the glass cover, this push-button with modern sensor technology becomes a real eye-catcher.

Easy and quick installation, both vertically and horizontally.

By lightly touching the circular area, the light switch is operated. The contour of the touch area is subtly illuminated, so that easy operation is possible at any time of day. Especially in the dark it is easy to find the switch. In on mode, the border of the touch field lights up red, in off mode blue.

Our touch light switches can be used with all types of lamps, including incandescent bulbs, halogen lamps & energy-saving bulbs, since the control runs via the relay.

In our shop you will also find spreading claws (LG-01) in a 2-pack, for flush-mount boxes without screwing possibility. Suitable for hollow walls and older houses (built before 1970). When using spreading claws, 68 mm large flush-mount boxes are better suited.

The modules are attached to the flush-mount boxes with screws using the included metal frame.

The replacement takes place like with other rocker switch manufacturers. Simply replace your old rocker switches with a new, durable design. The wiring remains the same.

The light switch and socket modules are suitable for flush-mount boxes with a diameter of 60-68 mm. The hole spacing for multiple covers is 71 mm.

With us you get the complete Livolo range; from a simple rocker light switch to the smart home-capable touch roller shutter switch.

Questions? Call us or send us an email.
We are happy to advise you!

Technical data:

Operating voltage: AC110~250V, 50Hz60Hz

max. current for each gang: 2.5A

Power load: 2000W

max. power for each gang: 500W/220V or 250W/120V

Standby power consumption: less than 0.1mW

Service life over 100,000 times

Attention! Neutral conductor required

Compatible smart wired systems:

LOXONE - 24-V push-button system (230 V AC / 24 V DC output switch)

FIBARO - 230 V AC (switching control and 230 V AC signal)

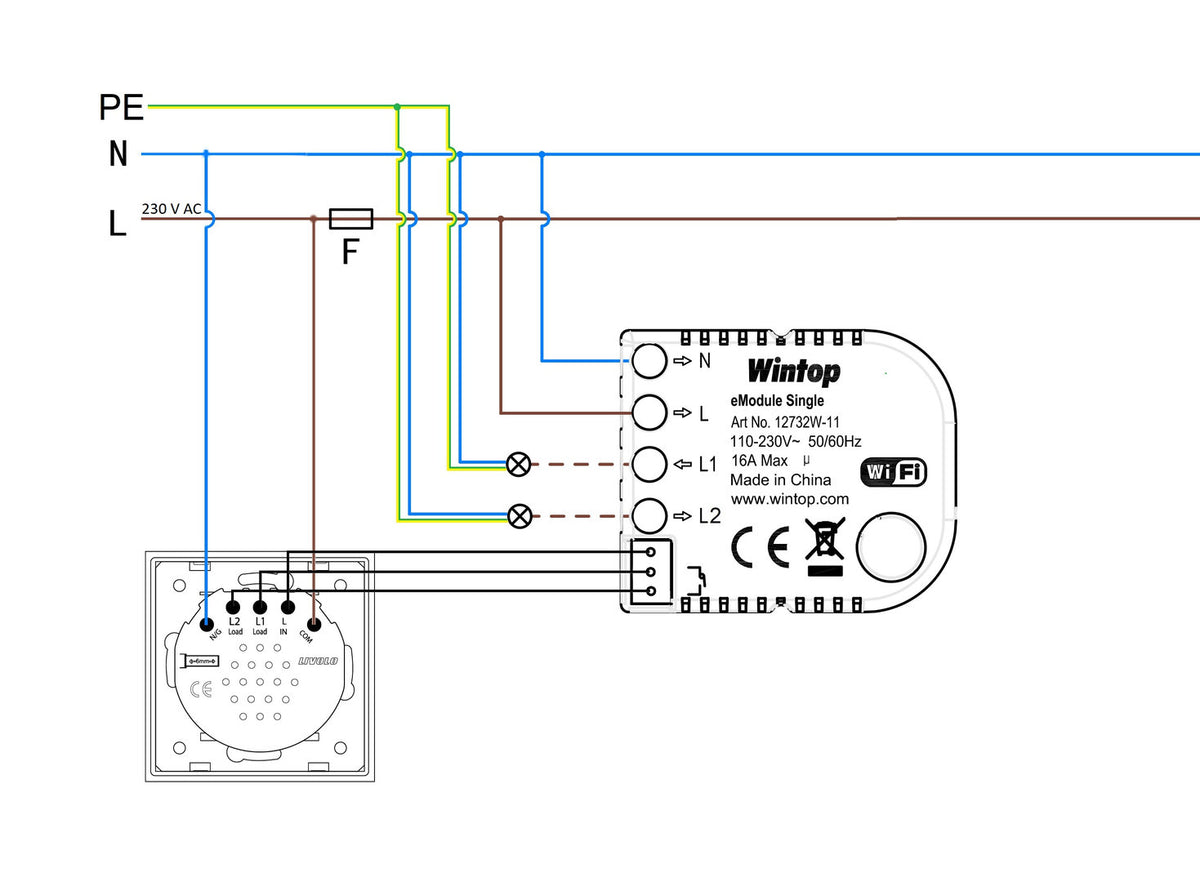

Emodul - 230 V AC (available in our shop)

All other systems, the classic 1/2/0

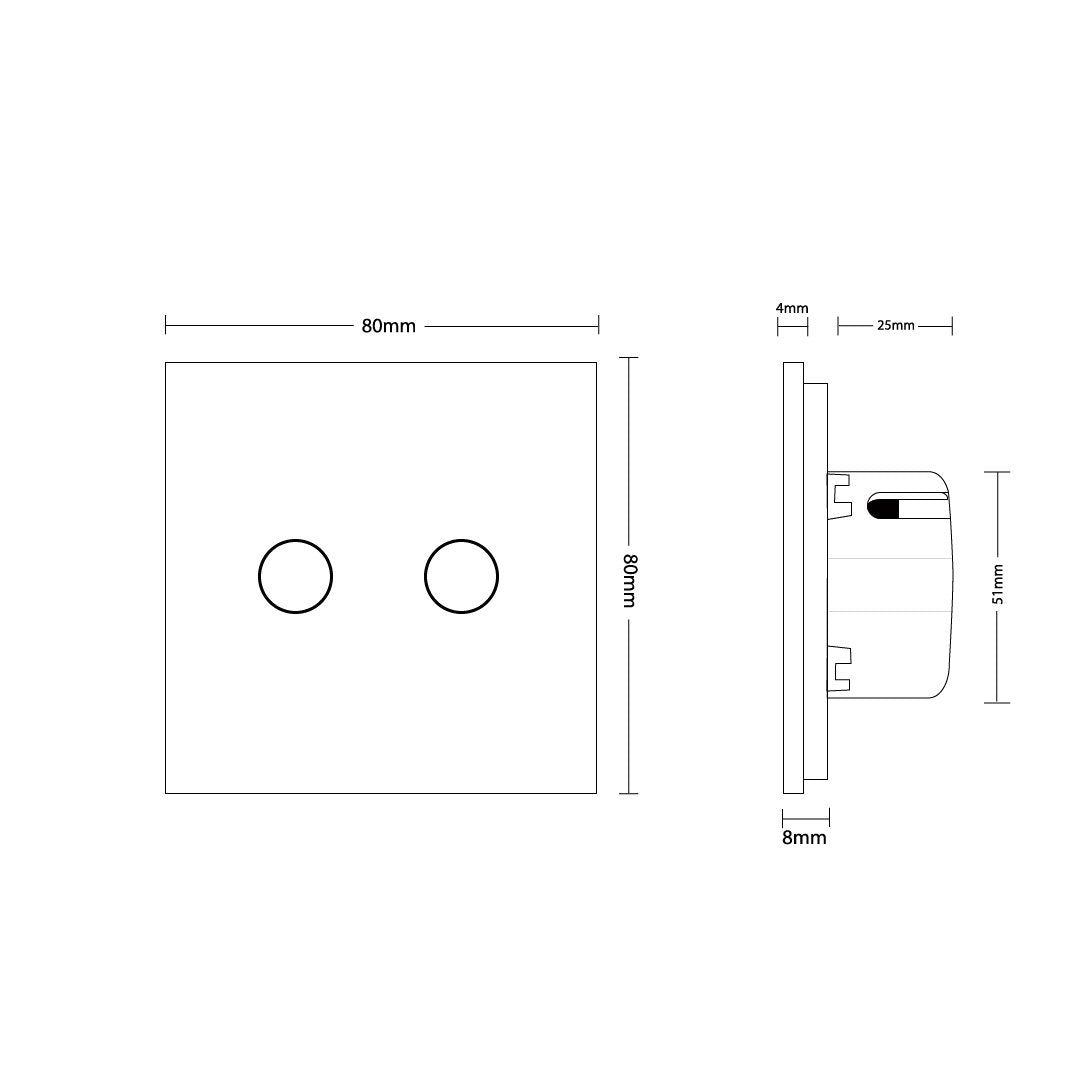

Dimensions:

80 x 80 x 34 mm

Scope of delivery:

The delivery includes:

· 1 x Livolo Touch Push-button Internal Module, according to order

· 1 x Livolo Glass Cover Single, according to order

· Operating instructions

Installation info: the connection is made WITHOUT power and glass cover, after installation you can place the glass cover and switch the power back on. Let the touch switch rest for 3 minutes before operating. After the time has elapsed, the light switch can be operated. If you do not follow these instructions, it may happen that the light switch does not react.
