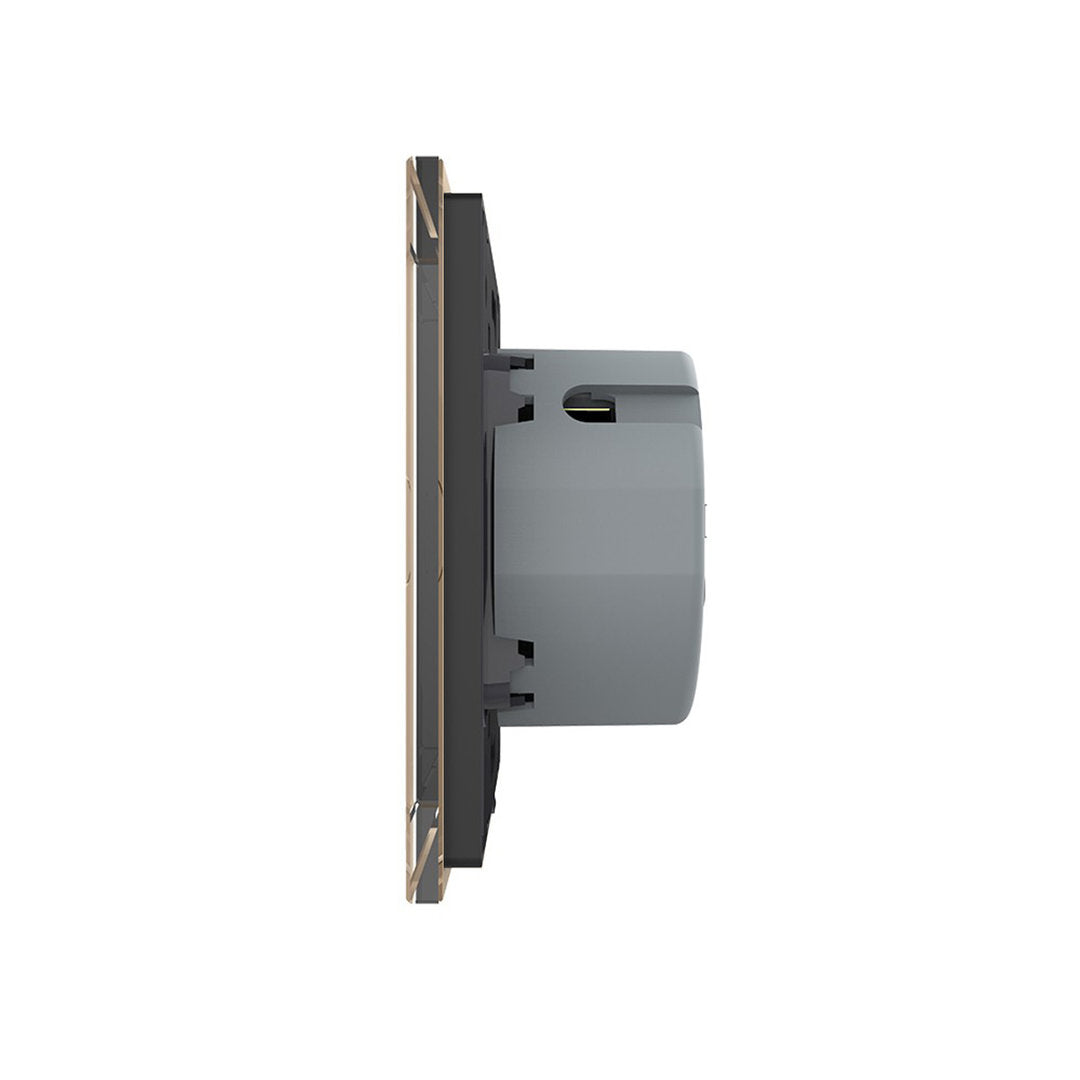

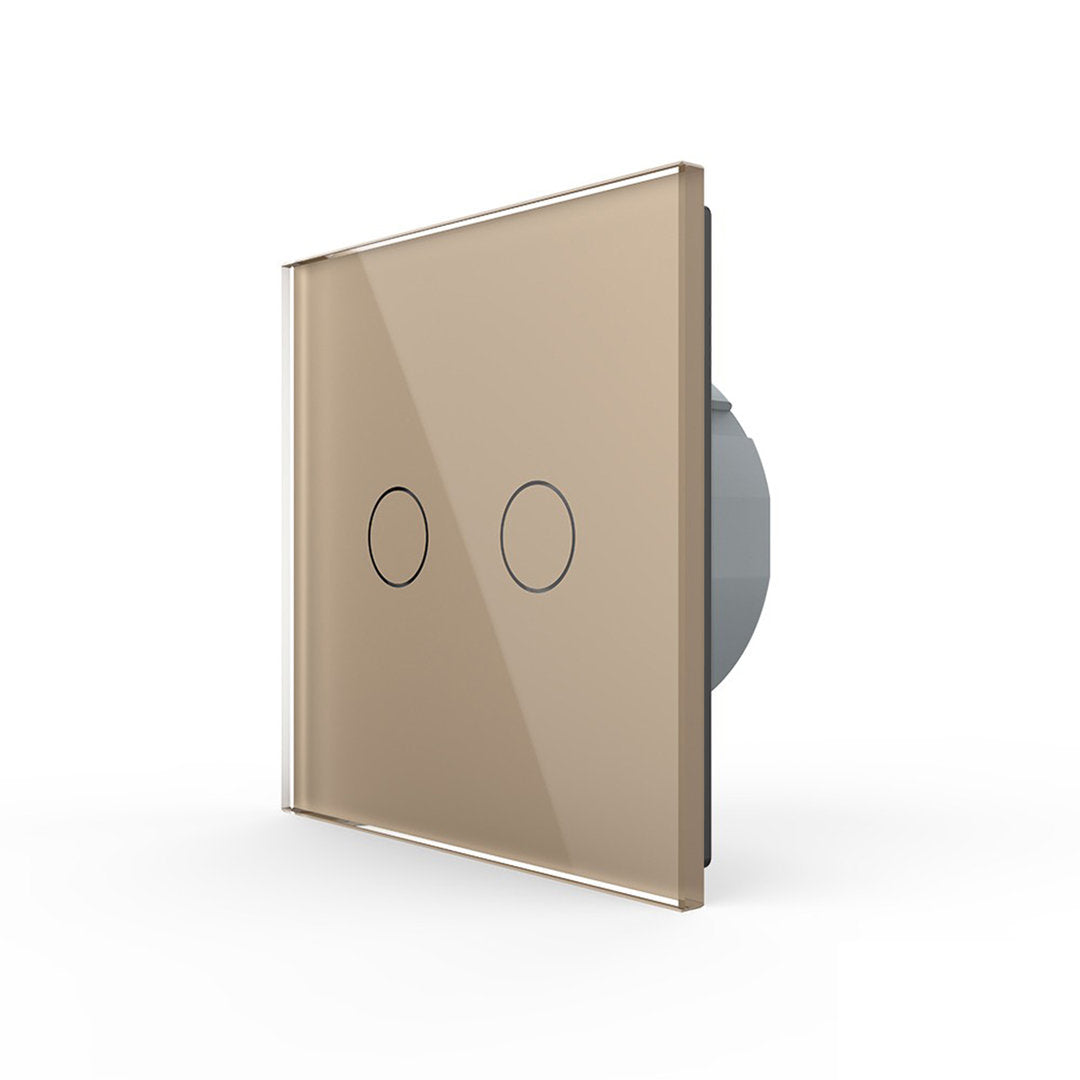

Livolo double light switch module for 12-24V with glass cover in gold

This is a double Livolo low-voltage switch. It can be used for lighting circuits with 12 to 24 V.

The glass cover makes this switch with modern sensor technology a real eye-catcher.

Easy and quick installation, both vertically and horizontally.

The light switch is operated by lightly touching the circular surface. The contour of the touch surface is subtly illuminated, so that easy operation is possible at any time of day. Above all in the dark, it is easy to find the switch. In the on mode, the border of the touch field lights up red, in the off mode blue.

Our touch light switches can be used with all types of lamps, including incandescent bulbs, halogen lamps & energy-saving bulbs, as the control runs via the relay.

In our shop you will also find spreading claws (LG-01) in a 2-pack, for flush-mount boxes without a screw-in option. Suitable for hollow walls and older houses (built before 1970). When using spreading claws, 68 mm flush-mount boxes are better suited.

The modules are attached to the flush-mount boxes with screws using the included metal frame.

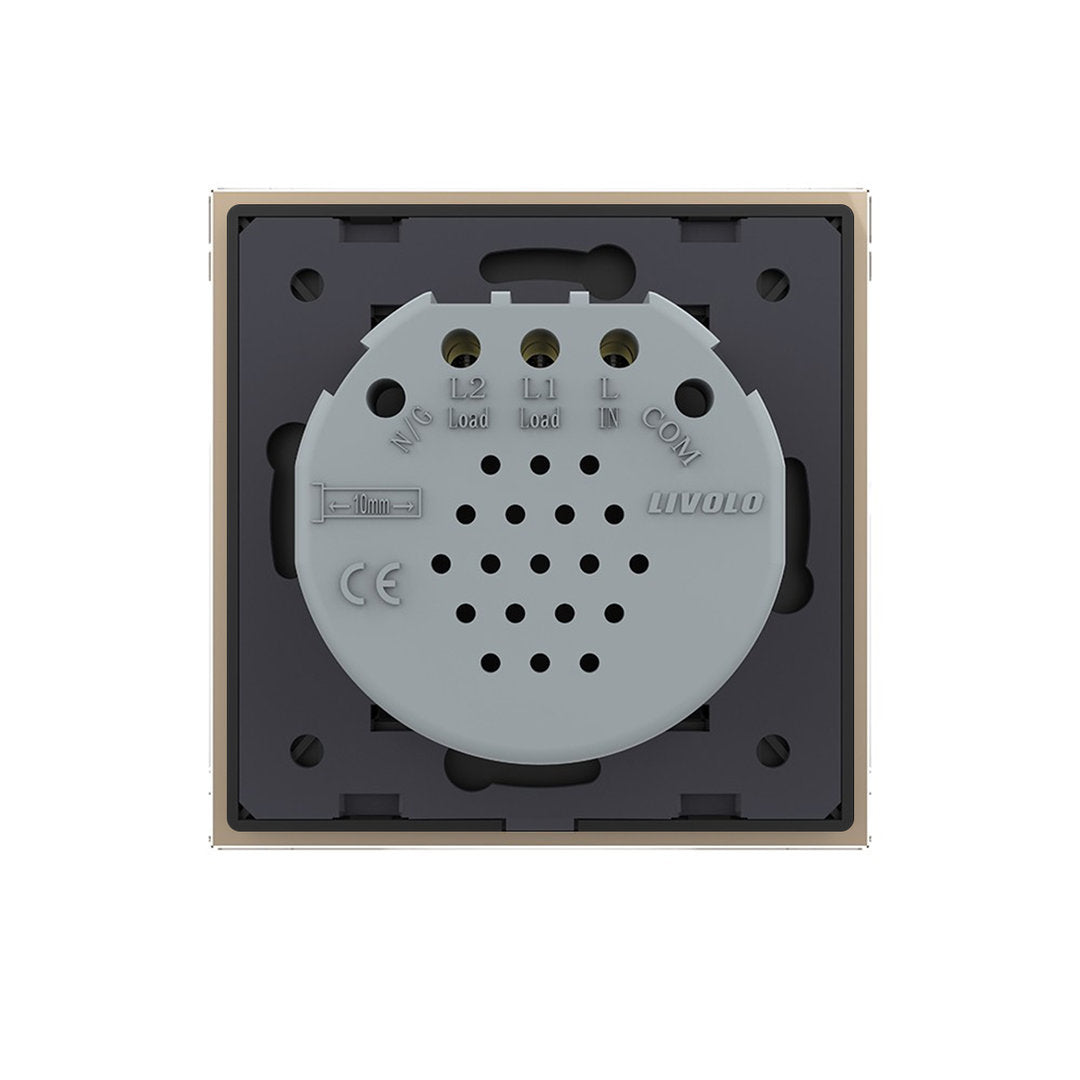

The replacement is carried out like with other rocker switch manufacturers. Simply replace your old rocker switches with a new, durable design. The wiring remains the same.

The light switch and socket modules are suitable for flush-mount boxes with a diameter of 60-68 mm. The hole spacing for multi-covers is 71 mm.

With us you get the complete Livolo range; from a simple rocker light switch to a smart home-capable touch roller shutter switch.

Questions? Call us or send us an email.
We are happy to advise you!

Technical data:

Supply voltage: 12 / 24V

Maximum load: 1000W / channel

Standby consumption: max. 1 mA

Operating environment: Temperature -30 ° C / + 70 ° C max. RH 95%

Service life (number of cycles): 100,000 MTBF cycles

Attention! Neutral conductor required

Compatible smart wiring systems:

LOXONE - 24V push-button system (push-button supply is 24VDC / output contacts switch 24VDC)

Direct control of 12V LED lights, where the 12V low-voltage power supply switch is switched

Direct control of 24V LED lights, where the 24V low-voltage power supply switch is switched

all other 12V / 24V systems support classic 1/2/0

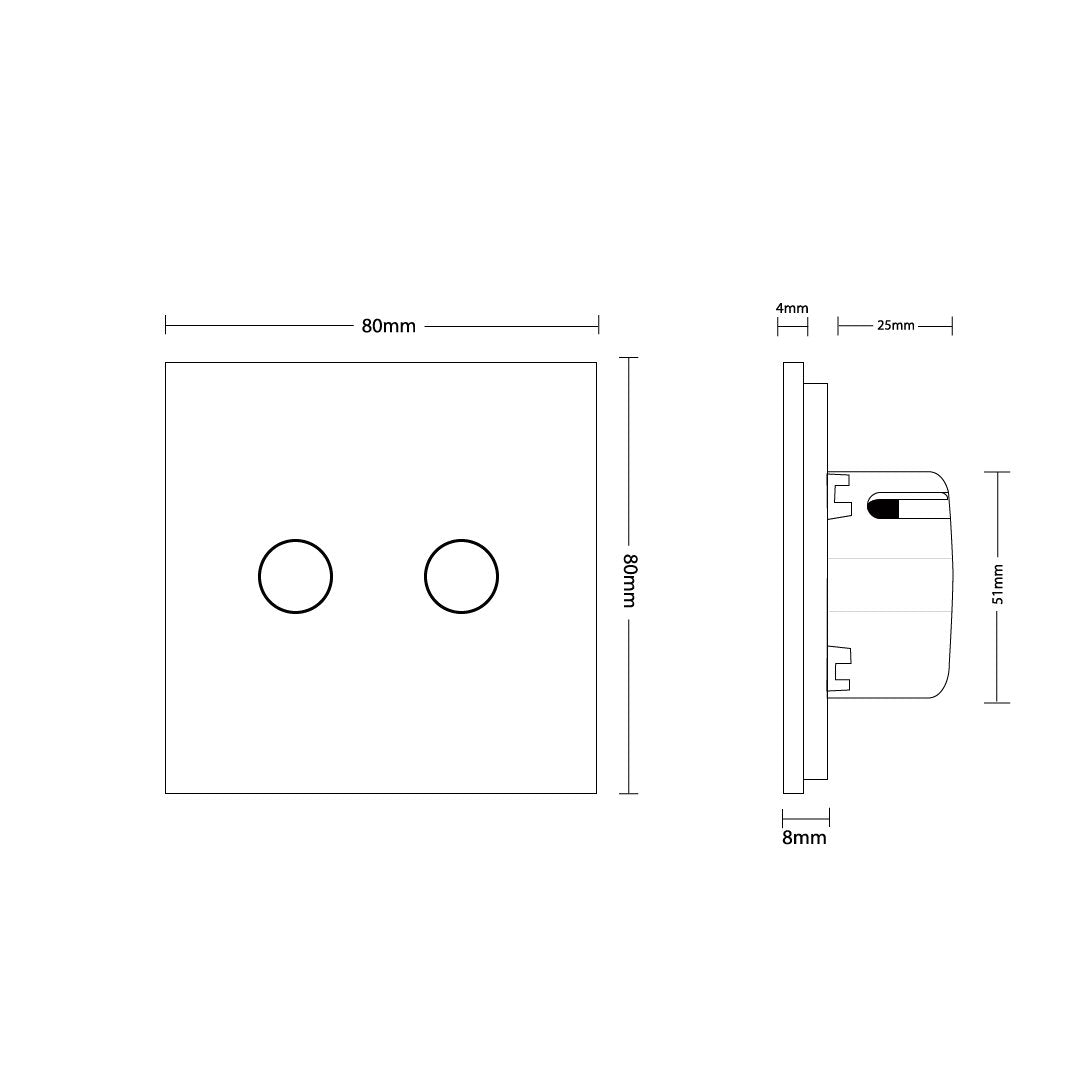

Dimensions:

80 x 80 x 34 mm

Scope of delivery:

The delivery includes:

· 1 x Livolo Touch Switch Internal Module, as ordered

· 1 x Livolo Single Glass Cover, as ordered

· Operating instructions

Installation info: the connection is made WITHOUT power and the glass cover, after installation you can place the glass cover and switch the power back on. Let the touch switch rest for 3 minutes before operating. After the time has elapsed, the light switch can be operated. If you do not follow these instructions, the light switch may not respond.
