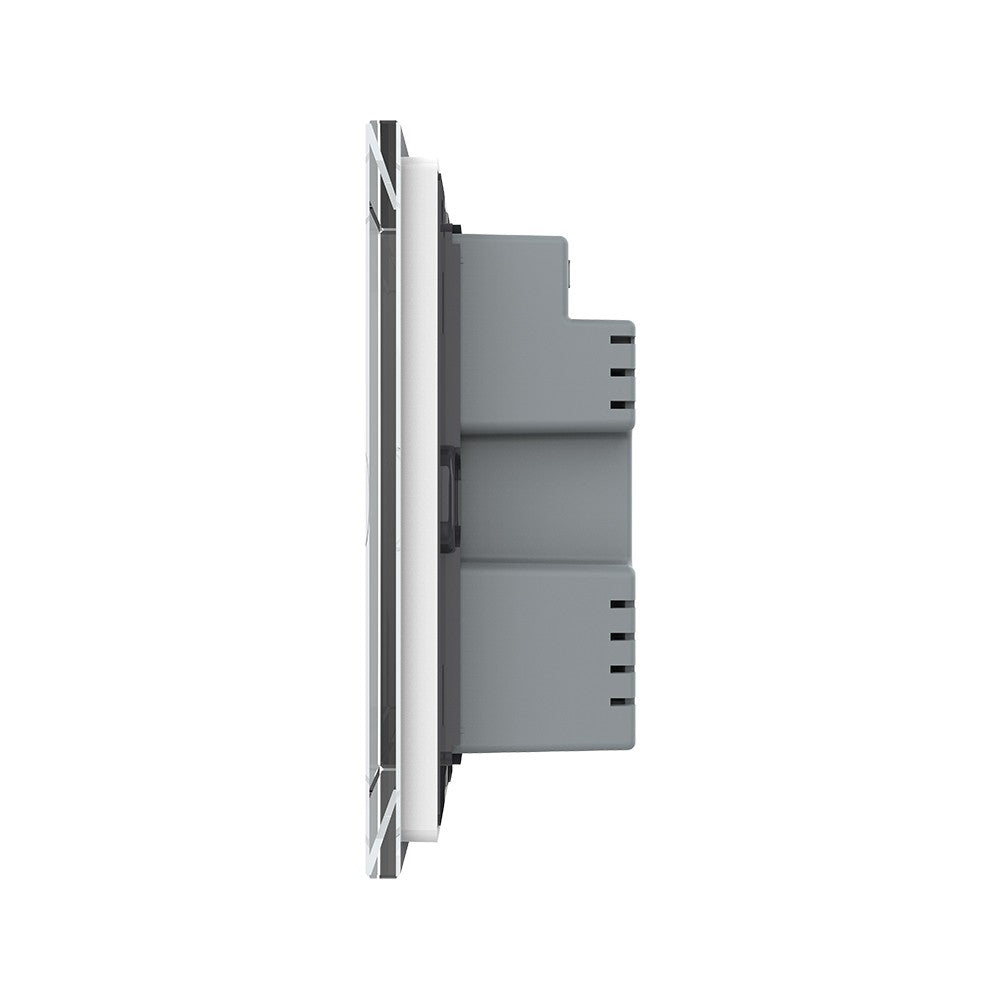

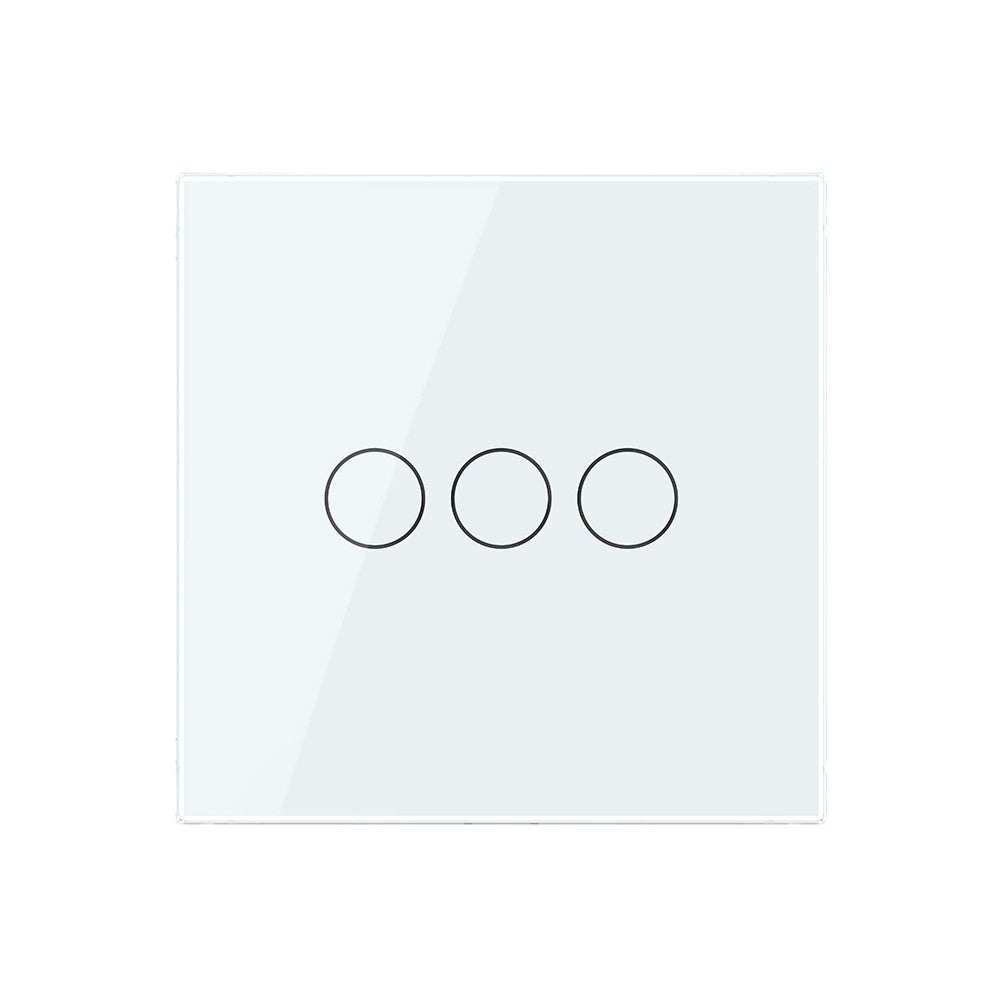

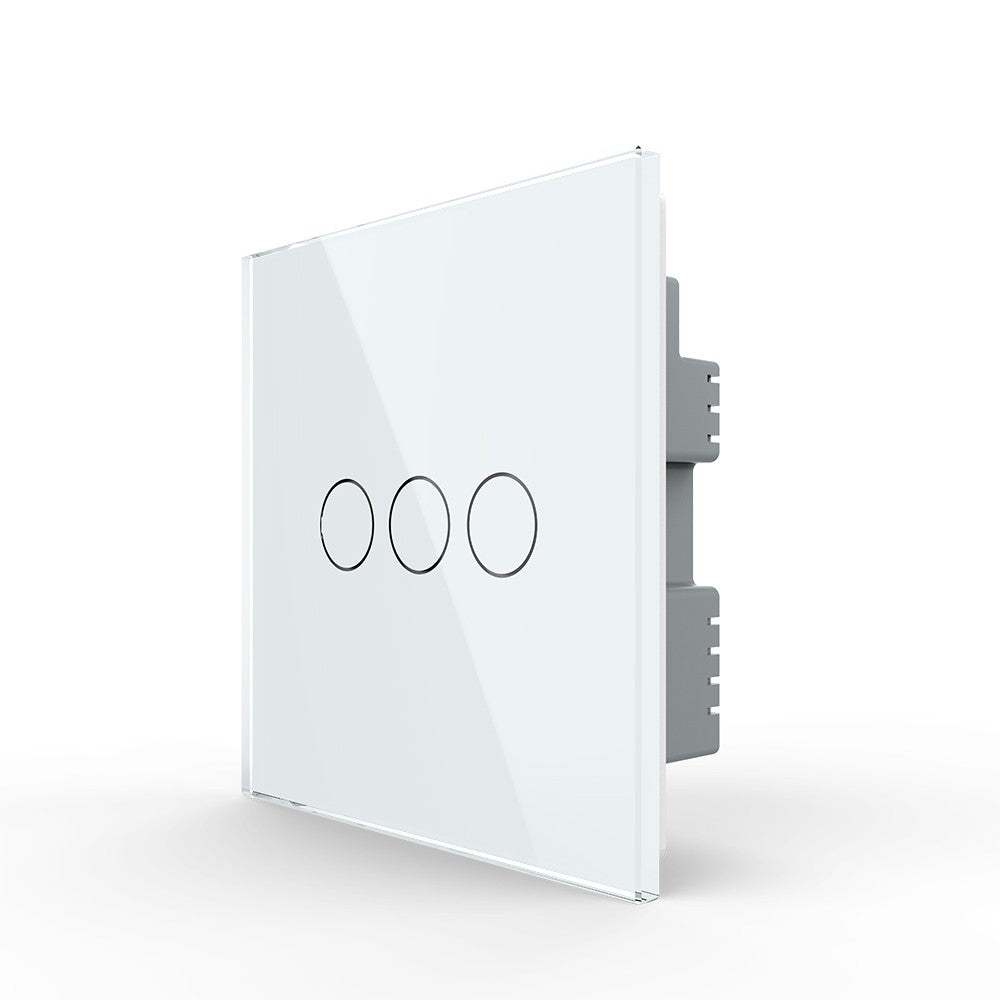

Livolo triple light switch module with glass cover in white

This is a double Livolo light switch for switching three lights or light groups on and off.

The glass cover makes this switch with modern sensor technology a real eye-catcher.

Easy and quick installation, both vertically and horizontally.

The light switch is operated by lightly touching the circular surface. The contour of the touch surface is subtly illuminated, making it easy to operate at any time of day. It is especially easy to find the switch in the dark. In the on mode, the border of the touch panel lights up red, in the off mode blue.

Our touch light switches can be used with all types of lamps, including incandescent bulbs, halogen lamps & energy-saving bulbs. Exception: LED strips.

Attention: With lights under 20 watts (especially LED lights), interference may occur. In this case, a resistor adapter helps in almost all cases.

See under: Miscellaneous > Accessories

For our LED ceiling spotlights, you do not need a resistor adapter!

The LED ceiling spotlights are compatible with all our Livolo switches.

See under: Miscellaneous > LED Lights

In our shop you will also find spreading claws (LG-01) in a 2-pack, for flush-mount boxes without threading possibility. Suitable for hollow walls and older houses (built before 1970). When using spreading claws, 68 mm flush-mount boxes are better suited.

The modules are attached to the flush-mount boxes with screws using the included metal frame.

The replacement is carried out like with other rocker switch manufacturers. Simply replace your old rocker switches with a new, durable design. The wiring remains the same.

This switch requires a larger flush-mount box. You can find these here.

With us you get the complete Livolo range; from a simple rocker light switch to a smart home-capable touch roller shutter switch.

Questions? Call us or send us an email.
We are happy to advise you!

Technical data:

Operating voltage: AC110~250V, 50Hz60Hz

max. current for each gang: 2.5A

Current load: 2000W

max. power for each gang: 500W/220V or 250W/120V

Standby power consumption: less than 0.1mW

Service life over 100,000 times

Dimensions:

80 x 80 x 34 mm

Scope of delivery:

The delivery includes:

· 1 x Livolo Touch Switch Inner Module, according to order

· 1 x Livolo Glass Cover Single, according to order

· Operating Instructions

Wiring diagram:

Installation info: the connection is made WITHOUT power and glass cover, after installation you can place the glass cover and switch the power back on. Let the touch switch rest for 3 minutes before operating. After the time has elapsed, the light switch can be operated. If you do not follow these instructions, the light switch may not respond.
