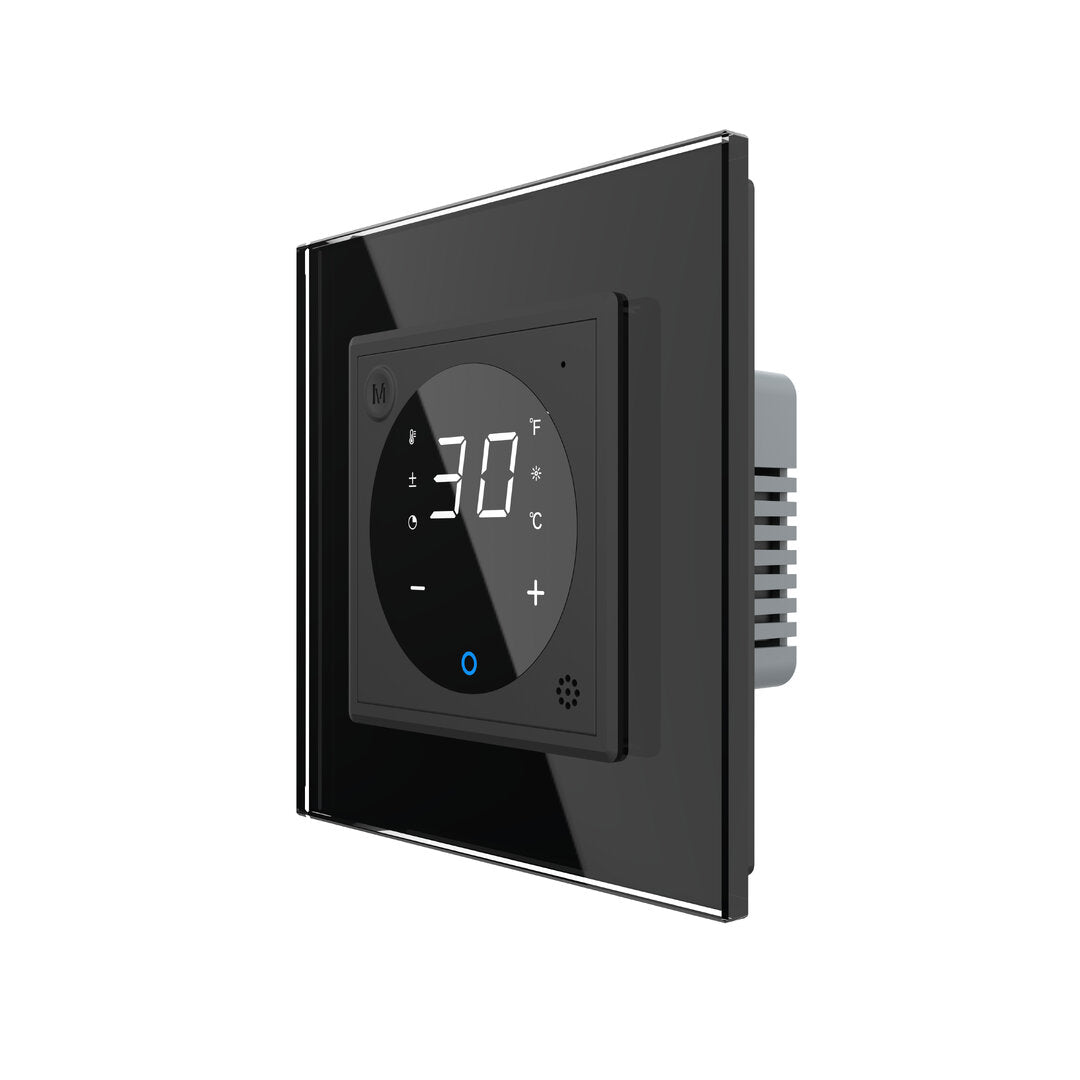

Livolo digital room thermostat with optional external sensor for underfloor heating in black

This is a digital Livolo room thermostat in black with an external sensor. This thermostat can be used to control most underfloor heating systems with actuators (water-based or electric), provided the maximum power rating is not exceeded.

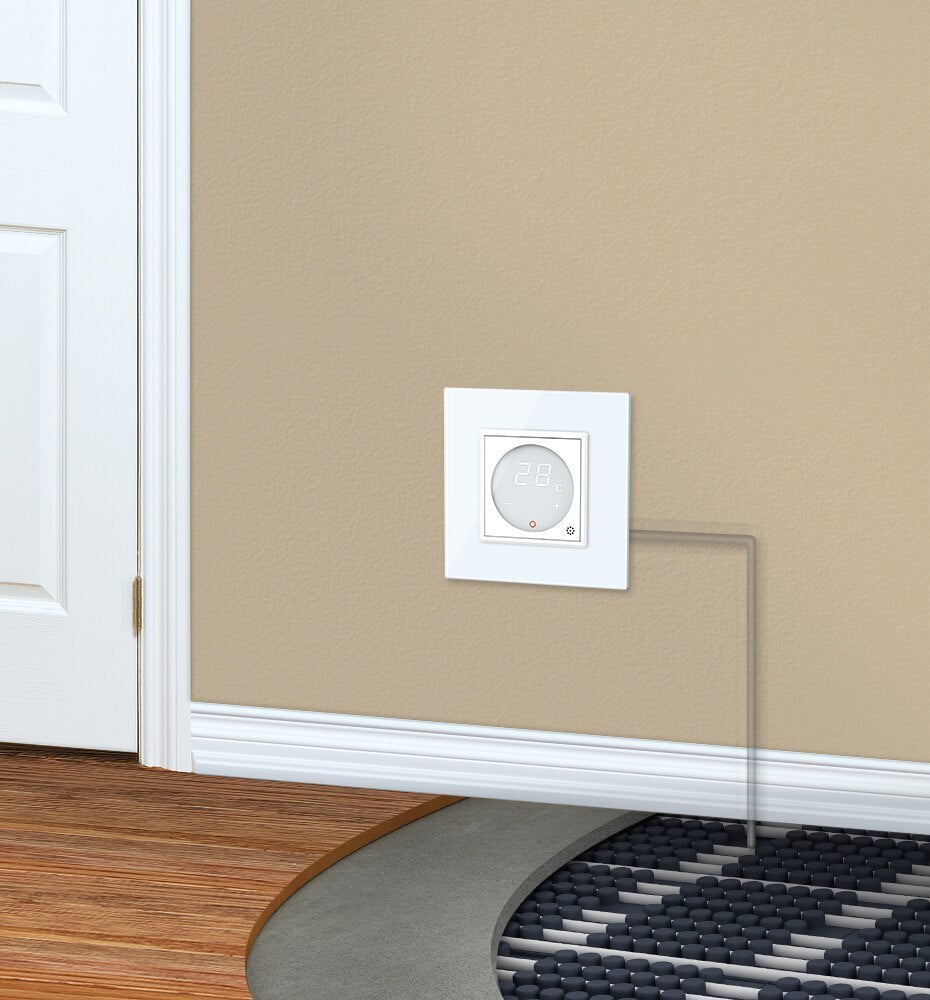

Thanks to the external floor sensor, the thermostat provides particularly accurate readings. The thermostat can also be used without an external sensor if desired. However, this may result in less accurate readings.

The thermostat can be operated using the touch points on the front. These can also be used to adjust the display brightness and calibrate the temperature accuracy. The display cannot be switched off completely, but the brightness can be reduced significantly.

Combined with the matching glass cover, this module becomes a real eye-catcher.

Easy and quick installation, both vertically and horizontally.

In our shop you will also find spreading claws (LG-01) in a 2-pack, for flush-mount boxes without a screw-in option. Suitable for hollow walls and older houses (built before 1970). When using spreading claws, 68 mm flush-mount boxes are better suited.

The modules are attached to the flush-mount boxes using screws and the metal frames.
Replacement is carried out like with other rocker switch manufacturers. Simply replace your old rocker switches with a new, durable design. The wiring remains the same.

The light switch and socket modules are suitable for flush-mount boxes with a diameter of 60-68 mm. The hole spacing for multi-gang covers is 71 mm.

With us you get the complete Livolo range; from a simple rocker light switch to a smart home-compatible touch roller shutter switch.

Questions? Call us or send us an email.
We are happy to advise you!

Technical data:

Temperature accuracy: < 1°C

Power consumption: < 0.8W

Service life: > 30,000 operations

Operating voltage: 100 ~ 240V 50/60HZ

Switching capacity: 16A 1 gang

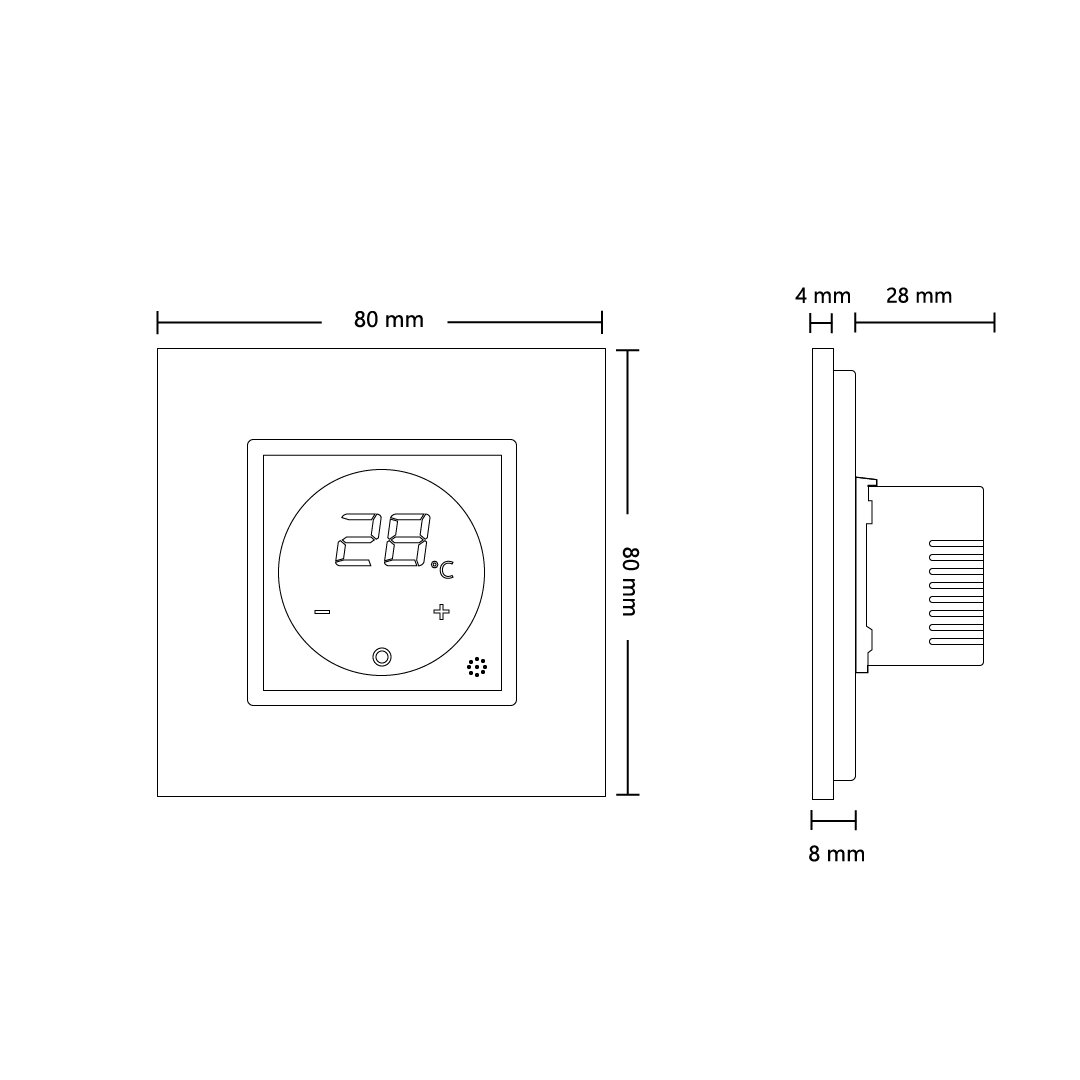

Dimensions:

80x 80 x 35 mm

Scope of delivery:

The following is included:

- 1 x Livolo room thermostat, as ordered

- 1 x Livolo glass frame, as ordered

- Operating instructions
