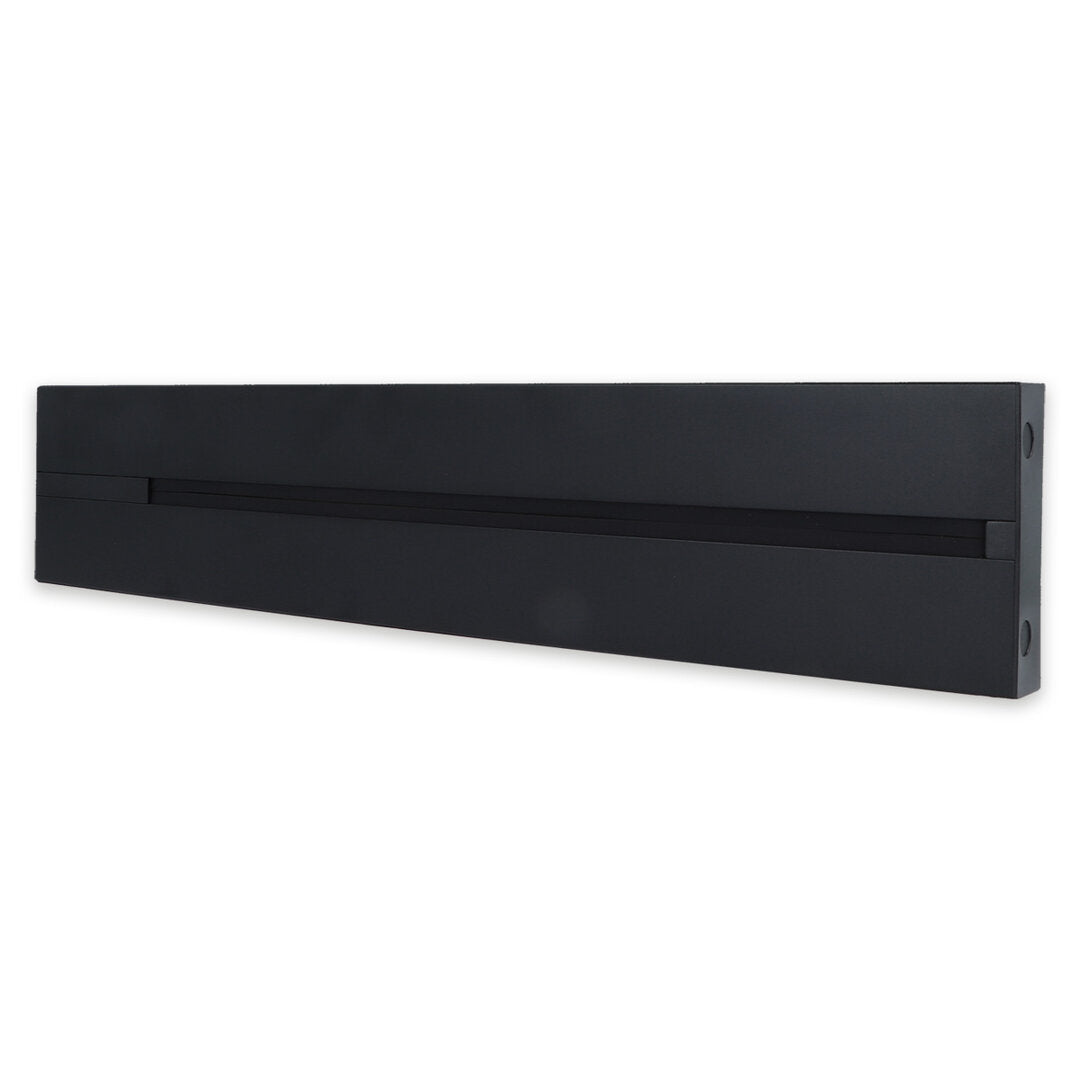

Luxury Time surface-mounted socket rail in 50 cm length

The innovative surface-mounted socket rail combines functionality and flexibility in one system.

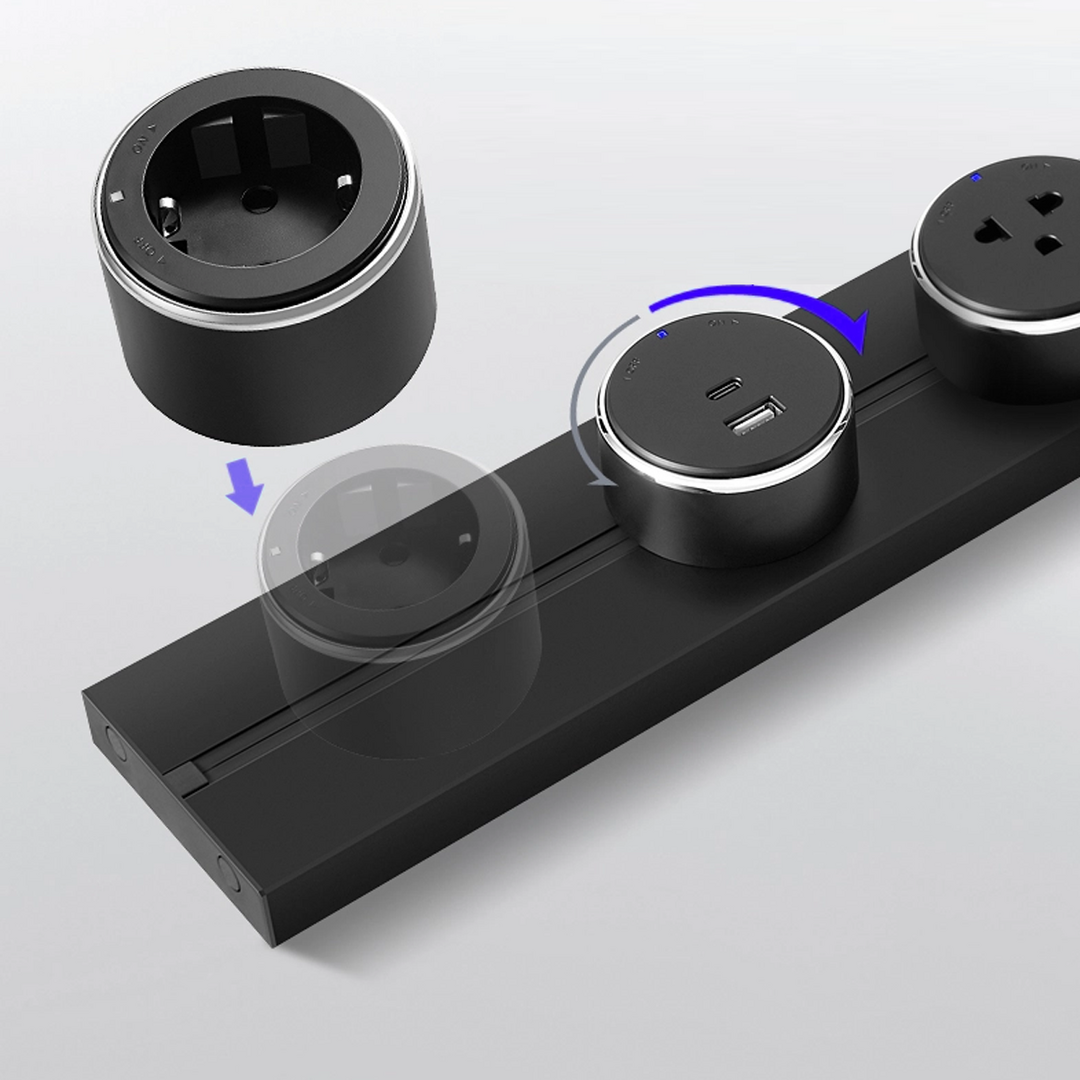

Thanks to its modular design, the individual socket & USB elements can be effortlessly removed, replaced, or repositioned – without any special tools.

Ideal for modern living or working areas where maximum adaptability and a tidy appearance are required.

The well-thought-out design enables a space-saving installation on almost any surface and ensures elegant integration into any environment. Whether in the kitchen, office, or workshop – this socket rail offers smart power supply with a systematic approach.

The length of 50 cm is also ideal for smaller areas, as the compact size offers enough connection options for several sockets or USB elements even on small work surfaces.

Any number of sockets / USB outlets can be connected, as long as the maximum power (32A) is not exceeded.

Even though 16A is usually used in domestic applications, our socket rail can handle up to 32A (with a sufficiently large cable cross-section). This also makes it suitable for use in a workshop or similar environment.

Questions? Call us or send us an email.
We are happy to advise you!

Technical data:

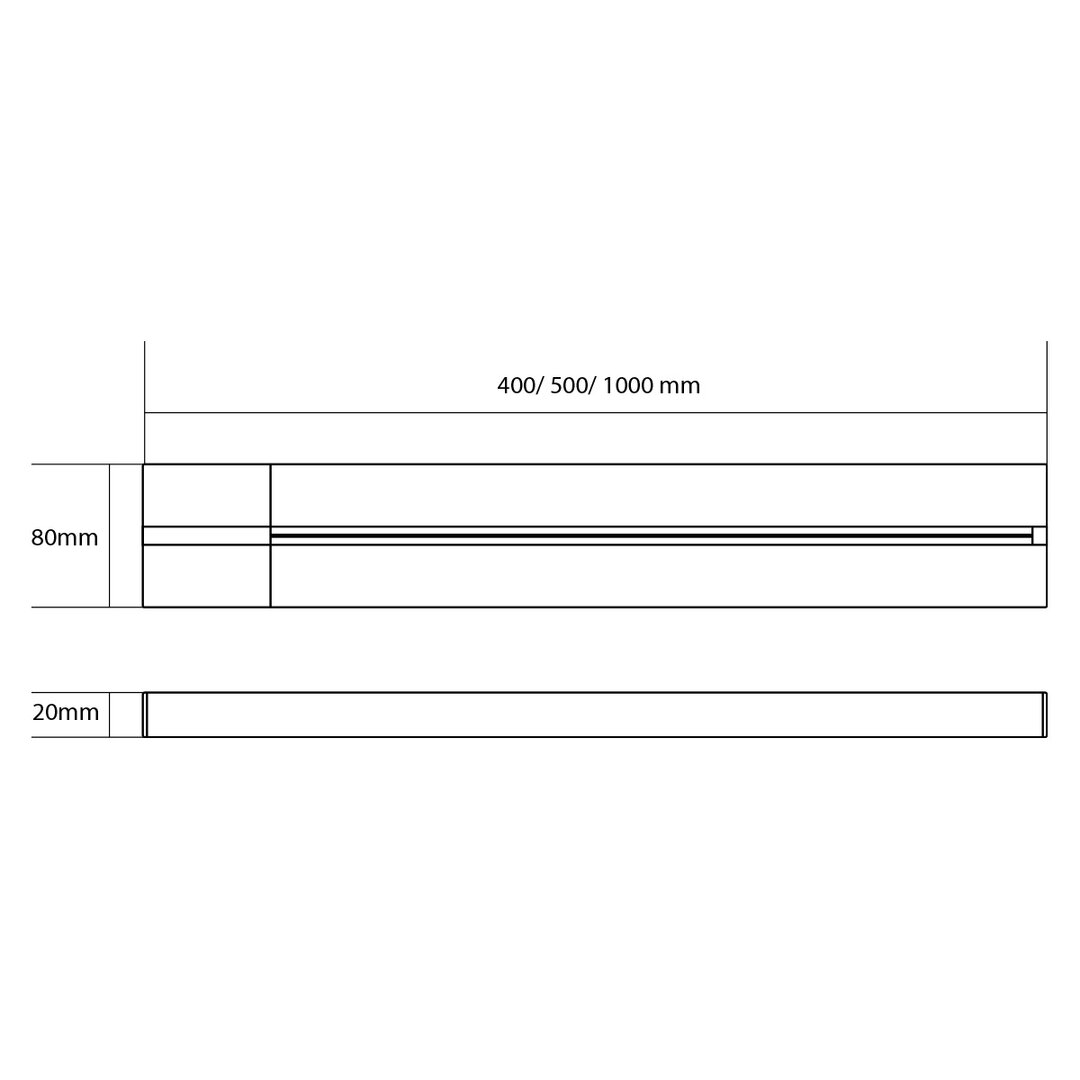

Dimensions:

500 x 80 x 19 mm

Operating voltage: AC110 ~ 250V
Total power: 8000W (when using 4.0mm² cable) / 32A
Protection rating: IP20
Ambient temperature: -20°C - +50°C

Wiring information:
NYM cable 1.5 mm² = 4000W
NYM cable 2.5 mm² = 6000W
NYM cable 4.0 mm² = 8000W
