Expandable stainless steel floor box with two sockets and two blanking plates, IP66 certified

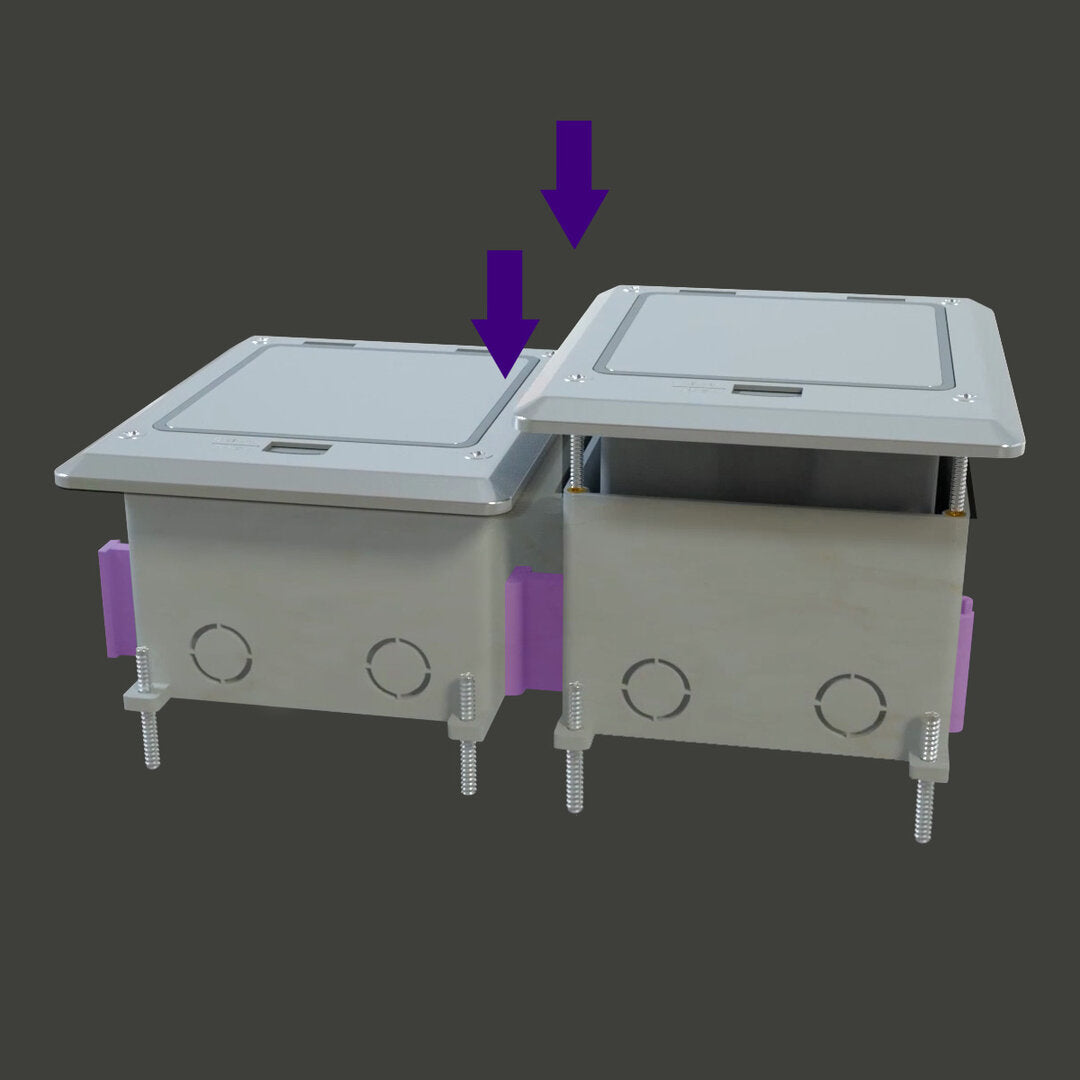

This floor box with a stainless steel cover can be installed in dry-laid hollow floors and screeded floors. The floor box can be expanded at will with additional floor boxes of the same type.

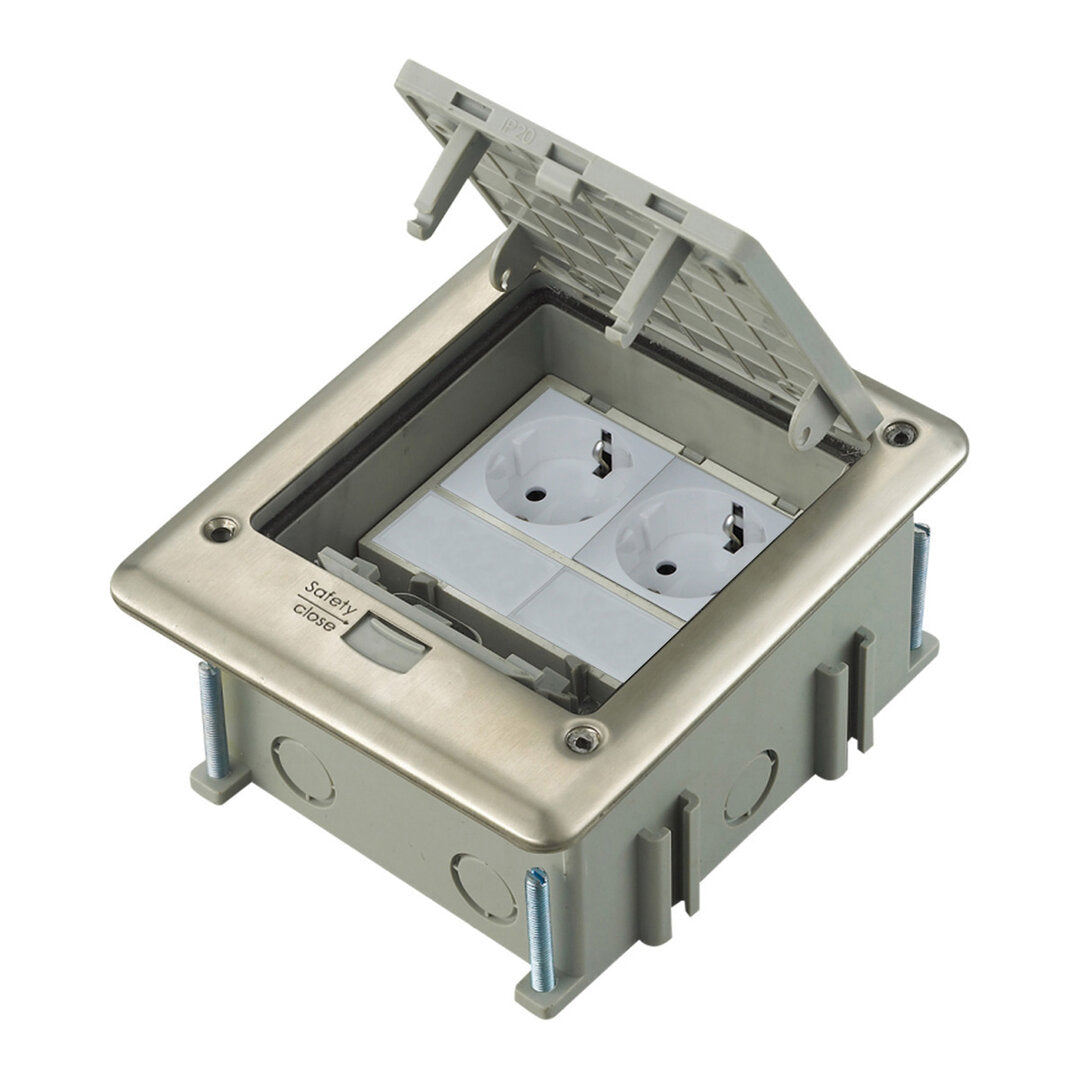

The box is supplied with two white VDE socket modules and two blanking plates.

Ideal for installation in offices, workshops, garages, or retail spaces. This high-quality floor box can be used almost anywhere and can also be driven over.

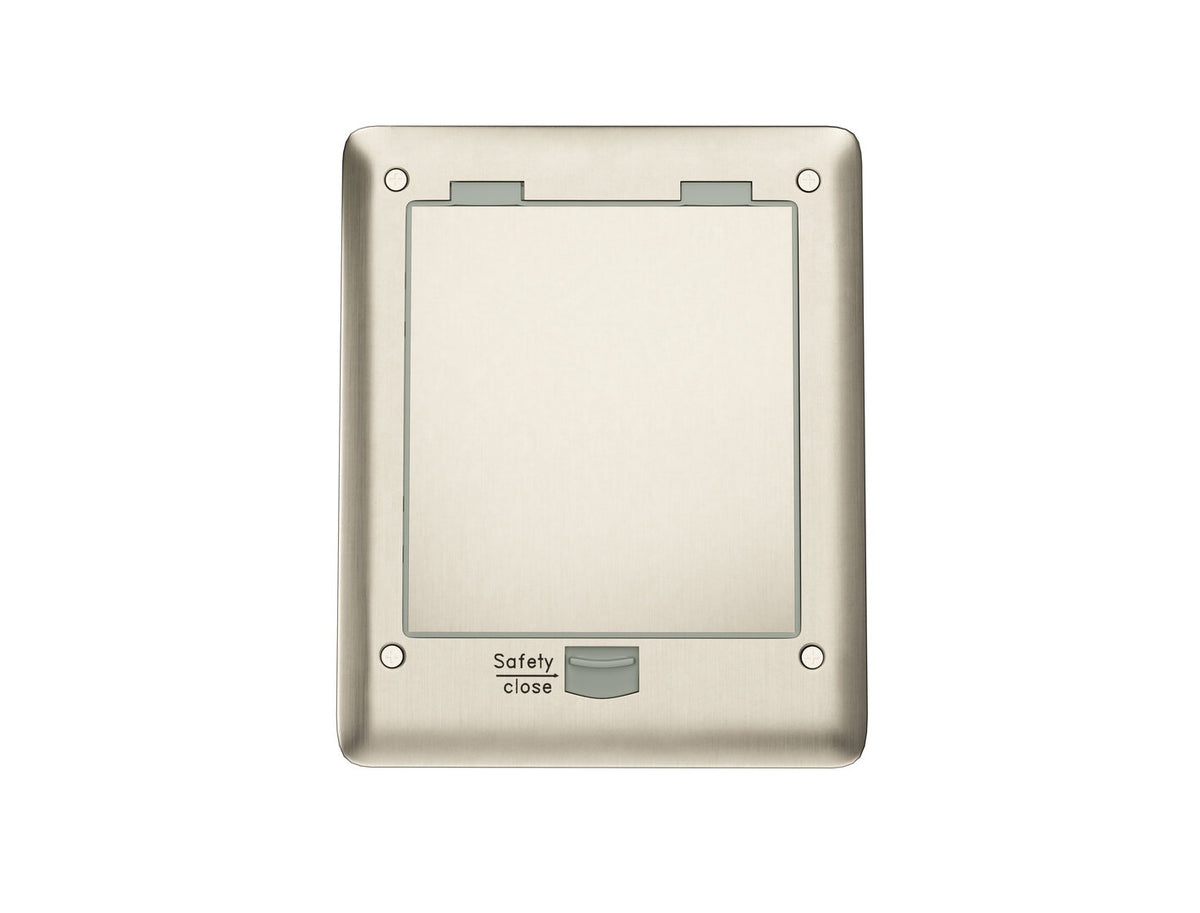

It also offers a high degree of flexibility in everyday use, as the cover can be completely recessed when not in use, making it very discreet. The cover is lockable and therefore will not close on its own if this is not desired.

For installation in screed, a so-called protective cover is required. This is included in the delivery.

Optionally, a height extension can be used if the box is not high enough for the floor construction.

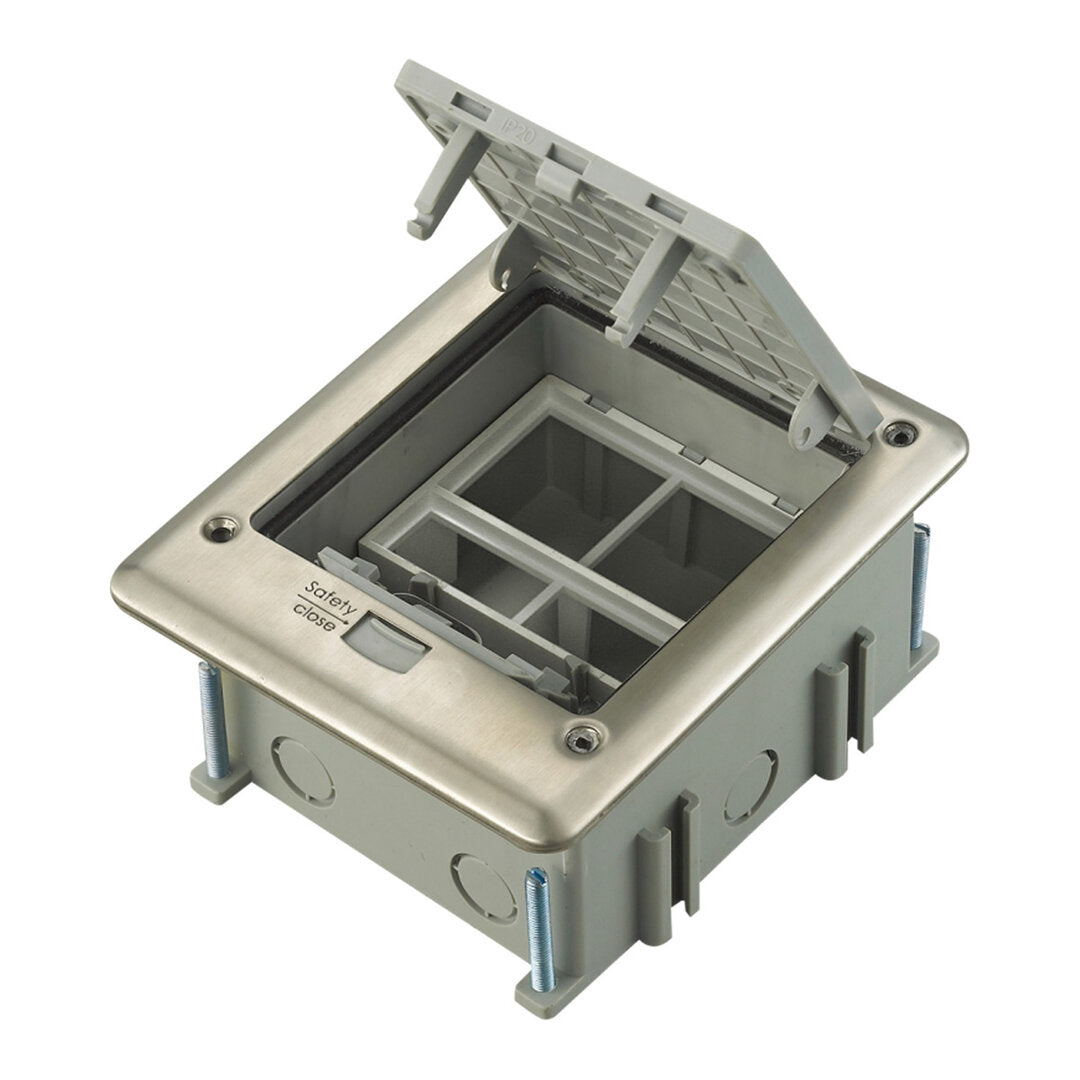

The inserts are snapped into the unscrewable device cup and then connected. Finally, the stainless steel cover is screwed on.

Questions? Call us or send us an email.
We are happy to advise you!

Technical data:

• Protection rating: IP66
• Material: Brushed stainless steel
• Holes: 4
• Suitable for screed
• Number of device cups: 2

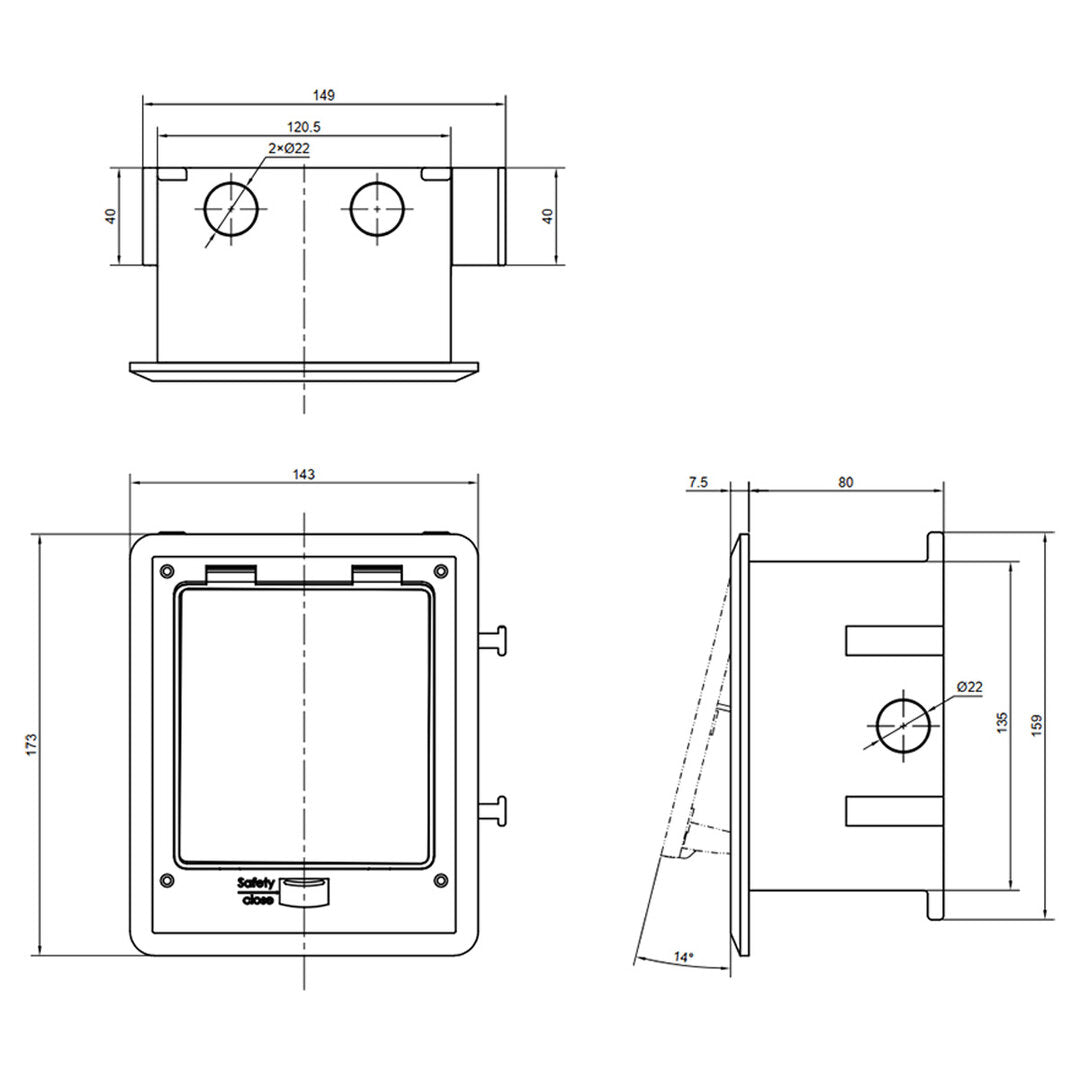

Dimensions:

Cover: 17.30 x 14.30 cm

Box: 13.50 x 12.05 cm

Cable hole dimensions: D-2.20 cm

Depth (box): 8.0 cm

Insert hole dimensions: 6.75 x 4.50 cm (2x)

Scope of delivery:

The following are included:

• 1x 2-compartment floor box
• 1x Separate protective cover for screed installation
• 4x Screws for stainless steel hinged cover
• 4x Screws for separate protective cover
• 2x VDE sockets, white
• 2x Blanking plates, white
