Wi-Fi Smart Home Control, Remote Control or Roller Shutter Switch

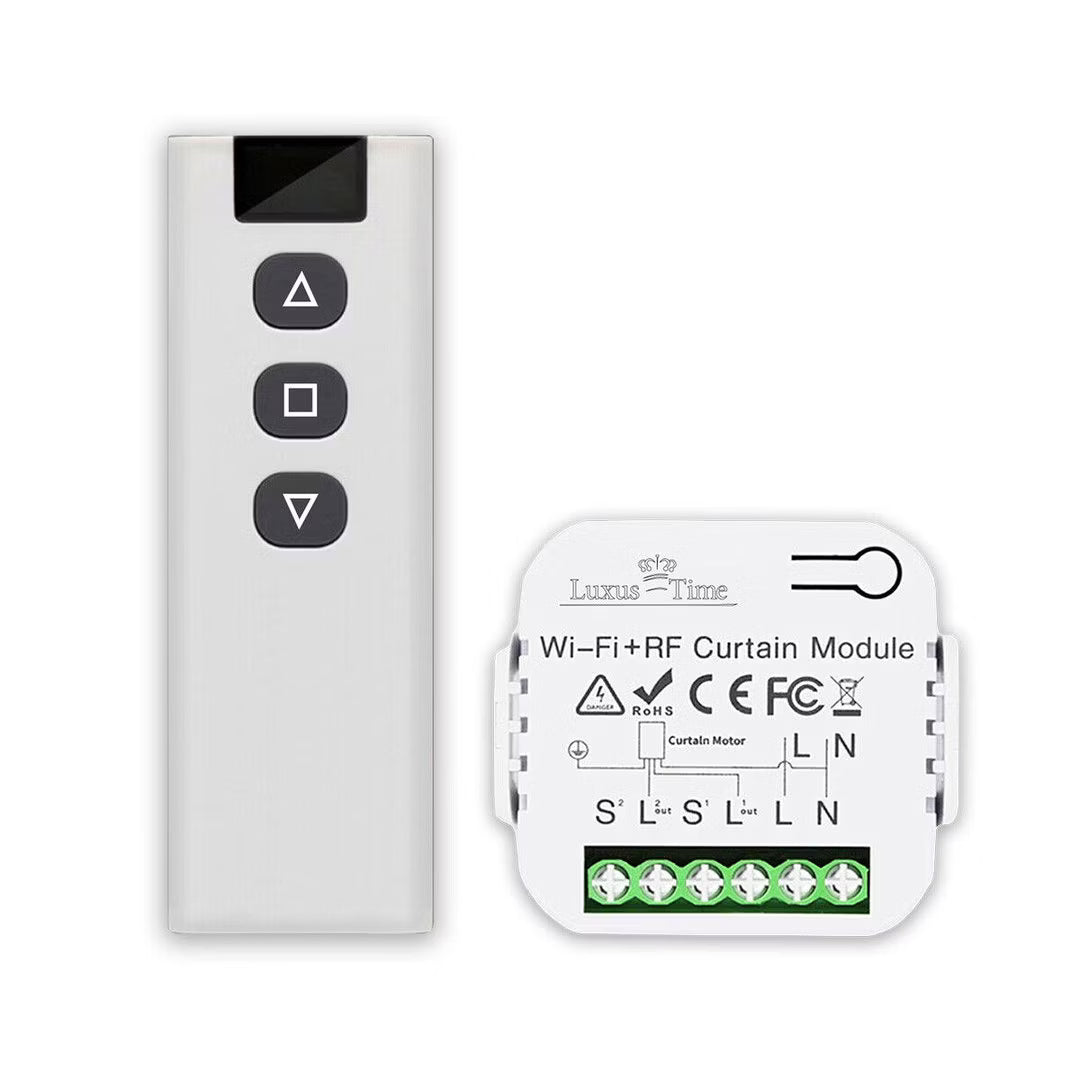

This is a Wi-Fi & radio module for controlling a roller shutter push button or roller shutter switch.

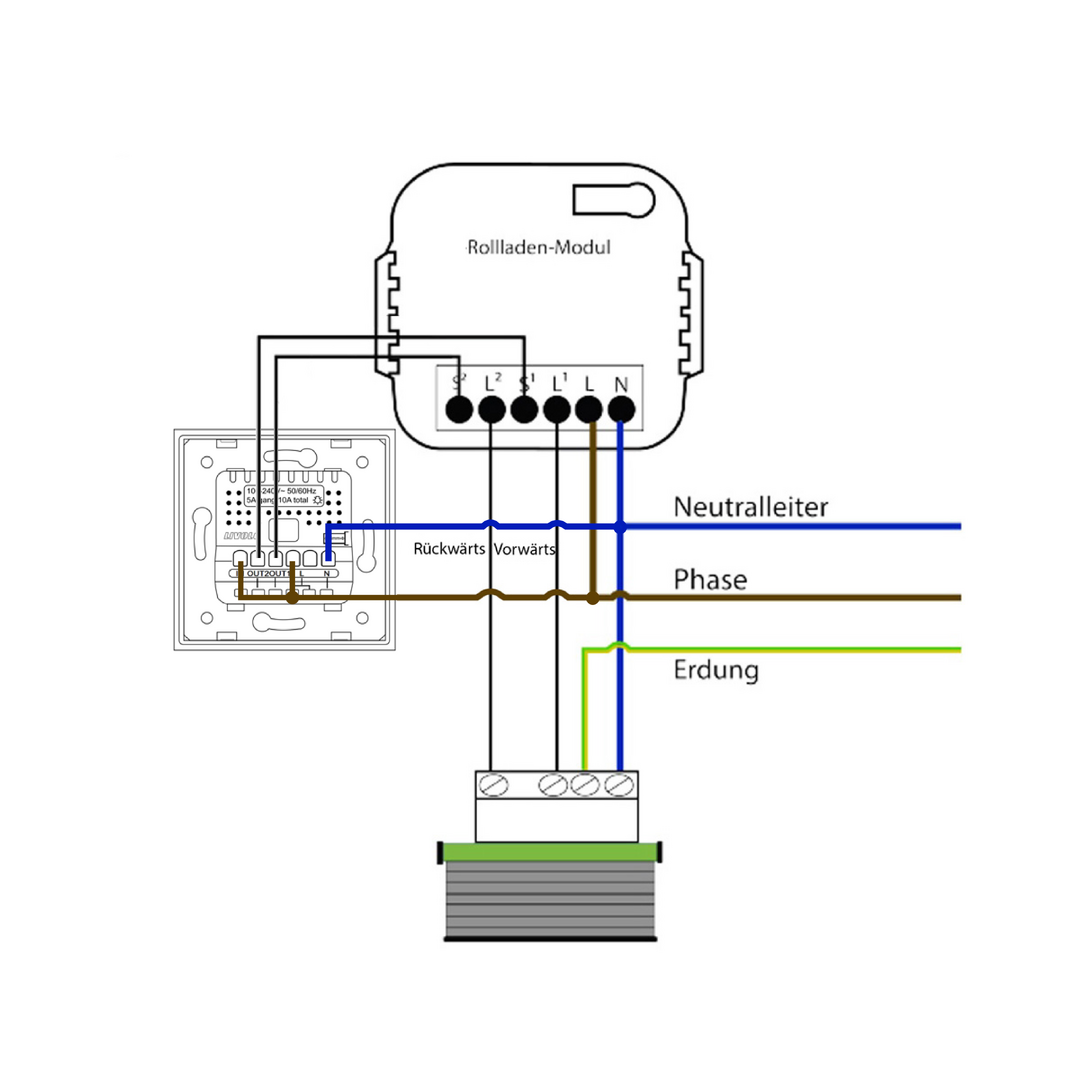

The module is connected to a double push button so that it can be controlled via smartphone and remote control.

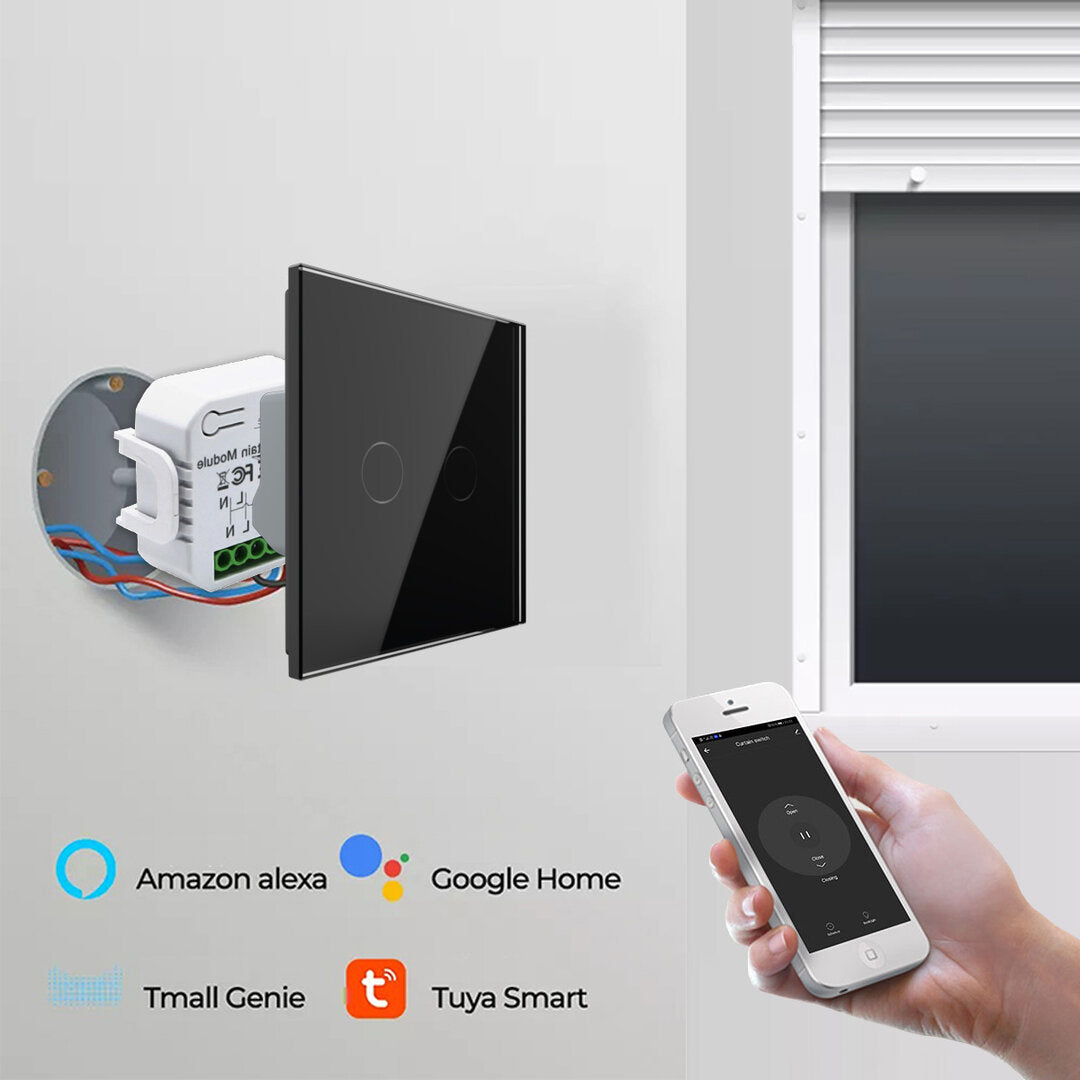

For this purpose, the receiver can be installed in the flush-mount box (min. 45mm depth) behind the switch.

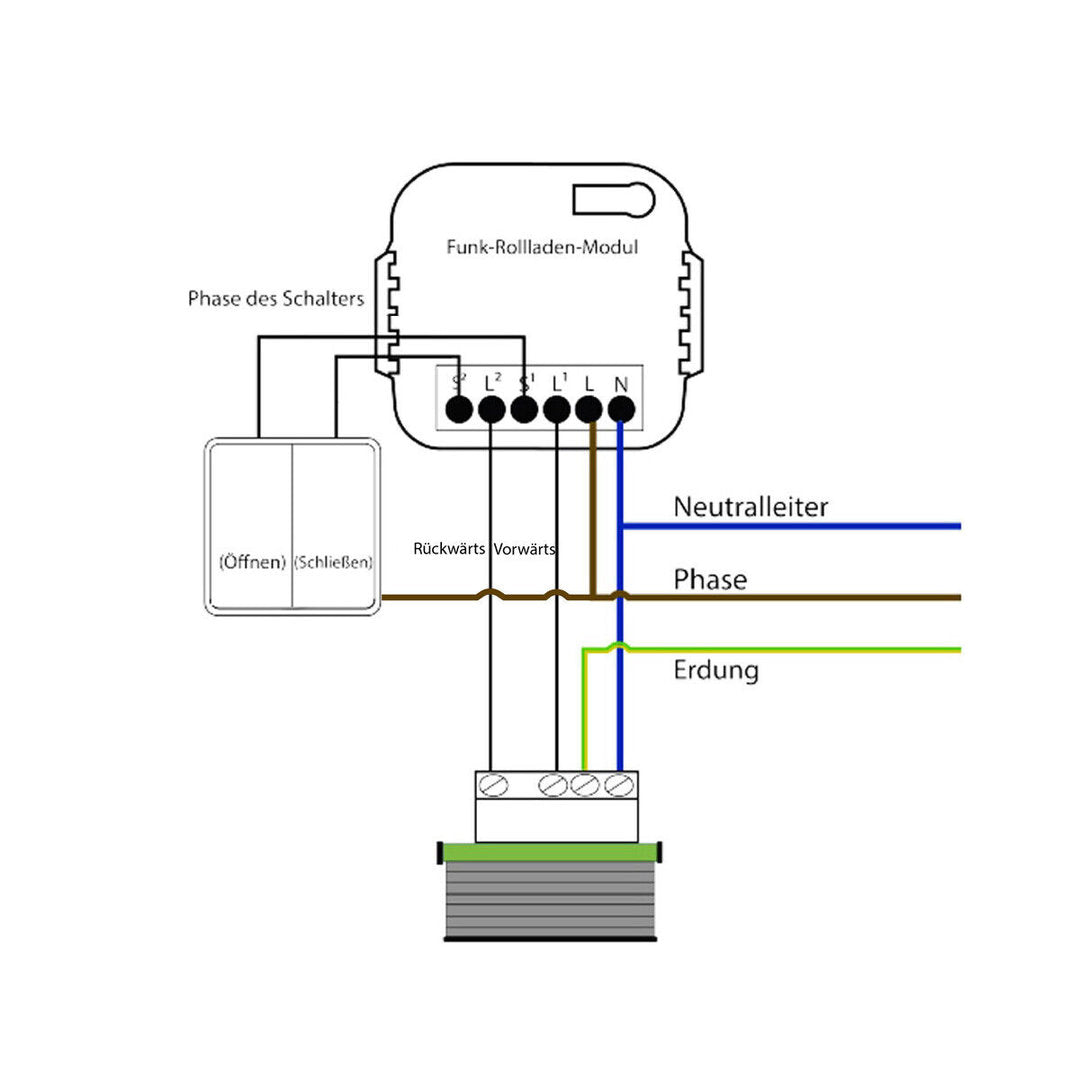

With a roller shutter switch and the module, an electric roller shutter motor can be controlled via app or via LX-WRC01-Controller remote control.

This module can be controlled via the "Tuya" / "SmartLife" app. This can be done without an additional gateway or HUB. Routines can also be set up in the app so that, for example, the roller shutter is lowered every day at a certain time.

Control via Google Home or Amazon Alexa is also possible.



Technical Data:

Module:

Rated current: 100 – 240 V, 50-60Hz

Max. load: 16A

Standby power consumption: 0.2W

Frequency: 433.92 MHz

Dimensions: 51 x 45 x 24 mm

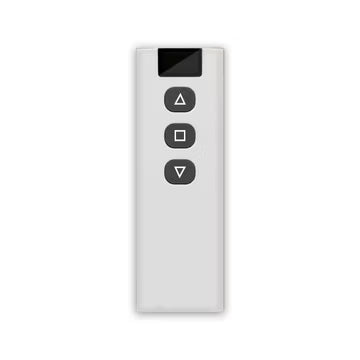

Remote control:

Battery: 23A 12V (not included)

Frequency: 433.92 MHz

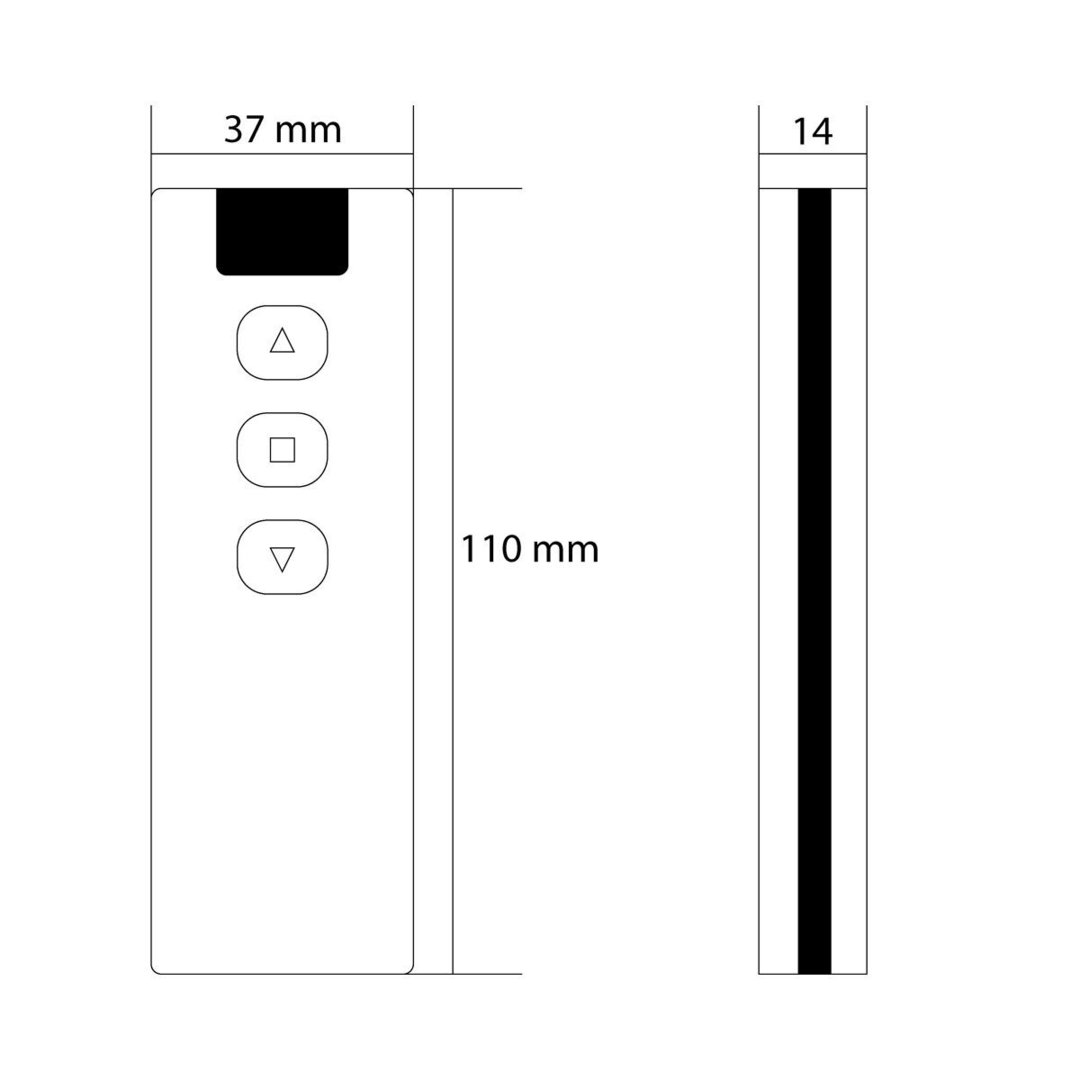

Dimensions: 110 x 37 x 12 mm

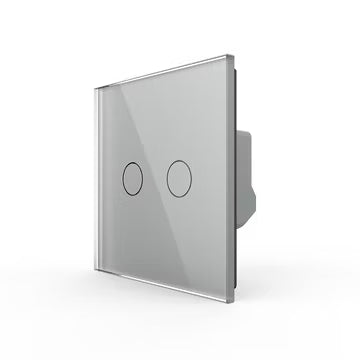

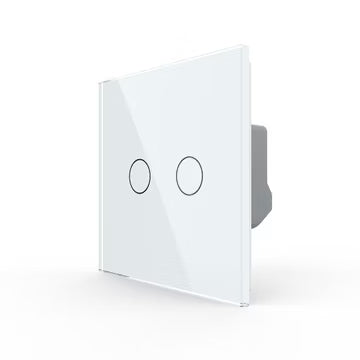

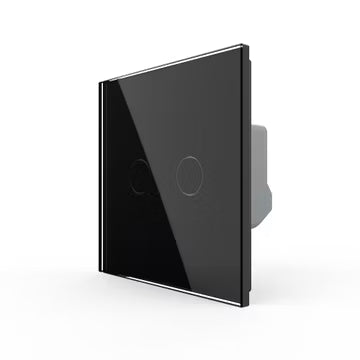

Roller shutter push button:

- Mains voltage: 230V / 50 Hz

- Switching capacity: up to max. 10A

Dimensions: 80mm x 80mm

Scope of delivery:

The scope of delivery includes:

Product, user manual according to order
