Livolo double network module LAN RJ45 patch CAT7 as end / through wall socket with glass cover in gold

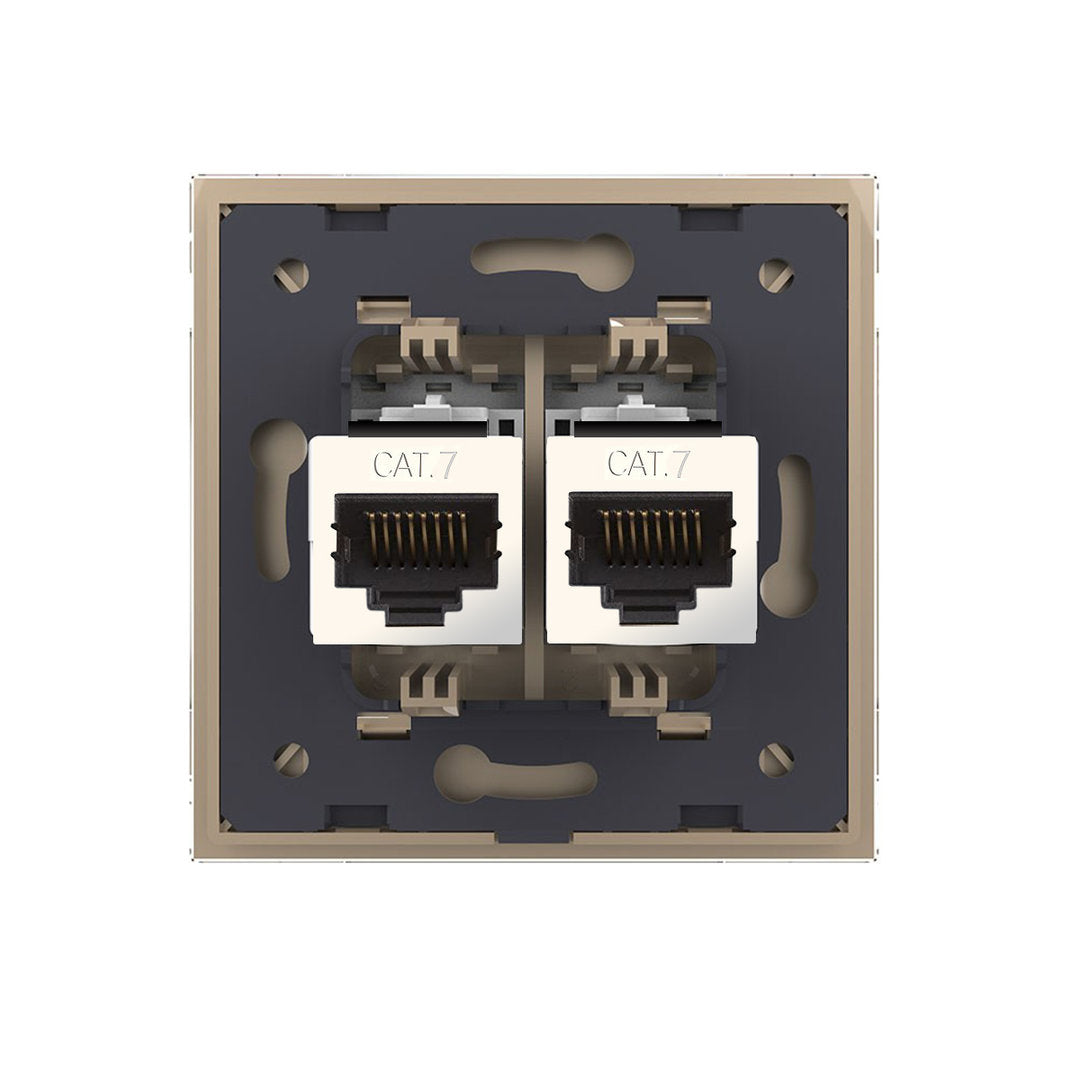

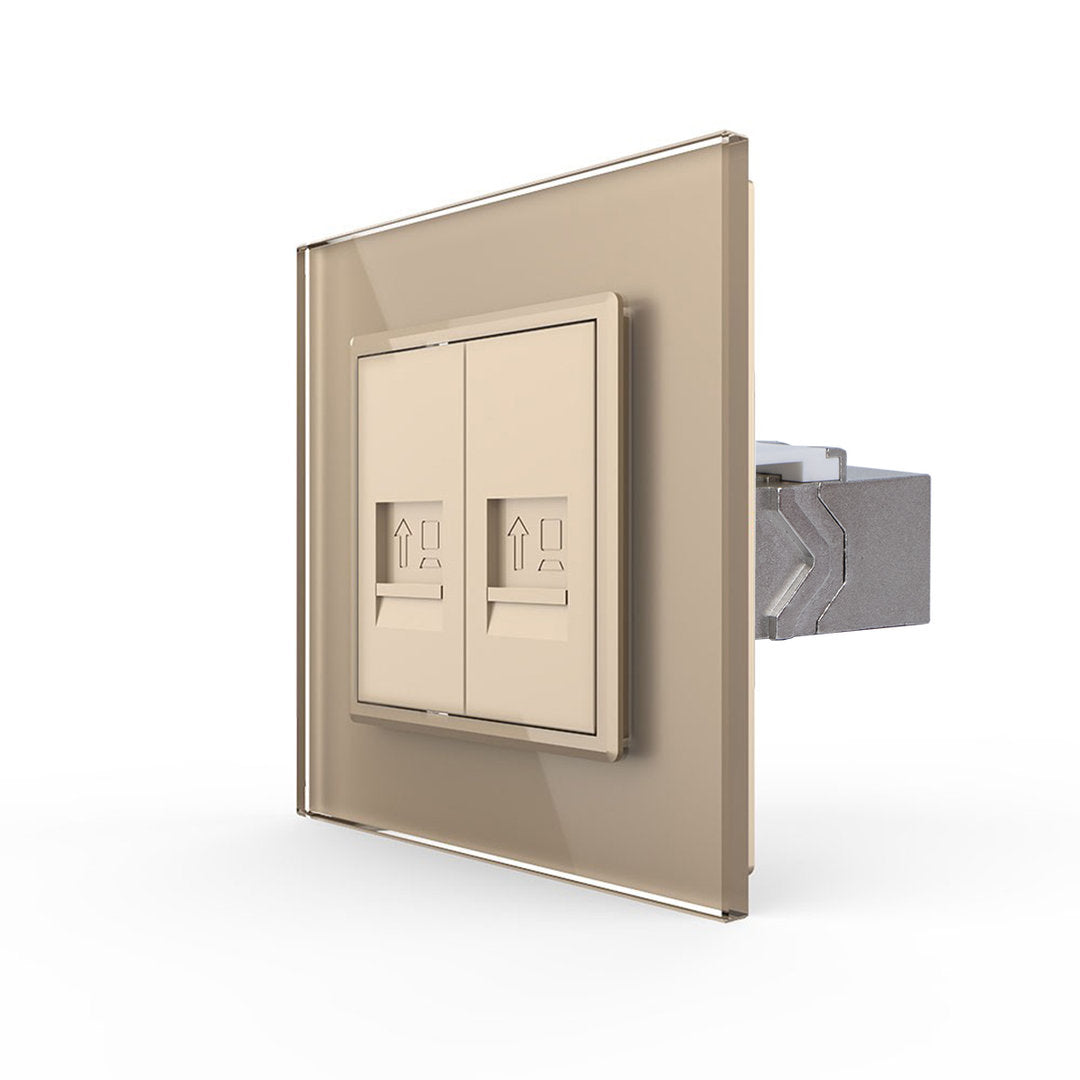

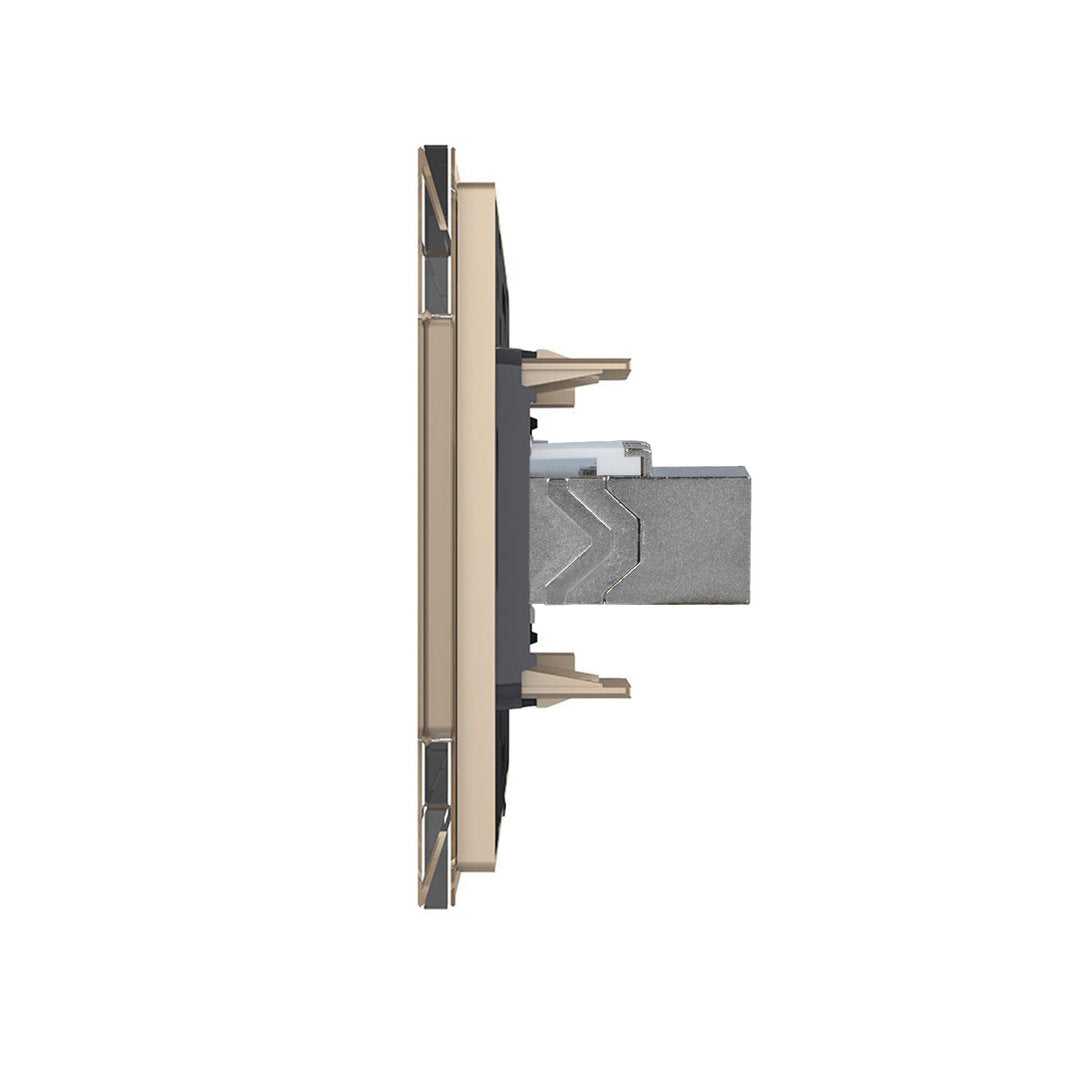

This is a double Livolo LAN module RJ45 (female) with a glass cover in gold.

It consists of two CAT7 modules, which allow you to connect smart devices to the router via a stable, wired connection, for example.

These modules feature 360° strain relief and the shielding of the modules supports transmission speeds of up to 10 Gbit/s and 500 MHz when CAT7 or higher cables are used. Suitable for a wire cross-section between AWG 22 – 24, RJ45 connections and installation without special tools.

Suitable for PoE+ (Power over Ethernet).

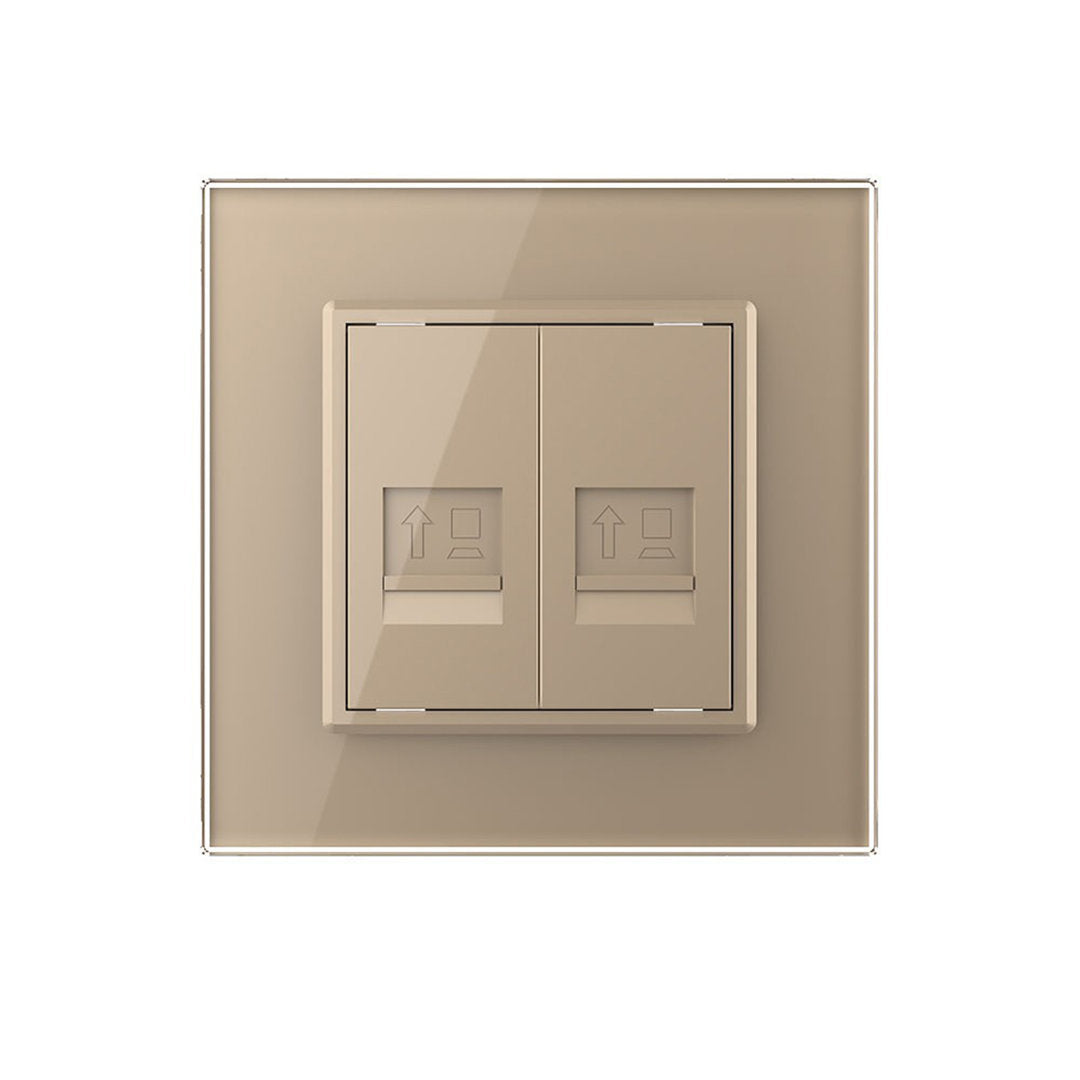

Thanks to the matching glass cover, this module becomes a real eye-catcher.

Easy and quick installation, both vertically and horizontally.

In our shop you will also find spreading claws (LG-01) in a 2-pack, for flush-mount boxes without screw-in possibility. Suitable for hollow walls and older houses (built before 1970). When using spreading claws, 68 mm large flush-mount boxes are better suited.

The modules are attached to the flush-mount boxes with screws using the metal frames.
Replacement is done like with other rocker switch manufacturers. Simply replace your old rocker switches with a new, durable design. The wiring remains the same.

The light switch and socket modules are suitable for flush-mount boxes with a diameter of 60-68 mm. The hole spacing for multi-gang covers is 71 mm.

With us you get the complete Livolo range; from a simple rocker light switch to a smart home-capable touch roller shutter switch.

Questions? Call us or send us an email.
We are happy to advise you!

Technical data:

Dust cap on the module (removable)

Suitable: for CAT7 – cables (Ø 6-10mm), backward compatible

IDC terminals for solid conductor: 0.51 - 0.64 mm Ø AWG 24-22

IDC terminals for a single conductor: 0.13-0.22 mm² AWG 26 (PE-Foamskin), AWG 24 (PE-solid)

Strain relief/shielding: 360°

Speed: 10 Gbit/s and 500 MHz

Wire cross-sections: AWG 22-24

Re-termination: 10 times

Misinsertion protection: RJ11/12

Compatible: RJ45 network cables

Dimensions:

Module:
71 x 71 x 40 mm

Glass cover:
80 x 80 x 8 mm

Scope of delivery:

The delivery includes:

- 1 x Livolo double network module insert, according to order

- 1 x Livolo glass cover, according to order

- User manual
