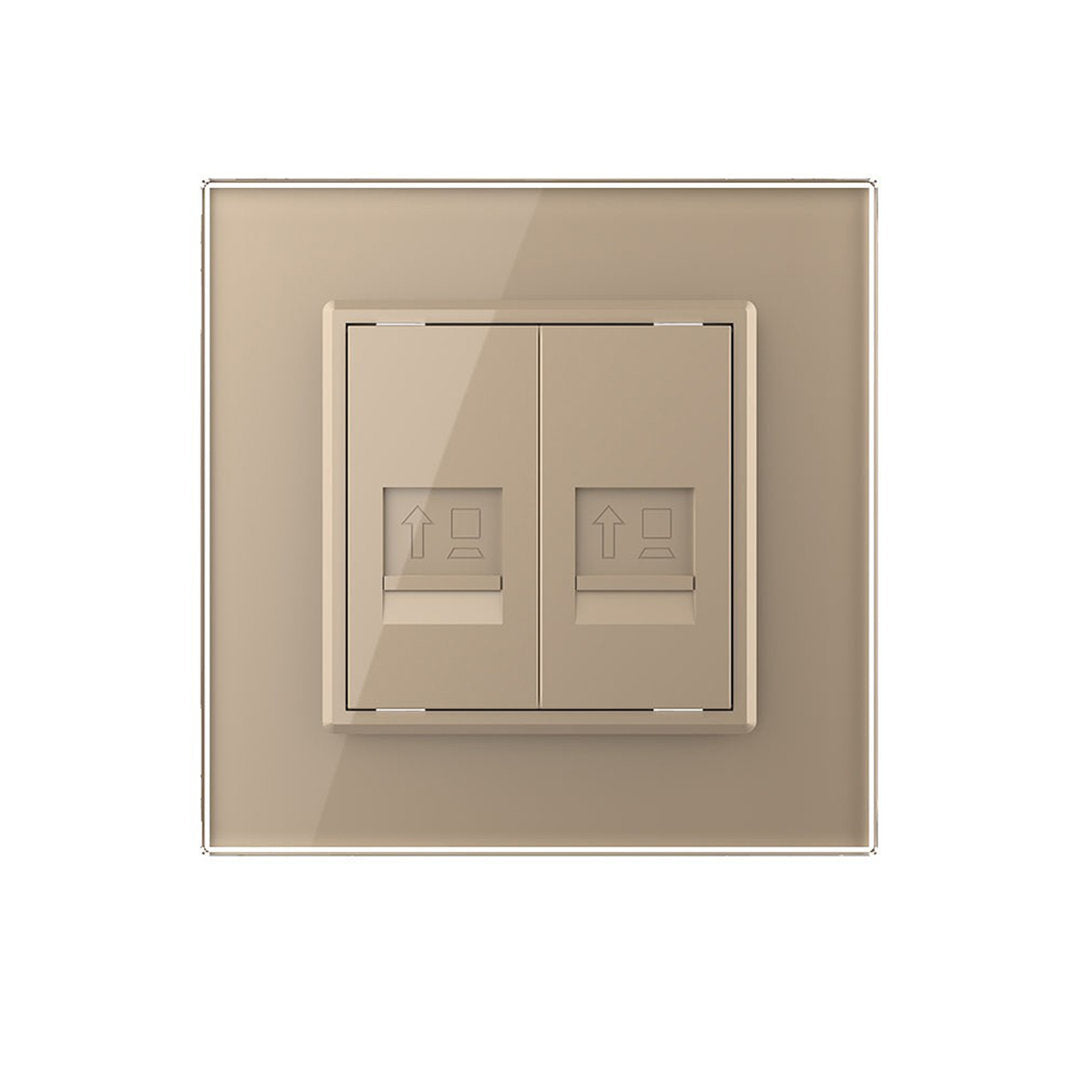

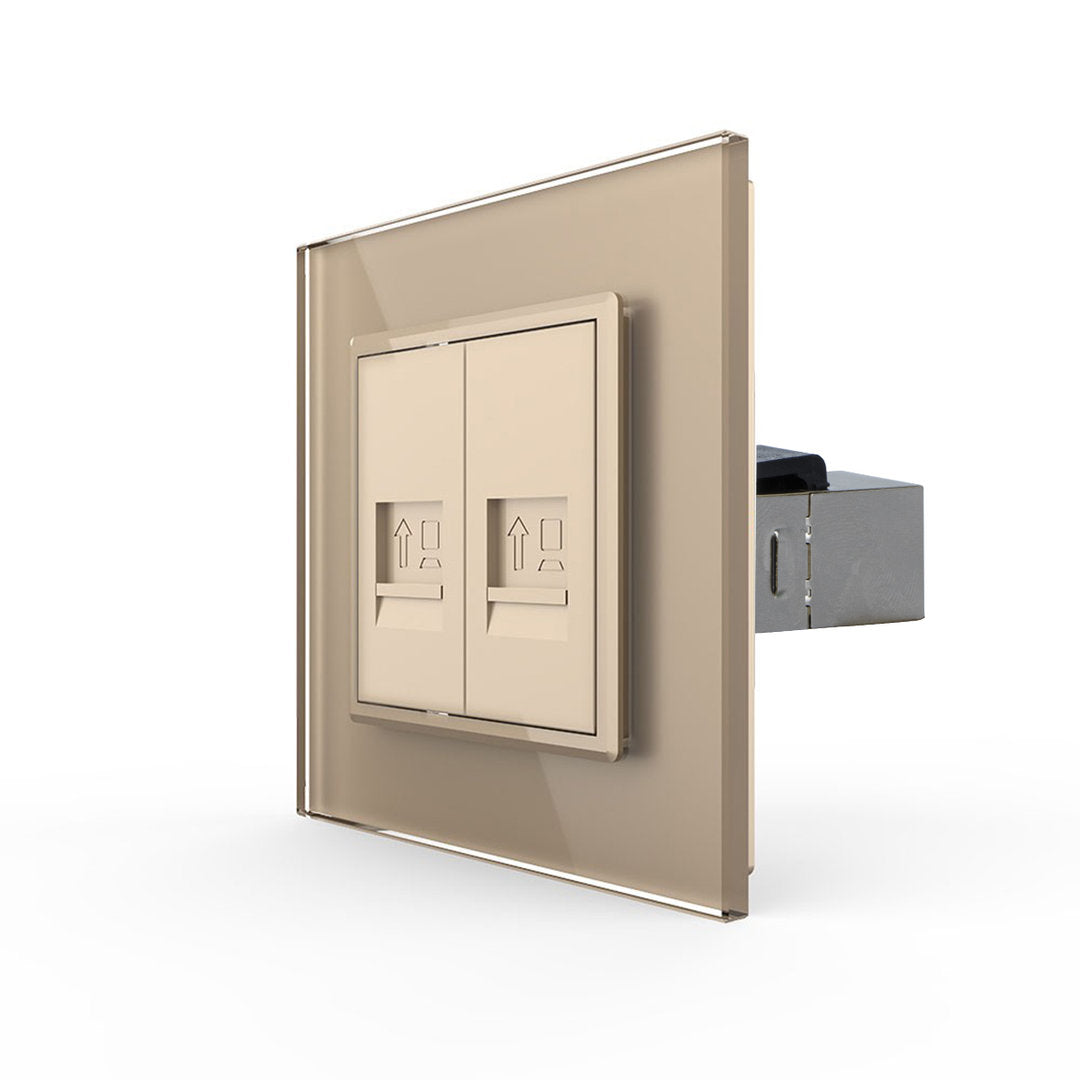

Livolo dual golden LAN module with glass frame

Livolo double LAN module as a terminal or junction box with glass cover in gold

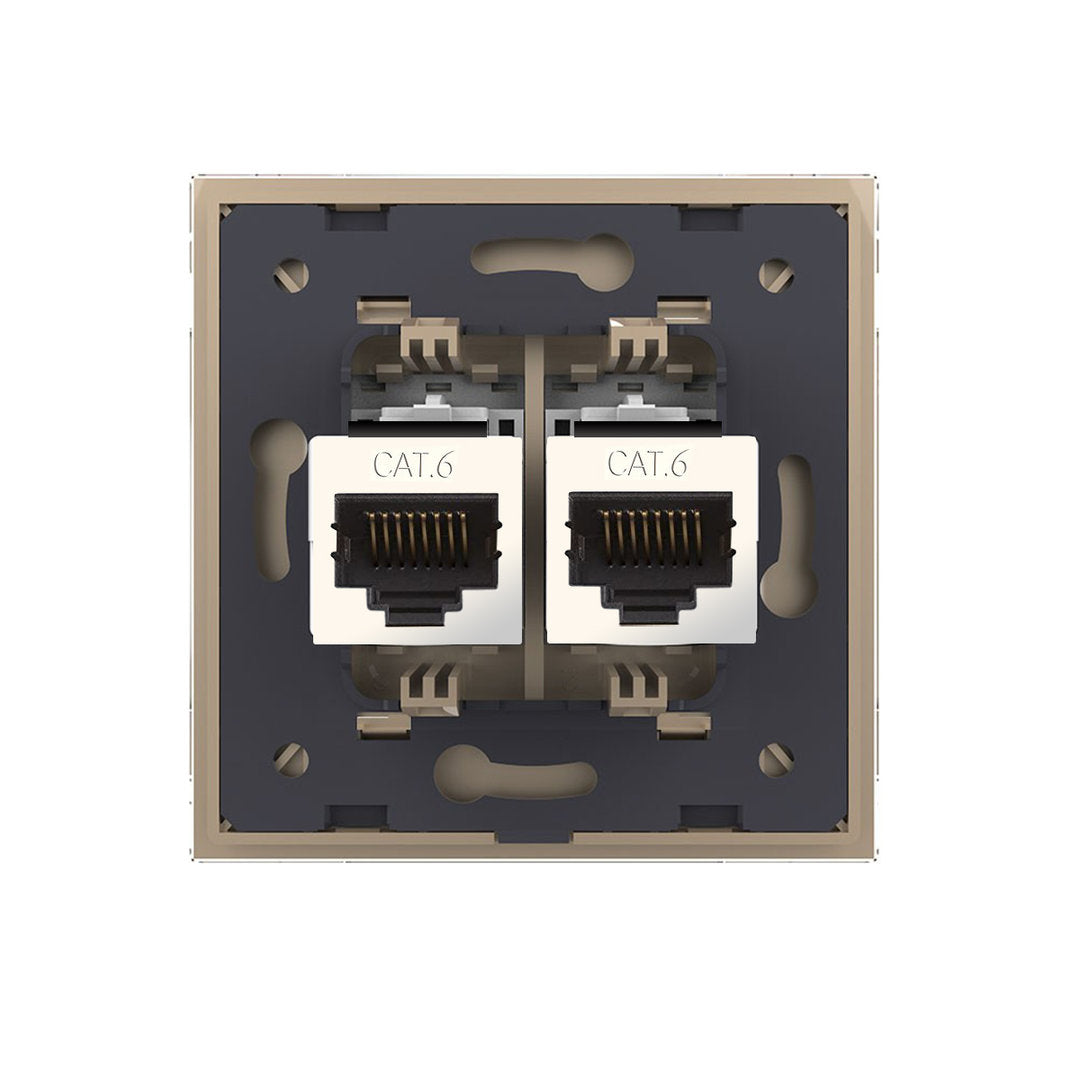

This consists of two CAT6 modules, which allow you to connect smart devices to the router via a stable, wired connection, for example. These modules can be used as both terminal and junction boxes.

The modules feature 360° strain relief, and the shielding of the modules supports transmission speeds of up to 10 Gbit/s and 500 MHz when CAT6A or higher cables are used. Suitable for a conductor cross-section between AWG 22–24, RJ45 connections, and installation is possible without special tools.

Suitable for PoE+ (Power over Ethernet).

The matching glass cover makes this module a real eye-catcher.

Easy and quick installation, both vertically and horizontally.

In our shop, you will also find spreading claws (LG-01) in a 2-pack, for flush-mount boxes without a screw-in option. Suitable for hollow walls and older houses (built before 1970). When using spreading claws, 68 mm flush-mount boxes are better suited.

The modules are attached to the flush-mount boxes with screws using the metal frames.
Replacement is carried out like with other rocker switch manufacturers. Simply replace your old rocker switches with a new, durable design. The wiring remains the same.

The light switch and socket modules are suitable for flush-mount boxes with a diameter of 60–68 mm. The hole spacing for multi-gang covers is 71 mm.

With us, you get the complete Livolo range, from a simple rocker light switch to a smart home-enabled touch roller shutter switch.

Questions? Call us or send us an email.
We are happy to advise you!

Technical data:

Dust cap on the module (removable)

Suitable for: Cat.6 and Cat.7 cables (Ø 6–10 mm)

IDC terminals for solid conductors: 0.51–0.64 mm Ø AWG 24–22

IDC terminals for a single conductor: 0.13–0.22 mm² AWG 26 (PE-Foamskin), AWG 24 (PE-solid)

Strain relief/shielding: 360°

Speed: 10 Gbit/s and 500 MHz

Conductor cross-sections: AWG 22–24

Re-termination: 10 times

Misinsertion protection: RJ11/12

Compatible: RJ45 network cables

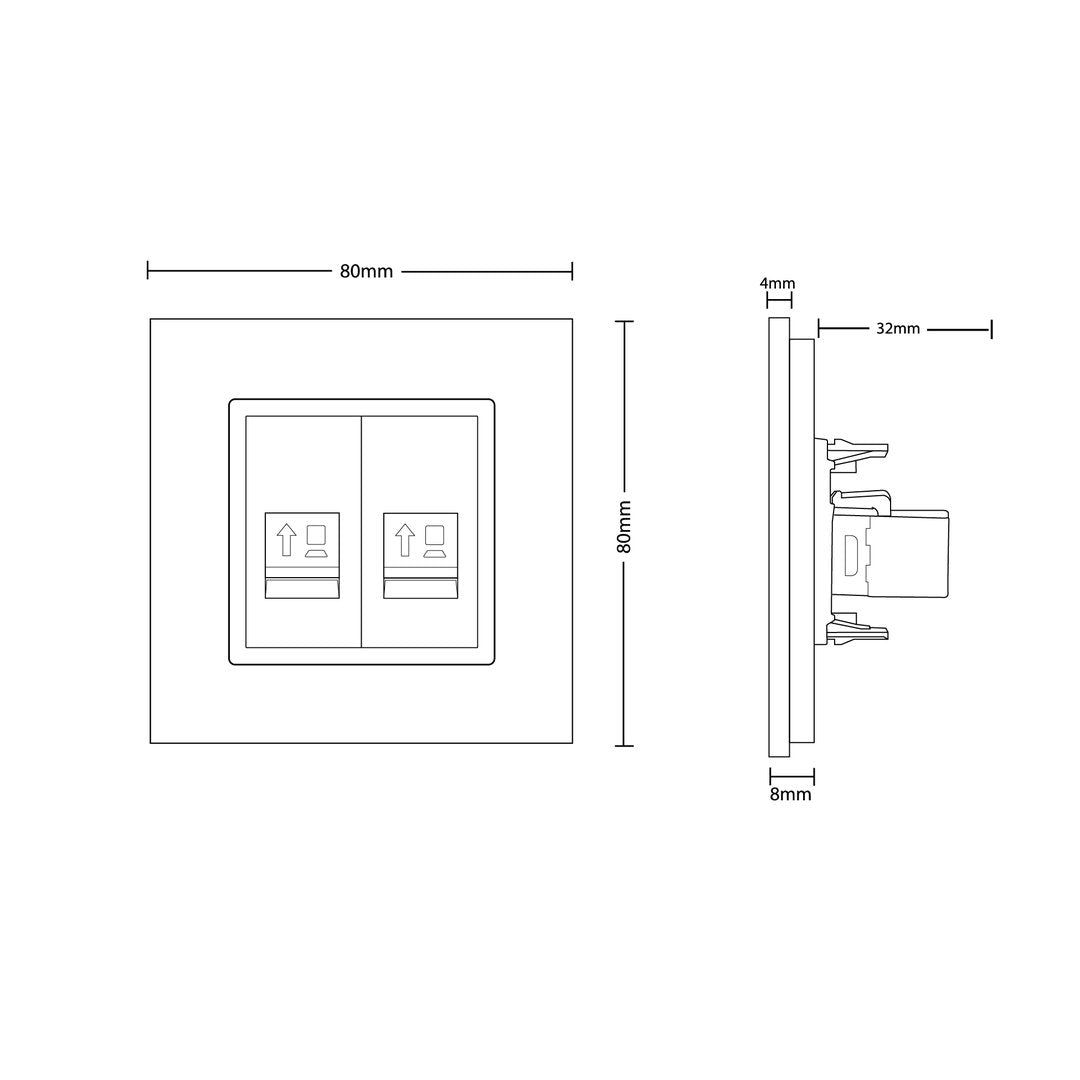

Dimensions:

Module:
71 x 71 x 30 mm

Glass cover:
80 x 80 x 8 mm

Scope of delivery:

The delivery includes:

- 1 x Livolo double network module insert, as ordered

- 1 x Livolo glass cover, as ordered

- User manual
