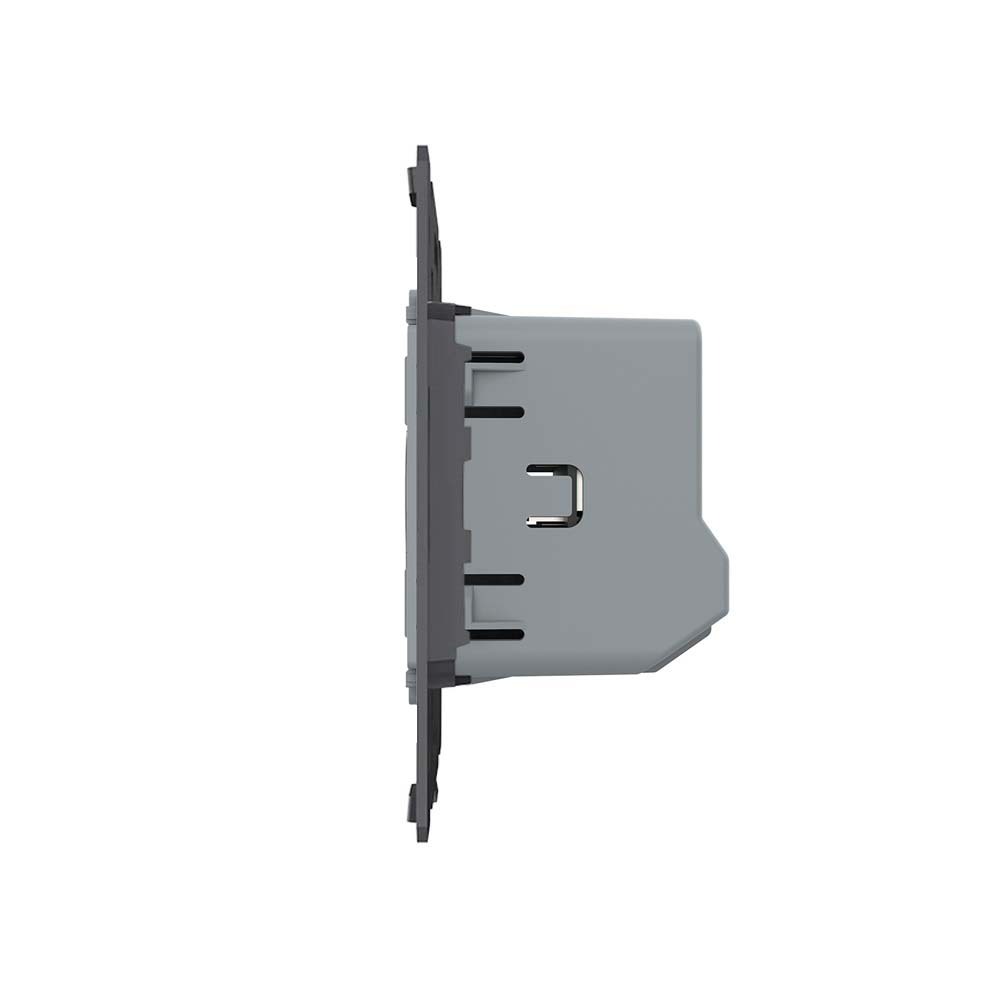

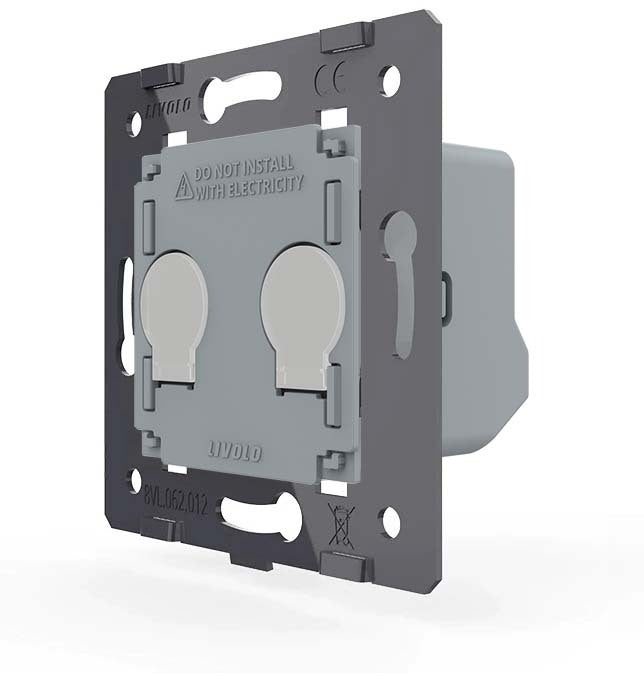

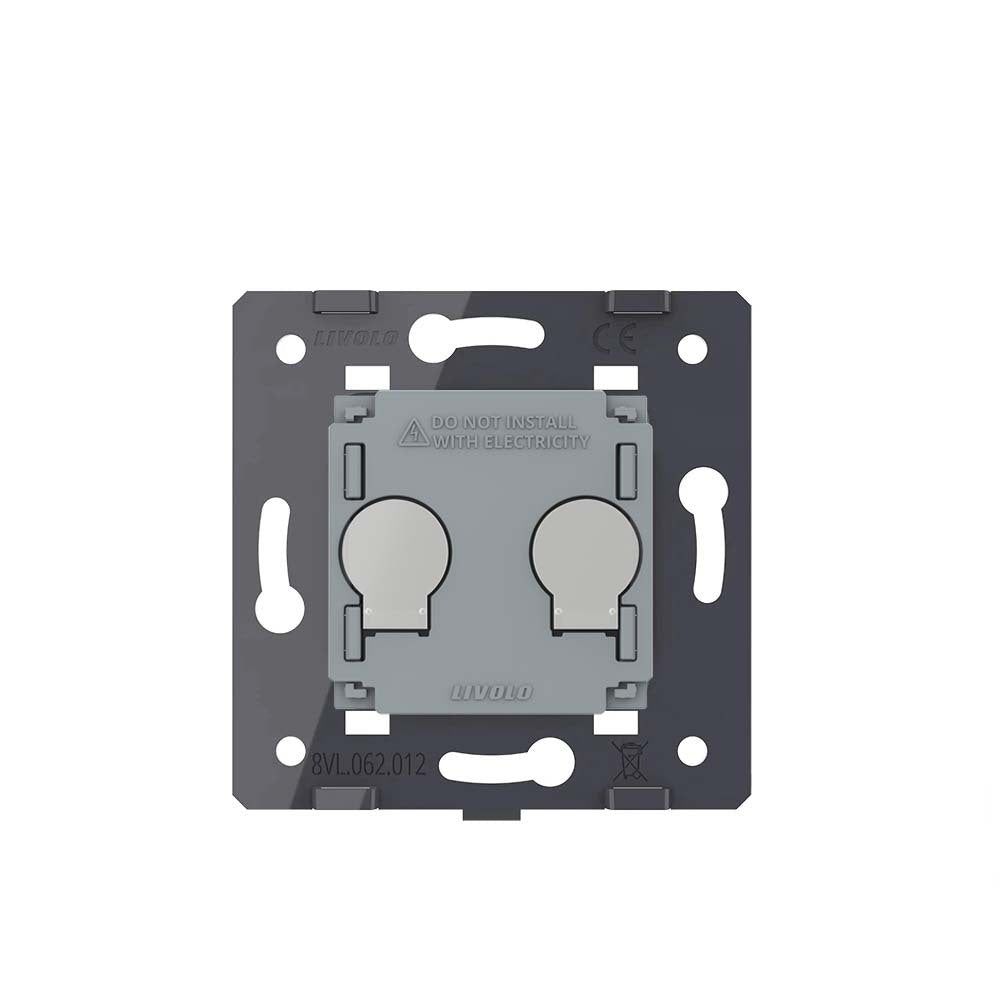

Livolo double dimmable two-way/intermediate switch module

Please note that this offer is for a module ONLY, WITHOUT a glass cover.

This is a double, dimmable Livolo two-way switch for switching two lights or groups of lights on and off. The module also features an intermediate switching function, so that the lights can be switched on and off from up to four switches.

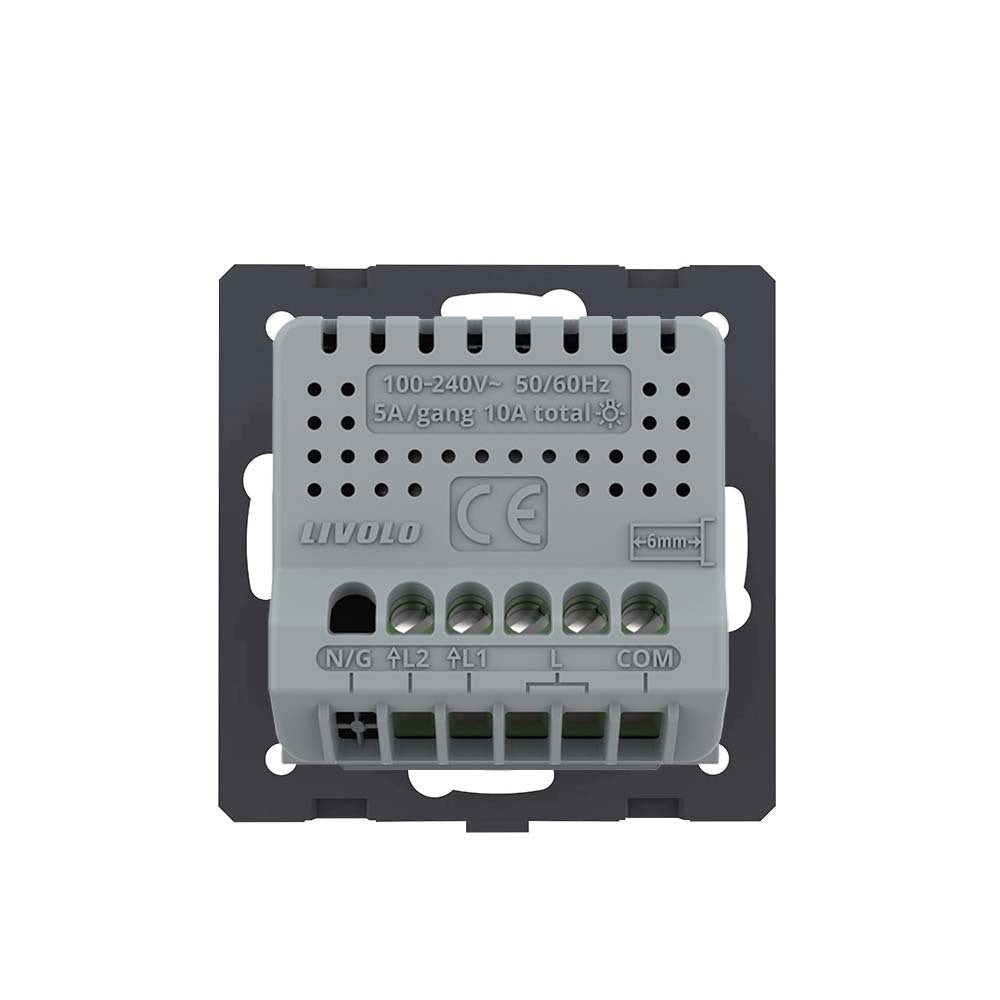

The Livolo touch two-way switches can also be used as intermediate switches. All corresponding cables of the additional touch two-way switches are connected together to the COM connection of the switch used as an intermediate switch.

Since synchronization (YouTube video) is required after connection, only Livolo touch two-way switches can be used within a two-way circuit.

You can find the synchronization instructions in the user manual.

Please note that only one dimmable switch can be used per two-way circuit.

In combination with the matching glass cover, this switch with modern sensor technology becomes a real eye-catcher.

Easy and quick installation, both vertically and horizontally.

The light switch is operated by lightly touching the circular surface. The contour of the touch surface is subtly illuminated, making it easy to operate at any time of day. It is especially easy to find the switch in the dark. In the ON mode, the border of the touch field lights up red, in the OFF mode blue.

To adjust the brightness of the light(s), press and hold the touch surface until the desired brightness is set.

Our touch light switches can be used with all types of lamps, including incandescent bulbs, halogen lamps & energy-saving bulbs. Exception: LED strips.

It is a trailing edge dimmer.

Attention: Resistance adapters must not be used with dimmers. This poses a risk of overload.

For our LED ceiling spotlights, you do not need a resistance adapter!

The LED ceiling spotlights are compatible with all our Livolo switches.

In our shop you will also find spreading claws (LG-01) in a pack of 2, for flush-mount boxes without a screw-in option. Suitable for hollow walls and older houses (built before 1970). When using spreading claws, 68 mm flush-mount boxes are better suited.

The modules are attached to the flush-mount boxes with screws using the included metal frame.

The replacement is carried out like with other rocker switch manufacturers. Simply replace your old rocker switches with a new, durable design. The wiring remains the same.

The light switch and socket modules are suitable for flush-mount boxes with a diameter of 60-68 mm. The hole spacing for multiple covers is 71 mm.

With us you get the complete Livolo range; from a simple rocker light switch to a smart home-capable touch roller shutter switch.

Questions? Call us or send us an email.
We are happy to advise you!


Technical data:

Operating voltage: AC110~250V, 50Hz60Hz

max. current per channel: 2.5A

Power load: 2000W

max. power per channel: 500W/220V or 250W/120V

Standby power consumption: less than 0.1mW

Service life over 100,000 times

Dimensions:

71 x 71 x 34 mm

Scope of delivery:

The delivery includes:

- 1 x Livolo touch switch internal component, according to order

- User manual

Attention, internal component only! You can find the matching glass covers in our shop!

Installation info: the connection is made WITHOUT power and without the glass cover; after installation, you can place the glass cover and switch the power back on. Let the touch switch rest for 3 minutes before operating it. After the time has elapsed, the light switch can be operated. If you do not follow these instructions, the light switch may not respond.
