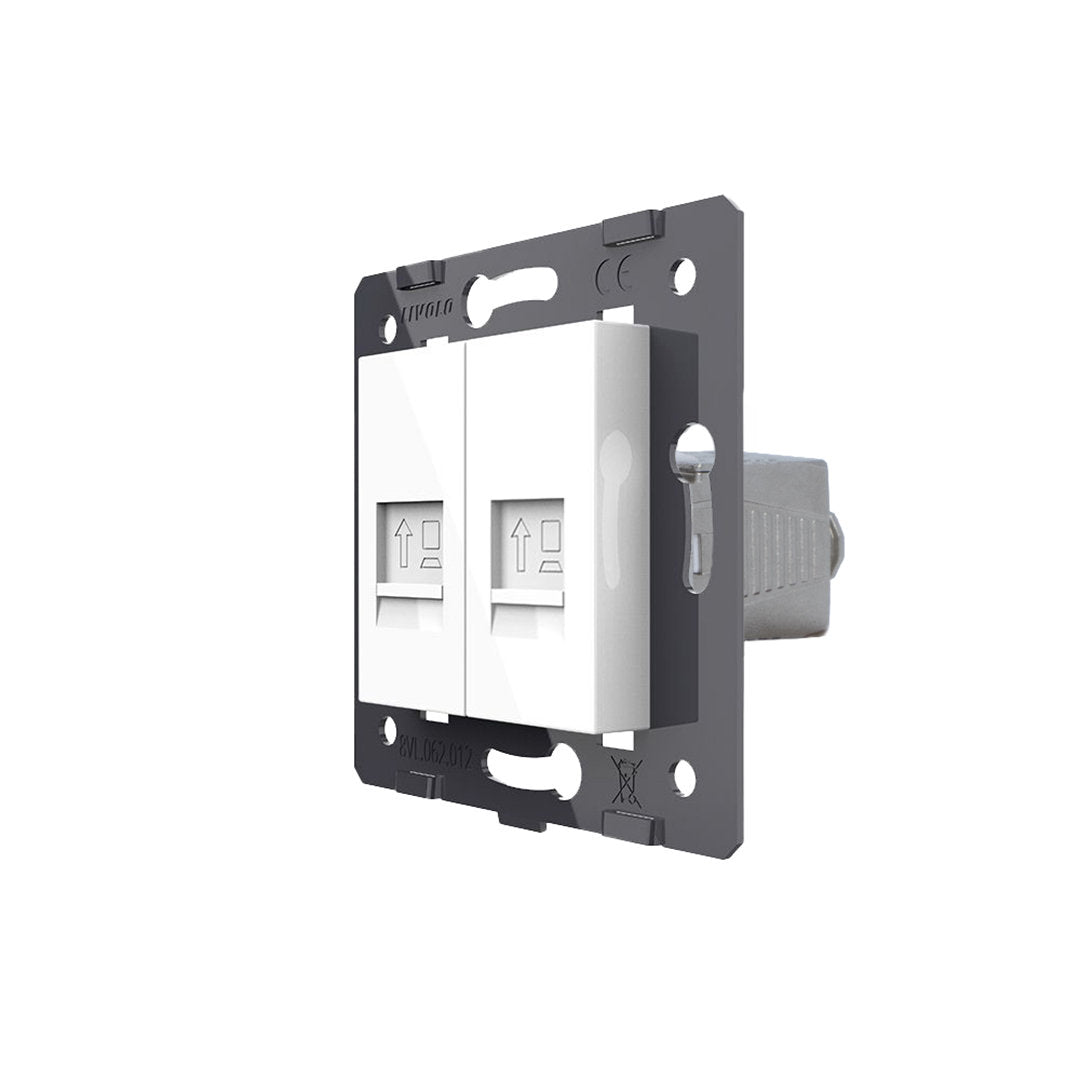

Livolo double CAT8 LAN module for wiring

Please note that this offer is for the module only, WITHOUT the glass cover.

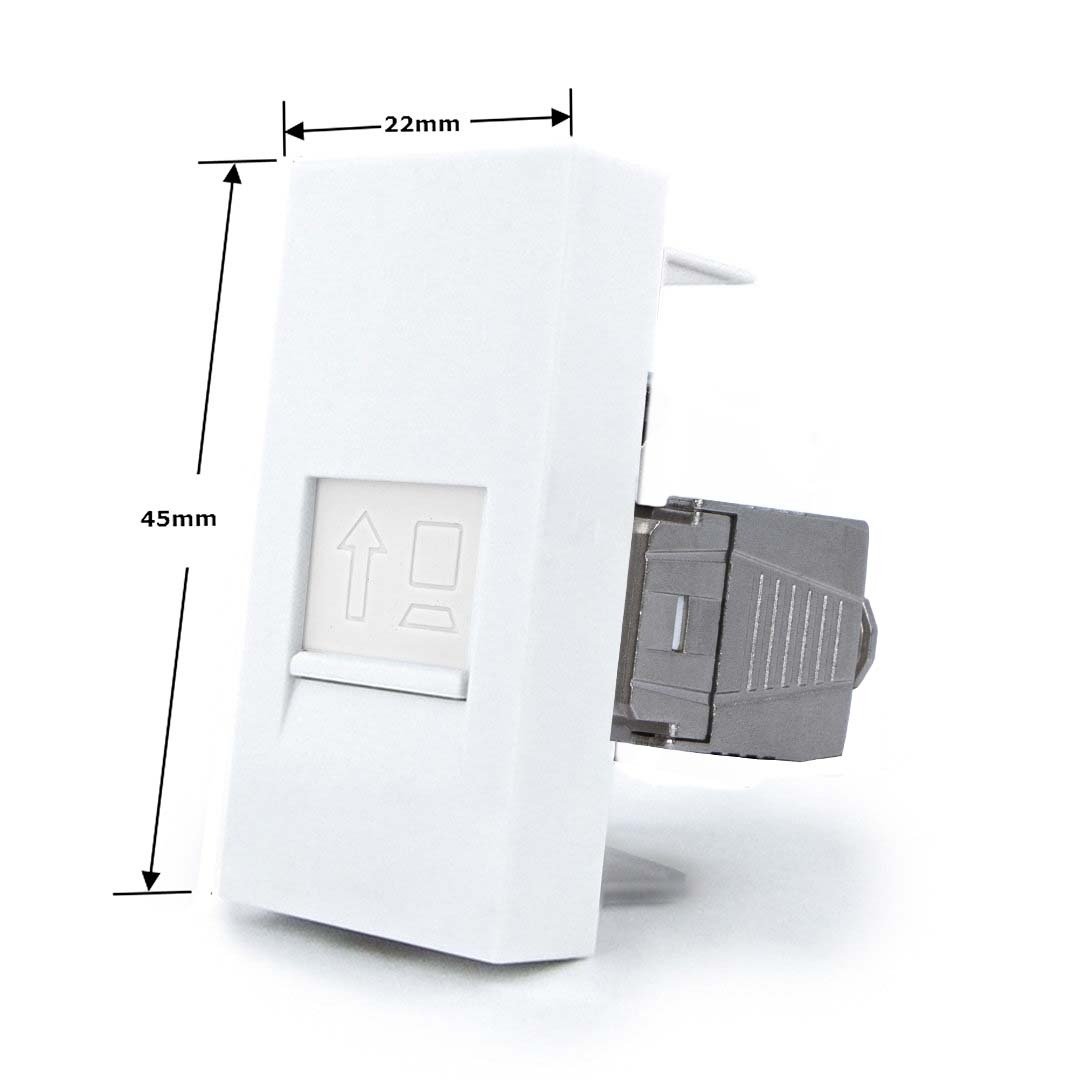

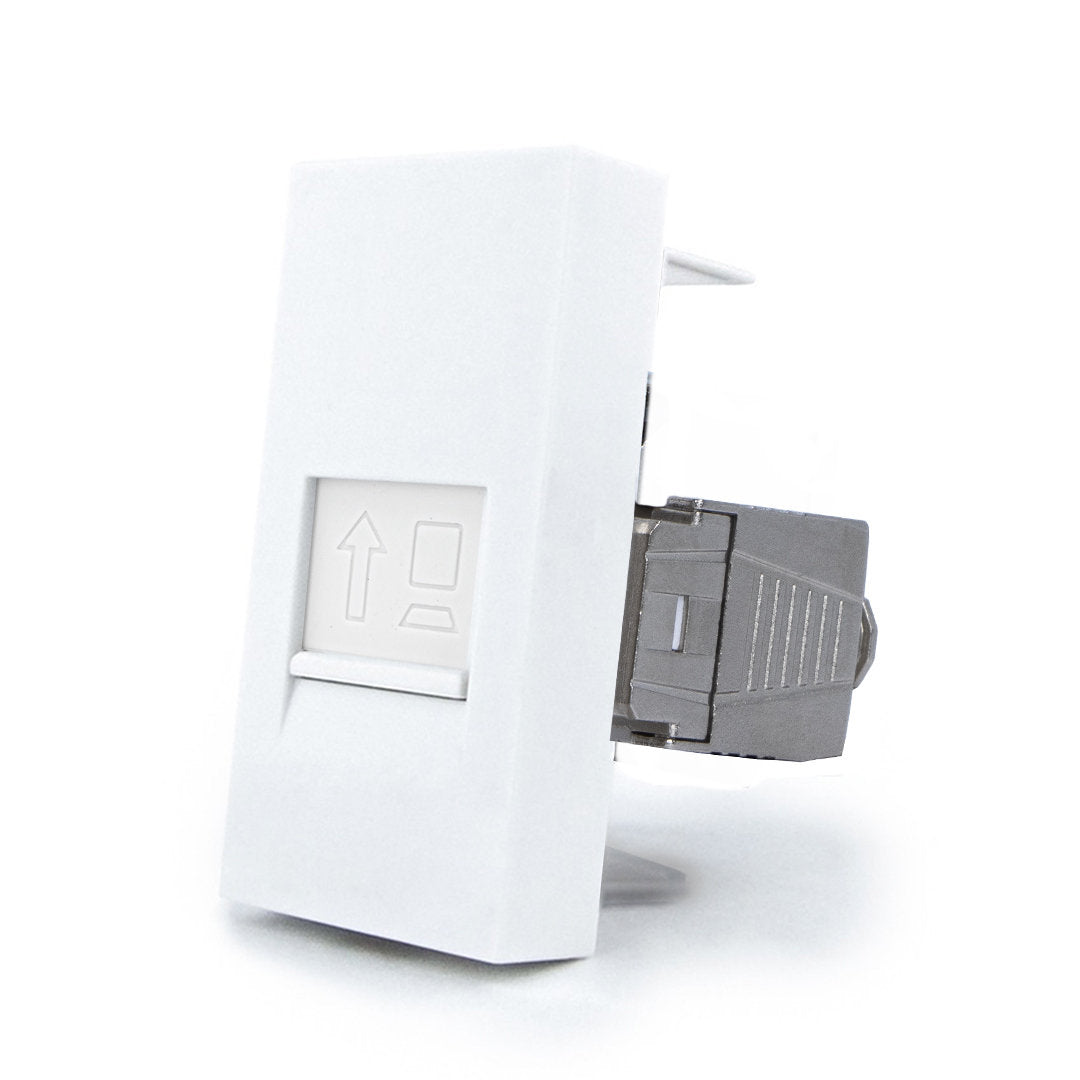

This is a double Livolo LAN module in white for self-wiring. It consists of two CAT8 modules, which allow you to connect smart devices to the router via a stable, wired connection, for example.

These modules feature 360° strain relief, and the module shielding supports transmission speeds of up to 40 Gbit/s and 2000 MHz when CAT8 cables are used. Suitable for wire gauges between AWG 22 and 24, and can be installed without special tools.

Suitable for PoE+ (Power over Ethernet). For maximum usable speed, the cable length should not exceed 30 m.

In combination with the matching glass cover, this module becomes a real eye-catcher.

Easy and quick installation, both vertically and horizontally.

In our shop, you will also find spreading claws (LG-01) in a 2-pack, for flush-mount boxes without screw mounting. Suitable for stud walls and older buildings (built before 1970). When using spreading claws, 68 mm flush-mount boxes are better suited.

The modules are attached to the flush-mount boxes using screws and the metal frames.
Replacement is carried out like with other rocker switch manufacturers. Simply replace your old rocker switches with a new, durable design. The wiring remains the same.

The light switch and socket modules are suitable for flush-mount boxes with a diameter of 60-68 mm. The hole spacing for multi-gang covers is 71 mm.

With us, you get the complete Livolo range; from a simple rocker light switch to a smart home-enabled touch roller shutter switch.

Questions? Call us or send us an email.
We are happy to advise you!

Technical data:

Dust cap on the module (removable)

Suitable for: CAT8 cables (Ø 6-10mm), backward compatible

Speed: 40 Gbit/s and 2000 MHz

Wire gauges: AWG 22-24

Re-terminable: 10 times

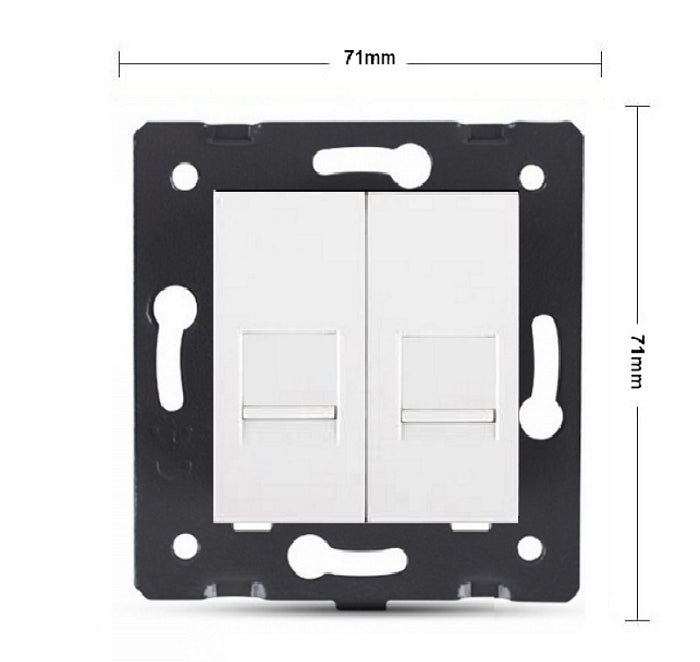

Dimensions:

71 x 71 x 40 mm

Scope of delivery:

The delivery includes:

- 1 x Livolo double network module insert, as ordered

- Operating instructions

Attention: insert only! You can find the matching glass covers in our shop!
