Livolo Rocker Dimmer for LED Lights

Please note that this offer is for a module ONLY, WITHOUT a glass cover.

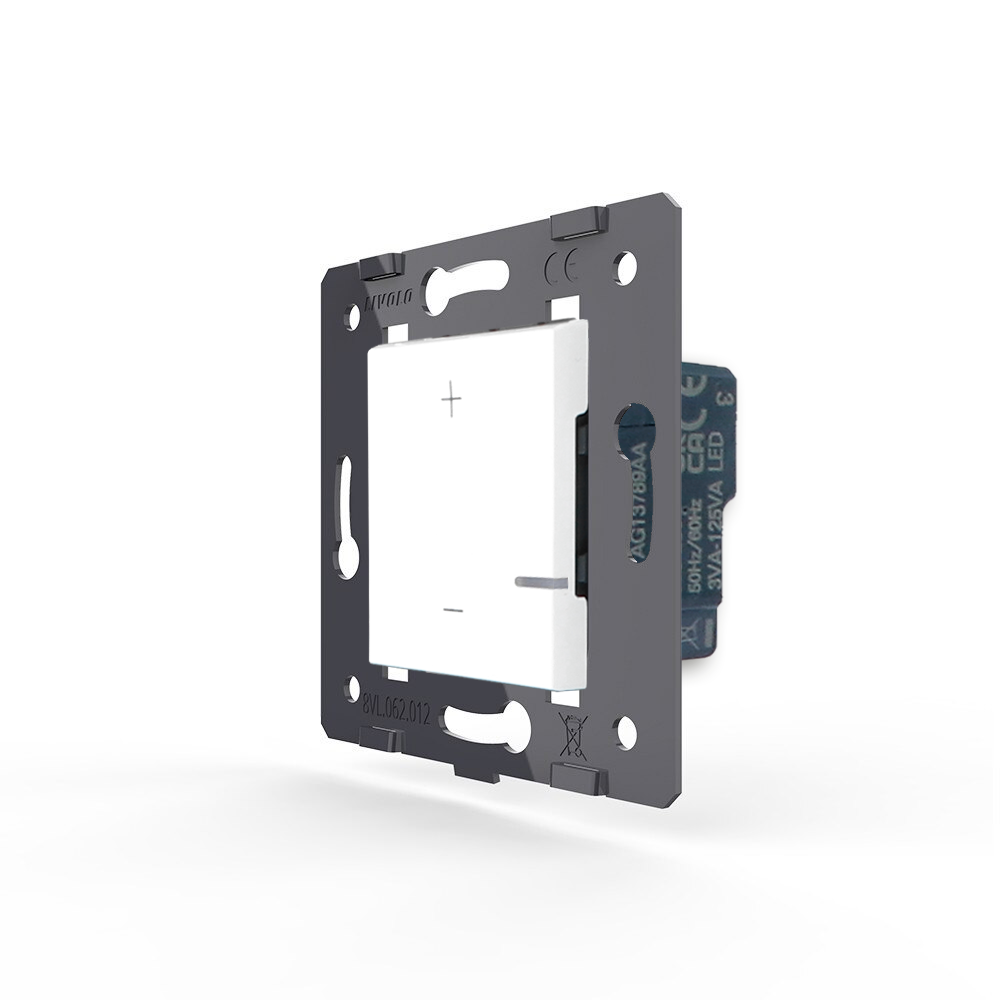

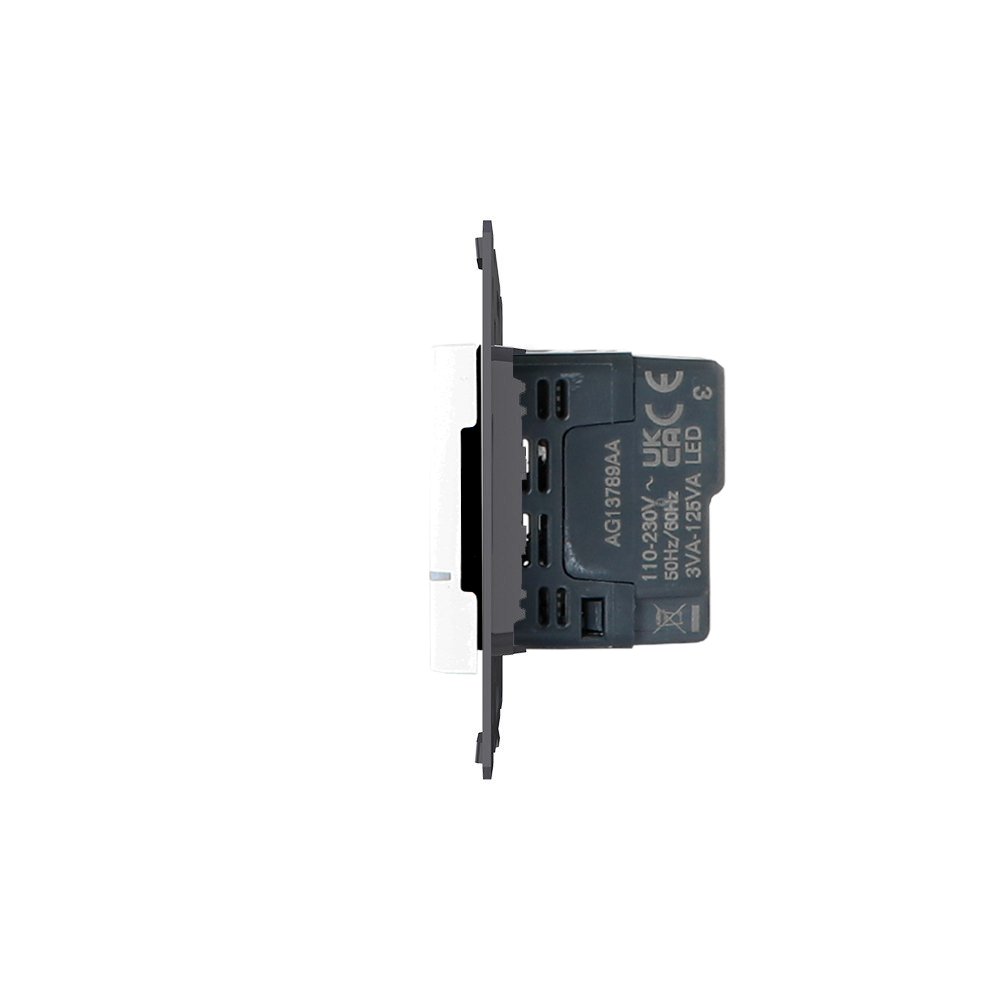

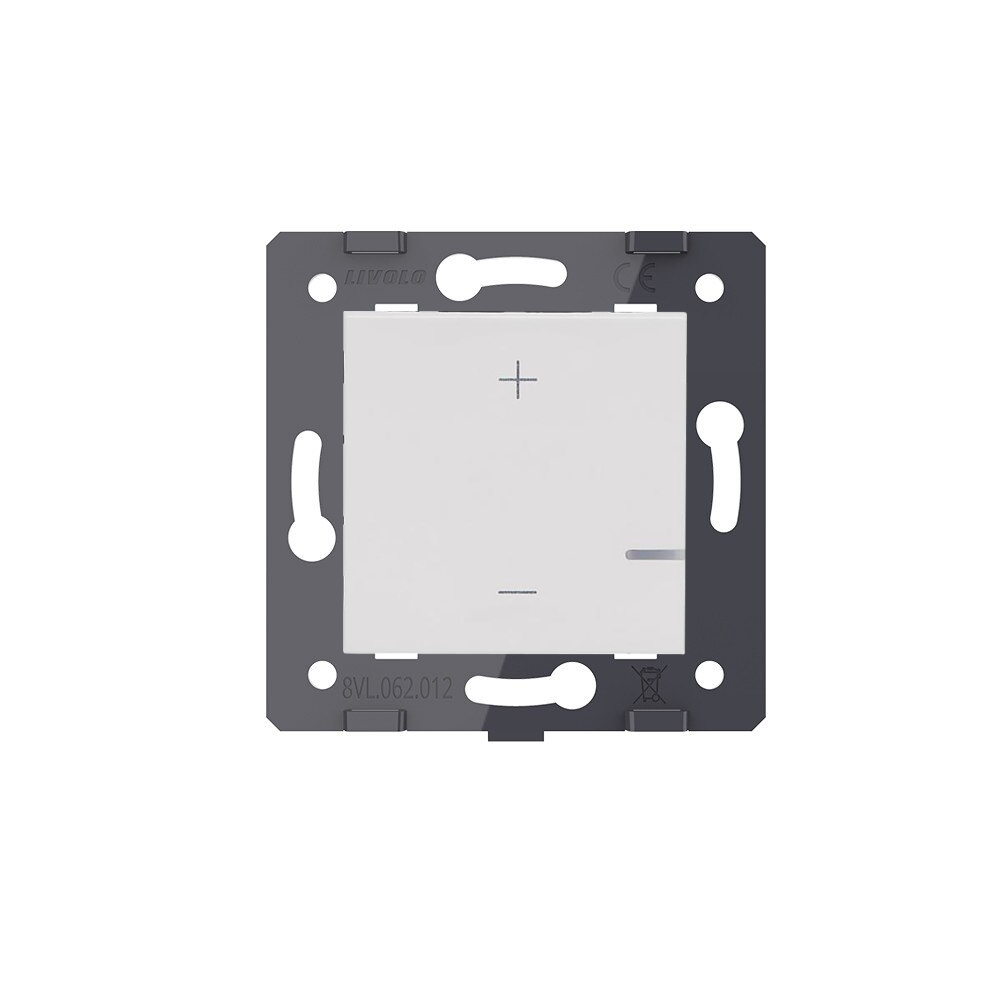

This is a white (RAL9003) rocker dimmer that can also be used for LED lights. It is a leading-edge or trailing-edge dimmer with a soft start/stop that protects the light source.

In combination with the matching glass cover, this dimmer becomes a real eye-catcher.

Easy and quick installation, both vertically and horizontally.

In our shop you will also find spreading claws (LG-01) in a 2-pack, for flush-mount boxes without a screw-in option. Suitable for hollow walls and older houses (built before 1970). When using spreading claws, 68 mm flush-mount boxes are better suited.

The modules are attached to the flush-mount boxes with screws using the included metal frame.
Replacement is carried out like with other rocker switch manufacturers. Simply replace your old rocker switches with a new, durable design. The wiring remains the same.

The light switch and socket modules are suitable for flush-mount boxes with a diameter of 60-68 mm. The hole spacing for multiple covers is 71 mm.

With us you get the complete Livolo range; from a simple rocker light switch to a smart home-capable touch roller shutter switch.

Questions? Call us or send us an email.
We are happy to advise you!

Technical data:

3 – 75 W for dimmable LEDs and compact fluorescent lamps,

3 – 400 W for incandescent and high-voltage halogen lamps,

3 – 400 VA for low-voltage halogen lamps with a conventional (iron core) transformer and electronic ballast.

Load type: R, L, C.

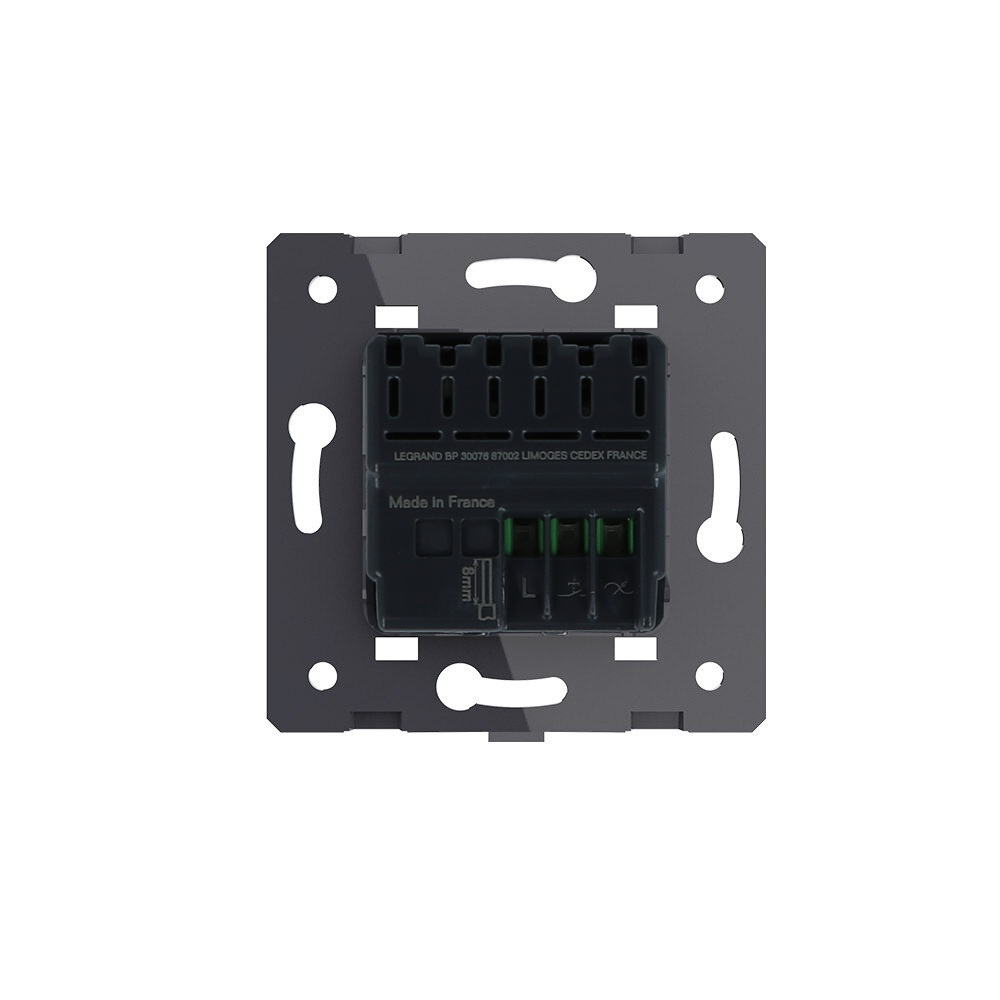

- 2-wire connection (without neutral conductor)

Dimensions:

71 x 71 x 35 mm

Scope of delivery:

The delivery includes:

- 1 x Livolo Rocker Dimmer Internal Module, as ordered

- Operating instructions

Attention: Internal module only! You can find matching glass covers in our shop!
