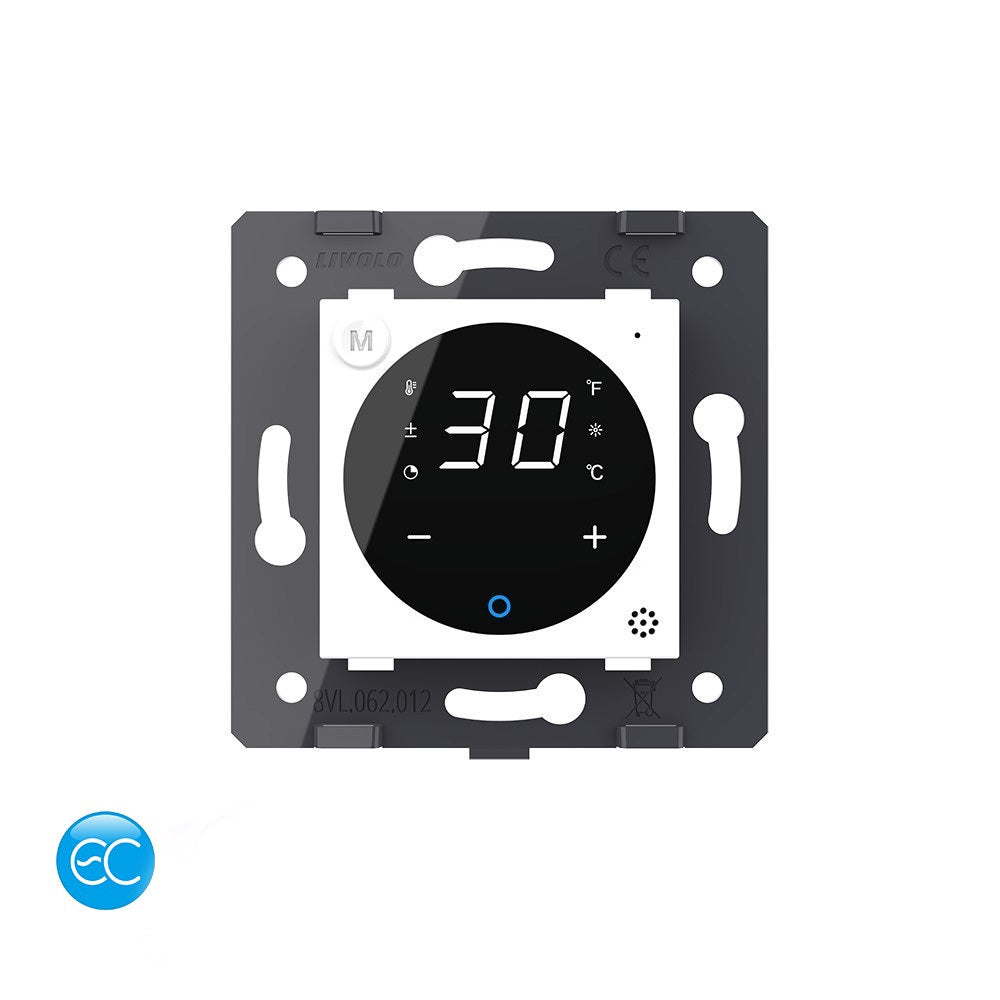

LIVOLO internal module for digital EC room thermostat for underfloor/electric heating in white, optional floor sensor

Please note that this offer is for the internal module ONLY, WITHOUT the glass cover.

This is a digital Livolo EC room thermostat in white with an external sensor. This thermostat can be used to control most underfloor heating systems with actuators (water-based or electric), provided the maximum power rating is not exceeded.

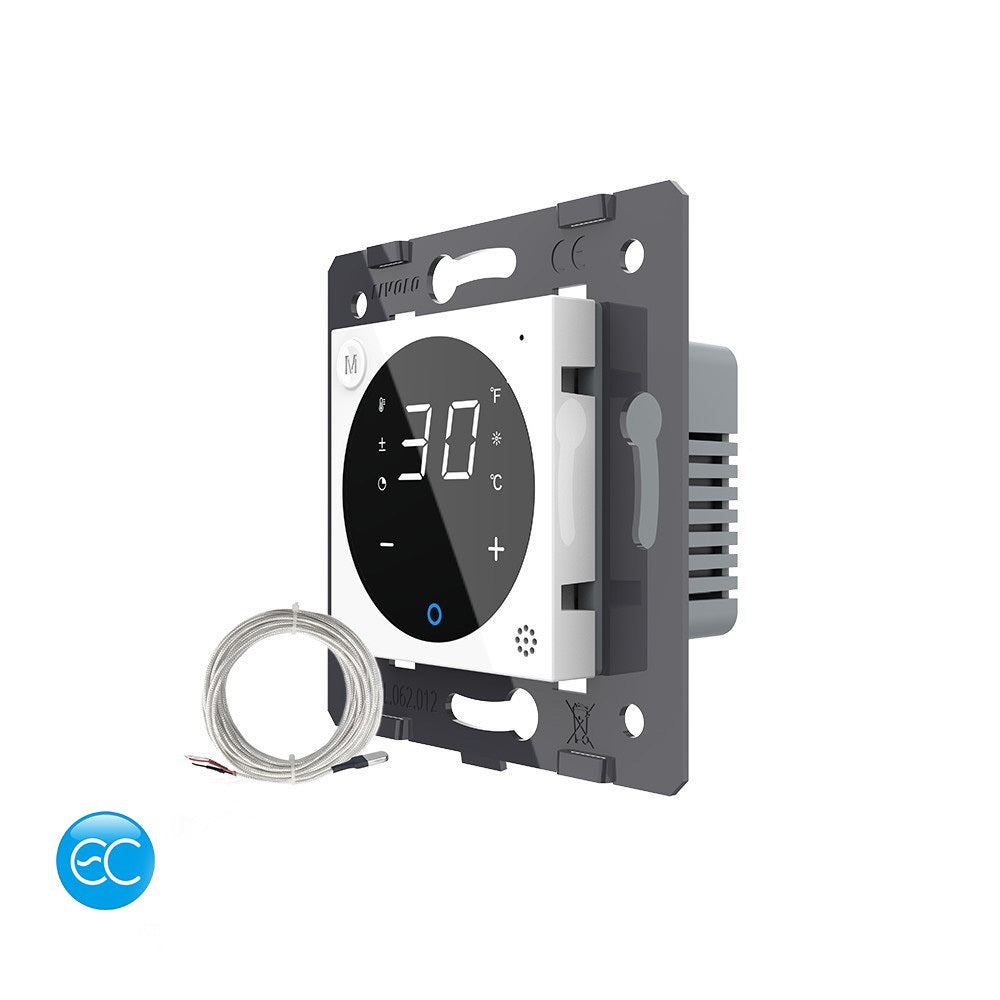

The external floor sensor provides particularly accurate temperature readings. The thermostat can also be used without an external sensor if desired. However, this may result in less accurate readings.

The thermostat can be operated using the touch points on the front or the Livolo app. The display is illuminated during operation, and the brightness can be adjusted.

Using the Livolo app (Android and iOS), you can also control the thermostat remotely or set routines, allowing you to save energy when no one is at home.

Voice control is available with both Amazon Alexa and Google Home.

The Livolo EC Gateway is required to control the thermostat via the app, Alexa, or Google Home.

When combined with the matching glass cover, this module becomes a real eye-catcher.

Easy and quick installation, both vertically and horizontally.

Our shop also offers spreading claws (LG-01) in a pack of 2, for flush-mount boxes without screw mounting. Suitable for hollow walls and older buildings (built before 1970). When using spreading claws, 68 mm flush-mount boxes are better suited.

The modules are attached to the flush-mount boxes using screws and the metal frames.

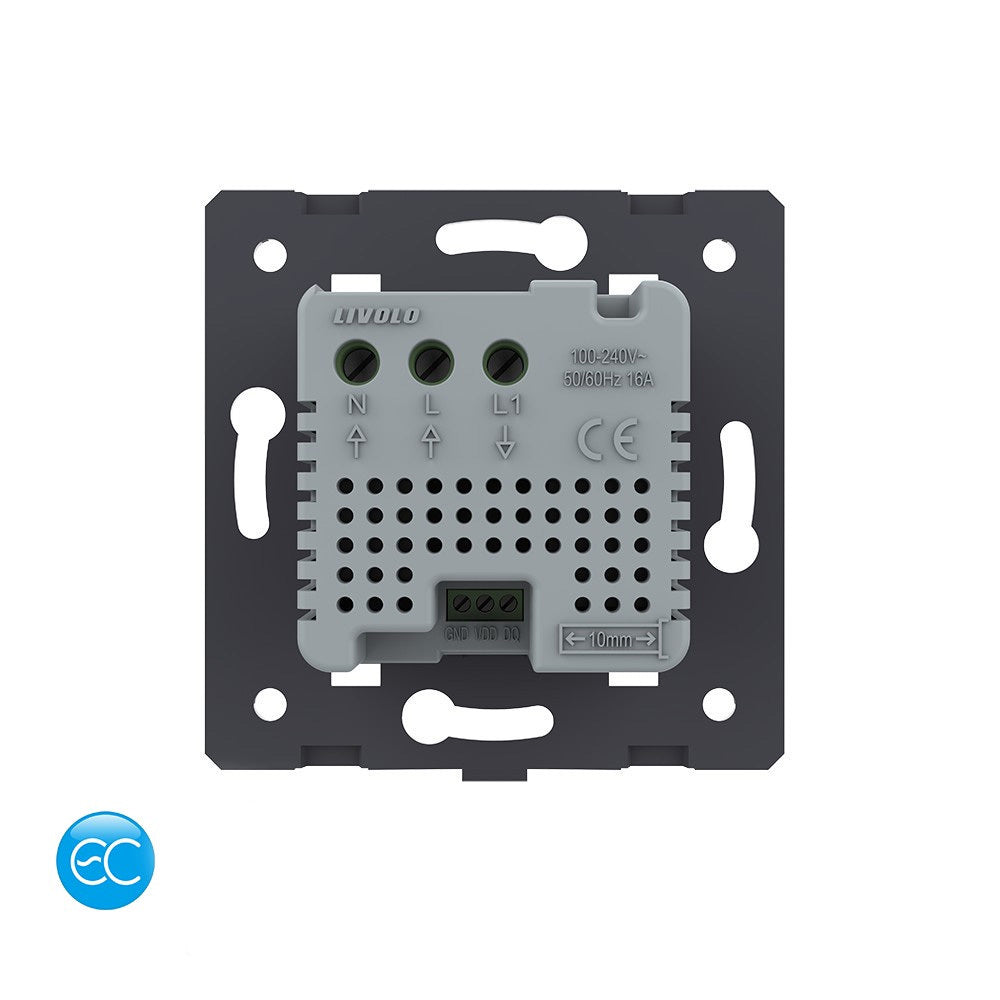

Replacement is carried out just like with other rocker switch manufacturers. Simply replace your old rocker switches with a new, durable design. The wiring remains the same.

The light switch and socket modules are suitable for flush-mount boxes with a diameter of 60–68 mm. The hole spacing for multi-gang covers is 71 mm.

We offer the complete Livolo range, from a simple rocker light switch to a smart home-compatible touch roller shutter switch.

Questions? Call us or send us an email.
We are happy to advise you!

Technical specifications:

Temperature accuracy: < 1°C

Power consumption: < 0.8W

Service life: > 30,000 actuations

Operating voltage: 100 ~ 240V 50/60HZ

Switching capacity: 16A 1 gang

Dimensions:

71 x 71 x 28 mm

Package contents:

The package includes:

- 1 x Livolo room thermostat, as ordered

- User manual

Attention: internal module only! You can find matching glass covers in our shop!
