Livolo half LAN module CAT8 for wiring

Please note that this offer is for a module ONLY, WITHOUT a glass cover.

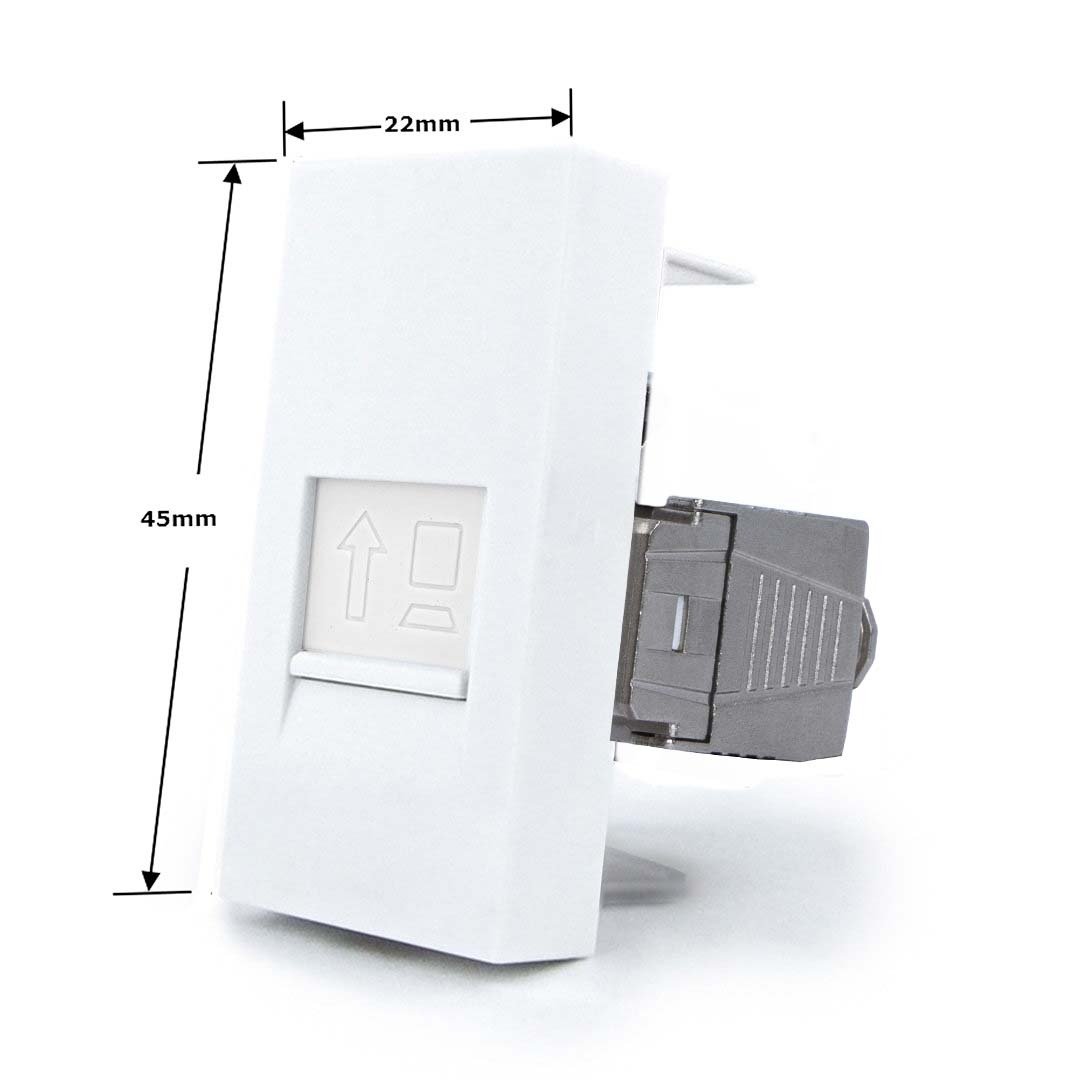

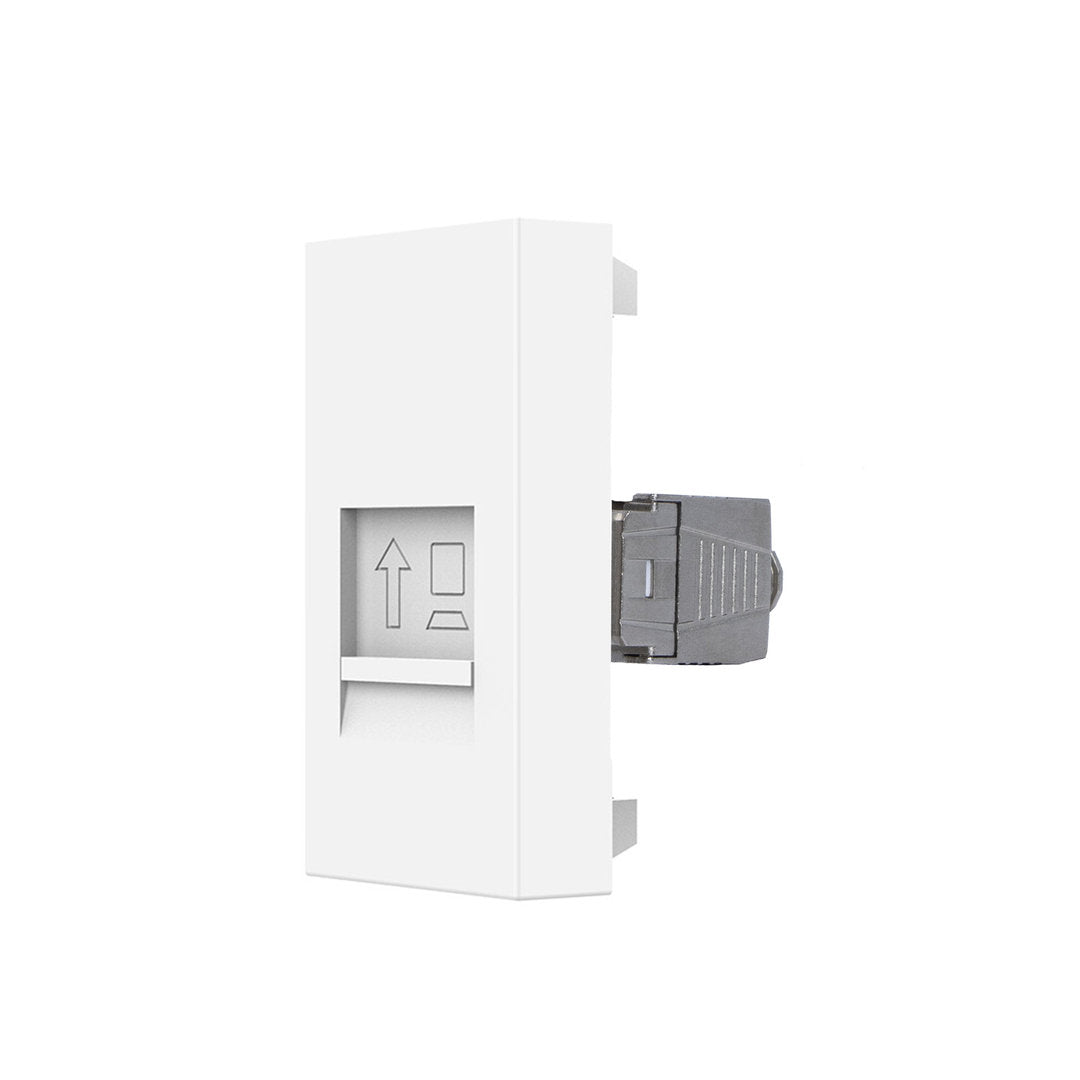

This is a white half Livolo LAN module for self-wiring. It is a CAT8 module that allows you to connect smart devices to the router via a stable, wired connection, for example.

This module features 360° strain relief, and the module's shielding supports transmission speeds of up to 40 Gbit/s and 2000 MHz when CAT8 cables are used. Suitable for wire gauges between AWG 22 and 24, and installation requires no special tools.

Suitable for PoE+ (Power over Ethernet). For maximum usable speed, the cable length should not exceed 30 m.

In combination with the matching glass cover, this module becomes a real eye-catcher. Please note that you will need a metal frame for installation in a glass cover.

Also suitable for installation in our floor boxes and table boxes.

Easy and quick installation, both vertically and horizontally.

In our shop you will also find spreading claws (LG-01) in a pack of 2, for flush-mount boxes without threading options. Suitable for stud walls and older houses (built before 1970). When using spreading claws, 68 mm flush-mount boxes are better suited.

The modules are attached to the flush-mount boxes with screws using the metal frames.
Replacement is carried out like with other rocker switch manufacturers. Simply replace your old rocker switches with a new, durable design. The wiring remains the same.

The light switch and socket modules are suitable for flush-mount boxes with a diameter of 60-68 mm. The hole spacing for multi-gang covers is 71 mm.

With us you get the complete Livolo range; from a simple rocker light switch to a smart home-enabled touch roller shutter switch.

Questions? Call us or send us an email.
We are happy to advise you!

Technical data:

Dust cap on the module (removable)

Suitable for CAT8 cables (Ø 6-10mm), backward compatible

Speed: 40 Gbit/s and 2000 MHz

Wire gauges: AWG 22-24

Re-terminable: 10 times

Dimensions:

45 x 22.5 x 40 mm

Scope of delivery:

The delivery includes:

- 1 x Livolo half network module interior, as ordered

- Operating instructions

Attention: interior only! You can find matching glass covers in our shop!
