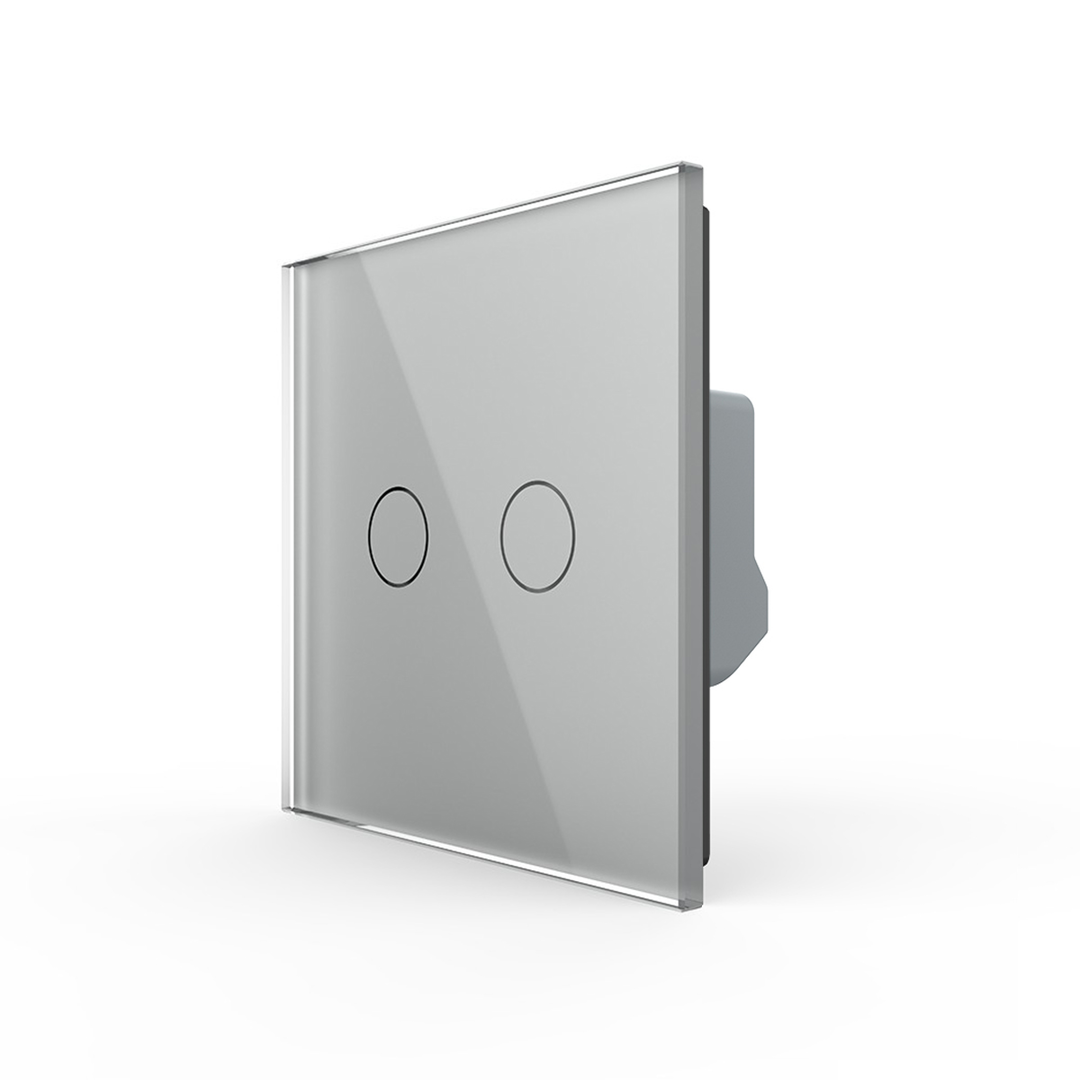

Livolo radio shutter switch module with glass cover in grey

This is a Livolo radio shutter switch for raising and lowering as well as pausing a shutter, awning, Venetian blind or blind.

The operating time of the switch can be set between 60 and 120 seconds in 15-second increments.

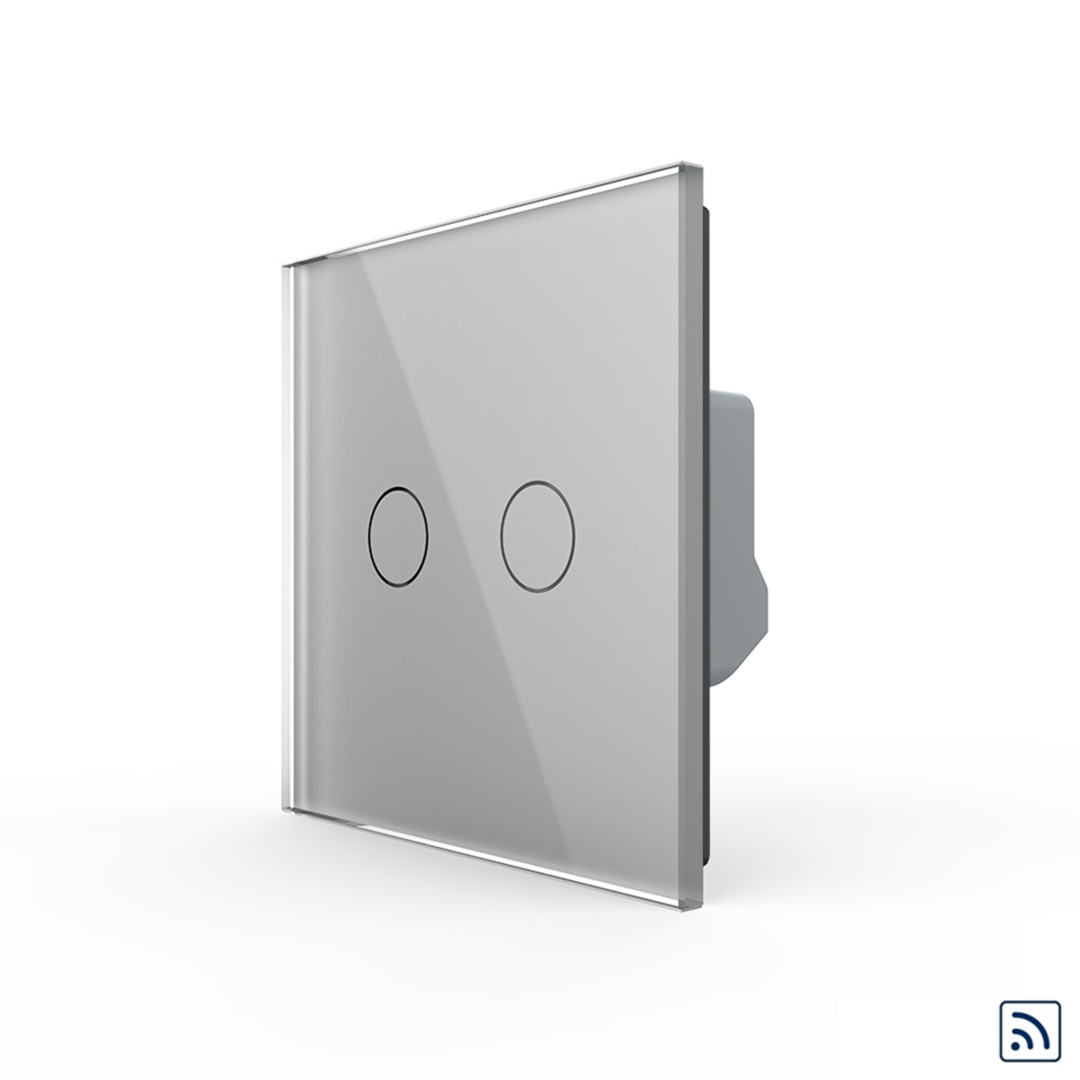

The radio function allows control via remote control or (with the everHome CloudBox as a gateway) also via app (everHome App).

The everHome App can also be connected to a radio weather station, which can automatically raise or lower the shutter when preset measured values are reached (e.g. increased wind speeds or high solar radiation).

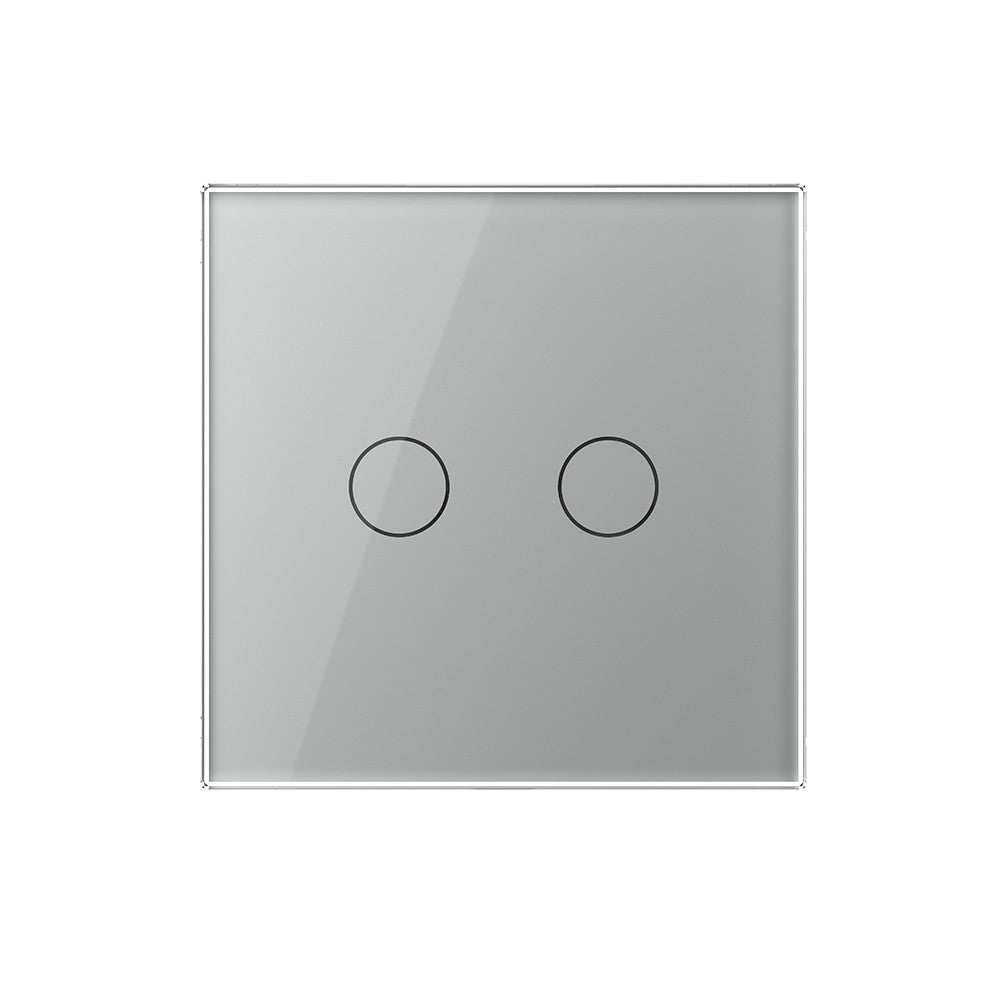

Thanks to the glass cover, this switch with modern sensor technology becomes a real eye-catcher.

Easy and quick installation, both vertically and horizontally.

The shutter switch is operated by lightly touching the circular surface. The contour of the touch surface is subtly illuminated, making it easy to operate at any time of day. Especially in the dark, it is easy to find the switch. In the on mode, the border of the touch field lights up red, in the off mode blue.

By pressing the switch again, you can stop the shutter motor.

In our shop you will also find spreading claws (LG-01) in a pack of 2, for flush-mount boxes without a screw-in option. Suitable for hollow walls and older houses (built before 1970). When using spreading claws, flush-mount boxes with a diameter of 68 mm are better suited.

The modules are attached to the flush-mount boxes with screws using the metal frame provided.

The replacement is carried out like with other rocker switch manufacturers. Simply replace your old rocker switches with a new, durable design. The wiring remains the same.

The light switch and socket modules are suitable for flush-mount boxes with a diameter of 60-68 mm. The hole spacing for multi-covers is 71 mm.

With us you get the complete Livolo range; from a simple rocker light switch to a smart home-capable touch shutter switch.

Questions? Call us or send us an email.
We are happy to advise you!

Technical data:

Operating voltage: AC 220V-250V

Current: 5A

Power load: 2000W

Service life over 100,000 times

Dimensions:

80 x 80 x 34 mm

Scope of delivery:

The delivery includes:

· 1 x Livolo Touch Switch Internal Component, as ordered

· 1 x Livolo Single Glass Cover, as ordered

· User Manual

Installation info: the connection is made WITHOUT power and the glass cover, after installation you can place the glass cover and switch the power back on. Let the touch switch rest for 3 minutes before operating. After the time has elapsed, the shutter switch can be operated. If you do not follow these instructions, the shutter switch may not respond.
