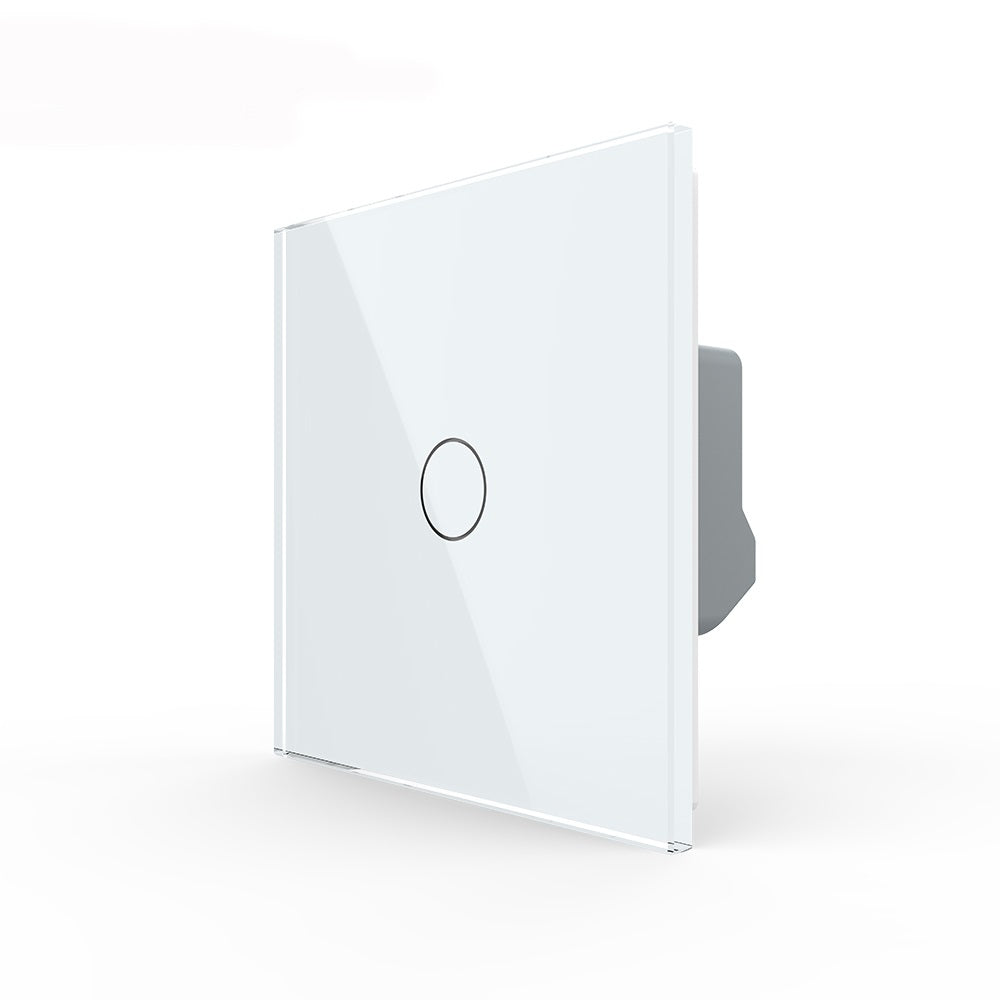

Simple Livolo EC SmartHome light switch with glass cover in white

This is a simple Livolo EC light switch for switching a light or group of lights on and off.

This switch can also be controlled via an app in combination with the Livolo EC Gateway.

Combined with the matching glass cover, this switch with modern sensor technology becomes a real eye-catcher.

Simple and quick installation, both vertically and horizontally.

The light switch is operated by lightly touching the circular surface. The contour of the touch surface is subtly illuminated, making it easy to operate at any time of day. This makes it especially easy to find the switch in the dark. In the on position, the border of the touch panel lights up red, and in the off position, it lights up blue.

Our touch light switches can be used with all types of lamps, including incandescent bulbs, halogen lamps & energy-saving bulbs. Exception: LED strips.

Attention: Interference may occur with lights under 20 watts (especially LED lights). In almost all cases, a resistance adapter will help.

For our LED ceiling spotlights, you do not need a resistance adapter!

The LED ceiling spotlights are compatible with all our Livolo switches.

In our shop you will also find spreading claws (LG-01) in a pack of 2, for flush-mount boxes without a screw-in option. Suitable for hollow walls and older houses (built before 1970). When using spreading claws, 68 mm flush-mount boxes are better suited.

The modules are attached to the flush-mount boxes with screws using the included metal frame.

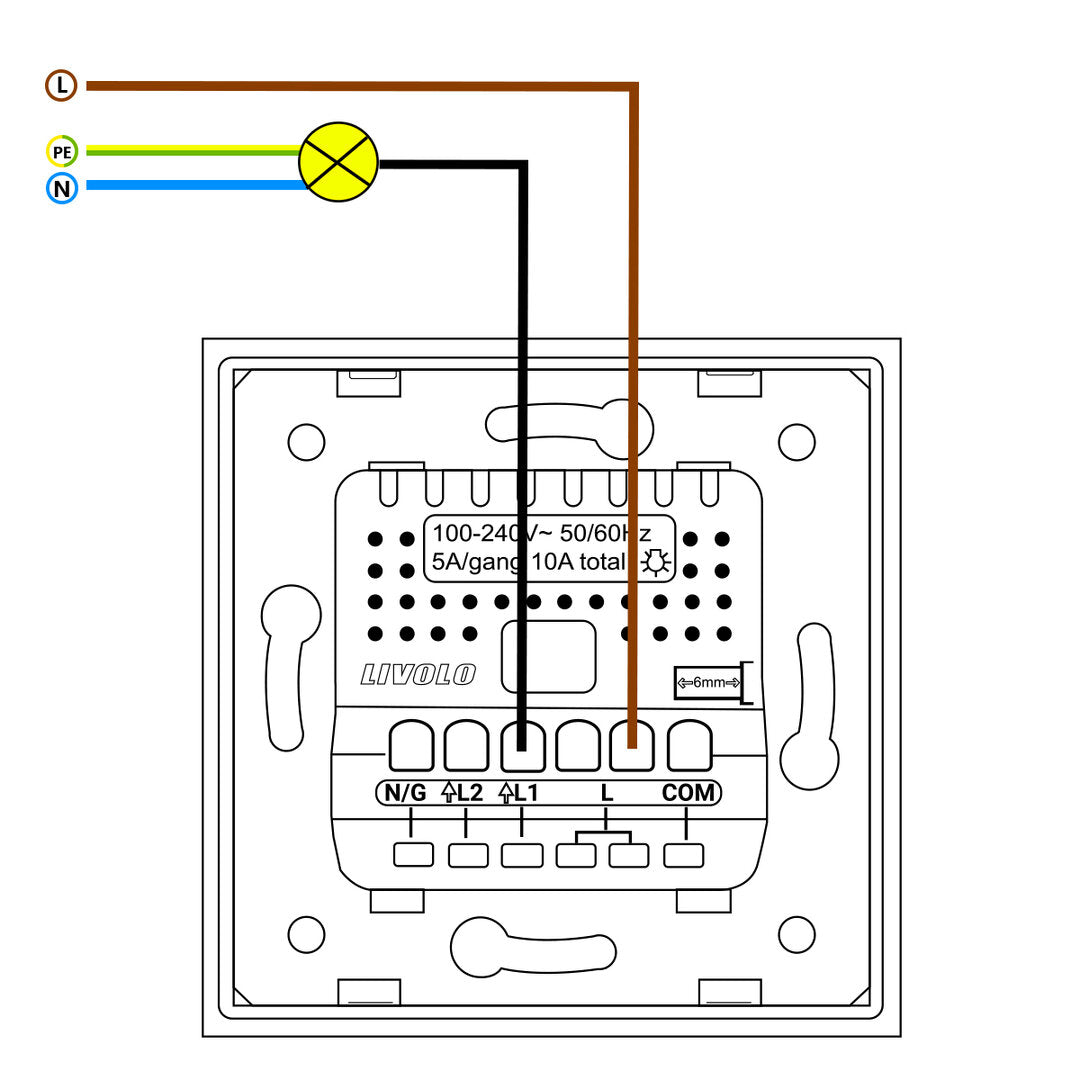

Replacement is carried out like with other rocker switch manufacturers. Simply replace your old rocker switches with a new, durable design. The wiring remains the same.

The light switch and socket modules are suitable for flush-mount boxes with a diameter of 60-68 mm. The hole spacing for multiple covers is 71 mm.

With us you get the complete Livolo range; from a simple rocker light switch to a smart home-capable touch roller shutter switch.

Questions? Call us or send us an email.
We are happy to advise you!

Technical data:

Operating voltage: AC100~240V, 50Hz60Hz

max. electrical voltage: 5A

No-load power consumption: less than 0.1mW

Service life over 100,000 times

Dimensions:

80 x 80 x 34 mm

Scope of delivery:

The delivery includes:

- 1 x Livolo Touch Switch Internal Module, as ordered

- User manual

- 1 x Livolo Glass Cover, as ordered

Installation info: The connection is made WITHOUT power and the glass cover. After installation, you can place the glass cover on and switch the power back on. Allow the touch switch to rest for 3 minutes before operating it. After this time, the light switch can be operated. If you do not follow these instructions, the light switch may not respond.
