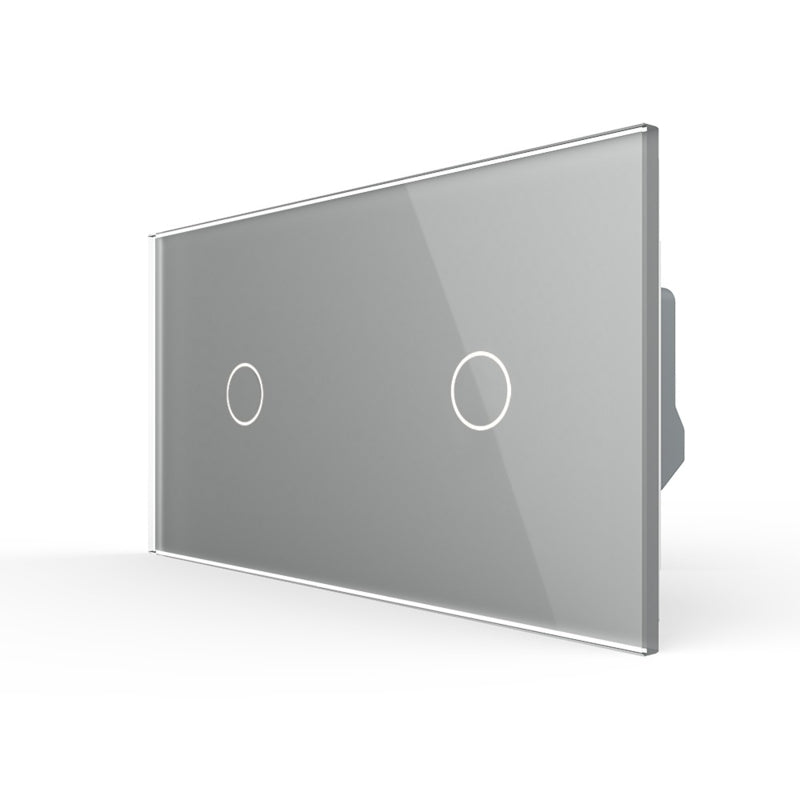

Livolo EC SmartHome light switch module and two-way dimmer module with double glass frame in grey

This is a simple Livolo EC light switch for switching one light or group of lights on and off. It also includes a Livolo EC two-way dimmer for switching one light or group of lights on and off, as well as dimming them. In addition, it features a two-way switching function, so that the light can be switched on and off from up to four switches.

The Livolo touch two-way switches can also be used simultaneously as four-way switches. All corresponding cables from the additional touch two-way switches are connected together to the COM connection of the switch that is used as a four-way switch.

Please note that this two-way dimmer is only usable in conjunction with the Livolo touch two-way switch VL-C701S. You can only use one two-way dimmer per two-way circuit.

Since synchronization (YouTube video) must be carried out afterwards, only Livolo touch two-way switches can be used within a two-way circuit.

You can find the synchronization instructions in the user manual.

In addition, these switches can also be controlled via an app in conjunction with the Livolo EC Gateway.

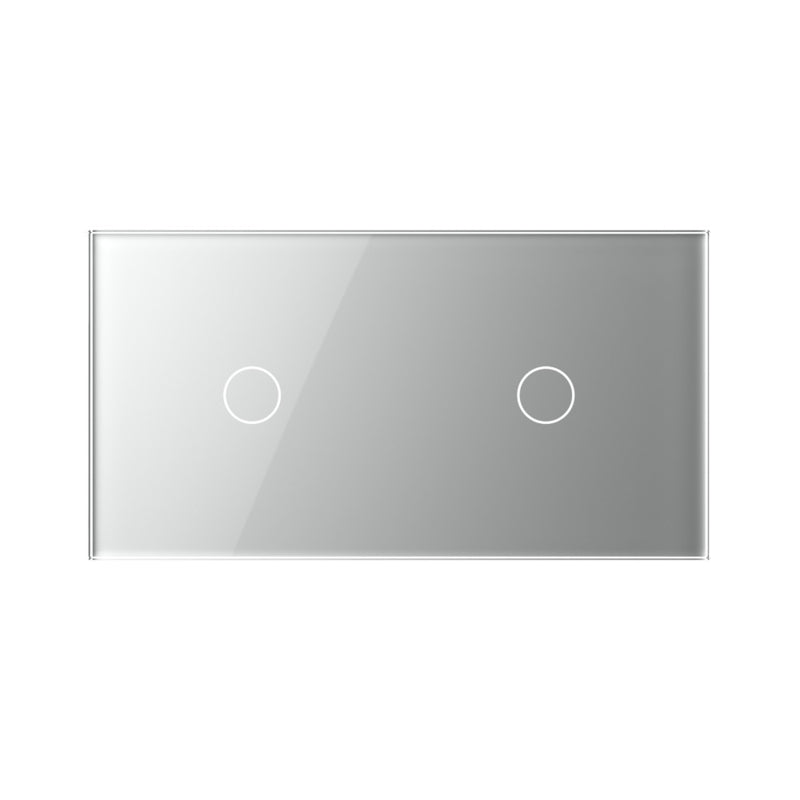

By combining them with the matching glass cover, these switches with modern sensor technology become a real eye-catcher.

Easy and quick installation, both vertically and horizontally.

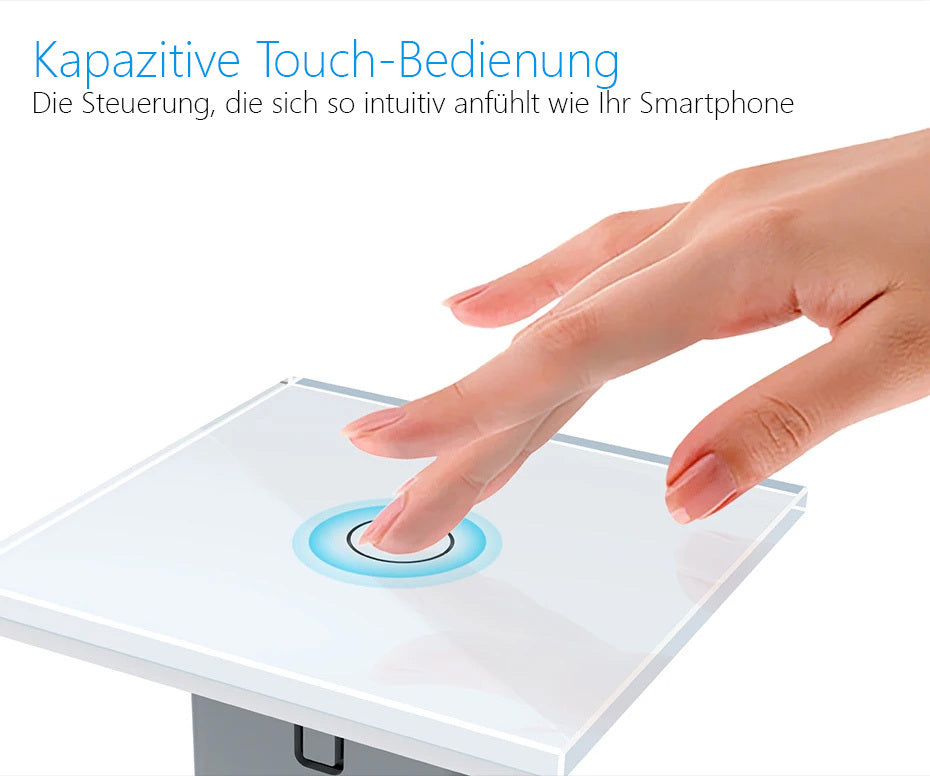

The light switch is operated by lightly touching the circular surface. The contour of the touch surface is subtly illuminated, making it easy to operate at any time of day. It is especially easy to find the switch in the dark. In the on mode, the border of the touch field lights up red, in the off mode blue.

Our touch light switches can be used with all types of lamps, including incandescent bulbs, halogen lamps & energy-saving bulbs. Exception: LED strips.

Attention: With lights under 20 watts (especially LED lights), interference may occur. In this case, a resistance adapter helps in almost all cases.

For our LED ceiling spotlights, you do not need a resistance adapter!

The LED ceiling spotlights are compatible with all our Livolo switches.

In our shop you will also find spreading claws (LG-01) in a pack of 2, for flush-mount boxes without a screw-in option. Suitable for hollow walls and older houses (built before 1970). When using spreading claws, 68 mm flush-mount boxes are better suited.

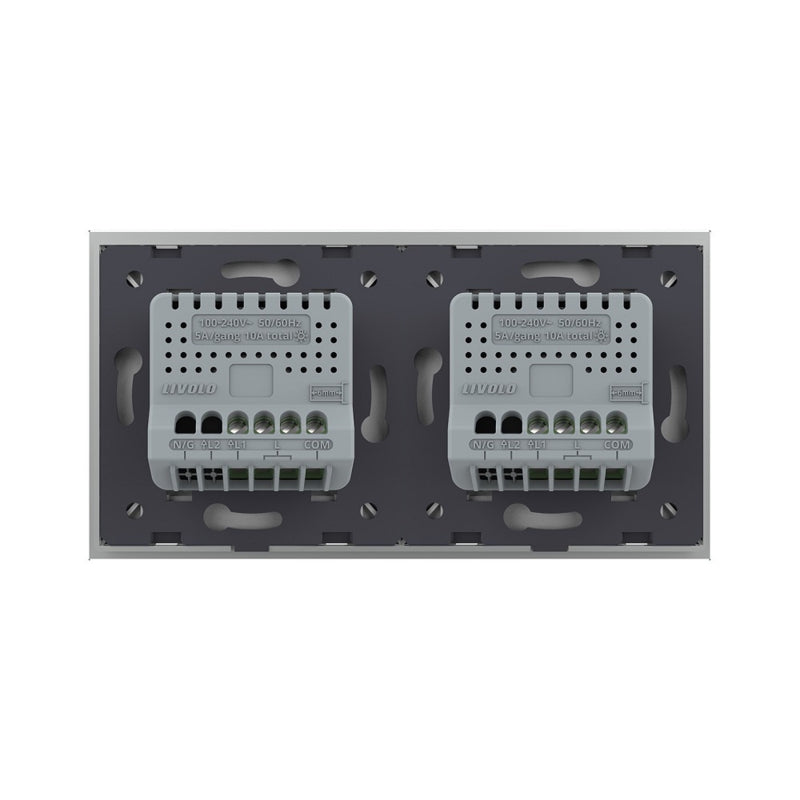

The modules are attached to the flush-mount boxes with screws using the included metal frames.

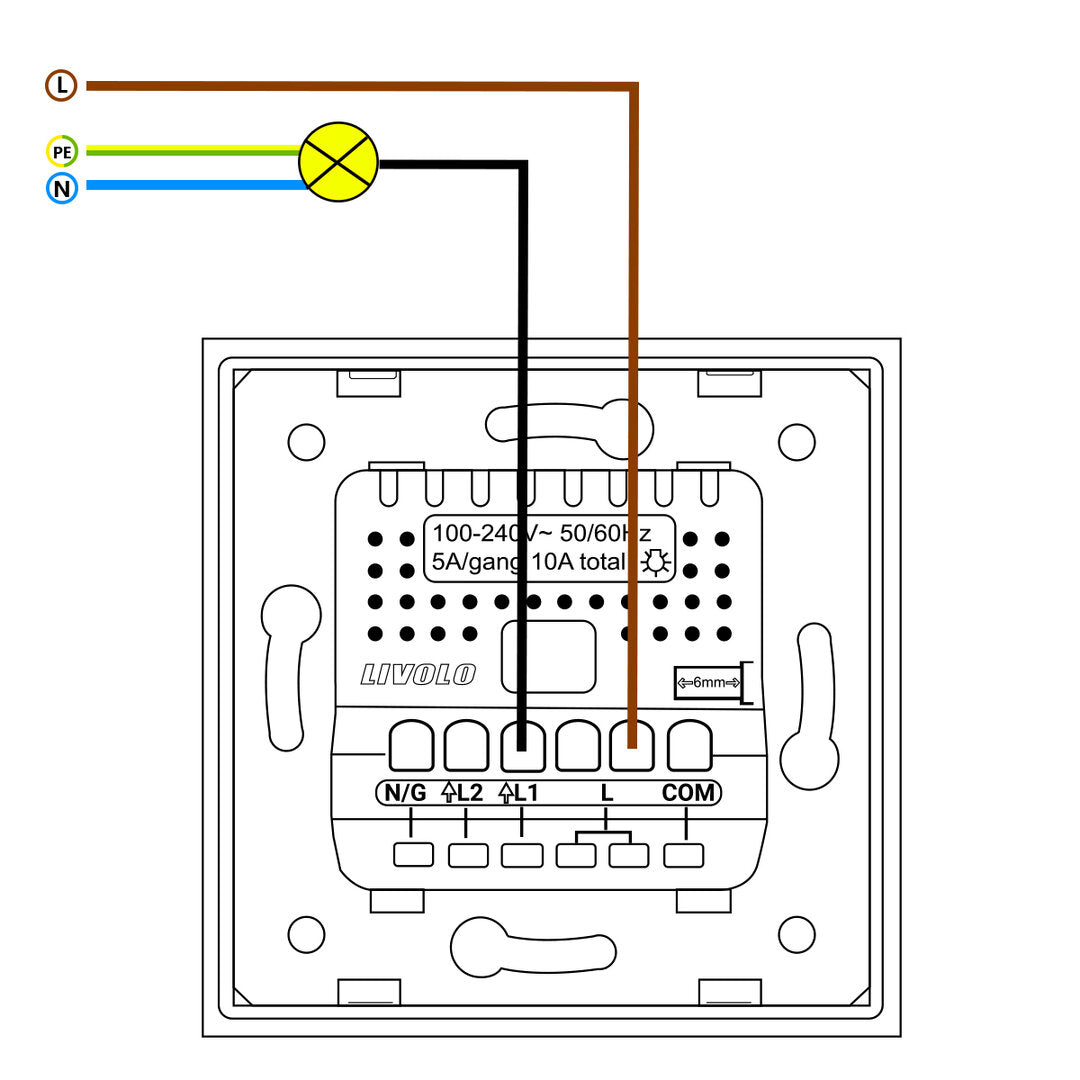

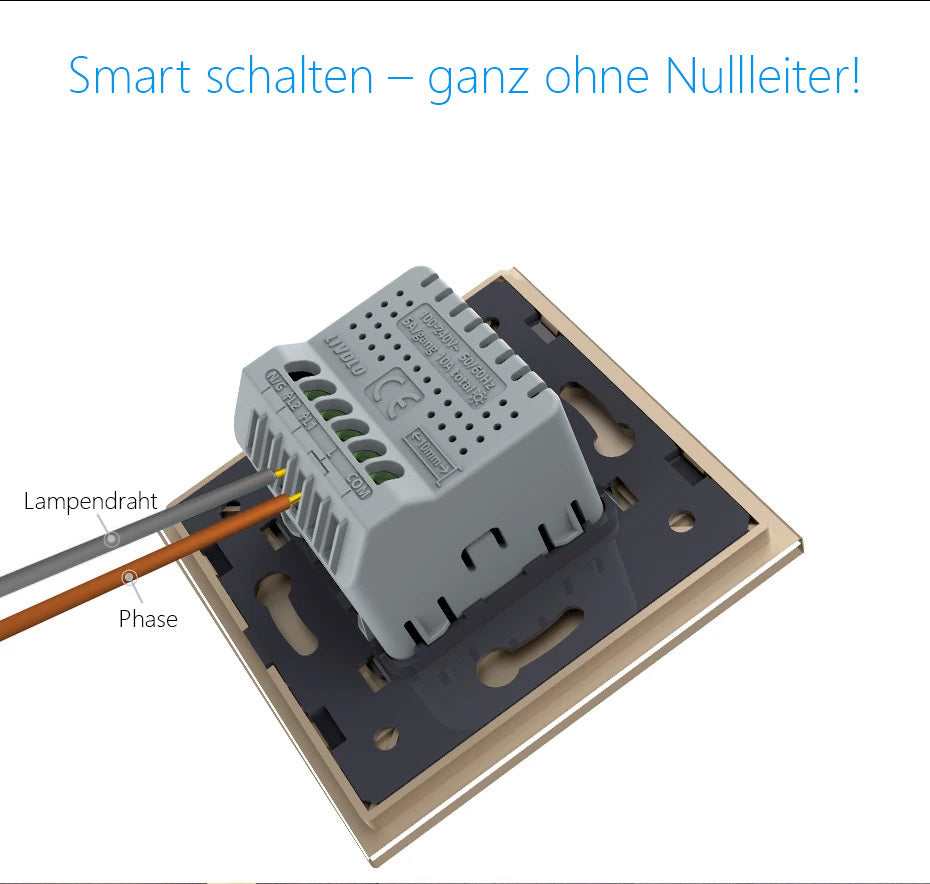

The replacement is carried out like with other rocker switch manufacturers. Simply replace your old rocker switches with a new, long-lasting design. The wiring remains the same.

The light switch and socket modules are suitable for flush-mount boxes with a diameter of 60-68 mm. The hole spacing for multiple covers is 71 mm.

With us you get the complete Livolo range; from a simple rocker light switch to a smart home-capable touch roller shutter switch.

Questions? Call us or send us an email.
We are happy to advise you!

Technical data:

Operating voltage: AC100~240V, 50Hz60Hz

max. electrical voltage: 5A

Standby power consumption: less than 0.1mW

Service life over 100,000 times

Dimensions:

151 x 80 x 34 mm

Scope of delivery:

The delivery includes:

- 2 x Livolo Touch Switch Inner Module, according to order
- 1 x Livolo Glass Frame, according to order

- User manual

Installation info: the connection is made WITHOUT power and the glass cover, after installation you can place the glass cover on and switch the power back on. Let the touch switch rest for 3 minutes before operating it. After the time has elapsed, the light switch can be operated. If you do not follow these instructions, the light switch may not respond.
