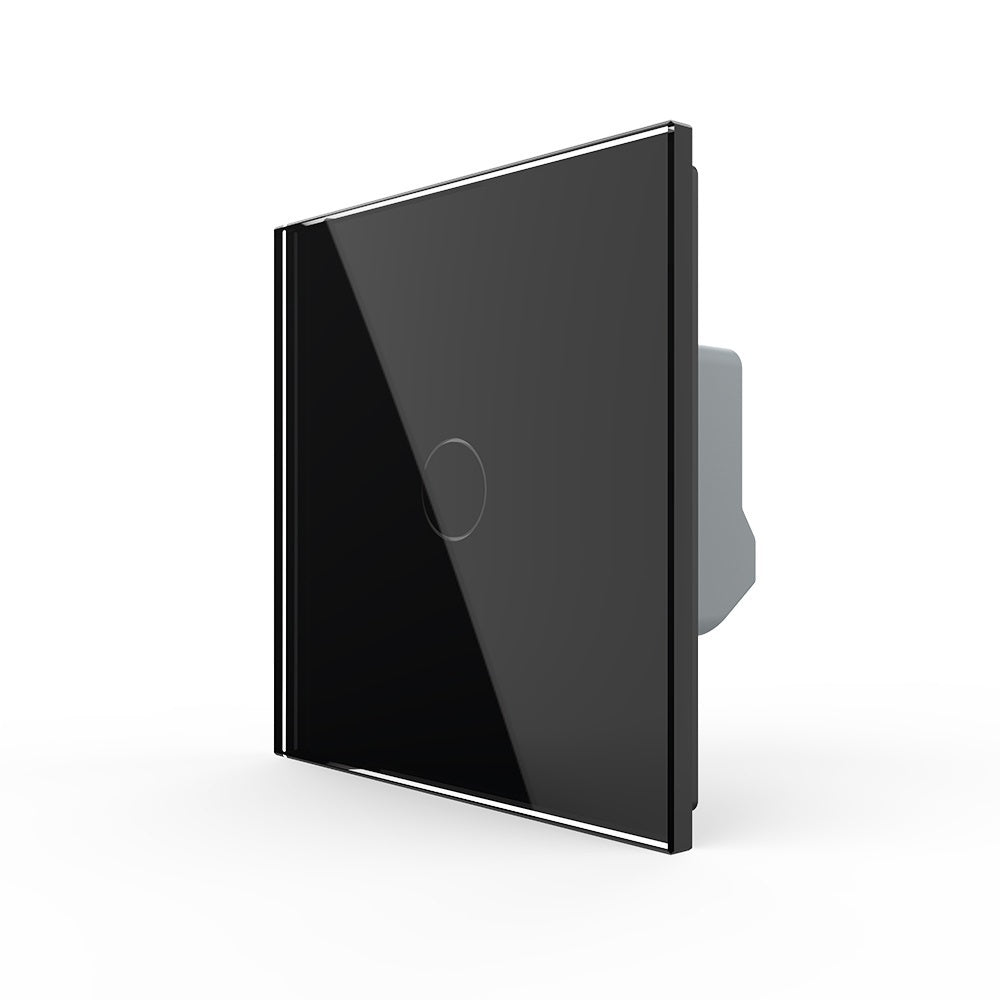

Livolo Dimmable Two-Way/Four-Way Switch with Glass Cover in Black

This is a dimmable Livolo two-way switch for switching a light or group of lights on and off. It also features a four-way switching function, so the light can be switched on and off from up to four switches.

The Livolo touch two-way switches can also be used as four-way switches at the same time. All corresponding cables from the other touch two-way switches are connected together to the COM connection of the switch used as a four-way switch.

Please note that this dimmer is only usable in conjunction with the Livolo touch two-way switch VL-C701S. You can only use one dimmer per two-way circuit.

Since synchronization (YouTube video) must be carried out after connection, only Livolo touch two-way switches can be used within a two-way circuit.

You can find the synchronization instructions in the user manual.

Thanks to the glass cover, this switch with modern sensor technology is a real eye-catcher.

Easy and quick installation, both vertically and horizontally.

The light switch is operated by lightly touching the circular surface. The contour of the touch surface is subtly illuminated, making it easy to operate at any time of day. It is especially easy to find the switch in the dark. In the on mode, the border of the touch field lights up red, in the off mode blue.

Our touch light switches can be used with all types of lamps, including incandescent bulbs, halogen bulbs & energy-saving bulbs. Exception: LED strips.

For our LED ceiling spotlights, you do not need a resistor adapter!

The LED ceiling spotlights are compatible with all our Livolo switches.

See under: Miscellaneous > LED Lights

In our shop you will also find spreading claws (LG-01) in a pack of 2, for flush-mount boxes without threading options. Suitable for hollow walls and older houses (built before 1970). When using spreading claws, flush-mount boxes with a diameter of 68 mm are better suited.

The modules are attached to the flush-mount boxes with screws using the included metal frame.

Replacement is carried out as with other rocker switch manufacturers. Simply replace your old rocker switches with a new, durable design. The wiring remains the same.

The light switch and socket modules are suitable for flush-mount boxes with a diameter of 60-68 mm. The hole spacing for multiple covers is 71 mm.

With us you get the complete Livolo range; from a simple rocker light switch to a smart home-capable touch roller shutter switch.

Questions? Call us or send us an email.
We are happy to advise you!

Technical Data:

Operating voltage: AC110~250V, 50Hz60Hz

max. current: 2A

max. power: 440W/220V

No-load power consumption: less than 0.1mW

Service life over 100,000 times

Dimensions:

80 x 80 x 34 mm

Scope of delivery:

The delivery includes:

• 1 x Livolo touch switch internal component, according to order
• 1 x Livolo glass cover single, according to order
• User manual

Installation info:

The connection is carried out WITHOUT power and without the glass cover. After installation, you can place the glass cover and switch the power back on. Let the touch switch rest for 3 minutes before operating it. After the time has elapsed, the light switch can be operated. If you do not follow these instructions, the light switch may not respond.
