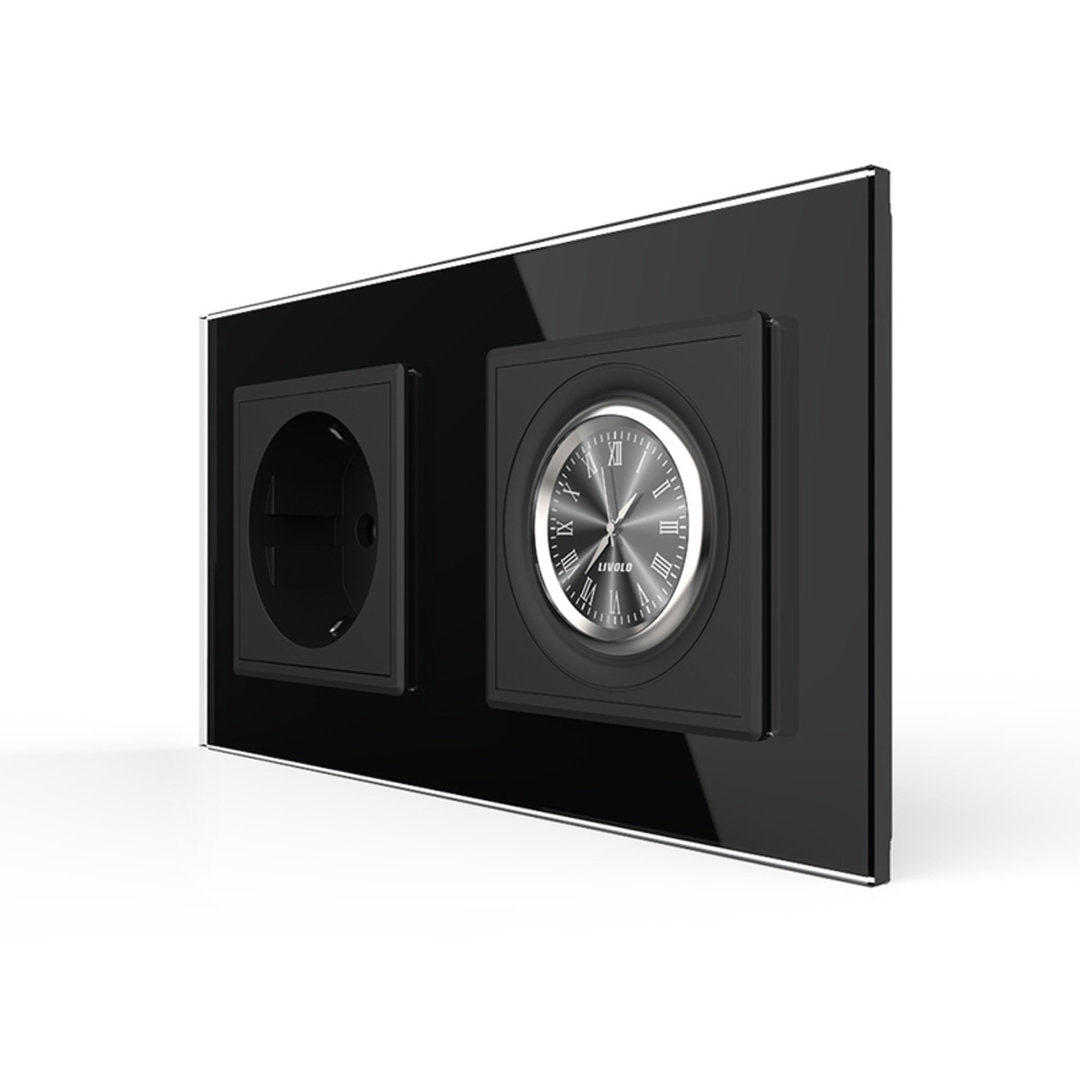

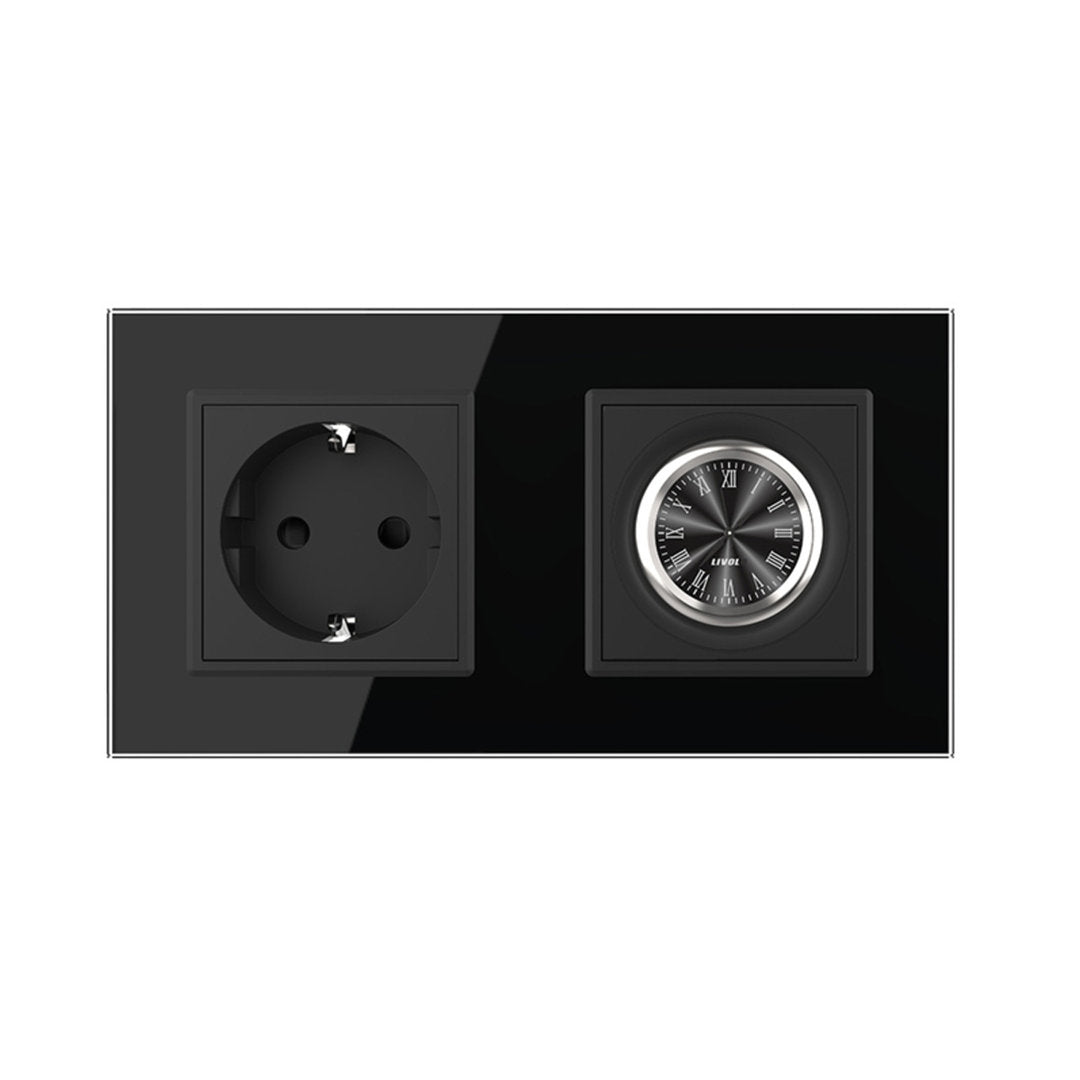

Livolo socket and wall clock module with Roman dial incl. black glass frame

This is a combination of a Livolo socket with a wall clock and a double black glass frame.

To set the clock, it must be removed from the rectangular housing by pressing lightly on the back. Then the regulator on the side of the clock is pulled up and turned until the correct time is set.

The battery (button cell / SR626SW) can also only be replaced when the clock has been removed from the housing.

Together with the matching glass cover, this combination becomes a real eye-catcher.

Easy and quick installation, both vertically and horizontally.

In our shop you will also find Spreader claws (LG-01) in a 2-pack, for flush-mount boxes without a screw-in option. Suitable for hollow walls and older houses (built before 1970). When using spreader claws, 68 mm flush-mount boxes are better suited.

The modules are attached to the flush-mount boxes with screws using the included metal frame.
Replacement is carried out like with other socket manufacturers. Simply replace your old sockets with a new, durable design. The wiring remains the same.

The light switch and socket modules are suitable for flush-mount boxes with a diameter of 60-68 mm. The hole spacing for multiple covers is 71 mm.

With us you get the complete Livolo range; from a simple rocker light switch to a smart home-capable touch roller shutter switch.

Questions? Call us or send us an email.
We are happy to advise you!

Technical data:

Socket:

Rated current/voltage: 16A/250V

Clock:

Battery: SR626SW button cell

Dimensions:

151 x 80 x 33 mm

Scope of delivery:

The delivery includes:

• - 1 x Livolo wall clock module insert, as ordered
• - 1 x Livolo socket module insert, as ordered
• - 1 x Livolo double glass frame, as ordered
• - User manual
