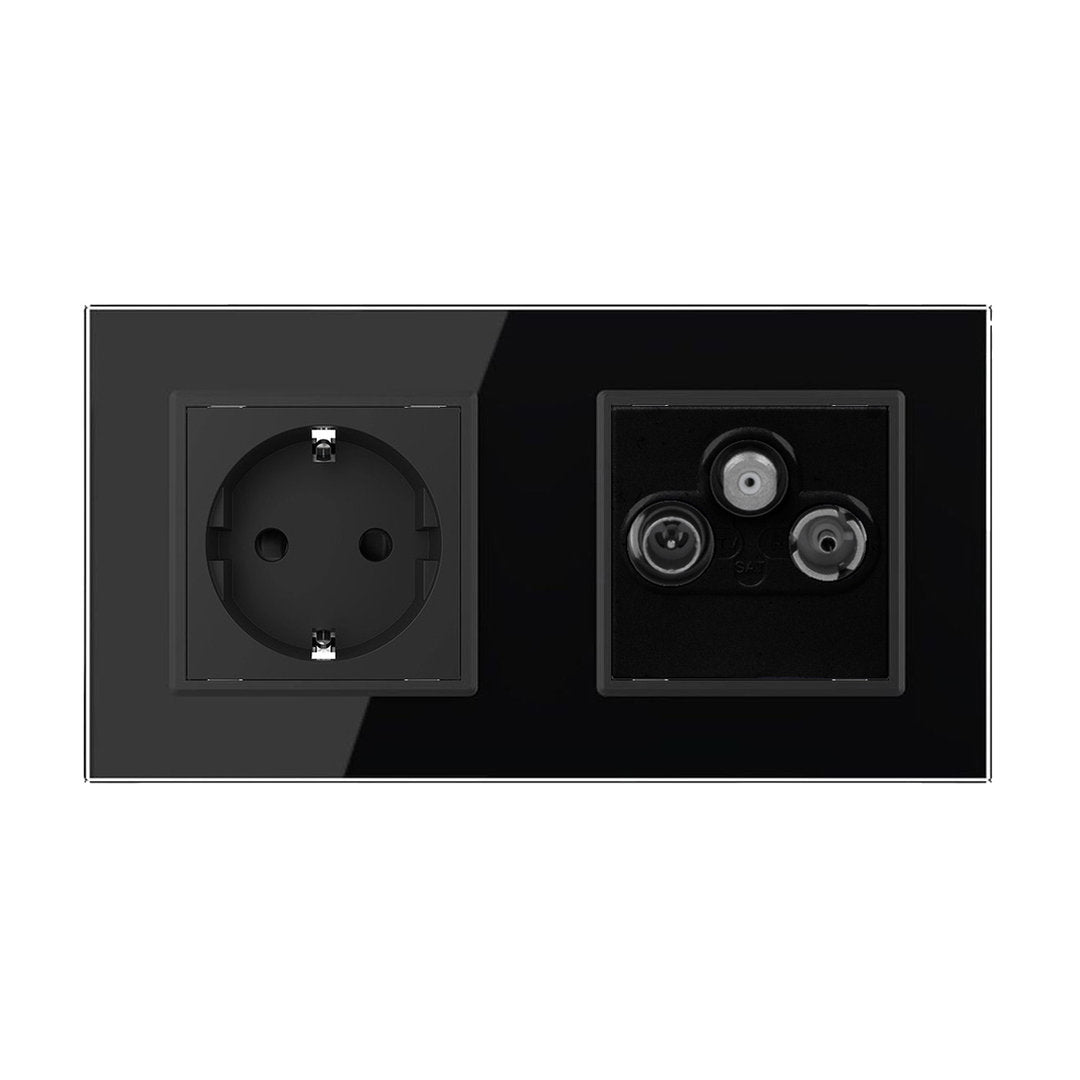

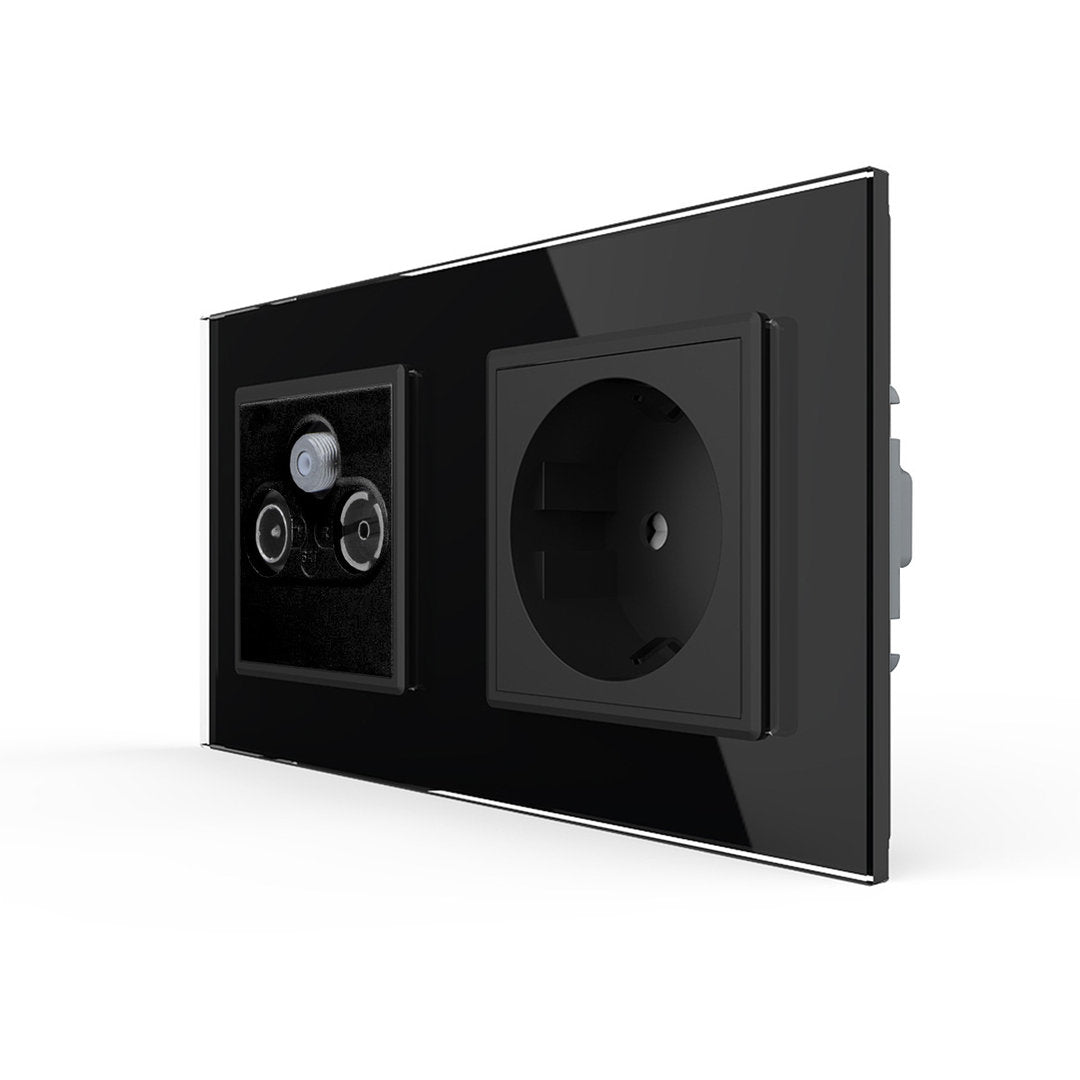

Livolo Schuko socket with SAT/TV/FM module as end socket and glass cover in black

This is a socket with a triple Livolo SAT/TV/FM module in black (RAL9003) incl. glass cover.

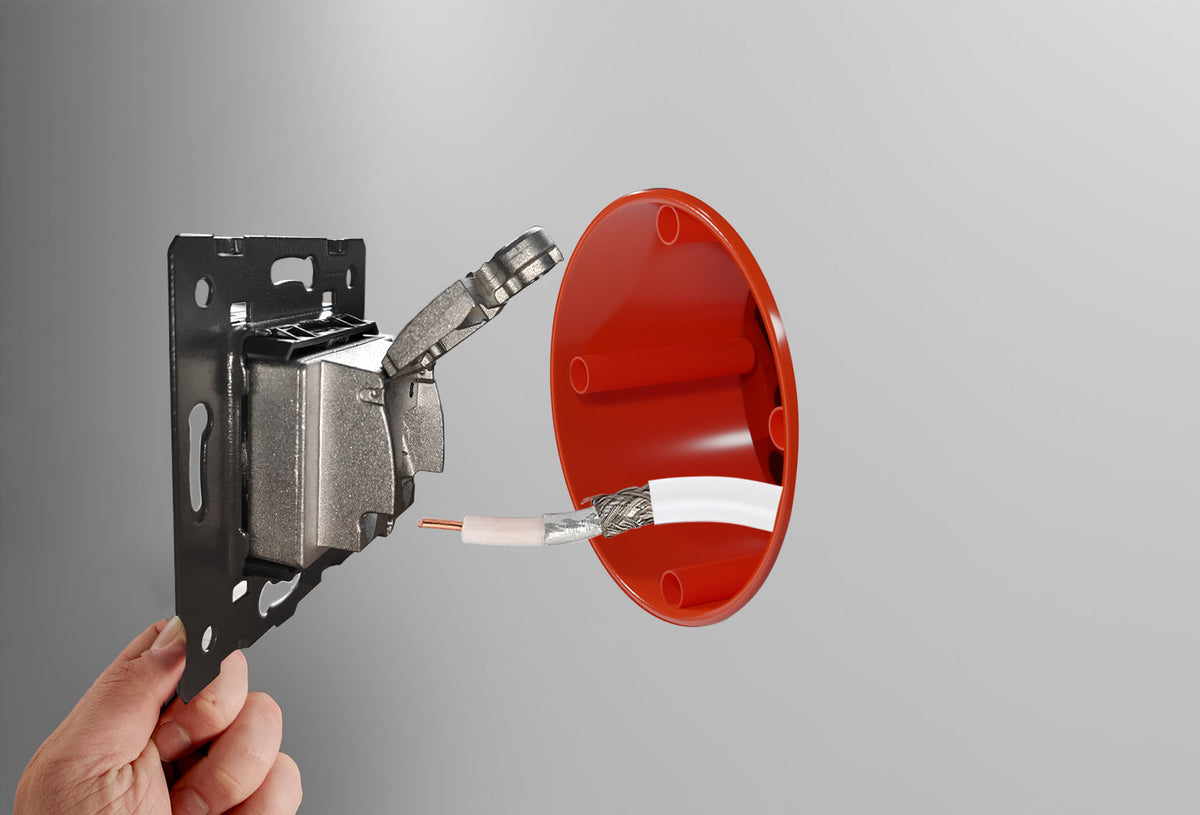

The module is connected via a plug.

The socket features a built-in child safety lock.

The glass cover makes this combination a real eye-catcher.

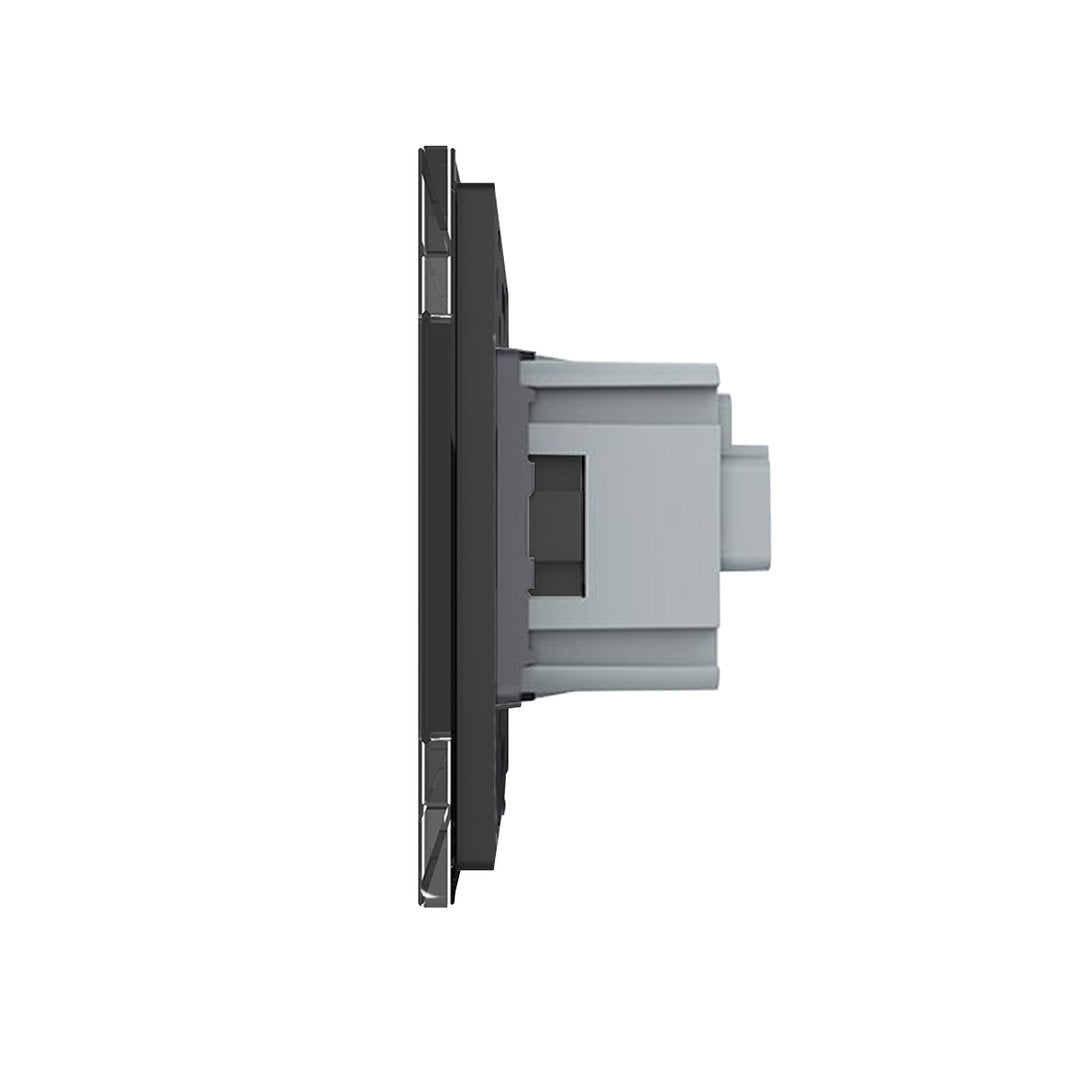

Easy and quick installation, both vertically and horizontally.

In our shop you will also find spreading claws (LG-01) in a 2-pack, for flush-mount boxes without a screw-in option. Suitable for hollow walls and older houses (built before 1970).

When using spreading claws, 68 mm flush-mount boxes are better suited.

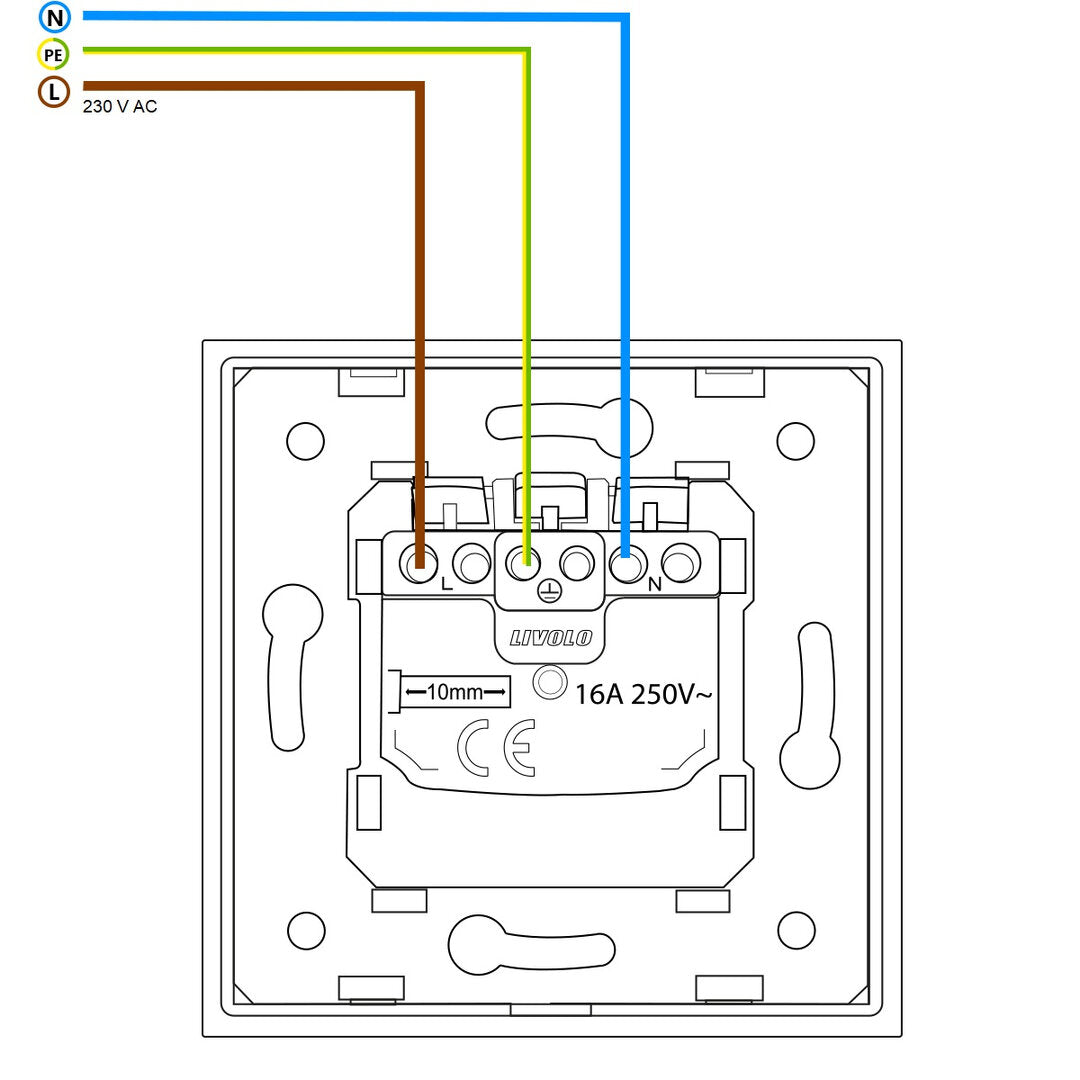

The modules are attached to the flush-mount boxes with screws using the included metal frame. Replacement is carried out like with other socket manufacturers. Simply replace your old sockets with a new, durable design. The wiring remains the same.

The light switch and socket modules are suitable for flush-mount boxes with a diameter of 60-68 mm.

The hole spacing for multi-gang covers is 71 mm.

With us you get the complete Livolo range; from a simple rocker light switch to a smart home-capable touch roller shutter switch.

Questions? Call us or send us an email.

We are happy to advise you!

Technical data:

Socket:

Rated current/voltage: 16A/250V

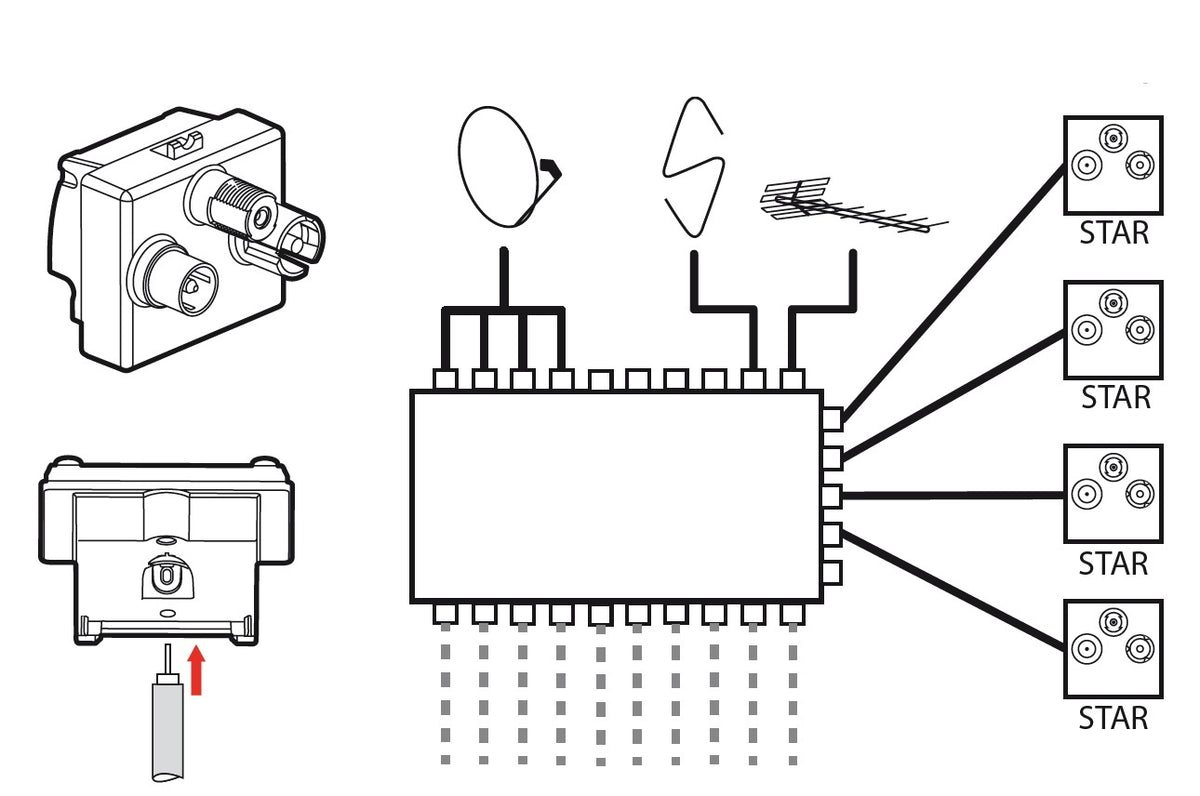

SAT/TV/FM module:

Impedance 75 Ohm

Connection loss at 2150 MHz: 2 dB

Connection loss at 860 MHz: 1.5 dB

DISEqC® compatible

Connection cable Ø max. 7 mm compliant with IEC 169-2

return path compatible

TV connection: (male) Ø 9.52 mm (5-68 120-862 Mhz)

FM connection: (female) Ø 9.52 mm (87.5-108 Mhz)

SAT connection with thread: Ø 9.4 mm (female) for F-connector (male)(950-2150 Mhz)

Color RAL9003 (slightly different from other modules)

Dimensions:

151 x 80 x 25 mm

Scope of delivery:

The delivery includes:

• 1 x Livolo internal SAT/TV/FM module, as ordered
• 1 x Livolo internal socket module, as ordered
• 1 x Livolo glass cover, as ordered
• Operating instructions
