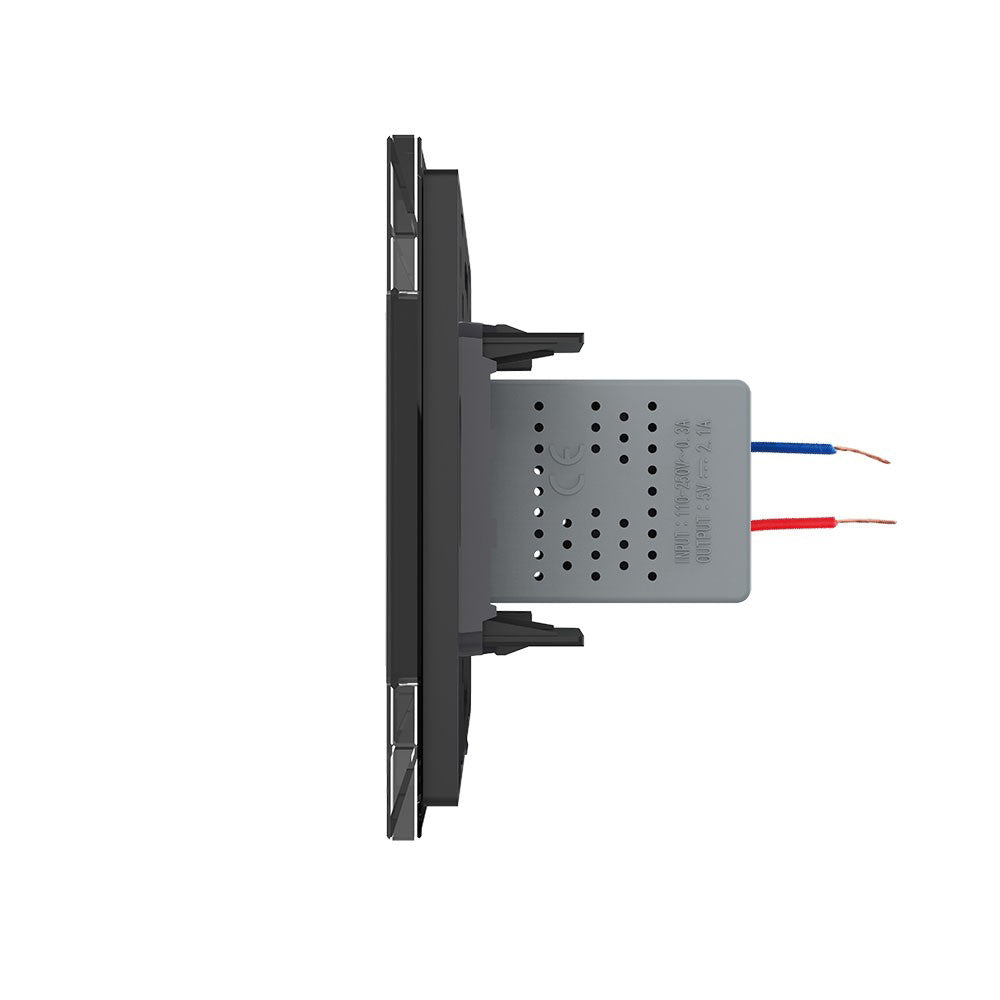

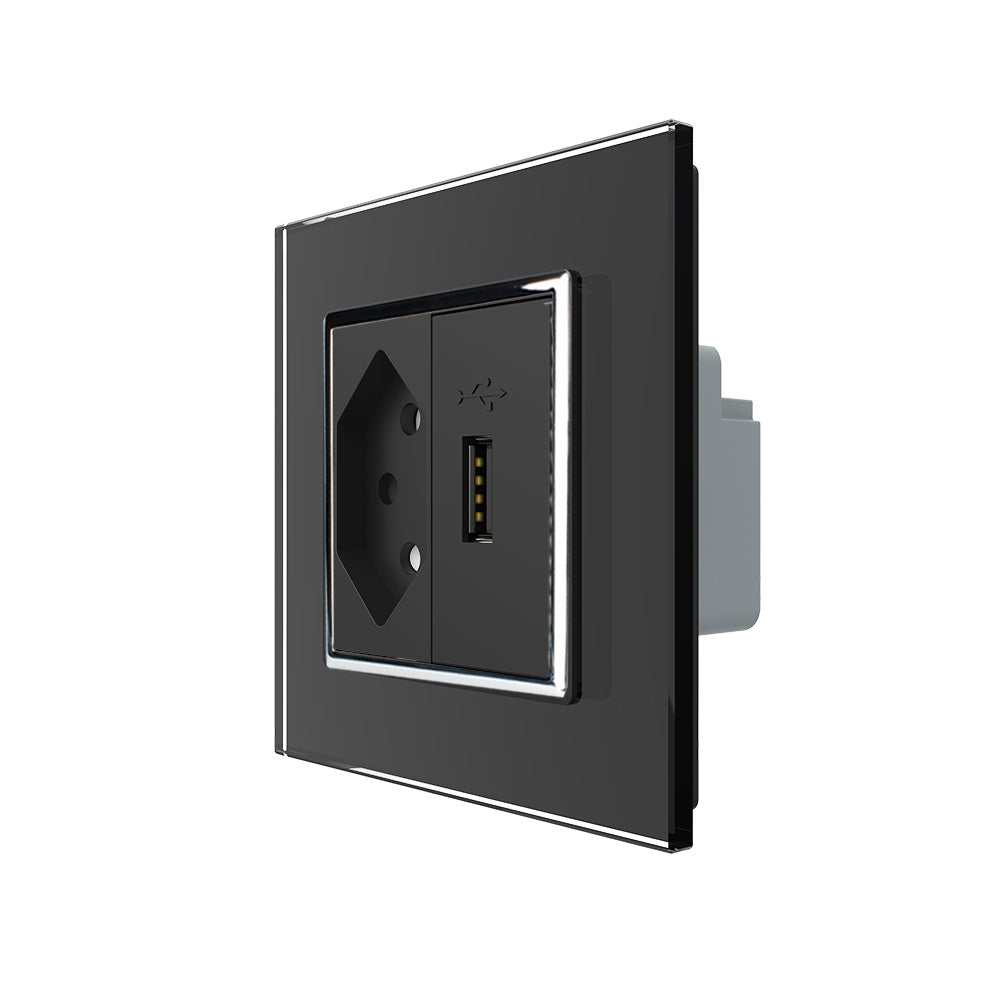

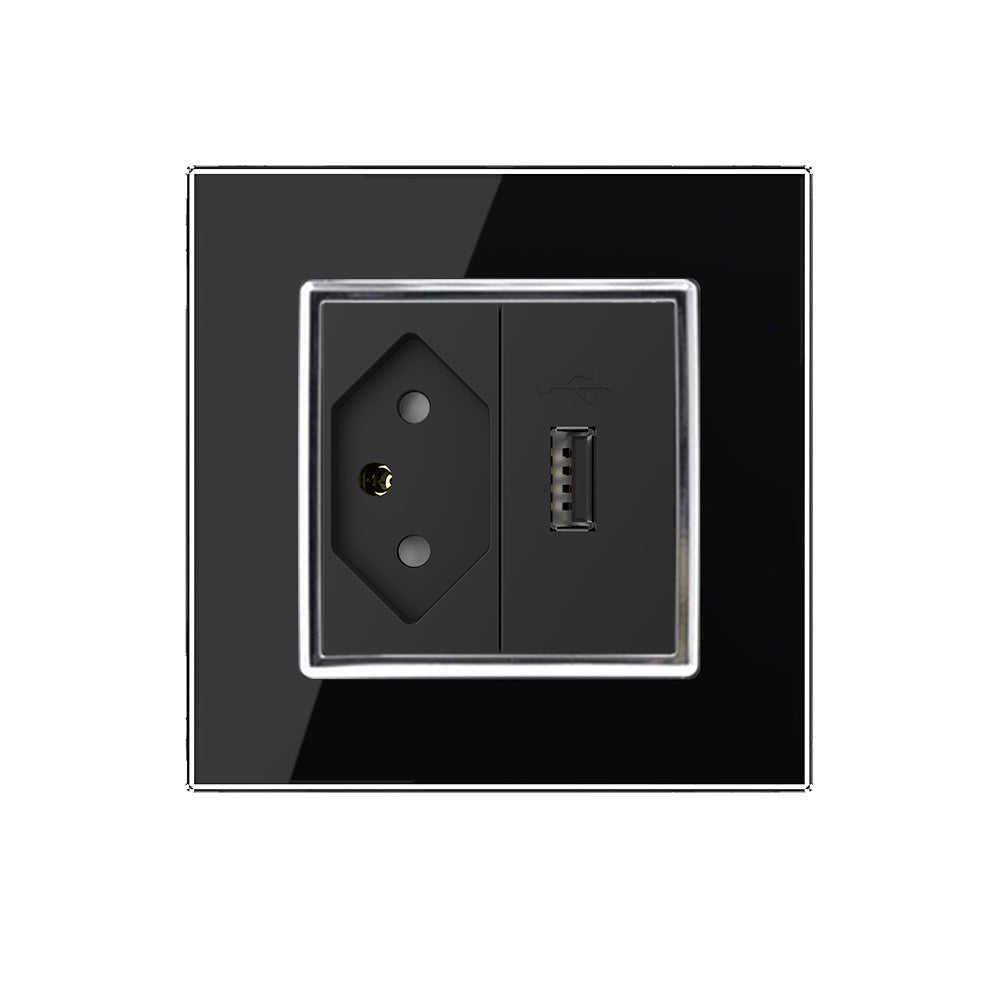

Livolo Swiss socket + USB half modules incl. glass frame in black

This is a Swiss socket together with a USB module incl. glass frame in black.

This combination allows you to charge a device via the USB module and also power another device (such as a bedside lamp) via the socket.

The socket has a screw connection and can also be used for flat Euro plugs.

Easy and quick installation, both vertically and horizontally.

In our shop you will also find spreading claws (LG-01) in a 2-pack, for flush-mount boxes without a screw-in option. Suitable for hollow walls and older houses (built before 1970). When using spreading claws, flush-mount boxes with a diameter of 68 mm are better suited.

The modules are attached to the flush-mount boxes with screws using the included metal frame.
Replacement is carried out like with other rocker switch manufacturers. Simply replace your old rocker switches with a new, durable design. The wiring remains the same.

The light switch and socket modules are suitable for flush-mount boxes with a diameter of 60-68 mm. The hole spacing for multi-gang plates is 71 mm.

With us you get the complete Livolo range; from a simple rocker light switch to a smart home-capable touch roller shutter switch.

Questions? Call us or send us an email.
We are happy to advise you!

Technical data:

Swiss socket:
Dimensions: 45 x 22.5 x 40 mm
Rated current: 13A
Voltage: 250V

USB module:
Dimensions: 45 x 22.5 x 42 mm
Operating voltage: 2.1A/220V
Rated current: 16A
Voltage: 250V

Scope of delivery:

The delivery includes:

- 1 x Livolo 1/2 Swiss socket, as ordered
- 1 x Livolo 1/2 USB module, as ordered
- 1 x Livolo glass frame, as ordered
- User manual
