Livolo roller shutter switch module with glass cover in grey

This is a Livolo roller shutter switch for raising and lowering as well as pausing a roller shutter, awning, Venetian blind or blind.

The roller shutter switch can also be controlled via app by using the WRC01 module.

Thanks to the glass cover, this switch with modern sensor technology is a real eye-catcher.

Easy and quick installation, both vertically and horizontally.

The roller shutter switch is operated by lightly touching the circular surface. The contour of the touch surface is subtly illuminated, making it easy to operate at any time of day. It is especially easy to find the switch in the dark. In the on mode, the border of the touch field lights up red, in the off mode blue.

By pressing the switch again, you can stop the roller shutter motor.

In our shop you will also find spreading claws (LG-01) in a 2-pack, for flush-mount boxes without a screw-in option. Suitable for hollow walls and older houses (built before 1970). When using spreading claws, 68 mm flush-mount boxes are better suited.

The modules are attached to the flush-mount boxes with screws using the included metal frame.

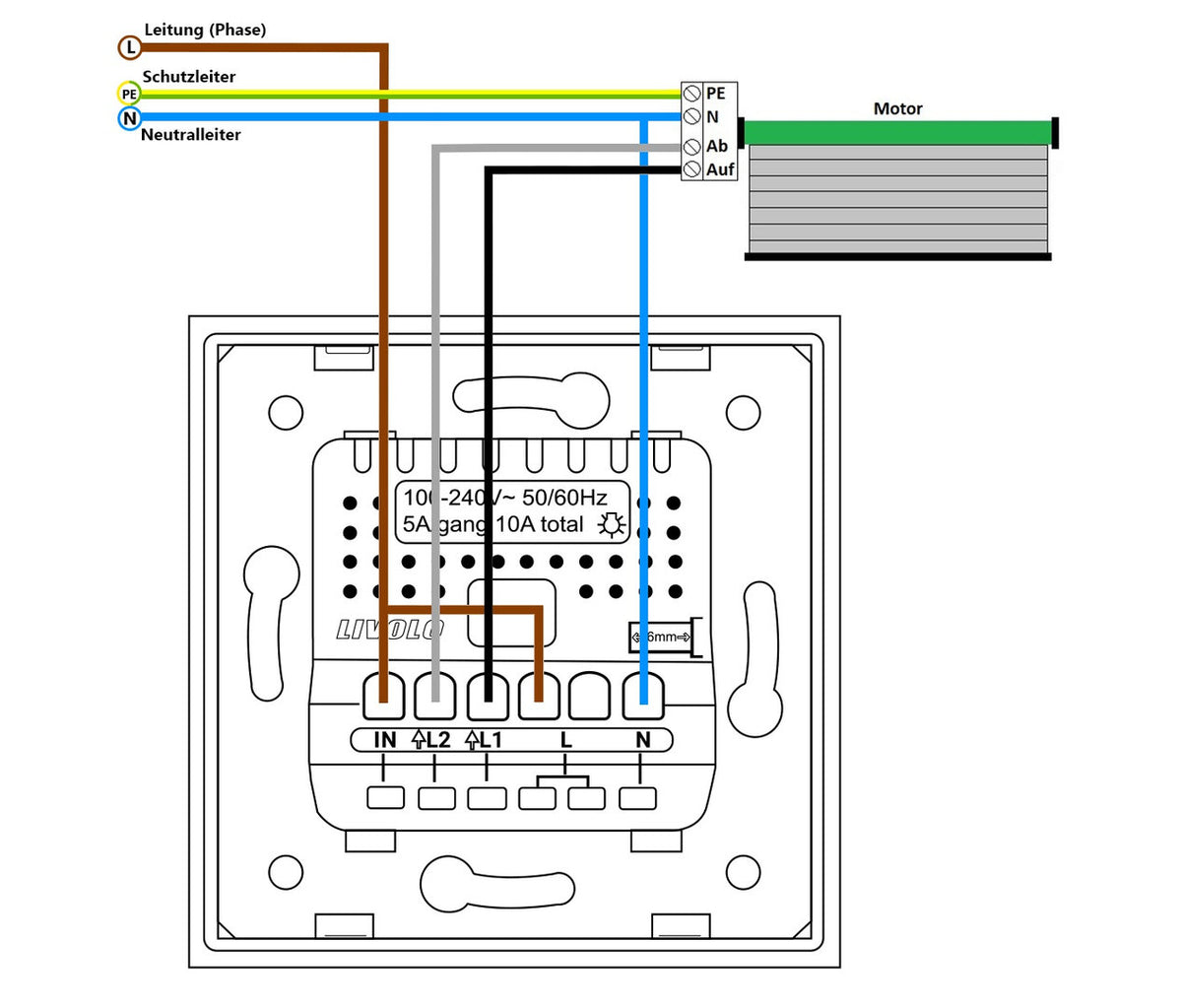

The replacement is carried out like with other rocker switch manufacturers. Simply replace your old rocker switches with a new, durable design. The wiring remains the same.

The light switch and socket modules are suitable for flush-mount boxes with a diameter of 60-68 mm. The hole spacing for multiple covers is 71 mm.

With us you get the complete Livolo range; from a simple rocker light switch to a smart home-capable touch roller shutter switch.

Questions? Call us or send us an email.
We are happy to advise you!

Technical data:

Operating voltage: AC 220V-250V

Current: 5A

Power load: 2000W

Lifespan over 100,000 times

Operating time: approx. 60 seconds

Dimensions:

80 x 80 x 34 mm

Scope of delivery:

The delivery includes:

· 1 x Livolo Touch Switch Internal Component, as ordered

· 1 x Livolo Glass Cover, single, as ordered

· User Manual

Installation info: the connection is made WITHOUT power and the glass cover, after installation you can place the glass cover and turn the power back on. Let the touch switch rest for 3 minutes before operating. After the time has elapsed, the roller shutter switch can be operated. If you do not follow these instructions, the roller shutter switch may not respond.
