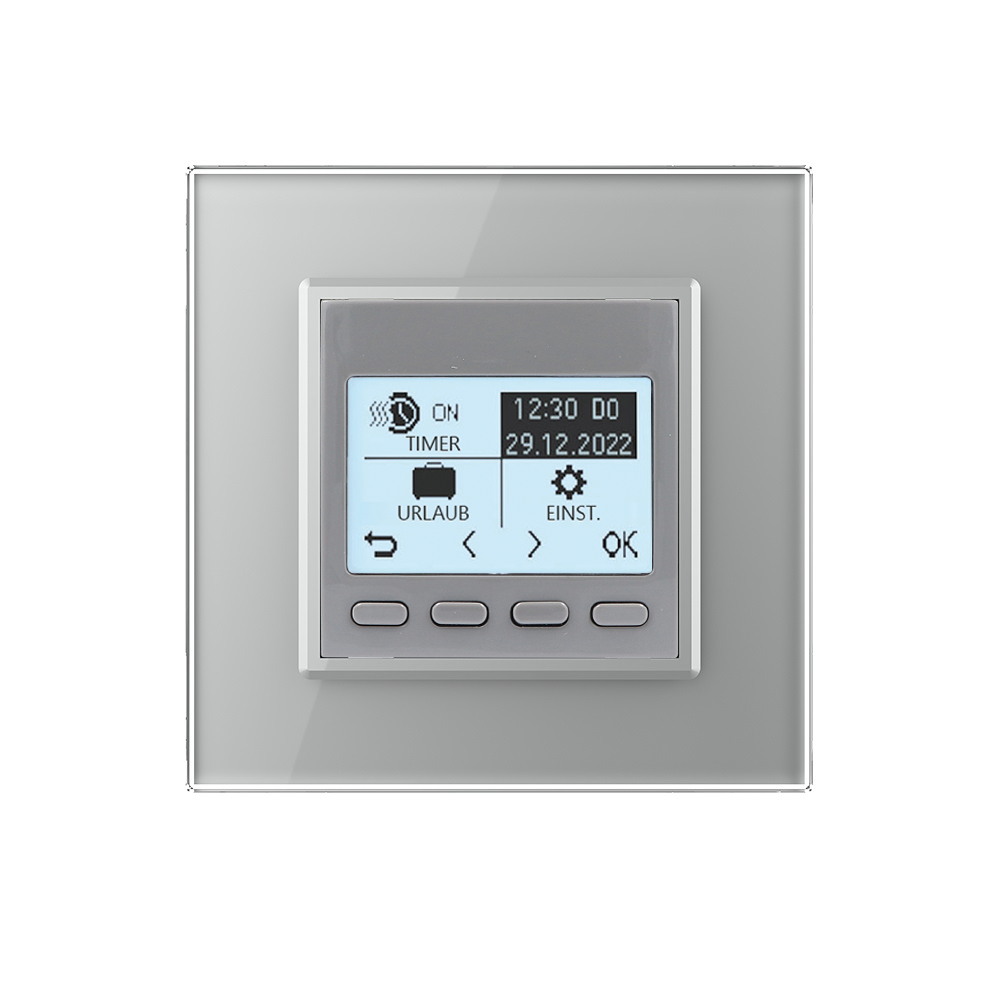

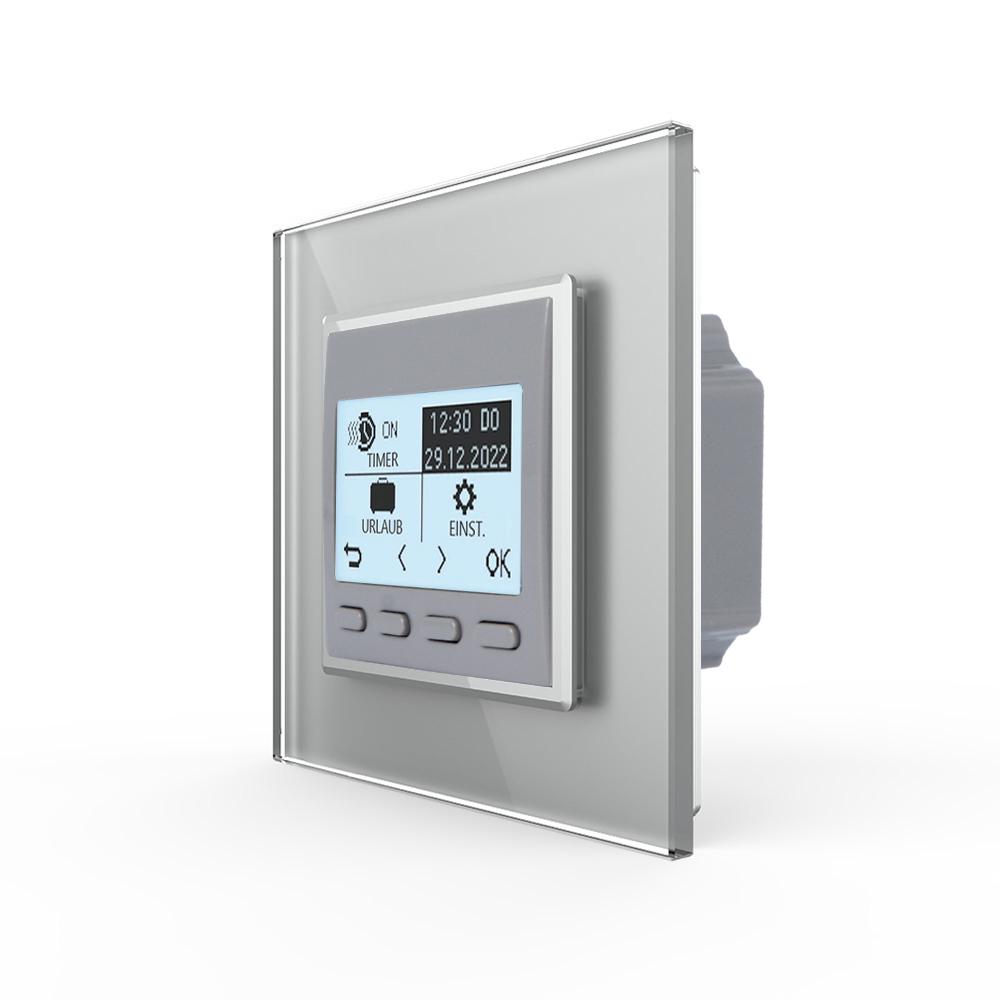

Livolo digital room thermostat for underfloor heating incl. simple glass frame in grey

This is a digital room thermostat from Livolo in grey (Please note! The module colour may vary slightly!).

This thermostat can be used to control most underfloor heating systems with actuators (water-based or electric), provided the maximum power is not exceeded. The thermostat can be used for both heating and cooling.

The thermostat can be set using the buttons on the front. The thermostat can be programmed, and schedules with exceptions (such as holidays or vacations) can be created. The length of the heating season can also be set, so that the thermostat automatically switches on/off at the beginning or end of the heating season.

After a certain period, the display enters a standby mode, while the set programming continues to run in the background. The display also features a child lock or button lock.

To optimize heating costs, energy consumption statistics can be accessed. It is also possible to enter current prices to maintain an even more accurate overview.

The "Open window" function automatically detects a significant drop in temperature and reduces the actuators for a certain period.

The included floor sensor can be connected optionally.

In the event of a power outage, a battery can be inserted to keep all settings saved.

In combination with the matching glass cover, this room thermostat becomes a real eye-catcher.

Easy and quick installation in Livolo glass frames (Please note! Only horizontal installation is possible!).

In our shop, you will also find spreading claws (LG-01) in a pack of 2, for flush-mount boxes without a screw-in option. Suitable for hollow walls and older houses (built before 1970). When using spreading claws, 68 mm flush-mount boxes are better suited.

The module is attached to the flush-mount box using the built-in frame and screws. Installation is only possible horizontally.

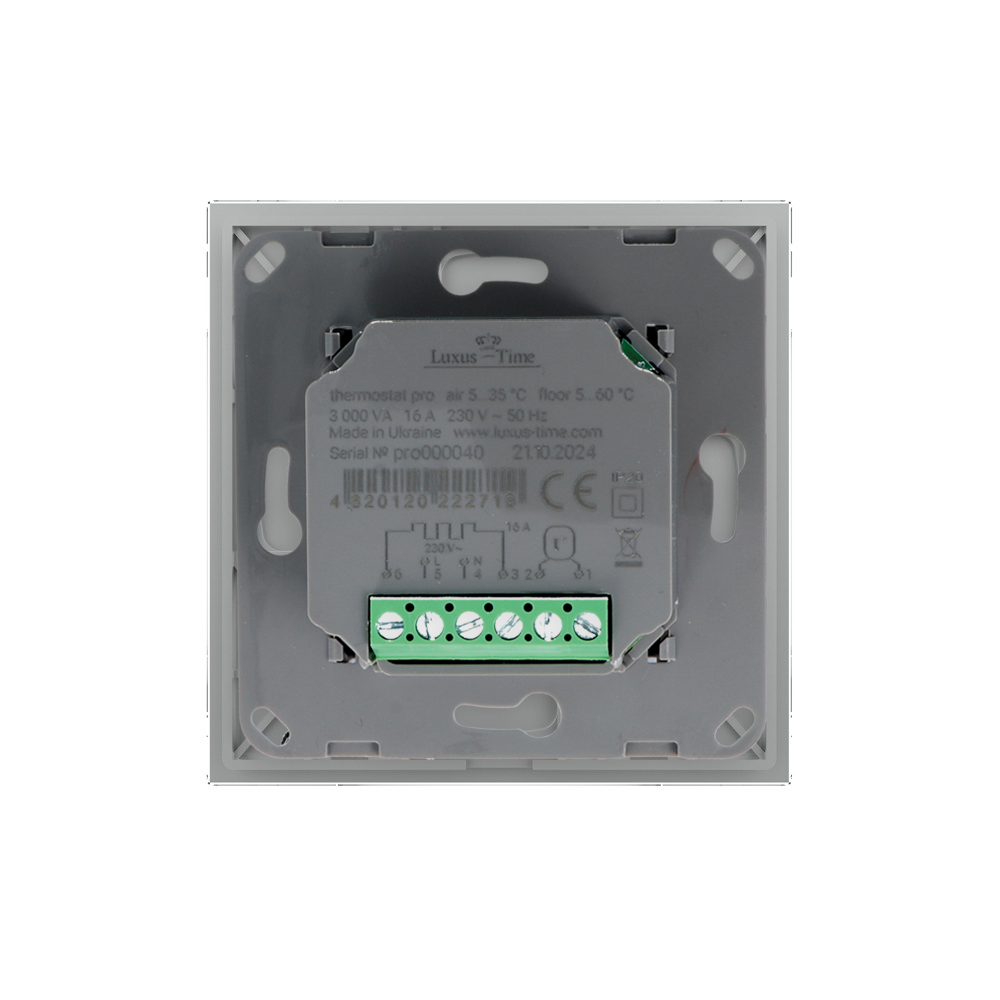

Replacement is carried out as with other manufacturers. Simply replace your old thermostats with a new, durable design. The wiring remains the same.

The light switch and socket modules are suitable for flush-mount boxes with a diameter of 60-68 mm. The hole spacing for multiple covers is 71 mm. We recommend insulated flush-mount boxes for more accurate measurements.

With us, you get the complete Livolo range; from a simple rocker light switch to a smart home-capable touch roller shutter switch.

Questions? Call us or send us an email.
We are happy to advise you!

Technical data:

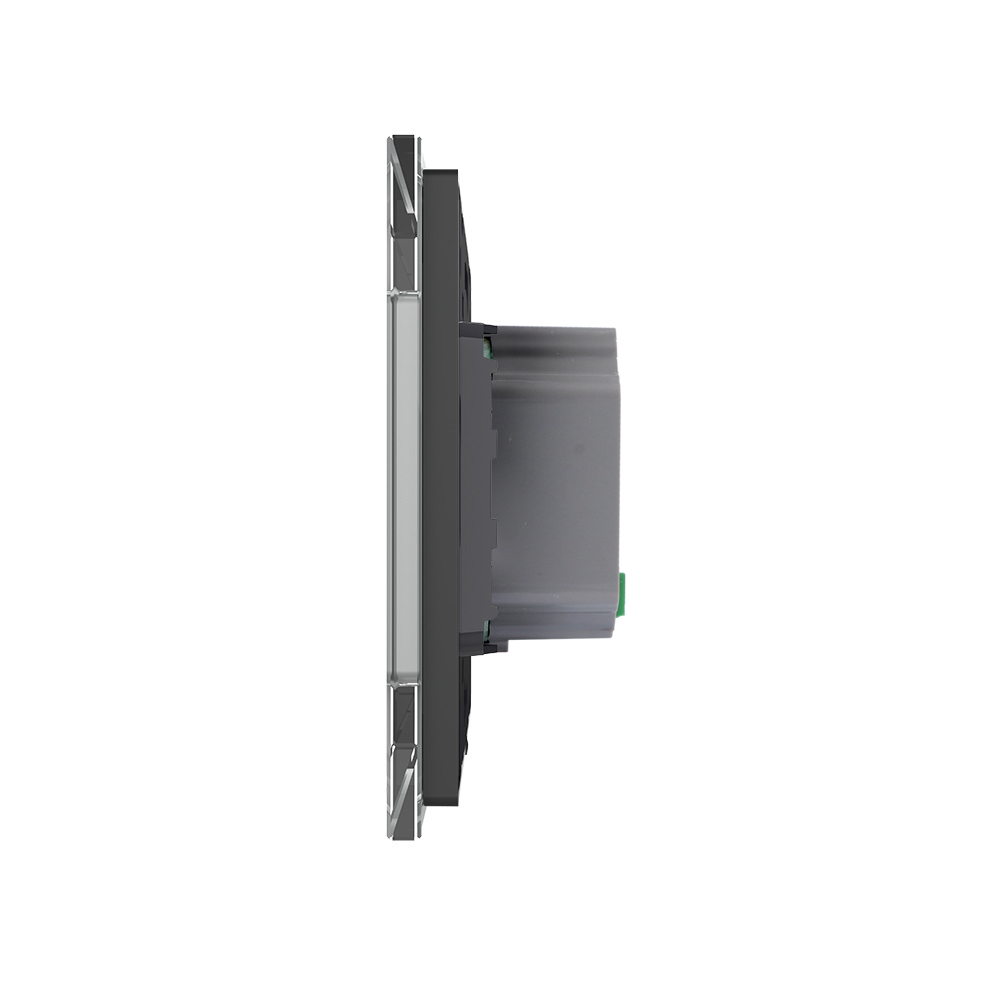

Dimensions: 80 x 80 x 38.5mm

Temperature accuracy: < 0.5°C

Service life: > 50,000 operations (under load), > 20,000,000 (without load)

Connection voltage: 230V AC

Switching capacity: 16A

Available languages: German, English, Russian, Czech, Ukrainian

Scope of delivery:

The delivery includes:

- 1 x Livolo programmable room thermostat with ext. floor sensor, according to order

- 1 x Livolo glass frame 1-gang, according to order
- User manual
