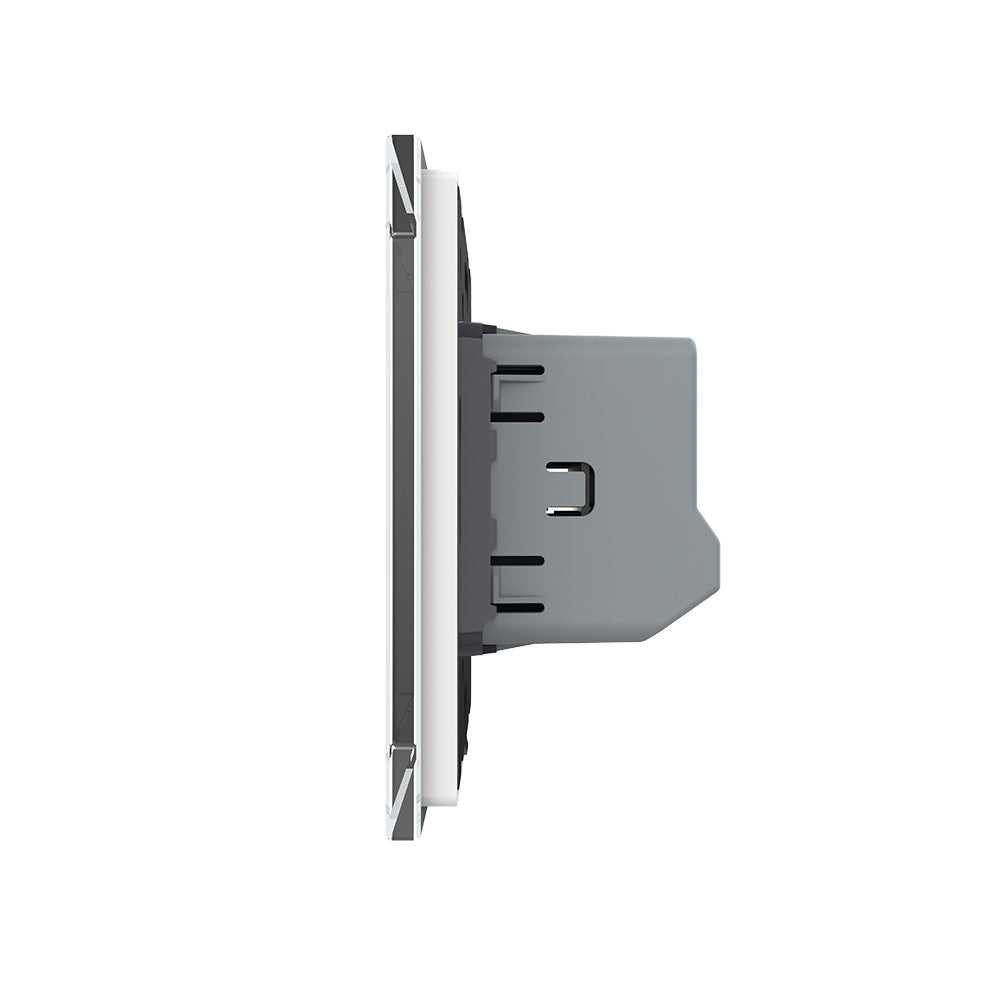

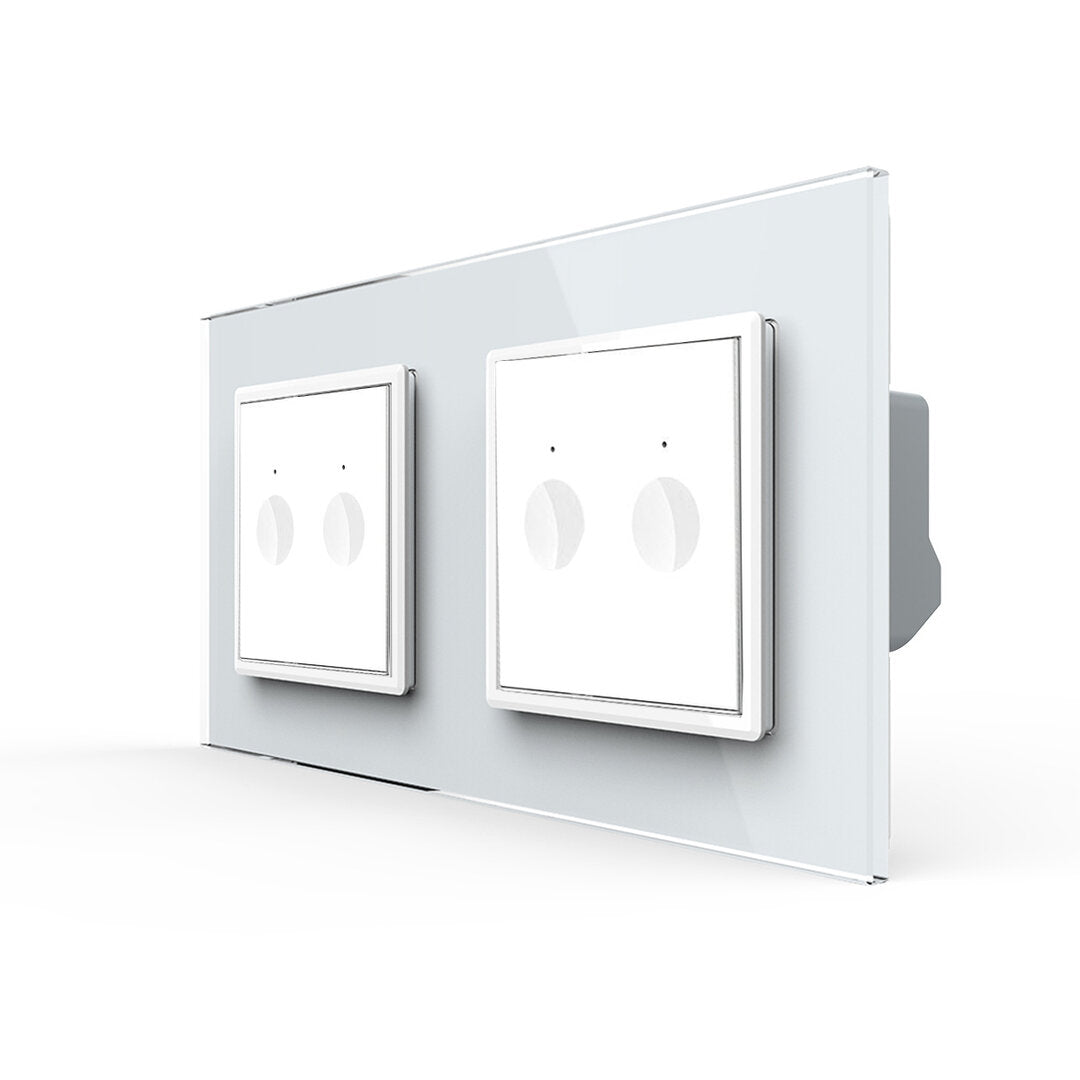

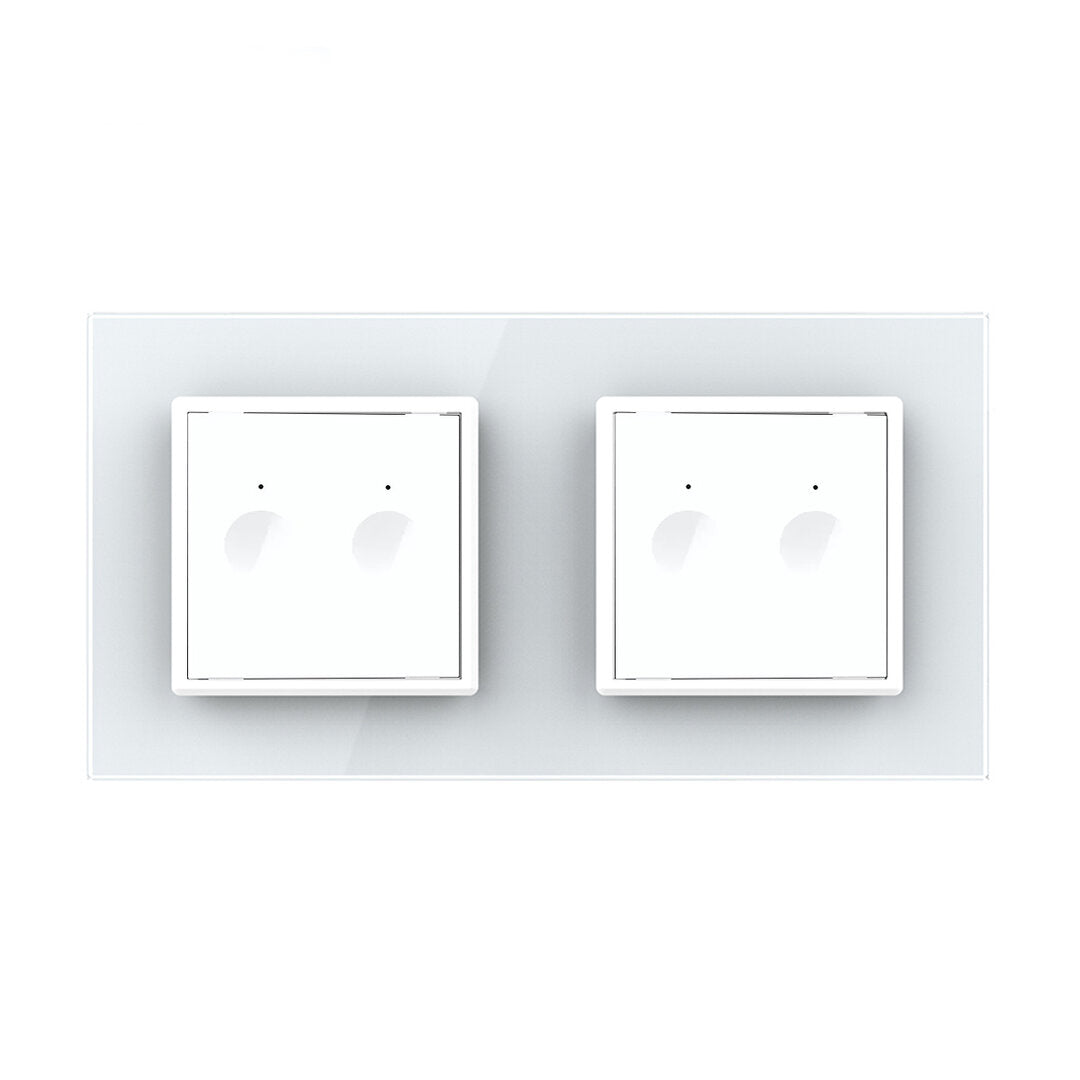

Livolo 2-Notch Roller Shutter Switch Modules with Glass Cover in White

These are two Livolo roller shutter switches for raising, lowering, and pausing one roller shutter, awning, Venetian blind, or blind respectively.

The glass cover turns this combination with modern sensor technology into a real eye-catcher.

Easy and quick installation, both vertically and horizontally.

The roller shutter switch is operated by lightly touching the recessed circular surface.

There is subtle lighting above the recesses, so that easy operation is possible at any time of day. Especially in the dark, it is easy to find the switch.

In ON mode, the indicator of the touch panel lights up red, in OFF mode blue.

By pressing the switch again, you can stop the roller shutter motor.

In our shop you will also find Spreading claws (LG-01) in a 2-pack, for flush-mount boxes without a screw-in option. Suitable for hollow walls and older houses (built before 1970). When using spreading claws, 68 mm large flush-mount boxes are better suited.

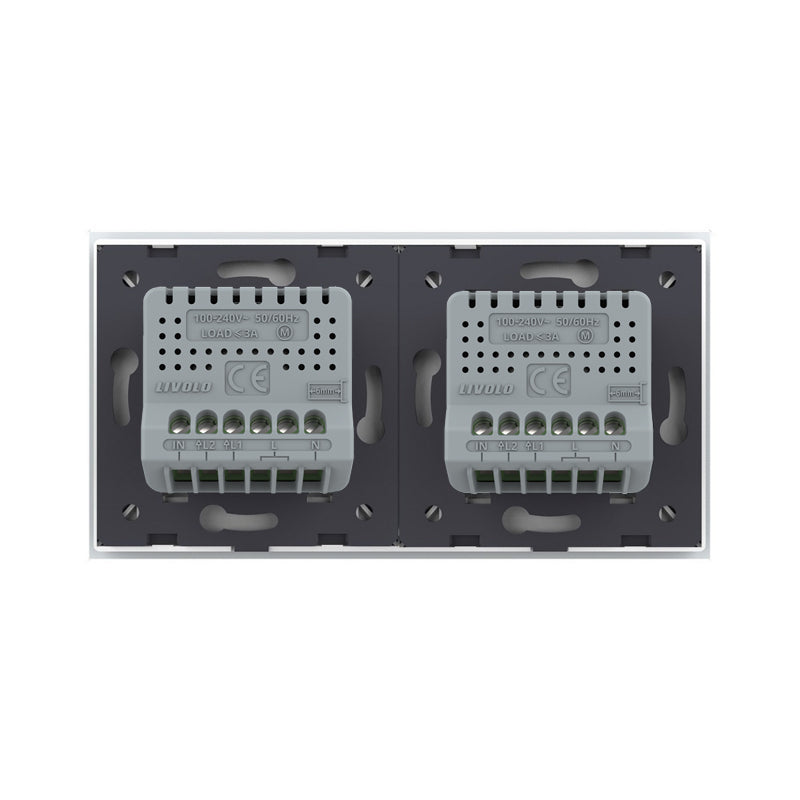

The modules are attached to the flush-mount boxes with screws using the included metal frame. The replacement is done like with other roller shutter switch manufacturers. Simply replace your old switches with a new, durable design. The wiring remains the same.

Our modules are suitable for flush-mount boxes with a diameter of 60-68 mm. The hole spacing for multiple covers is 71 mm.

With us you get the complete Livolo range; from a simple rocker light switch to a smart home-capable touch roller shutter switch.

Questions? Call us or send us an email.

We are happy to advise you!

Technical data:

Operating voltage: AC 220V-250V

Current: 5A

Power load: 2000W

Lifespan over 100,000 times

Operating time: approx. 60 seconds

Dimensions:

151 x 80 x 34 mm

Scope of delivery:

The delivery includes:

2 x Livolo Touch Switch internals, according to order

1 x Livolo double glass cover, according to order

Operating instructions

Installation info: the connection is made WITHOUT power and the glass cover, after installation you can place the glass cover and turn the power back on. Let the touch switch rest for 3 minutes before operating. After the time has elapsed, the roller shutter switch can be operated. If you do not follow these instructions, it may happen that the roller shutter switch does not respond.
