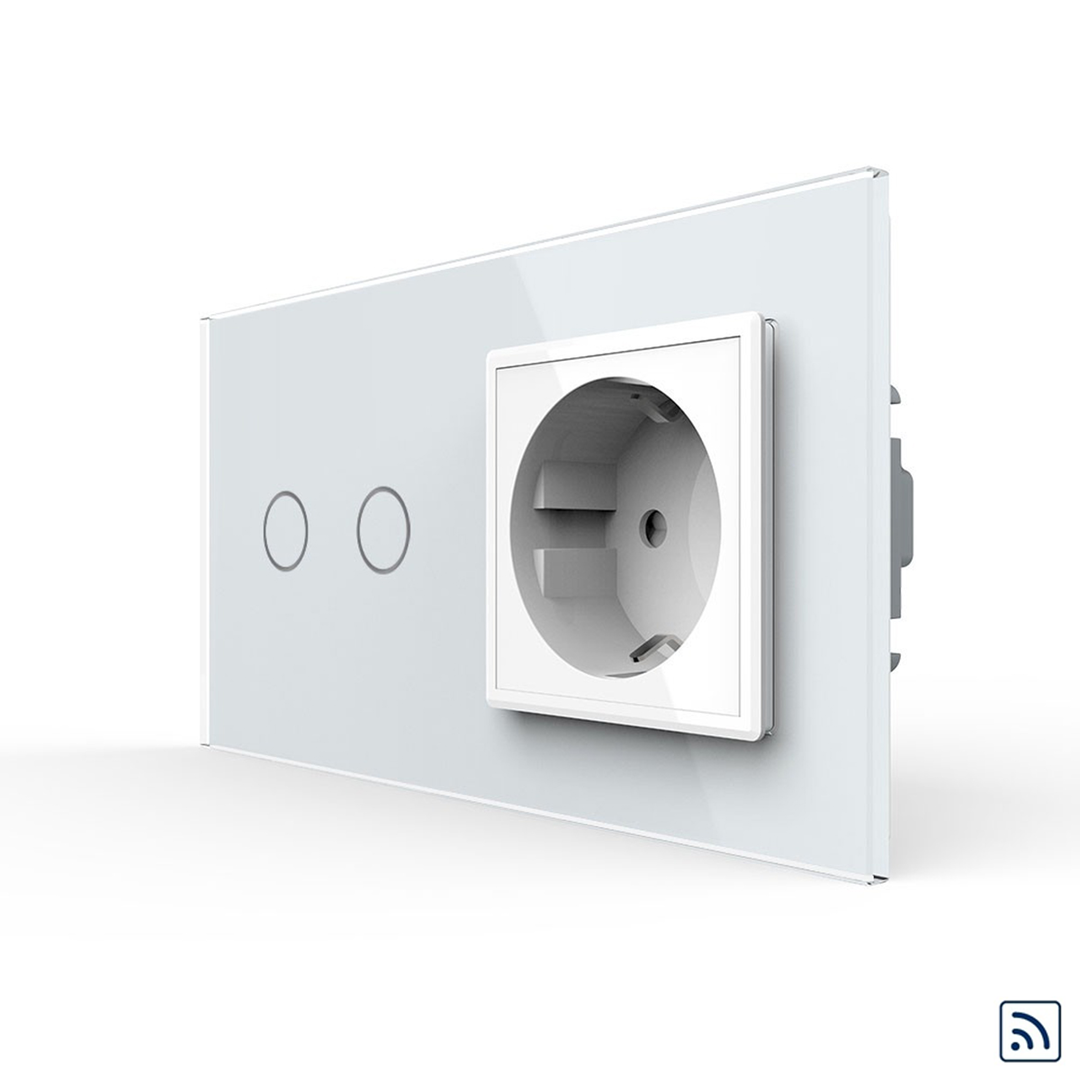

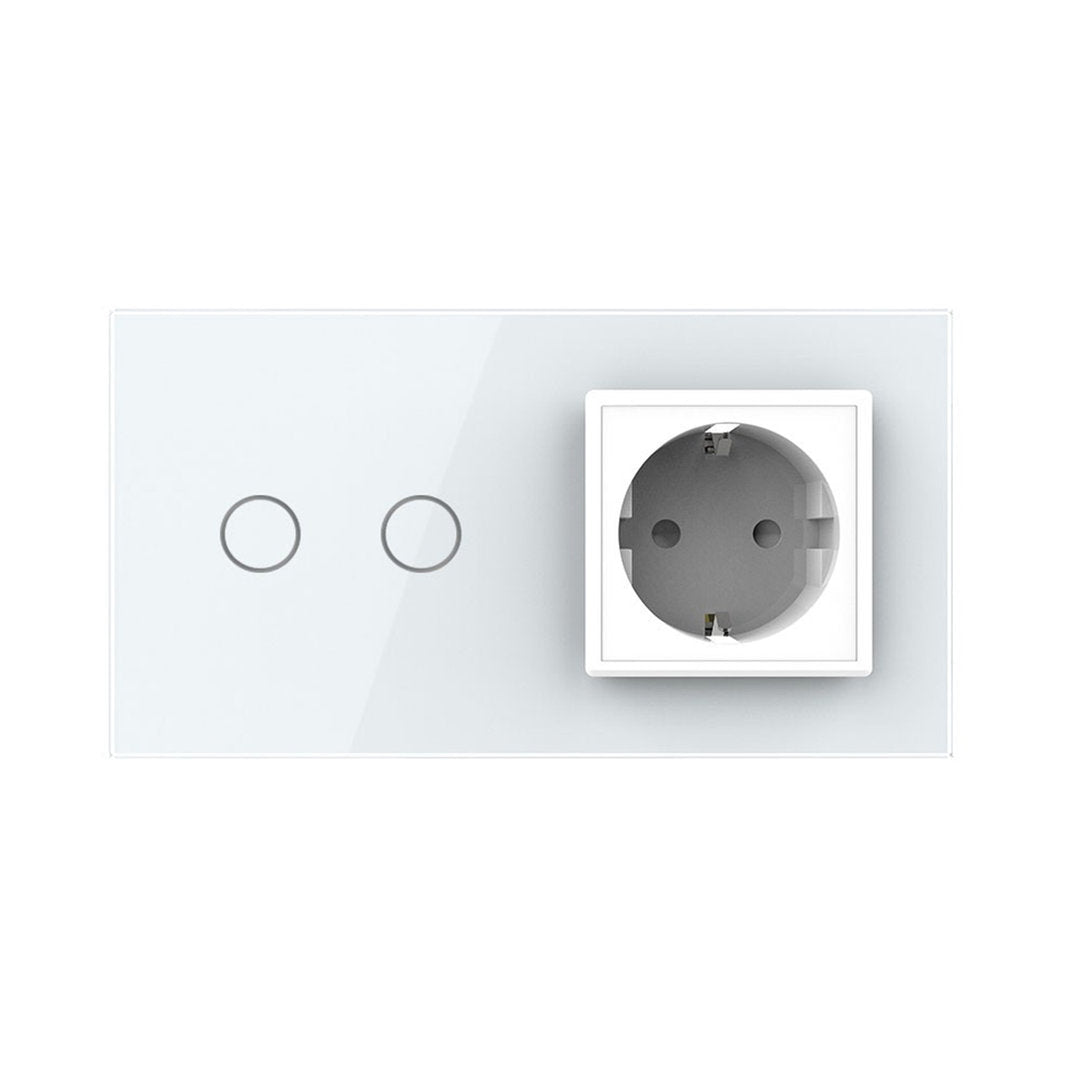

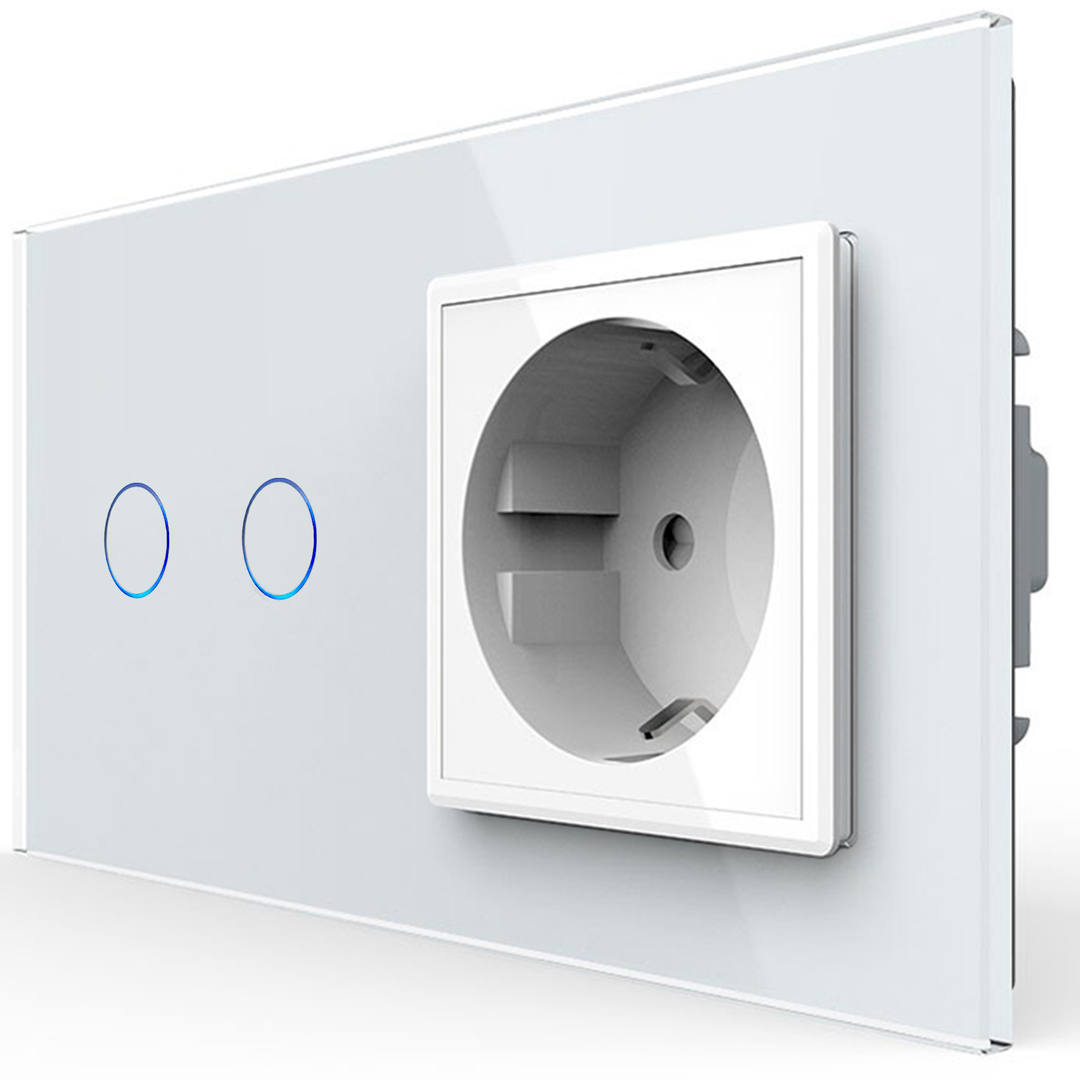

Livolo combination double radio light switch and socket module with double glass cover in solid white

This is a double Livolo light switch for switching two lights or groups of lights on and off. The socket features a built-in child safety lock.

The radio function allows control via remote control or via app (everHome App) using the everHome CloudBox as a gateway.

The glass cover gives this switch with modern sensor technology a truly eye-catching look.

Easy and quick installation, both vertically and horizontally.

The light switch is operated by lightly touching the circular surface. The contour of the touch surface is subtly illuminated, making it easy to operate at any time of day. This makes it especially easy to find the switch in the dark. In the on position, the border of the touch panel lights up red, and in the off position, blue.

Our touch light switches can be used with all types of lamps, including incandescent bulbs, halogen bulbs & energy-saving bulbs. Exception: LED strips.

Attention: With lights under 20 watts (especially LED lights), interference may occur. In almost all cases, a resistor adapter will help.

See under: Miscellaneous > Accessories

Our LED ceiling spotlights do not require a resistor adapter!

The LED ceiling spotlights are compatible with all our Livolo switches.

See under: Miscellaneous > LED Lights

In our shop you will also find spreading claws (LG-01) in a pack of 2, for flush-mount boxes without threading. Suitable for hollow walls and older houses (built before 1970). When using spreading claws, 68 mm flush-mount boxes are better suited.

The modules are attached to the flush-mount boxes with screws using the metal frame provided.

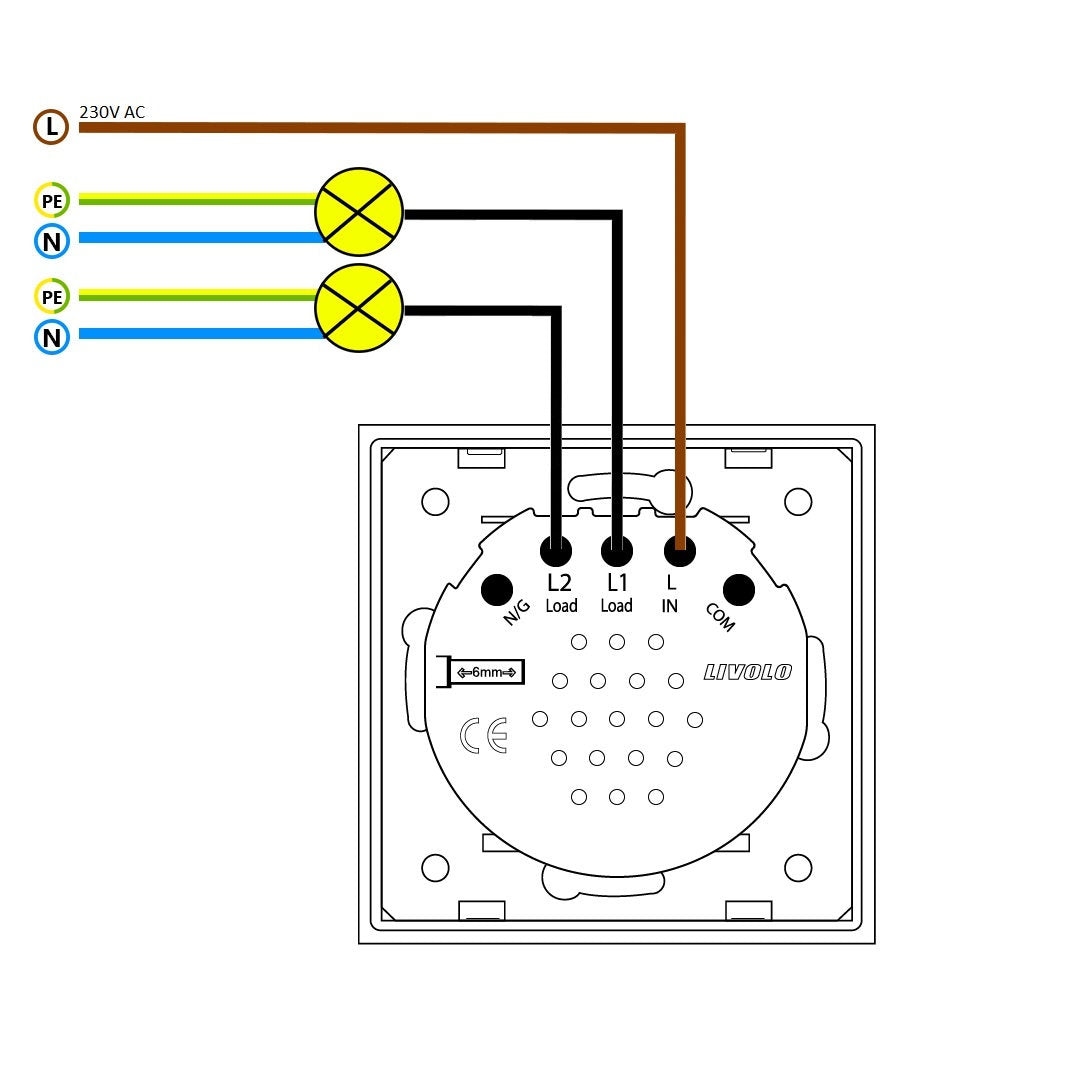

Replacement is carried out like with other rocker switch manufacturers. Simply replace your old rocker switches with a new, durable design. The wiring remains the same.

The light switch and socket modules are suitable for flush-mount boxes with a diameter of 60-68 mm. The hole spacing for multiple covers is 71 mm.

With us you get the complete Livolo range; from a simple rocker light switch to a smart home-enabled touch roller shutter switch.

Questions? Call us or send us an email.
We are happy to advise you!

Technical data:

Light switch:

Operating voltage: AC110~250V, 50Hz60Hz

max. current per gang: 2.5A

Current load: 1000W

max. power per gang: 500W/220V or 250W/120V

Standby power consumption: less than 0.1mW

Service life over 100,000 times

Socket:

Rated current/voltage: 16A/250V

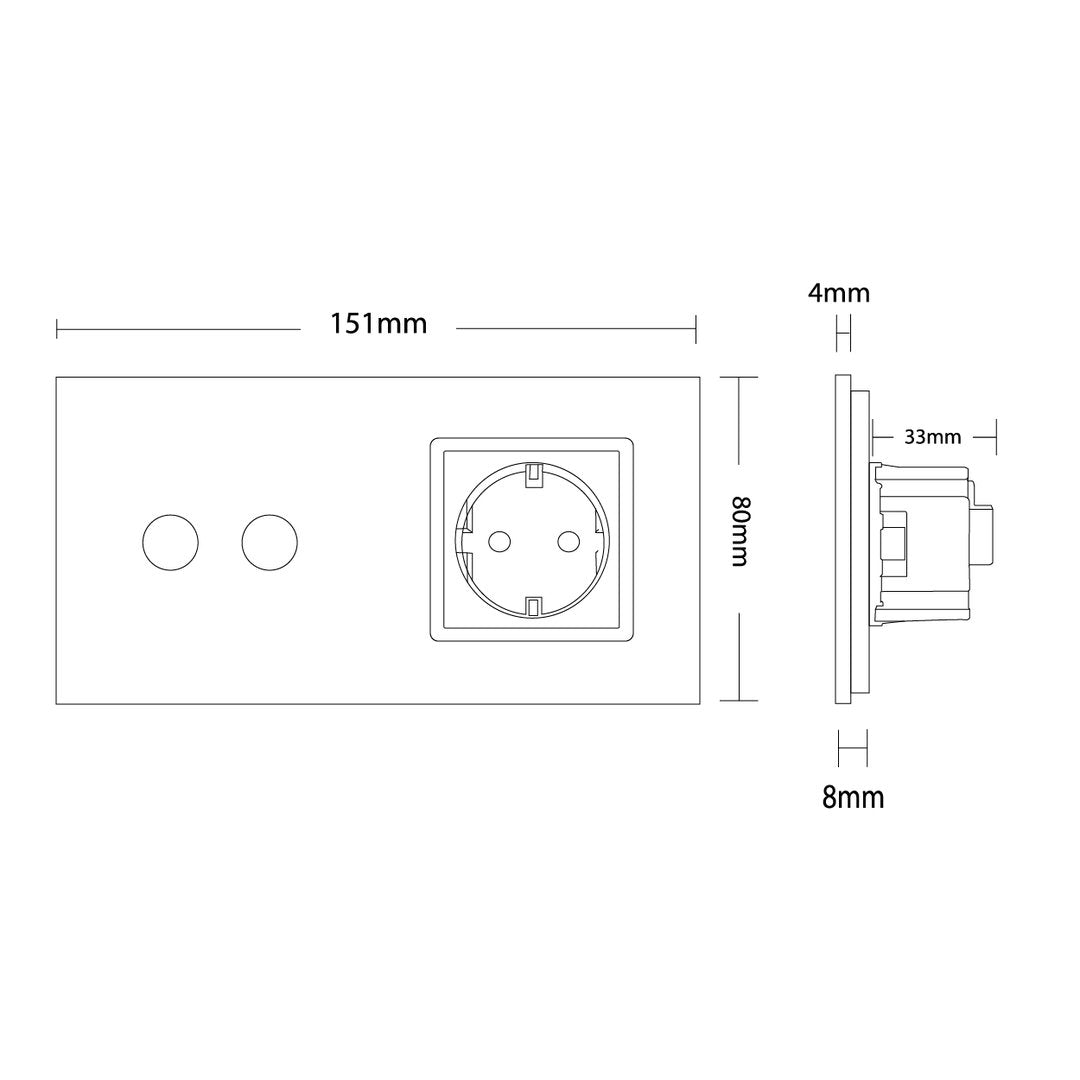

Dimensions:

151 x 80 x 34 mm

Scope of delivery:

The delivery includes:

• 1 x Livolo touch switch internal component, as ordered
• 1 x Livolo socket internal component, as ordered
• 1 x Livolo single glass cover, as ordered
• Operating instructions

Installation info:

The connection is made WITHOUT power and without the glass cover. After installation, you can place the glass cover and switch the power back on. Allow the touch switch to rest for 3 minutes before operating it. After this time, the light switch can be operated. If you do not follow these instructions, the light switch may not respond.
