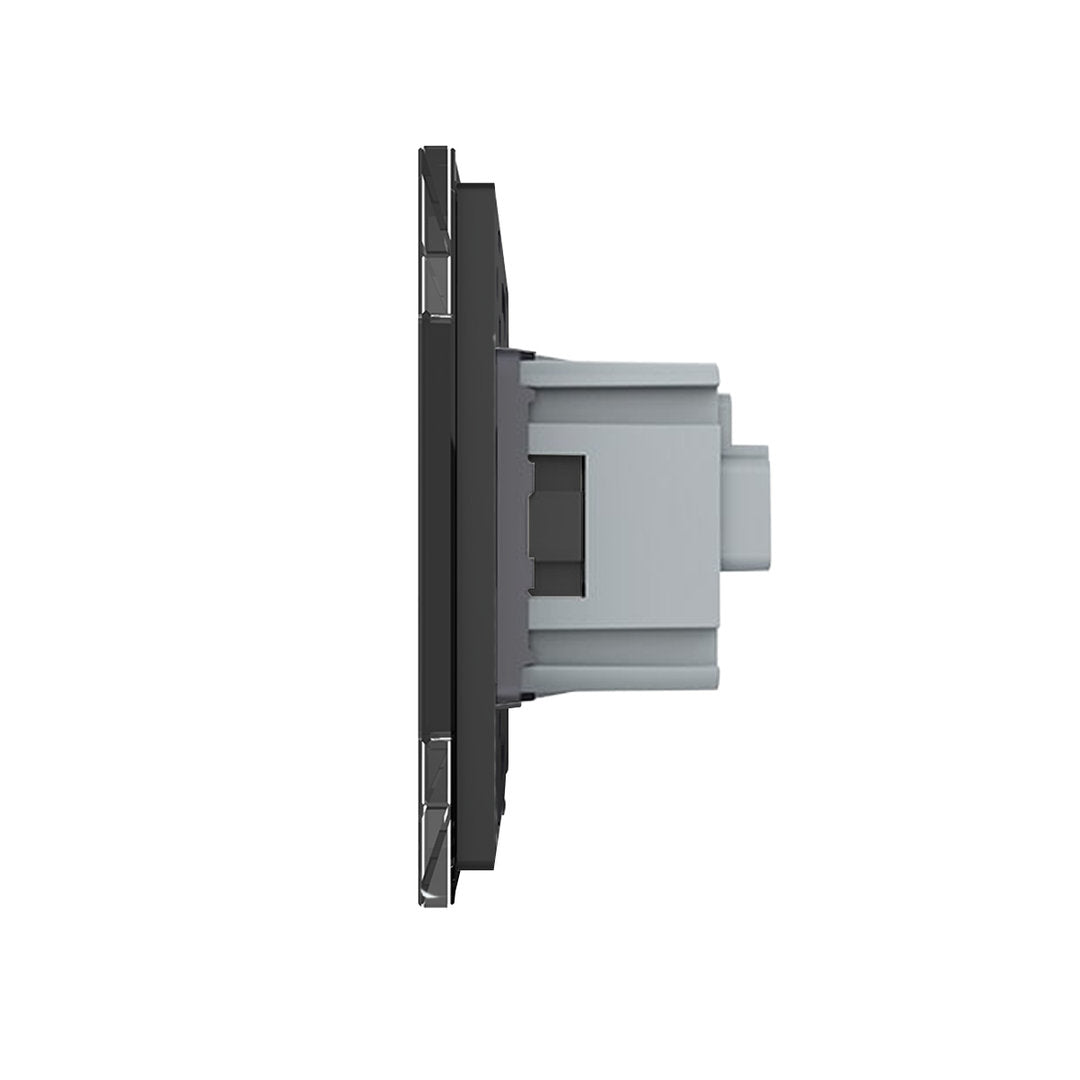

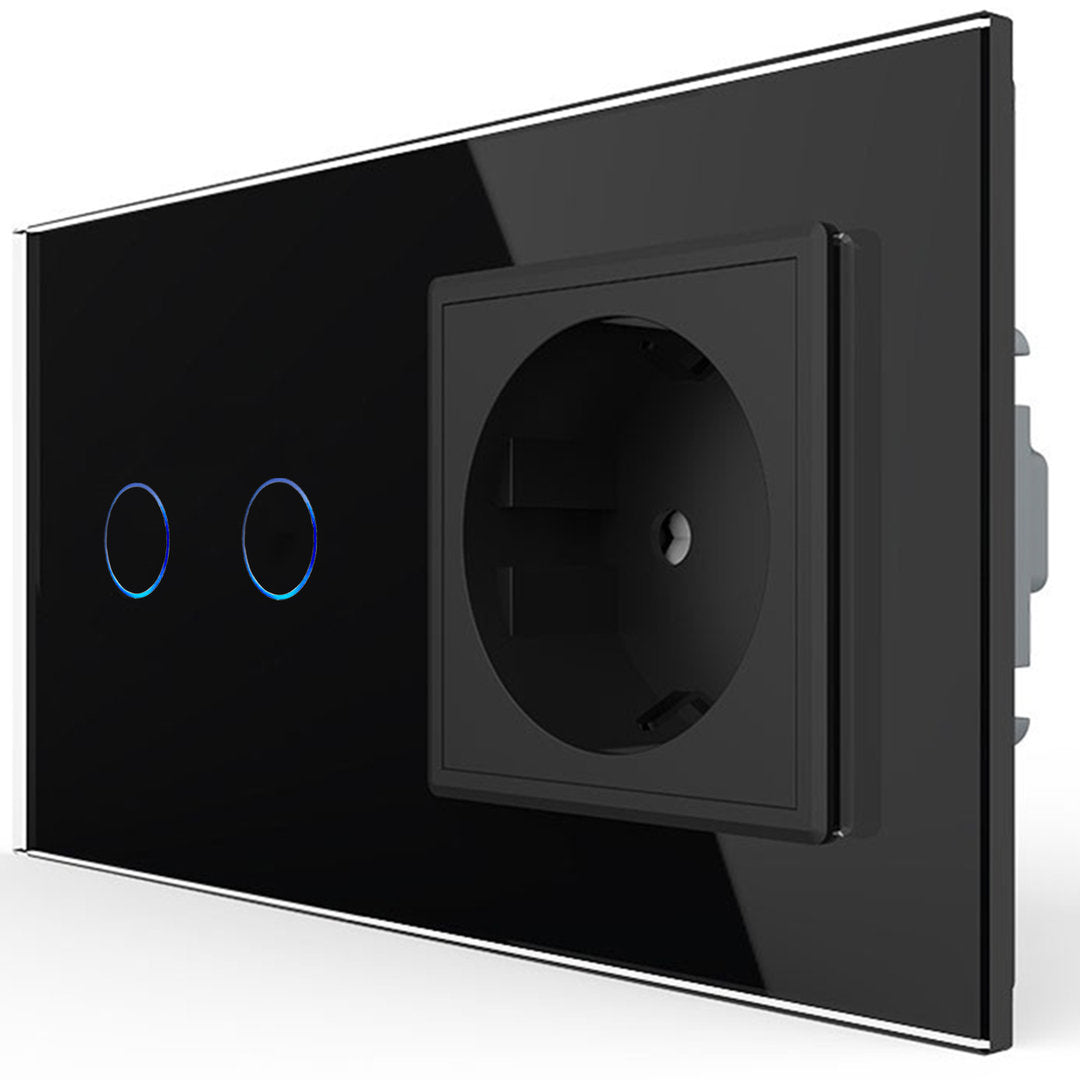

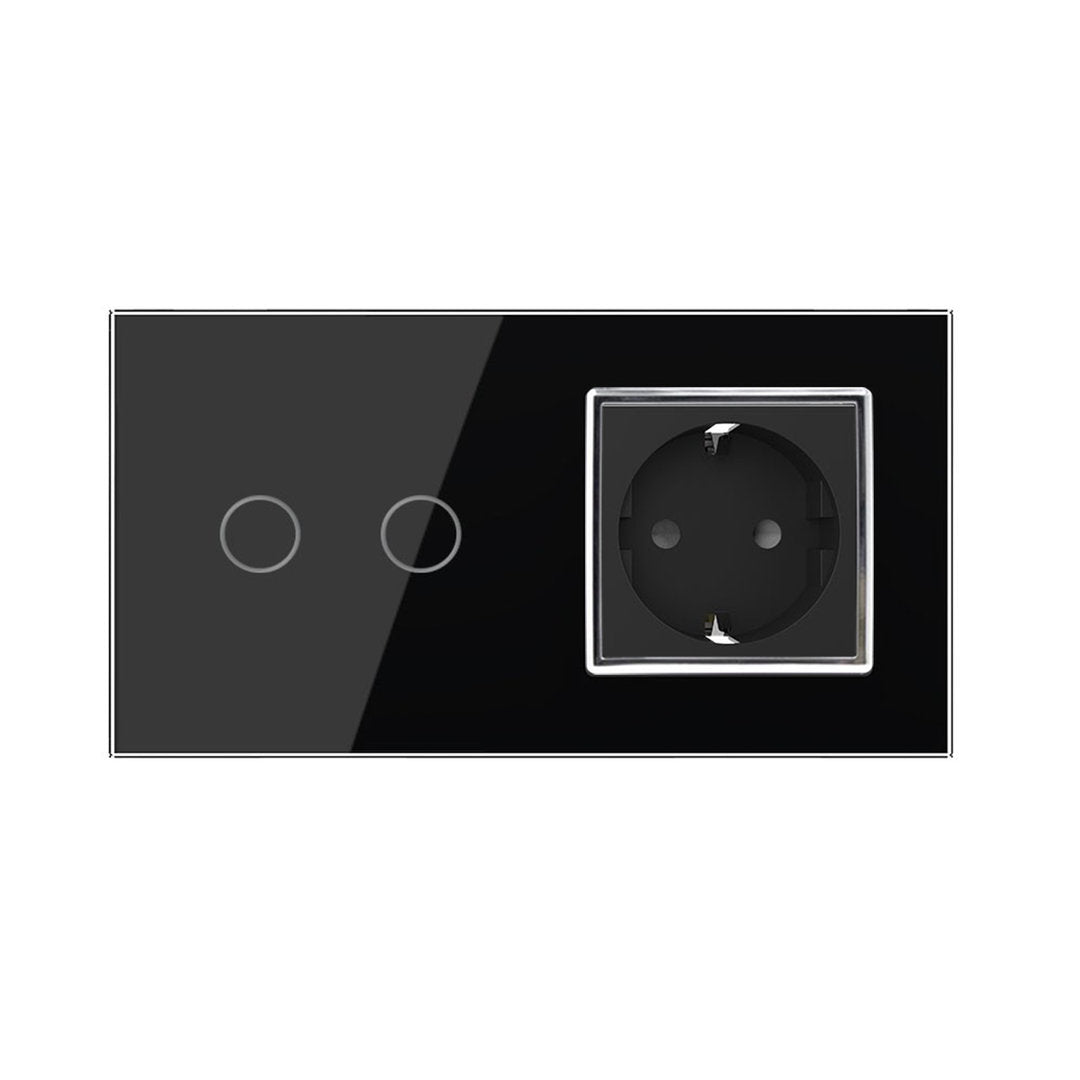

LIVOLO wireless shutter switch with socket incl. glass frame in black

This is a Livolo wireless shutter switch for raising and lowering as well as pausing a shutter, awning, Venetian blind or blind.

The operating time of the switch can be set between 60 and 120 seconds in 15-second increments.

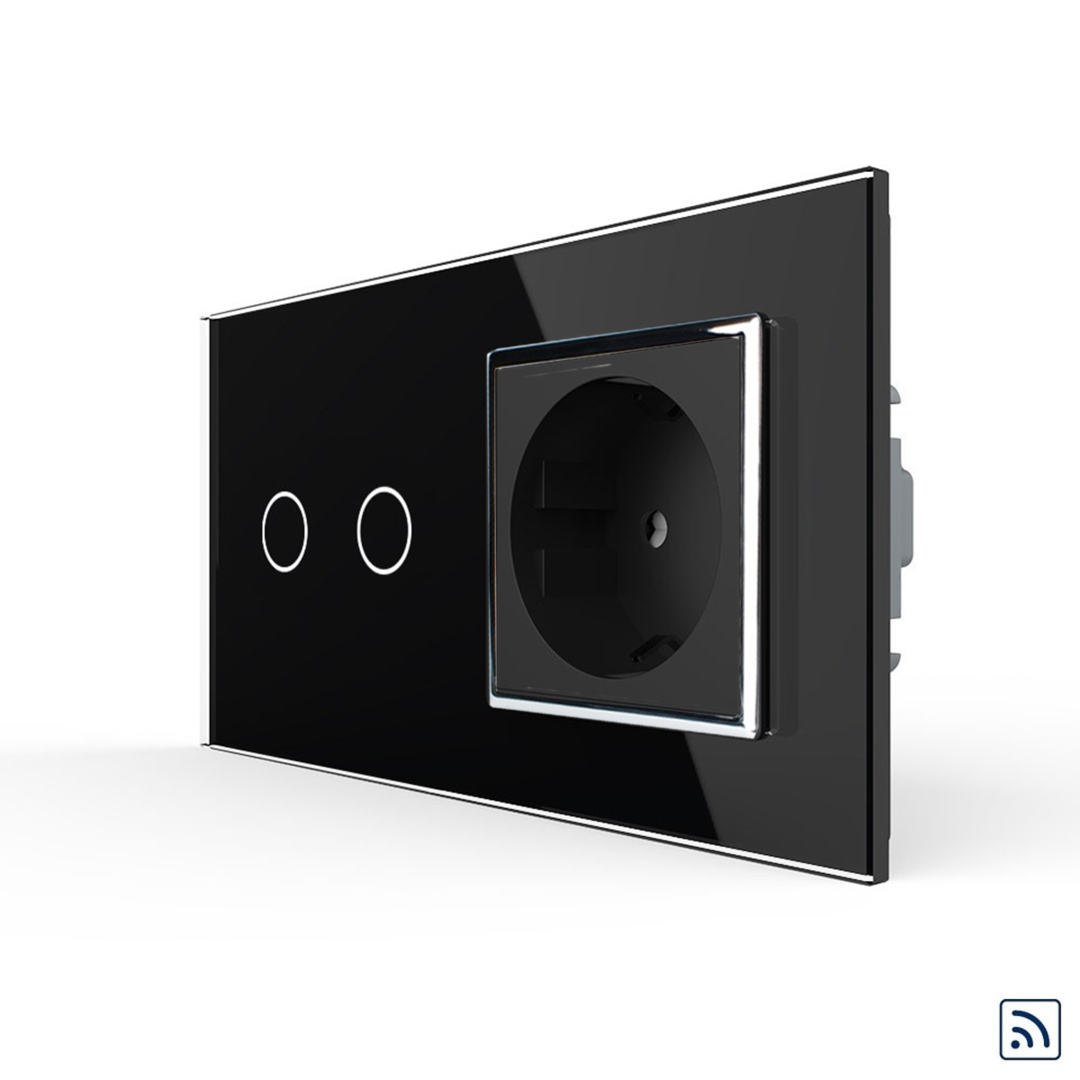

The wireless function allows control via remote control or (with the everHome CloudBox as a gateway) also via app (everHome App).

The everHome App can also be connected to a wireless weather station, which can automatically raise or lower the shutter when preset measured values are reached (e.g. increased wind speeds or high solar radiation).

The socket has a built-in child safety lock.

The glass cover makes this switch with modern sensor technology a real eye-catcher.

Easy and quick installation, both vertically and horizontally.

The shutter switch is operated by lightly touching the circular surface. The contour of the touch surface is subtly illuminated, making it easy to operate at any time of day. It is especially easy to find the switch in the dark. In the on mode, the border of the touch field lights up red, in the off mode blue.

By pressing the switch again, you can stop the shutter motor.

In our shop you will also find spreading claws (LG-01) in a 2-pack, for flush-mount boxes without a screw-in option. Suitable for hollow walls and older houses (built before 1970). When using spreading claws, 68 mm flush-mount boxes are better suited.

The modules are attached to the flush-mount boxes with screws using the metal frame provided.

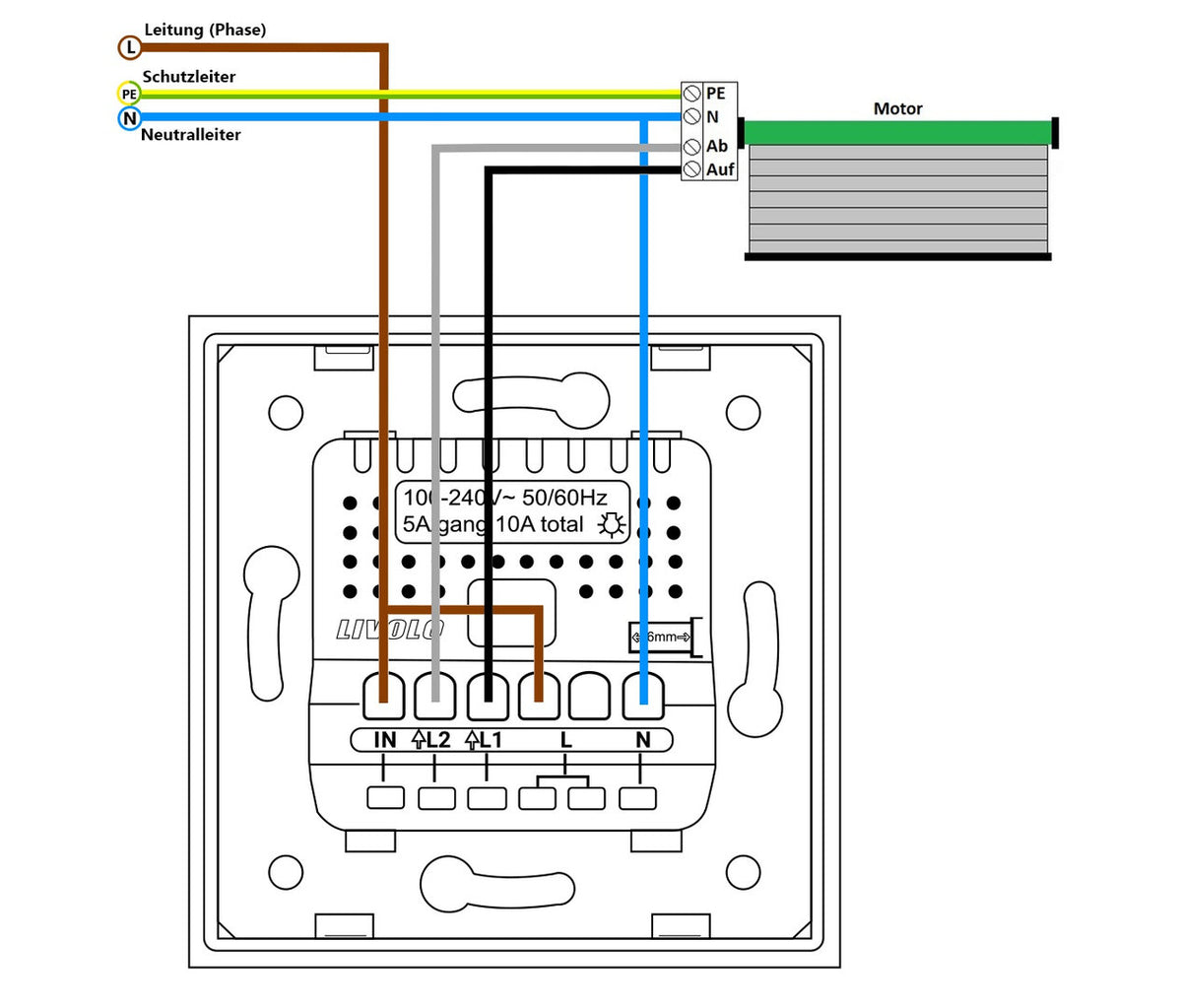

Replacement is carried out like with other rocker switch manufacturers. Simply replace your old rocker switches with a new, durable design. The wiring remains the same.

The light switch and socket modules are suitable for flush-mount boxes with a diameter of 60-68 mm. The hole spacing for multi-plate covers is 71 mm.

With us you get the complete Livolo range; from a simple rocker light switch to a smart home-capable touch shutter switch.

Questions? Call us or send us an email.
We are happy to advise you!

Technical data:

Wireless shutter switch:

Operating voltage: AC 220V-250V

Current: 5A

Power load: 2000W

Service life over 100,000 times

Operating time: approx. 60 seconds

Socket:

Rated current/voltage: 16A/250V

Dimensions:

151 x 80 x 34 mm

Scope of delivery:

The delivery includes:

• 1 x Livolo Touch Switch Internal Component, according to order
• 1 x Livolo Socket Internal Component, according to order
• 1 x Livolo Single Glass Cover, according to order
• Operating instructions

Installation info:

The connection is made WITHOUT power and the glass cover, after installation you can place the glass cover and switch the power back on. Let the touch switch rest for 3 minutes before operating it. After the time has elapsed, the light switch can be operated. If you do not follow these instructions, the light switch may not respond.
