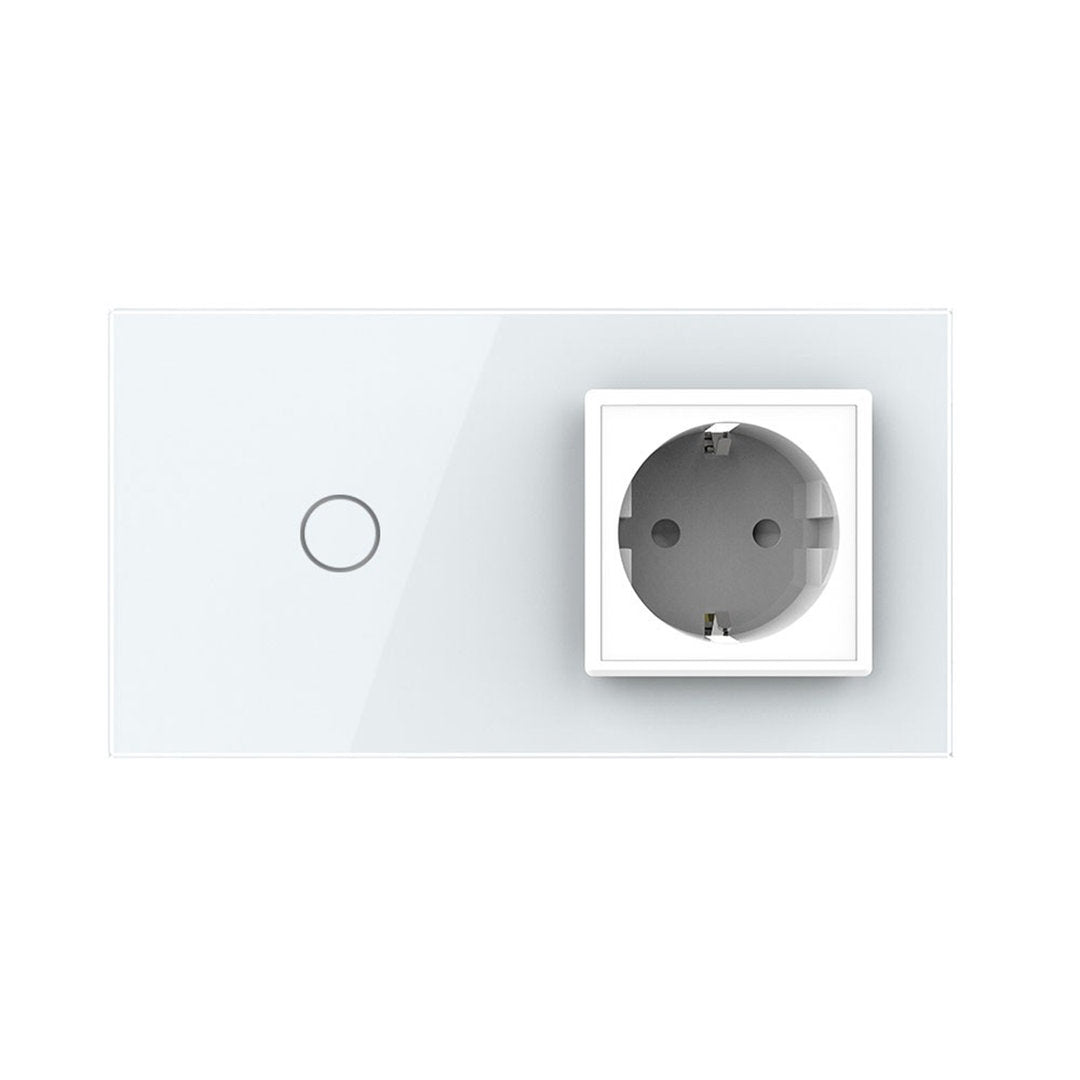

Livolo combination wireless light switch and socket module with double glass cover in solid white

This is a simple Livolo light switch for switching a light or group of lights on and off, including glass cover. The socket features a built-in child safety lock.

The wireless function of the switch allows control via remote control or via app (everHome App) using the everHome CloudBox as a gateway.

The glass cover turns this switch with modern sensor technology into a real eye-catcher.

Easy and quick installation, both vertically and horizontally.

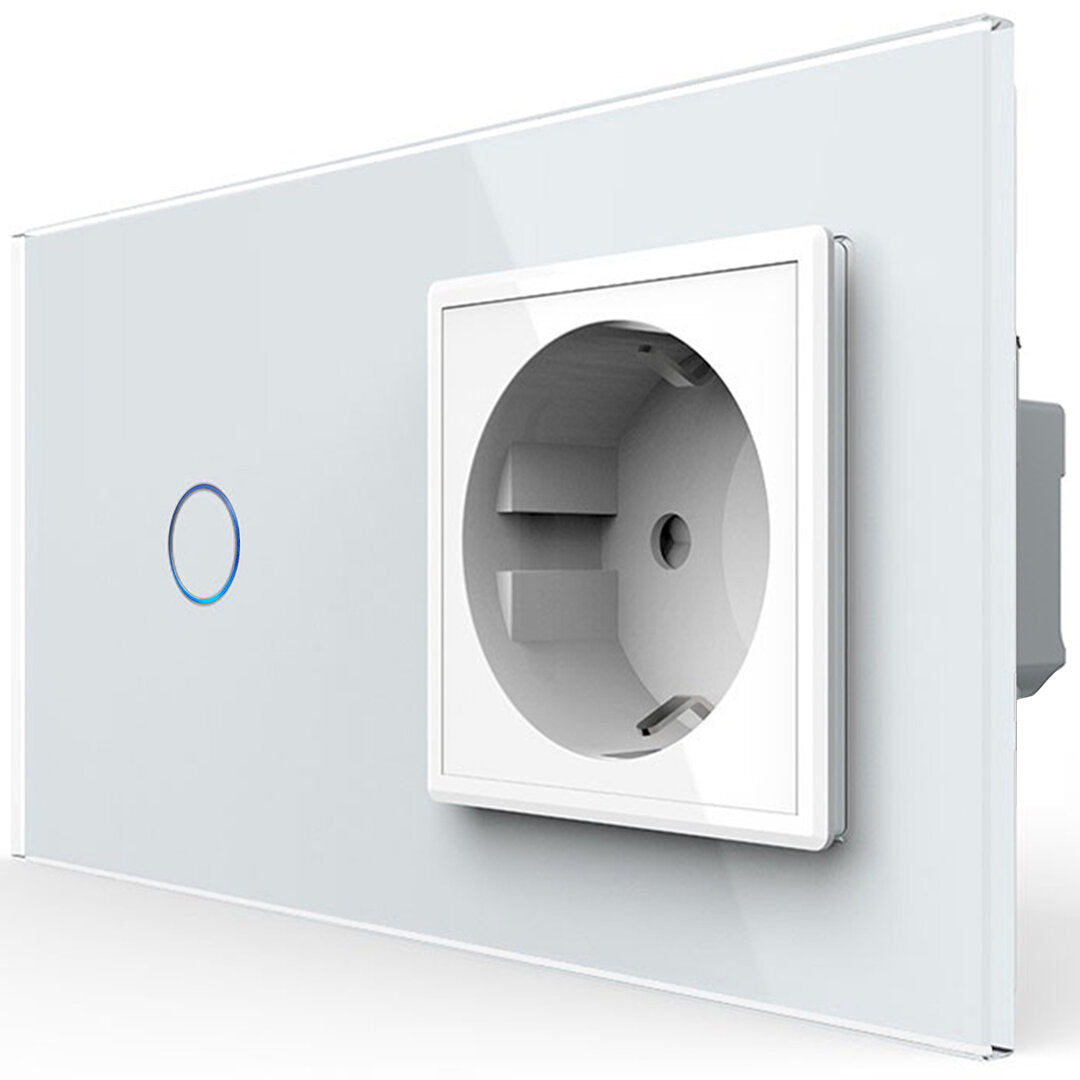

The light switch is operated by lightly touching the circular surface. The contour of the touch surface is subtly illuminated, making it easy to operate at any time of day. It is especially easy to find the switch in the dark. In the on position, the border of the touch field lights up red, in the off position blue.

Our touch light switches can be used with all types of lamps, including incandescent bulbs, halogen lamps & energy-saving bulbs. Exception: LED strips.

Attention: With lights under 20 watts (especially LED lights), interference may occur. In almost all cases, a resistor adapter helps.

See under: Miscellaneous > Accessories

For our LED ceiling spotlights, you do not need a resistor adapter!

The LED ceiling spotlights are compatible with all our Livolo switches.

See under: Miscellaneous > LED Lights

In our shop you will also find spreading claws (LG-01) in a pack of 2, for flush-mount boxes without threading. Suitable for hollow walls and older houses (built before 1970). When using spreading claws, 68 mm flush-mount boxes are better suited.

The modules are attached to the flush-mount boxes with screws using the included metal frame.

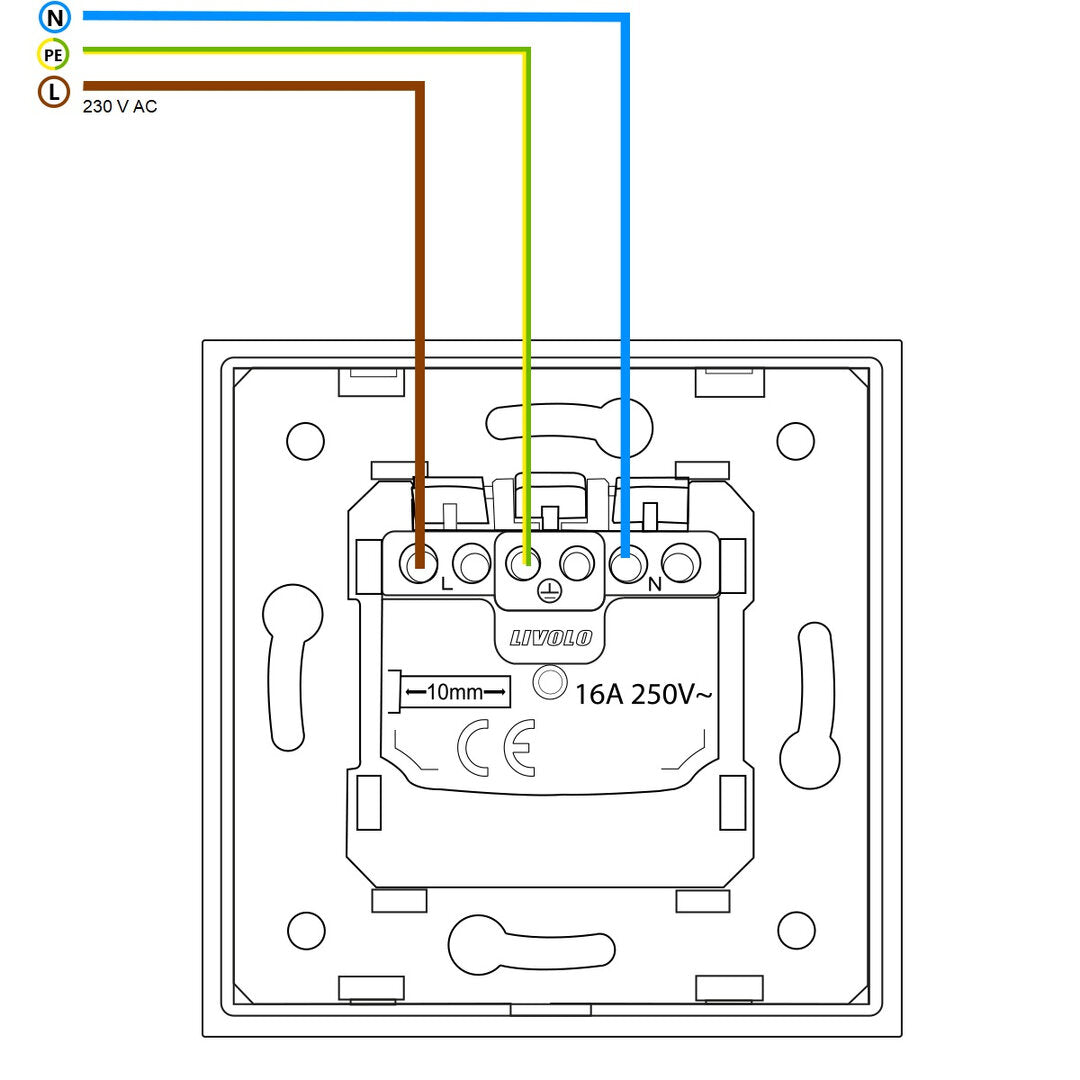

Replacement is carried out like with other rocker switch manufacturers. Simply replace your old rocker switches with a new, durable design. The wiring remains the same.

The light switch and socket modules are suitable for flush-mount boxes with a diameter of 60-68 mm. The hole spacing for multiple covers is 71 mm.

With us you get the complete Livolo range; from a simple rocker light switch to a smart home-capable touch roller shutter switch.

Questions? Call us or send us an email.
We are happy to advise you!

Technical data:

Light switch:

Operating voltage: AC220~250V, 50Hz60Hz

max. electrical voltage: 5A

Power load: 3W~1000W

No-load power consumption: less than 0.1mW

Service life over 100,000 times

Socket:

Rated current/voltage: 16A/250V

Dimensions:

151 x 80 x 34 mm

Scope of delivery:

The delivery includes:

• 1 x Livolo touch switch internal module, according to order
• 1 x Livolo socket internal module, according to order
• 1 x Livolo double glass cover, according to order
• Operating instructions

Installation info:

The connection is made WITHOUT power and without the glass cover. After installation, you can place the glass cover and switch the power back on. Let the touch switch rest for 3 minutes before operating it. After this time, the light switch can be operated. If you do not follow these instructions, the light switch may not respond.
