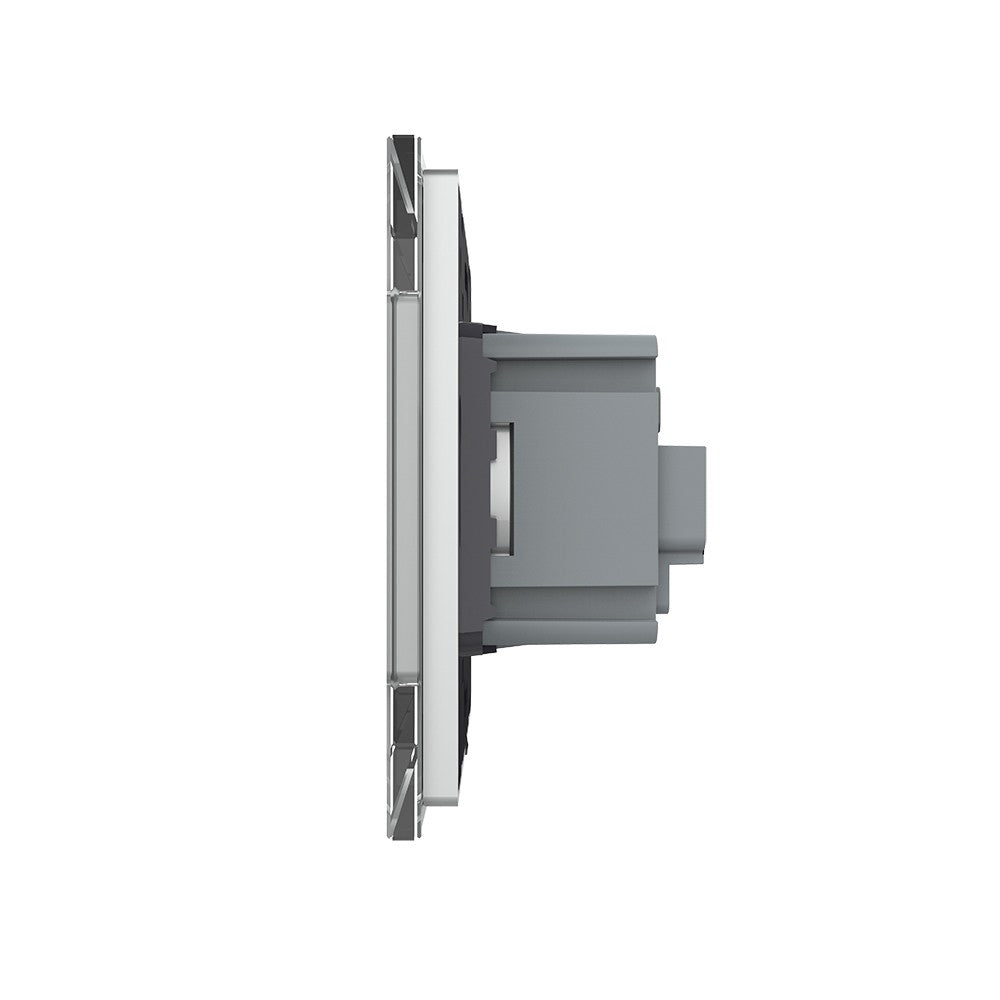

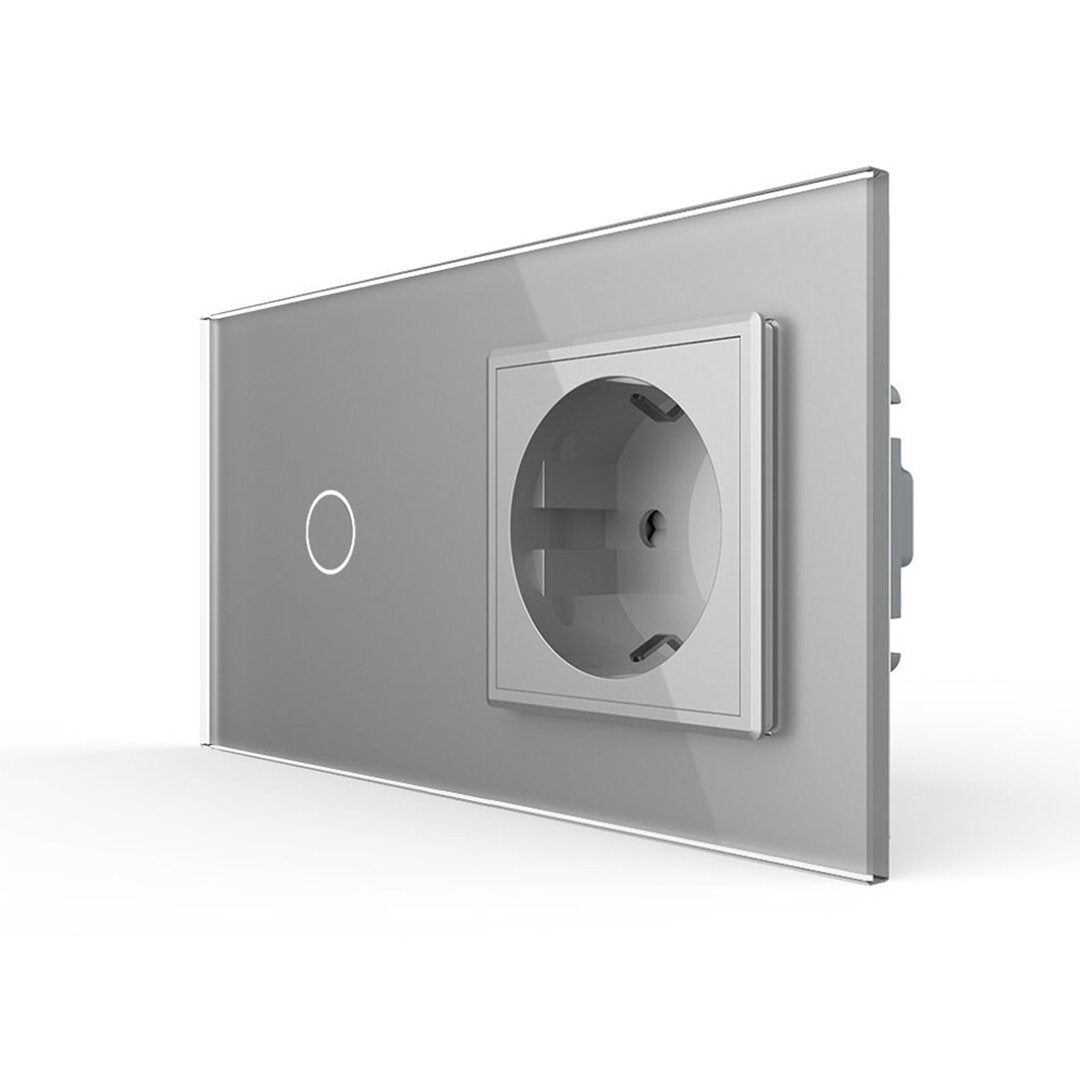

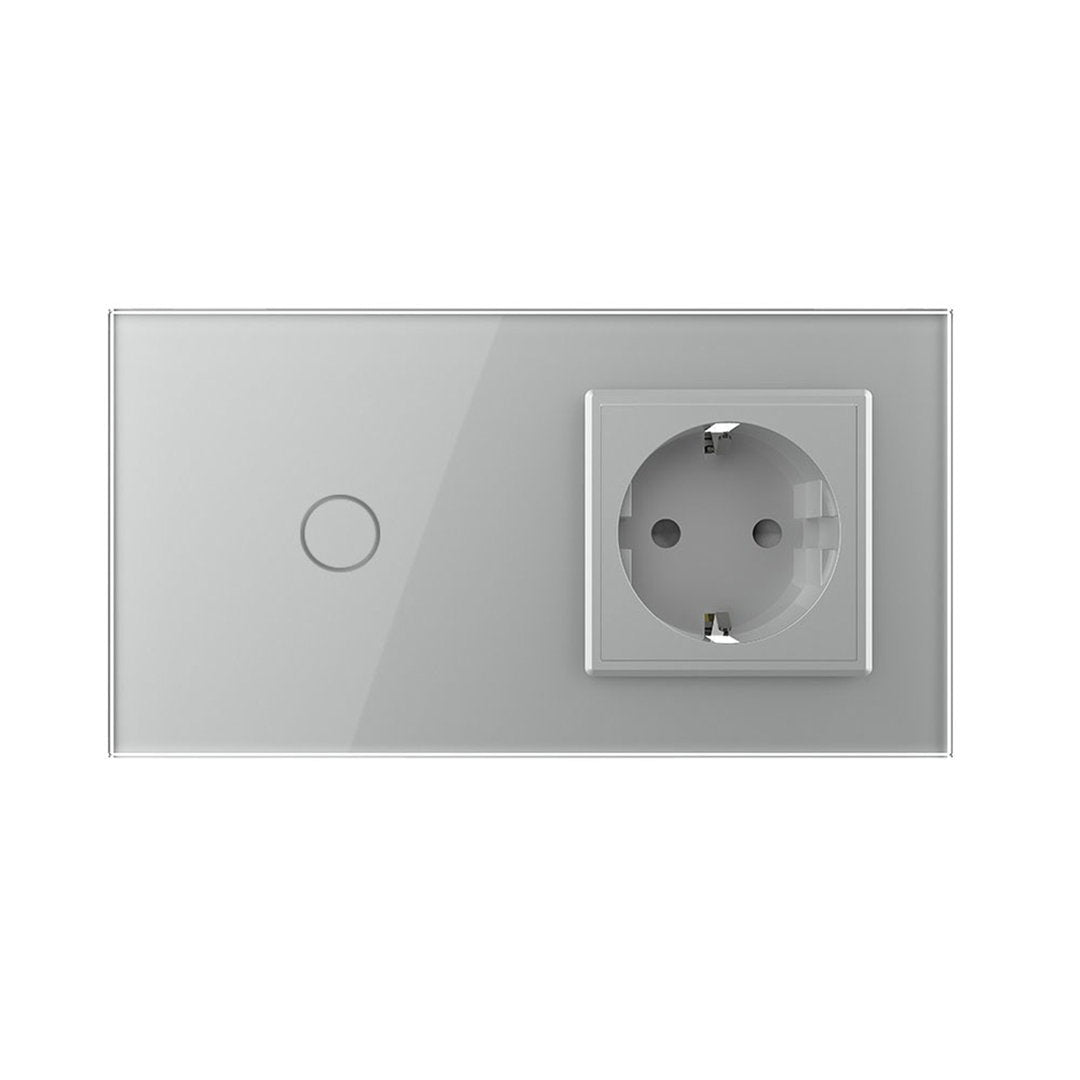

Livolo combination push-button and socket module with double glass cover in grey

This is a simple Livolo push-button, not to be confused with a light switch. After being switched on by the push-button, the signal is passed to a relay in the electrical box.

Push-buttons are primarily used in stairwells (e.g. in multi-family homes). You can recognize push-buttons by the fact that the rocker returns to the starting position automatically in mechanical switches.

For dimmable relays (Eltako), you should use the VL-C701IH or VL-C702IH push-button.

Thanks to the glass cover, this push-button with modern sensor technology becomes a real eye-catcher.

Easy and quick installation, both vertically and horizontally.

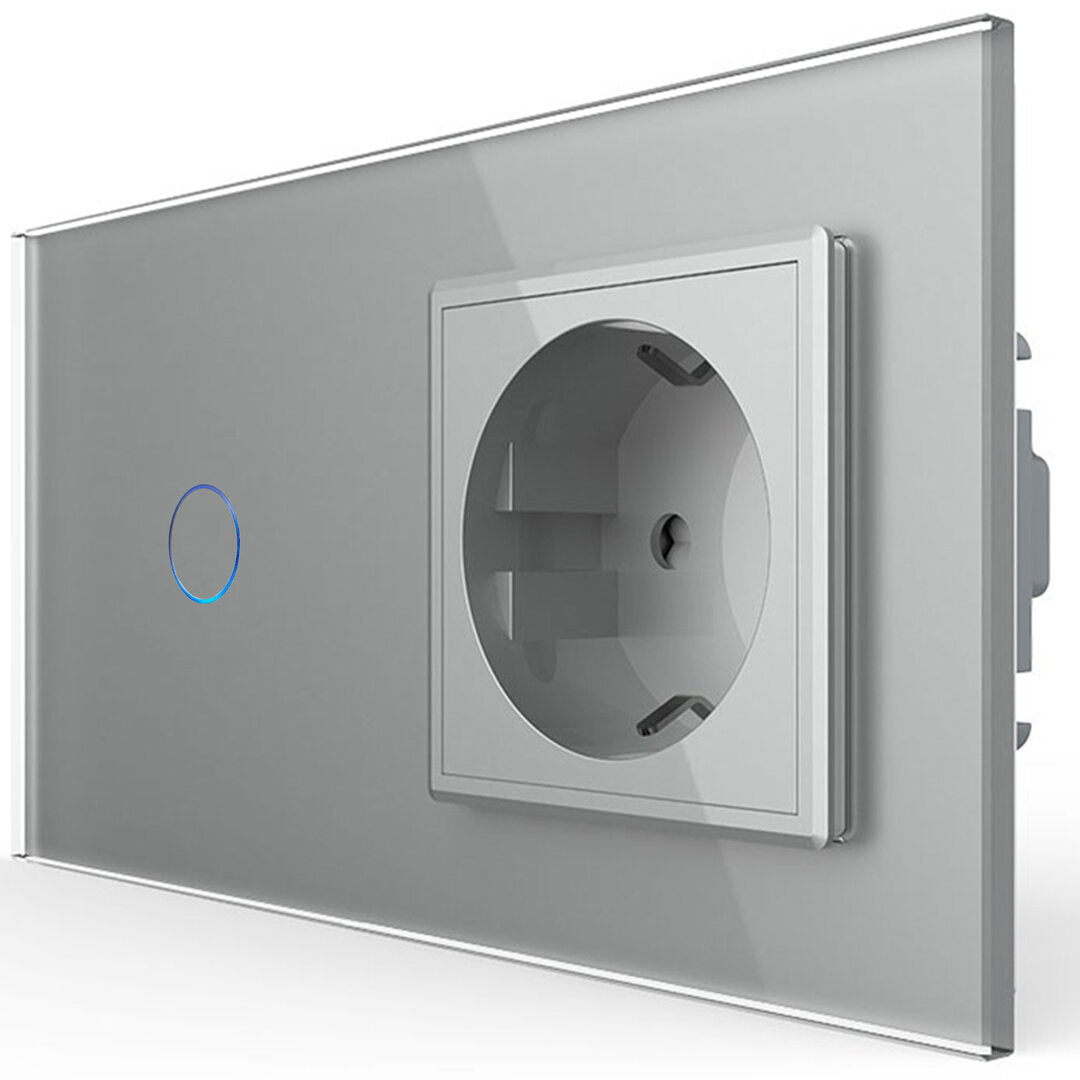

The light switch is operated by lightly touching the circular area. The contour of the touch area is subtly illuminated, making it easy to operate at any time of day. It is especially easy to find the switch in the dark. In the on mode, the border of the touch panel lights up red, in the off mode blue.

Our touch light switches can be used with all types of lamps, including incandescent bulbs, halogen lamps & energy-saving bulbs, as the control is handled by the relay.

In our shop you will also find spreading claws (LG-01) in a pack of 2, for flush-mount boxes without screw mounting. Suitable for hollow walls and older houses (built before 1970). When using spreading claws, 68 mm flush-mount boxes are better suited.

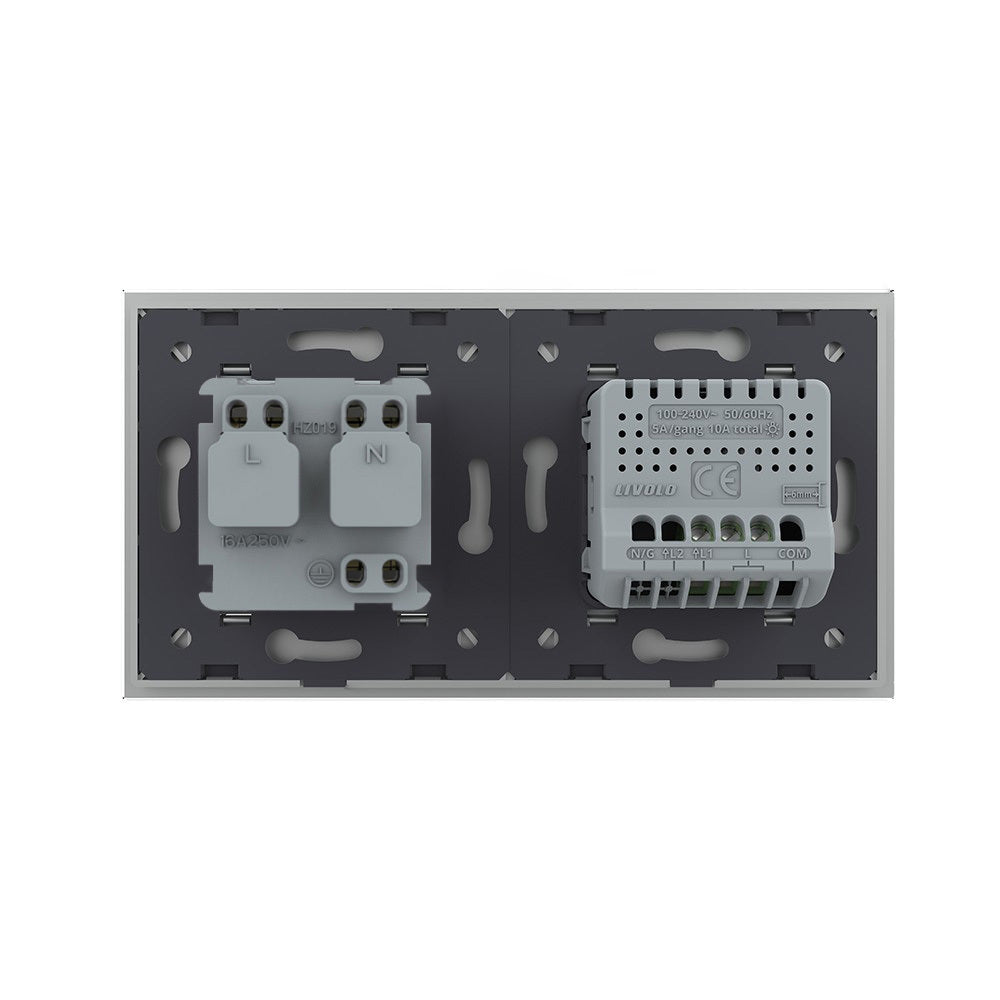

The modules are attached to the flush-mount boxes with screws using the included metal frame.
Replacement is carried out like with other rocker switch manufacturers. Simply replace your old rocker switches with a new, durable design. The wiring remains the same.

The light switch and socket modules are suitable for flush-mount boxes with a diameter of 60-68 mm. The hole spacing for multiple covers is 71 mm.

With us you get the complete Livolo range; from a simple rocker light switch to a smart home-capable touch roller shutter switch.

Questions? Call us or send us an email.
We are happy to advise you!

Technical data:

Light switch:

Operating voltage: AC110~250V, 50Hz60Hz

max. current per pole: 2.5A

Current load: 2000W

max. power per pole: 500W/220V or 250W/120V

Standby power consumption: less than 0.1mW

Service life over 100,000 times

Socket:

Rated current/voltage: 16A/250V

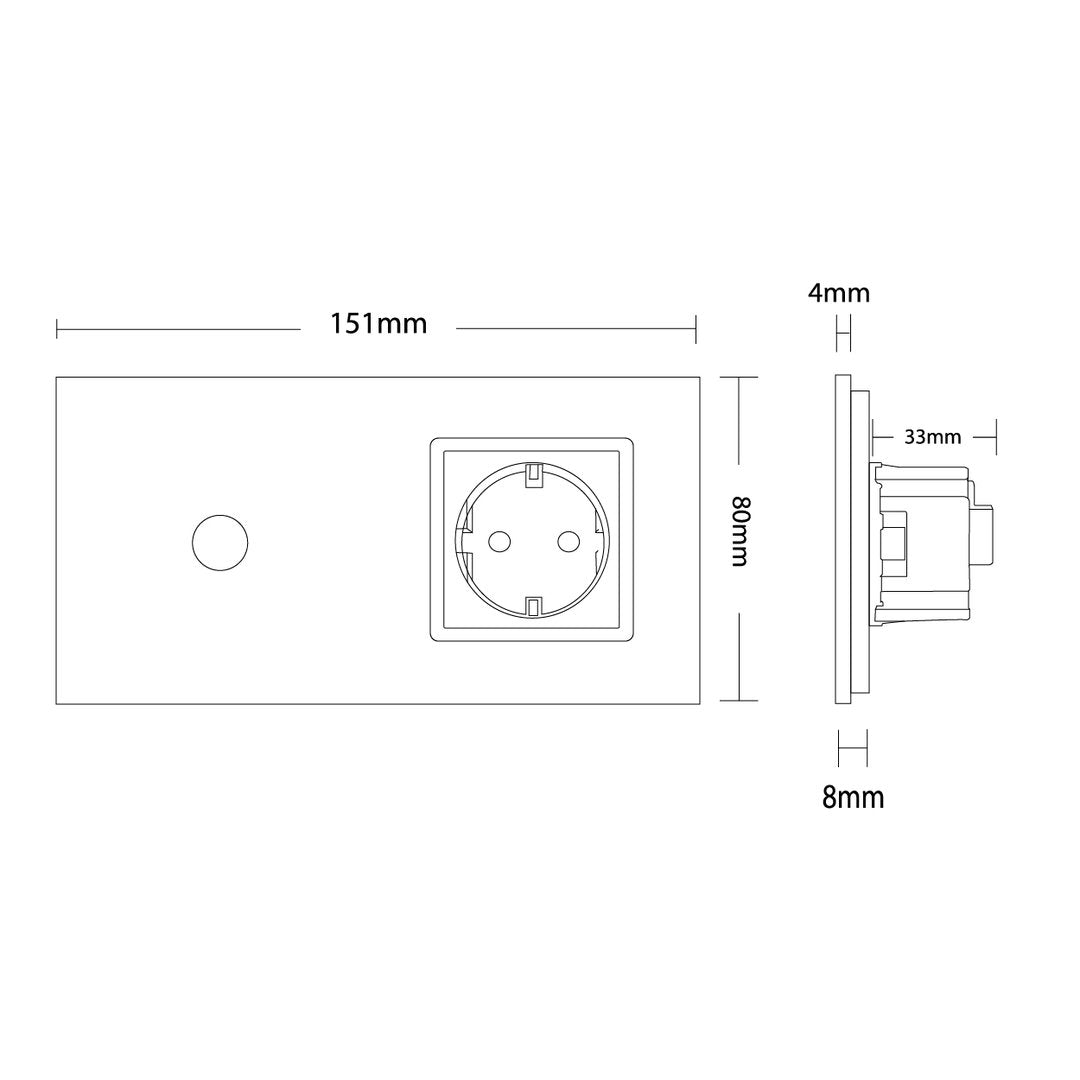

Dimensions:

151 x 80 x 34 mm

Scope of delivery:

The delivery includes:

• 1 x Livolo touch switch internal module, according to order
• 1 x Livolo socket internal module, according to order
• 1 x Livolo double glass cover, according to order
• Operating instructions

Installation info: the connection is made WITHOUT power and the glass cover, after installation you can place the glass cover and switch the power back on. Let the touch switch rest for 3 minutes before operating it. After the time has elapsed, the light switch can be operated. If you do not follow these instructions, the light switch may not respond.
