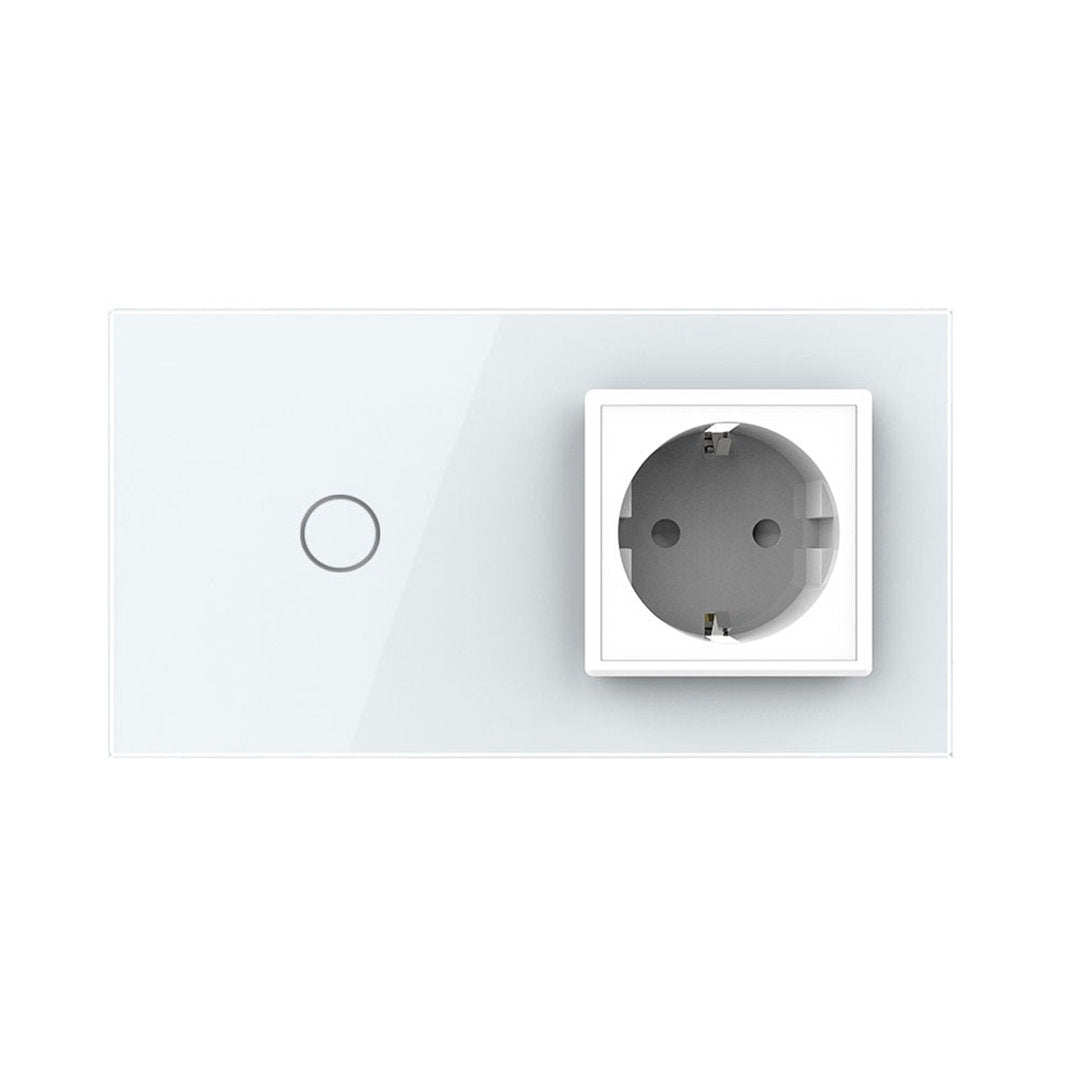

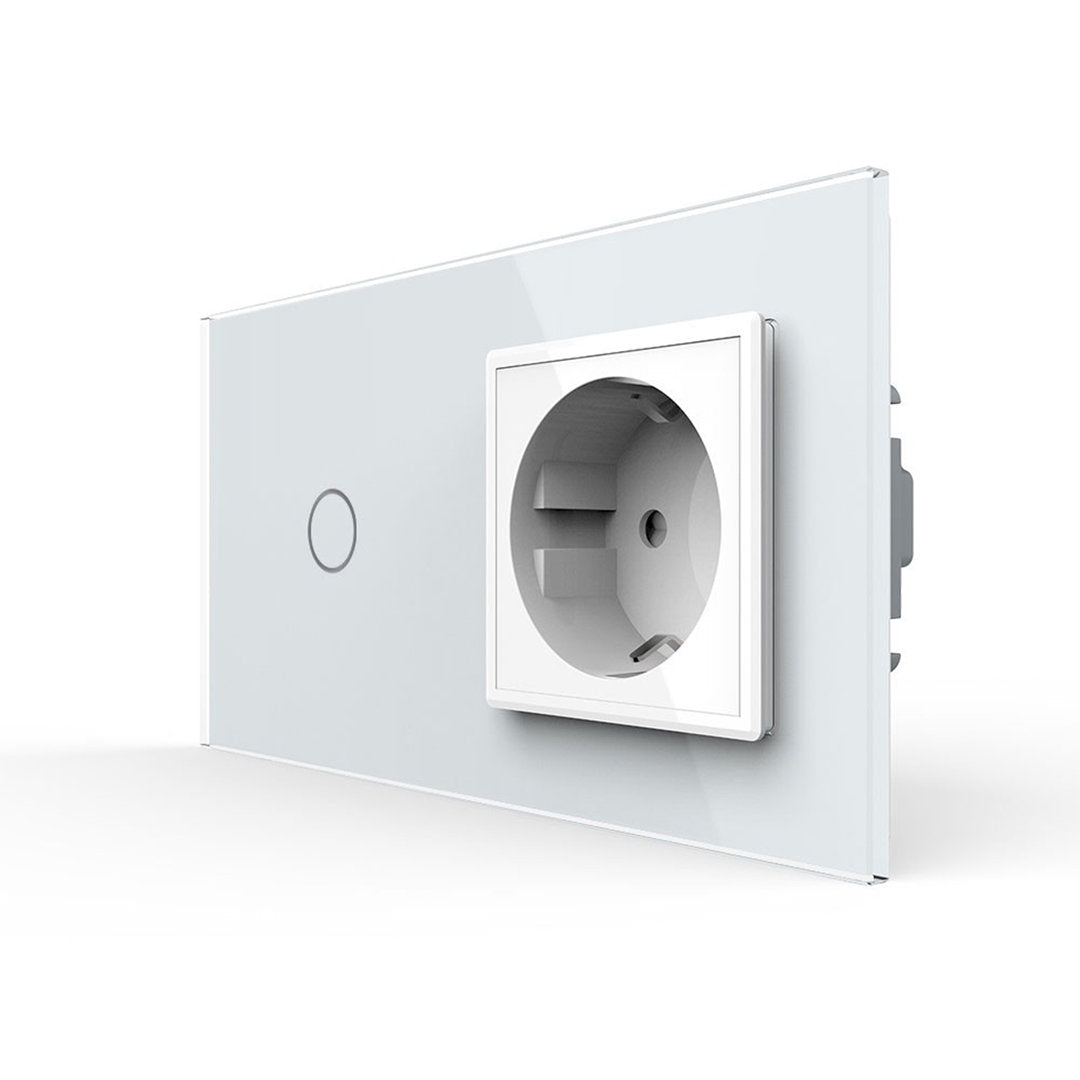

Livolo combination dimmer switch and socket module with single-gang glass cover in white

This is a simple Livolo dimmer switch for switching a light or group of lights on and off, as well as dimming them. The socket features a built-in child safety lock.

The glass cover makes this switch with modern sensor technology a real eye-catcher.

Easy and quick installation, both vertically and horizontally.

The light switch is operated by lightly touching the circular surface. The contour of the touch surface is subtly illuminated, making it easy to operate at any time of day. It is especially easy to find the switch in the dark. In the on position, the border of the touch panel lights up red, in the off position blue.

To adjust the brightness of the light(s), press and hold the touch surface until the desired brightness is set.

Our touch light switches can be used with all types of lamps, including incandescent bulbs, halogen bulbs & energy-saving bulbs. Exception: LED strips.

It is a trailing edge dimmer.

Attention: No resistance adapter should be used with this dimmer. Overloading may occur.

For our LED ceiling spotlights, you do not need a resistance adapter!

The LED ceiling spotlights are compatible with all our Livolo switches.

See under: Miscellaneous > LED lights

In our shop you will also find spreading claws (LG-01) in a pack of 2, for flush-mount boxes without a screw-in option. Suitable for hollow walls and older houses (built before 1970). When using spreading claws, 68 mm flush-mount boxes are better suited.

The modules are attached to the flush-mount boxes with screws using the metal frame provided.

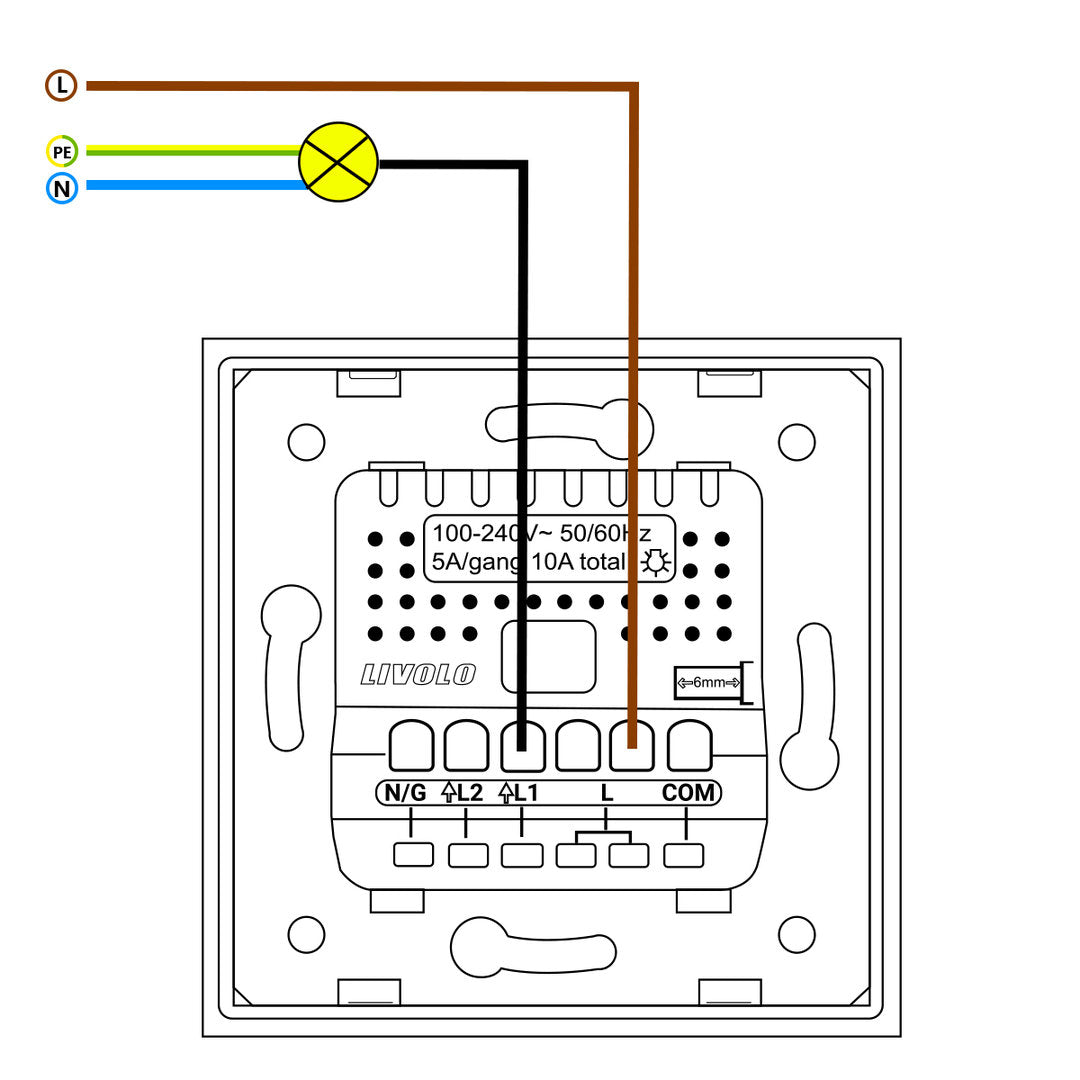

Replacement is carried out like with other rocker switch manufacturers. Simply replace your old rocker switches with a new, durable design. The wiring remains the same.

The light switch and socket modules are suitable for flush-mount boxes with a diameter of 60-68 mm. The hole spacing for multi-gang covers is 71 mm.

With us you get the complete Livolo range; from a simple rocker light switch to a smart home-capable touch roller shutter switch.

Questions? Call us or send us an email.
We are happy to advise you!

Technical data:

Light switch:

Operating voltage: AC220~250V, 50Hz60Hz

max. electrical voltage: 2A

Power load: 5W~500W

Standby power consumption: less than 0.1mW

Service life over 100,000 times

Socket:

Rated current: 16A

Voltage: 250V

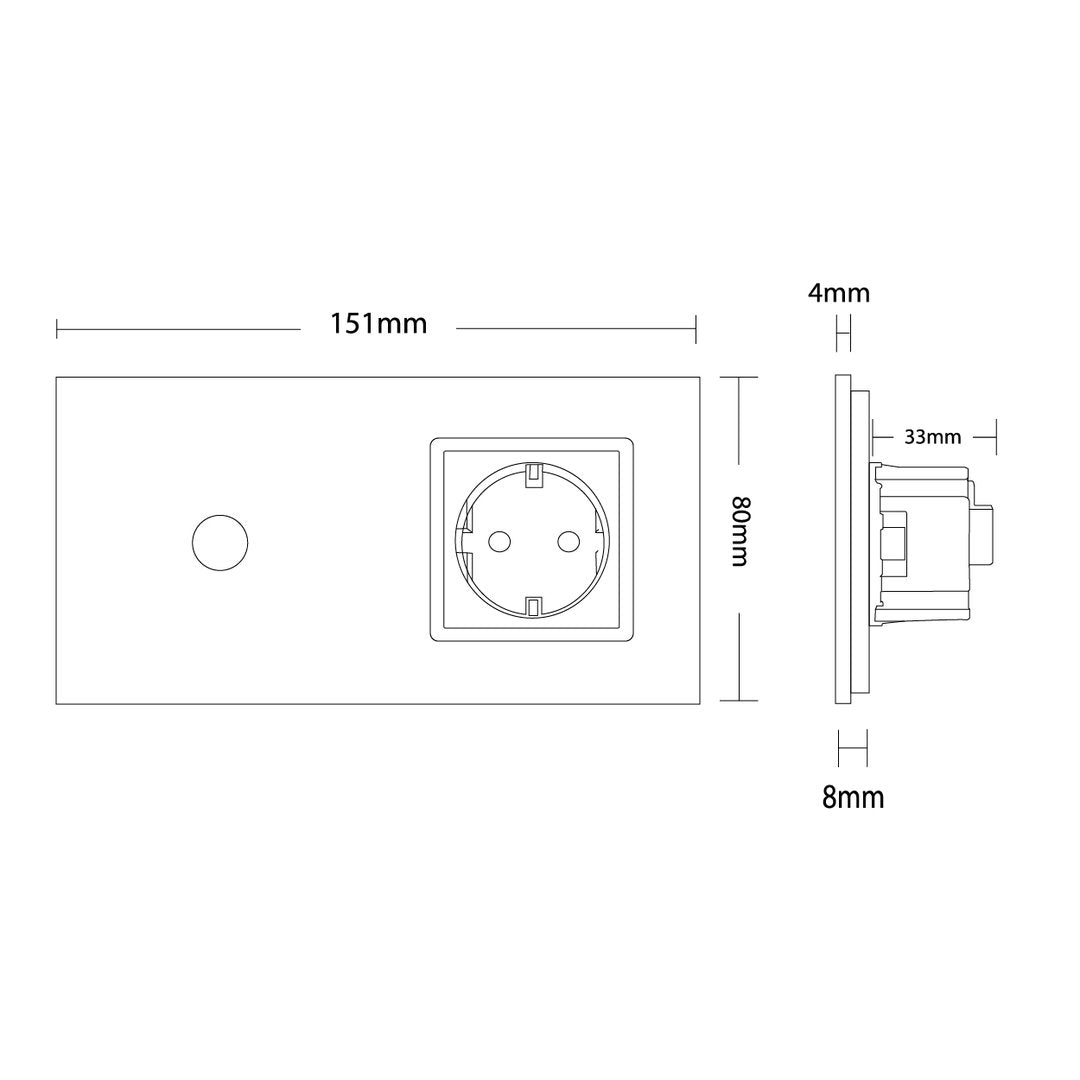

Dimensions:

151 x 80 x 34 mm

Scope of delivery:

The delivery includes:

• 1 x Livolo touch switch internal component, according to order
• 1 x Livolo socket internal component, according to order
• 1 x Livolo single-gang glass cover, according to order
• Operating instructions

Installation info:

The connection is made WITHOUT power and without the glass cover; after installation, you can attach the glass cover and switch the power back on. Allow the touch switch to rest for 3 minutes before operating it. After this time, the light switch can be operated. If you do not follow these instructions, the light switch may not respond.
