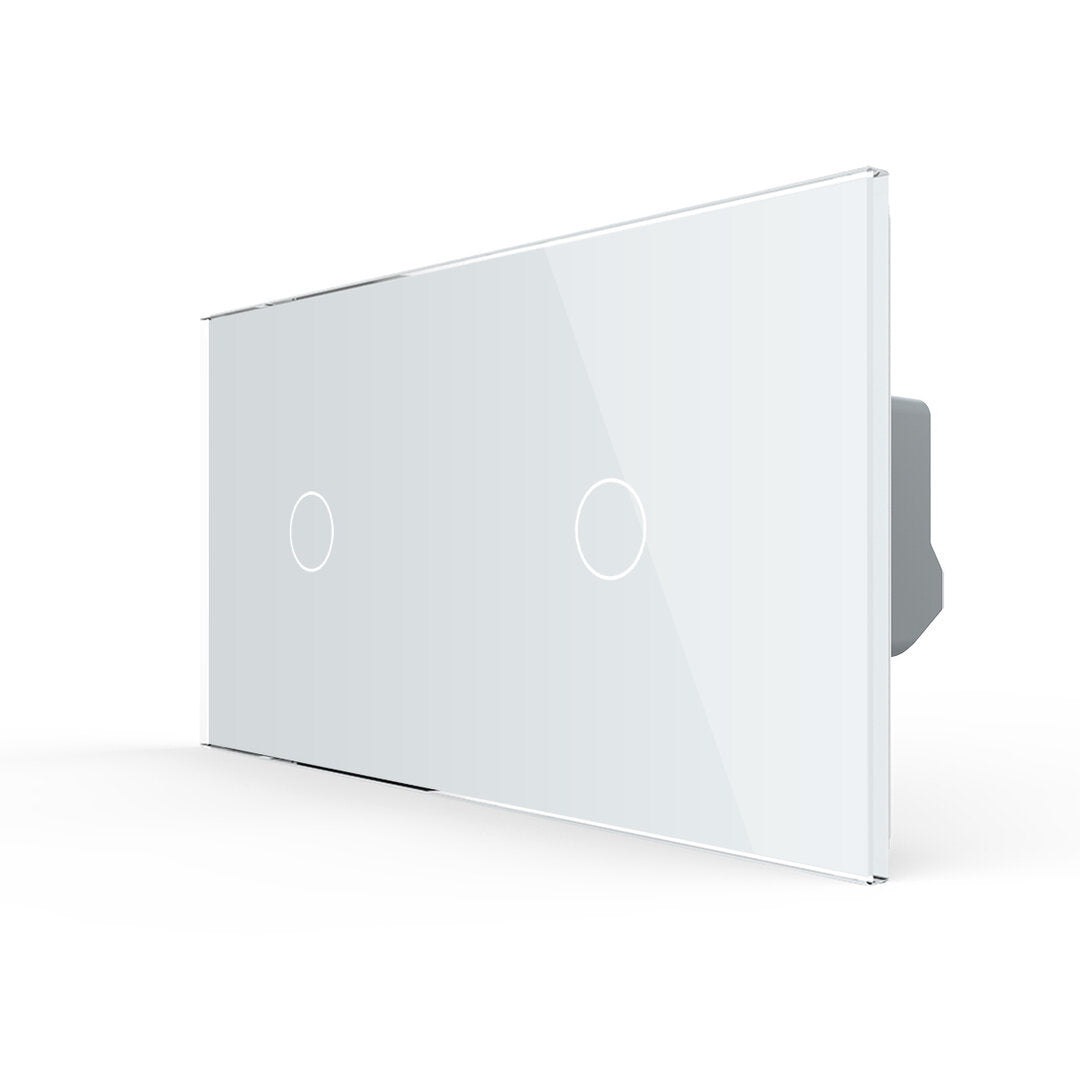

Two simple Livolo wireless light switch modules with a double glass cover in white

These are two simple Livolo wireless light switches for switching two lights or groups of lights on and off.

The wireless function allows control via remote control or via an app (everHome App) using the everHome CloudBox as a gateway.

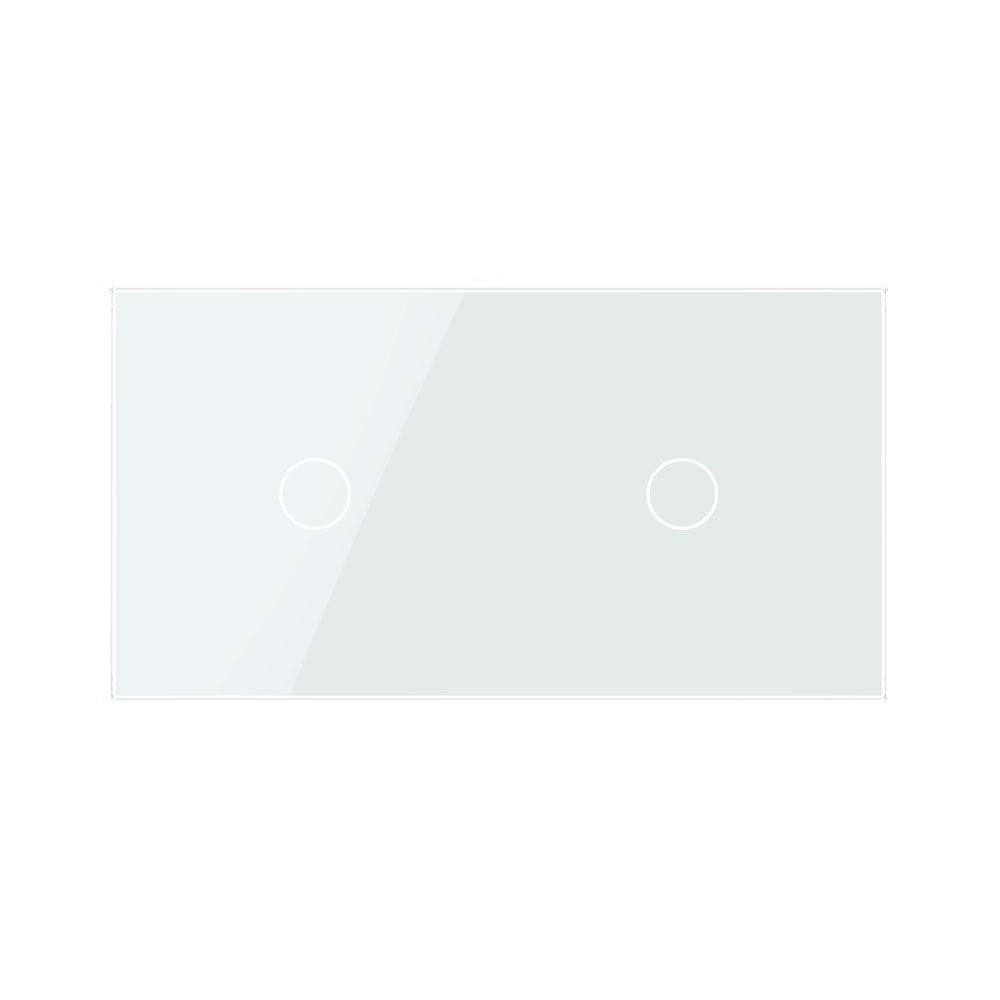

The glass cover turns this switch with modern sensor technology into a real eye-catcher.

Easy and quick installation, both vertically and horizontally.

The light switch is operated by lightly touching the circular surface. The contour of the touch surface is subtly illuminated, making it easy to operate at any time of day. This makes it especially easy to find the switch in the dark. In the on position, the border of the touch field lights up red, and in the off position, it lights up blue.

Our touch light switches can be used with all types of lamps, including incandescent bulbs, halogen lamps & energy-saving bulbs. Exception: LED strips.

Attention: Interference may occur with lights under 20 watts (especially LED lights). In almost all cases, a resistor adapter helps.

See under: Miscellaneous > Accessories

You do not need a resistor adapter for our LED ceiling spotlights!

The LED ceiling spotlights are compatible with all our Livolo switches.

See under: Miscellaneous > LED Lights

In our shop you will also find spreading claws (LG-01) in a pack of 2, for flush-mount boxes without a screw-in option. Suitable for hollow walls and older houses (built before 1970). When using spreading claws, 68 mm flush-mount boxes are better suited.

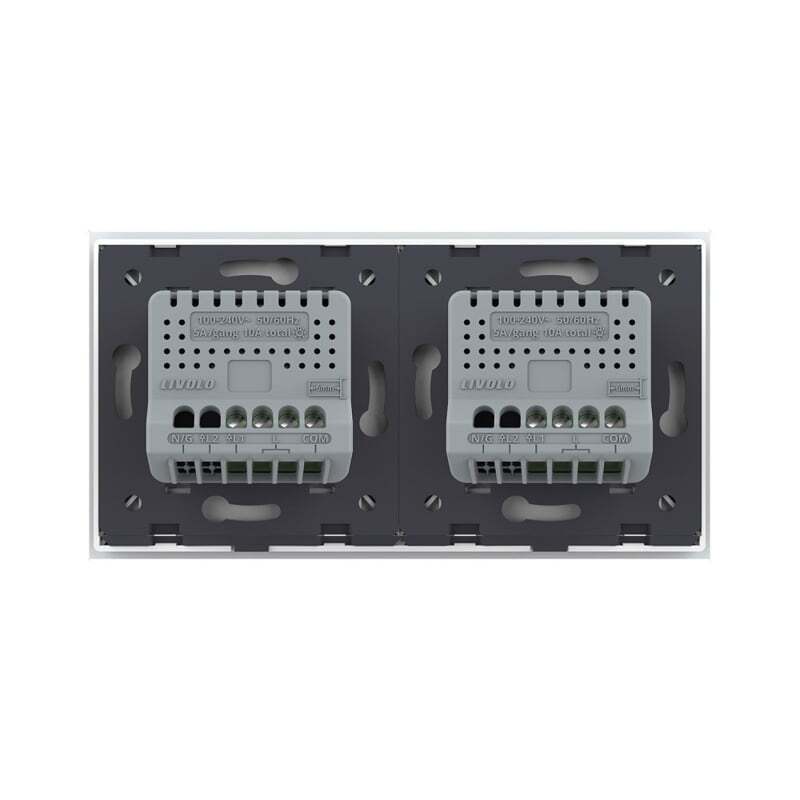

The modules are attached to the flush-mount boxes with screws using the included metal frame.

The replacement is carried out like with other rocker switch manufacturers. Simply replace your old rocker switches with a new, long-lasting design. The wiring remains the same.

The light switch and socket modules are suitable for flush-mount boxes with a diameter of 60-68 mm. The hole spacing for multiple covers is 71 mm.

With us you get the complete Livolo range; from a simple rocker light switch to a smart home-capable touch roller shutter switch.

Questions? Call us or send us an email.
We are happy to advise you!

Technical data:

Operating voltage: AC110~250V, 50Hz60Hz

max. current per gang: 2.5A

Power load: 2000W

max. power per gang: 500W/220V or 250W/120V

Standby power consumption: less than 0.1mW

Service life over 100,000 times

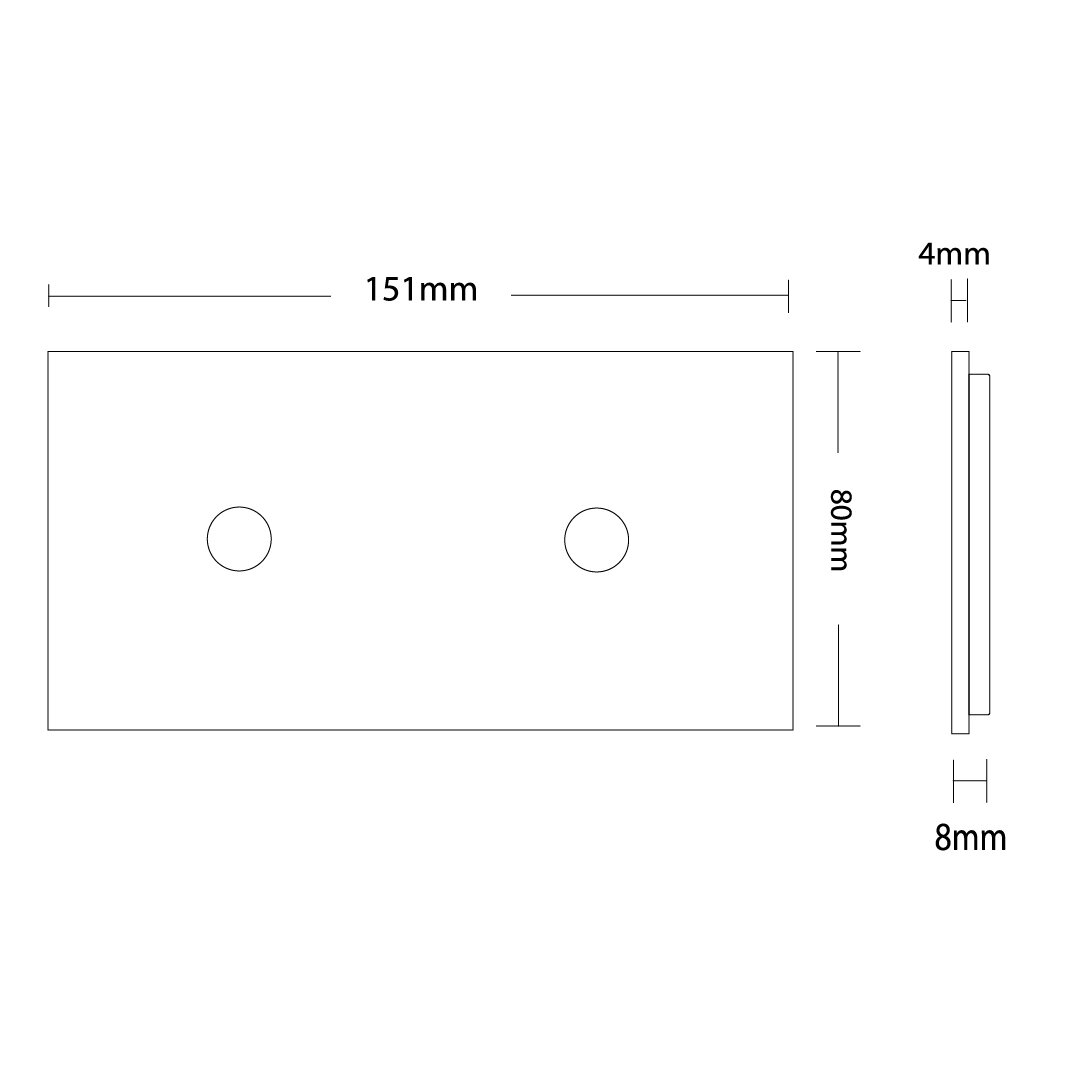

Dimensions:

151 x 80 x 34 mm

Scope of delivery:

The delivery includes:

• 2 x Livolo touch switch internals, as ordered
• 1 x Livolo double glass cover, as ordered
• Operating instructions

Installation info:

The connection is made WITHOUT power and the glass cover. After installation, you can place the glass cover and switch the power back on. Let the touch switch rest for 3 minutes before operating it. After this time, the light switch can be operated. If you do not follow these instructions, the light switch may not respond.
