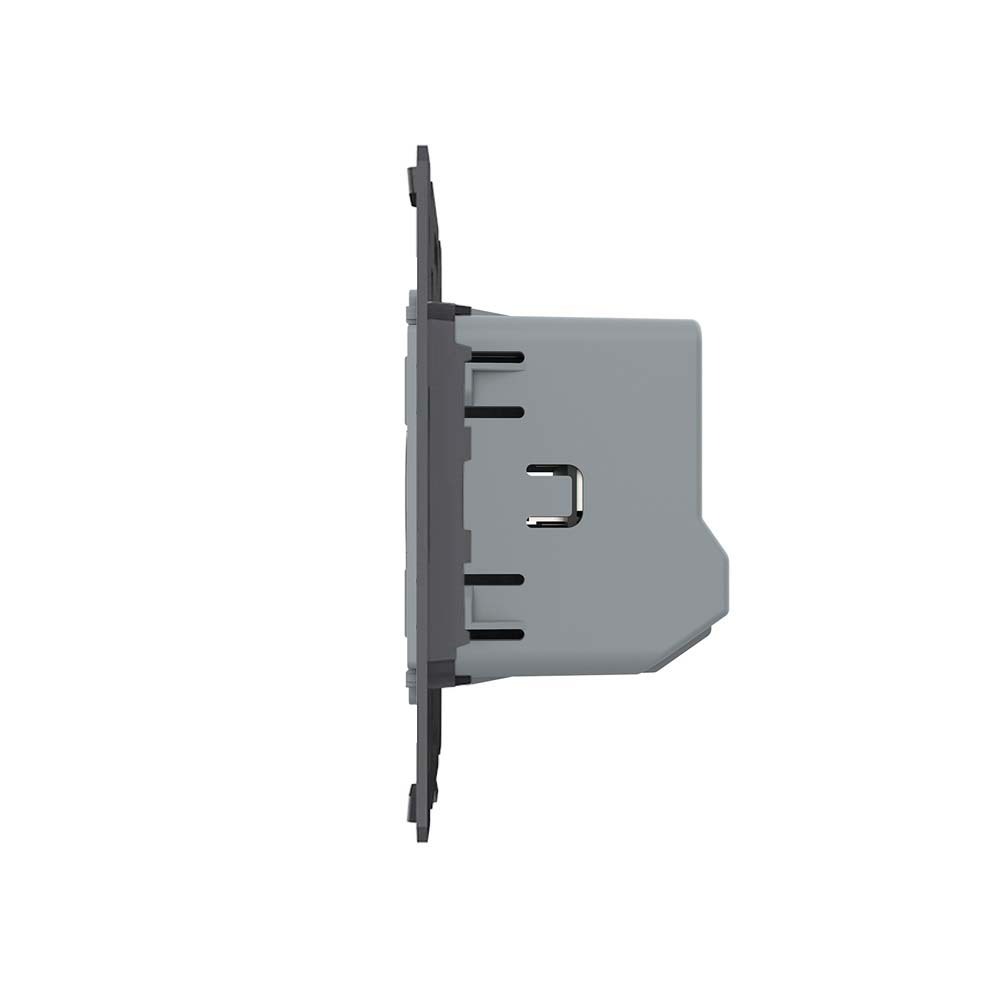

Livolo Dimmable Two-Way/Intermediate Switch Module

Please note that this is only the module without the glass cover.

This is a dimmable Livolo two-way switch for switching a light or group of lights on and off, as well as dimming them. It also features a two-way switching function, so the light can be switched on and off from up to four switches.

The Livolo touch two-way switches can also be used as intermediate switches . All corresponding cables from the other touch two-way switches are connected together to the COM connection of the switch used as an intermediate switch.

Please note that this dimmer is only usable in conjunction with the Livolo touch two-way switch VL-C701S. You can only use one dimmer per two-way circuit.

Since synchronization must be carried out after connection (YouTube video under FAQ Assembly and Installation), only Livolo touch two-way switches can be used within a two-way circuit.

You can find the synchronization instructions in the user manual.

With the glass cover, this switch becomes a real eye-catcher thanks to modern sensor technology.

Easy and quick installation, both vertically and horizontally.

Briefly touching the touch field switches the light on or off. Pressing and holding the touch field dims the light up or down.

Our touch light switches can be used with all types of lamps, including incandescent bulbs, halogen lamps & energy-saving bulbs. Exception: LED strips.

For our LED ceiling spotlights, you do not need a resistance adapter!

The LED ceiling spotlights are compatible with all our Livolo switches.

See under: Miscellaneous > Lighting

In our shop you will also find spreading claws (LG-01) in a pack of 2, for flush-mount boxes without a screw-in option. Suitable for hollow walls and older houses (built before 1970). When using spreading claws, 68 mm flush-mount boxes are better suited.

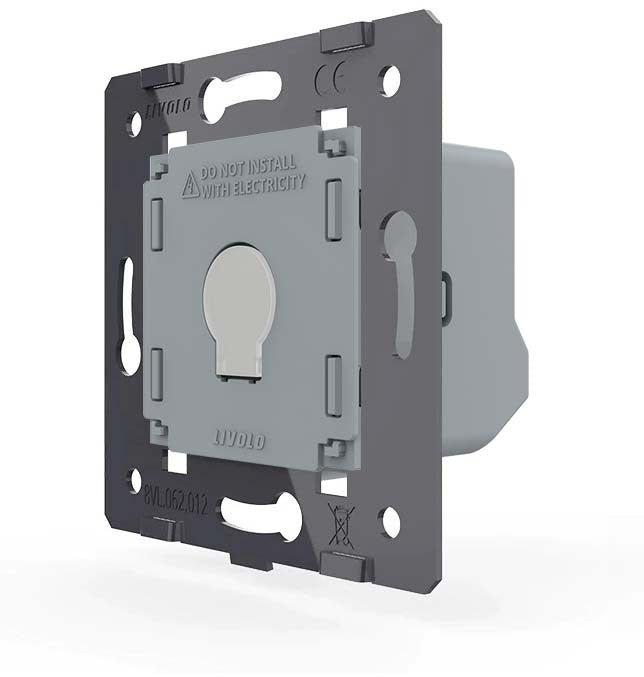

The modules are attached to the flush-mount boxes using the included metal frame and screws.

Replacement is carried out as with other rocker switch manufacturers. Simply replace your old rocker switches with a new, long-lasting design. The wiring remains the same.

The light switch and socket modules are suitable for flush-mount boxes with a diameter of 60-68 mm. The hole spacing for multiple covers is 71 mm.

With us you get the complete Livolo range; from a simple rocker light switch to a smart home-capable touch roller shutter switch.

Questions? Call us or send us an email.
We are happy to advise you!

Technical data:

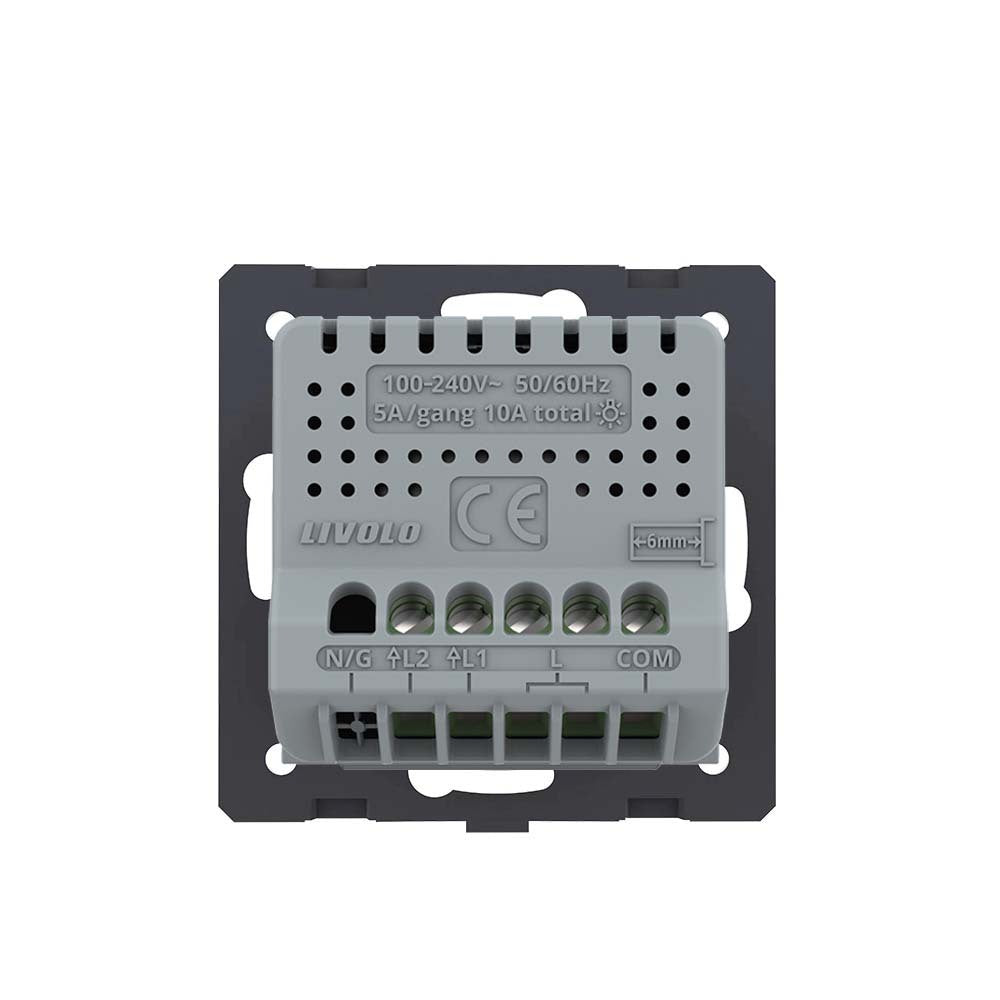

Voltage: 100-240V ~ 50/60Hz

Maximum power: no more than 2A

Minimum power: 10W (Dimmable lights)

Longevity: 100,000

Dimensions:

80 x 80 x 34 mm

Scope of delivery:

The delivery includes:

• 1 x Livolo touch switch internal component, according to order
• User manual

Attention: internal component only! You can find suitable glass covers in our shop!
