Livolo half LAN module CAT6A

Please note that this offer is for the module only, WITHOUT the glass cover.

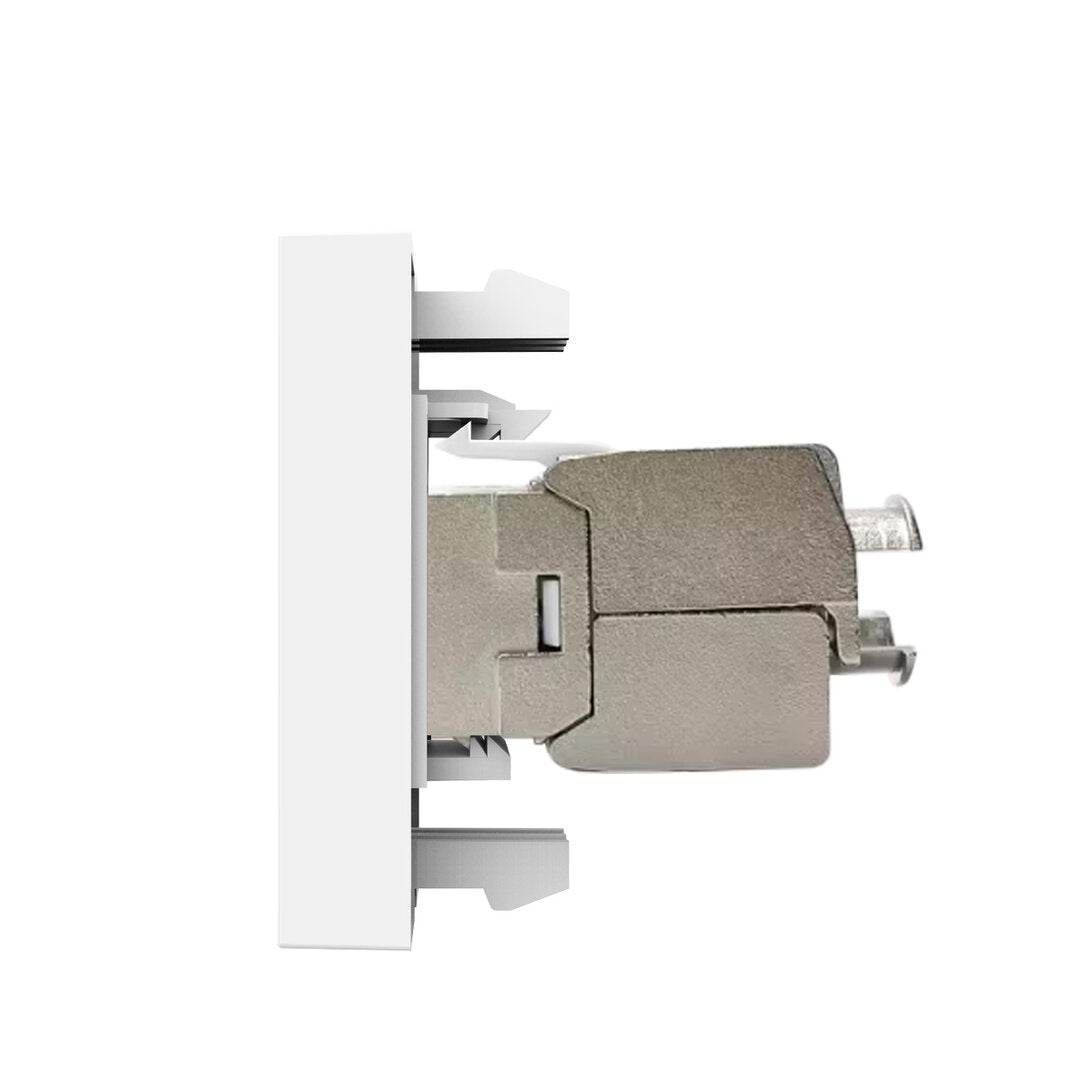

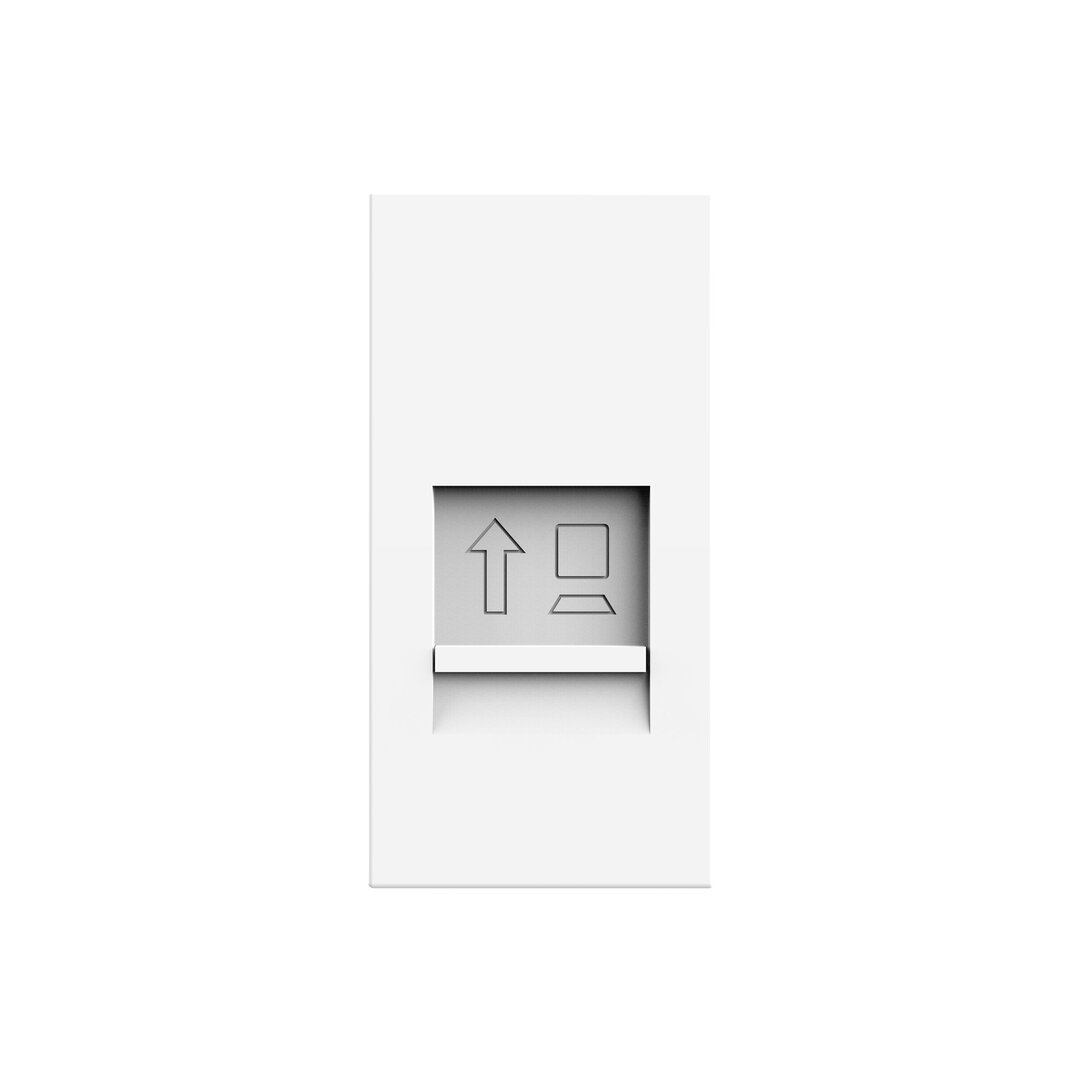

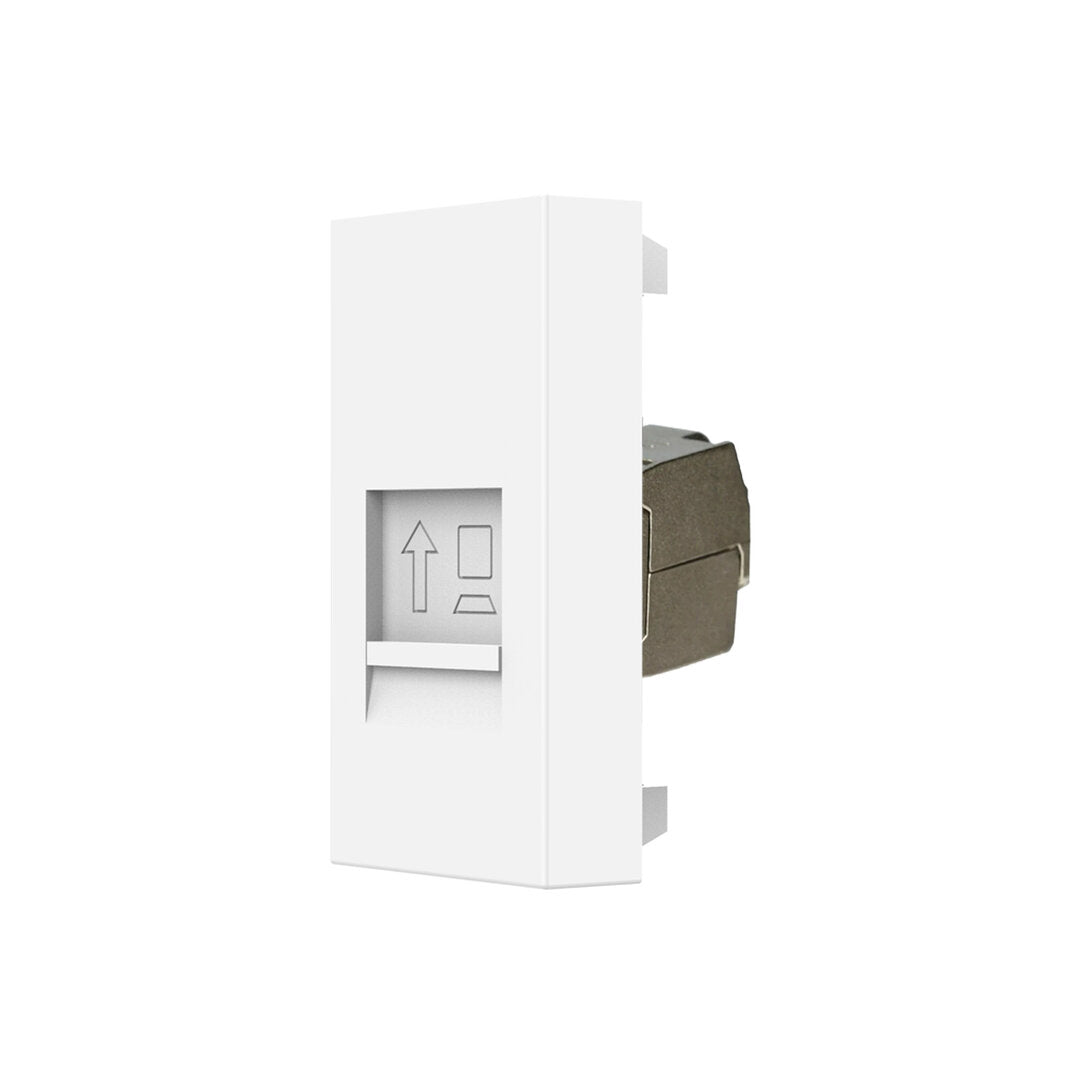

This is a Livolo ½ LAN module RJ45 in white. It is a CAT6A module that allows you to connect smart devices to the router via a stable, wired connection.

The module features 360° strain relief, and the module's shielding supports transmission speeds of up to 10 Gbit/s and 250 MHz when CAT6A or higher cables are used. Suitable for conductors with a cross-section between AWG 22–24; RJ45 connections and installation require no special tools.

Suitable for PoE+ (Power over Ethernet).

In combination with the matching glass cover, this module becomes a real eye-catcher. Please note that you will need a metal frame to install it in a glass cover.

Also suitable for installation in our floor boxes and table boxes.

Easy and quick installation, both vertically and horizontally.

In our shop, you will also find spreading claws (LG-01) in a pack of 2 for flush-mount boxes without screw mounting. Suitable for stud walls and older buildings (built before 1970). When using spreading claws, 68 mm flush-mount boxes are better suited.

The modules are attached to the flush-mount boxes with screws using the metal frames.
Replacement is carried out like with other rocker switch manufacturers. Simply replace your old rocker switches with a new, durable design. The wiring remains the same.

The light switch and socket modules are suitable for flush-mount boxes with a diameter of 60–68 mm. The hole spacing for multi-gang covers is 71 mm.

We offer the complete Livolo range, from a simple rocker light switch to a smart home-enabled touch roller shutter switch.

Questions? Call us or send us an email.
We are happy to advise you!

Technical data:

Dust cap on the module (removable)

Suitable for Cat.6 and Cat.7 cables (Ø 6–10 mm)

IDC terminals for solid conductors: 0.51–0.64 mm Ø AWG 24–22

IDC terminals for solid conductors: 0.13–0.22 mm² AWG 26 (PE-Foamskin), AWG 24 (PE-solid)

Strain relief/shielding: 360°

Speed: 10 Gbit/s and 250 MHz

Conductor cross-sections: AWG 22–24

Re-termination: 10 times

Misinsertion protection: RJ11/12

Compatible with: RJ45 network cables

Dimensions:

45 x 22.5 x 40 mm

Scope of delivery:

The delivery includes:

- 1 x Livolo half-size network module insert, as ordered

- Operating instructions

Attention: insert only! You can find matching glass covers in our shop!
