Livolo half LAN module CAT7 for wiring

Please note that this offer is for the module only, WITHOUT a glass cover.

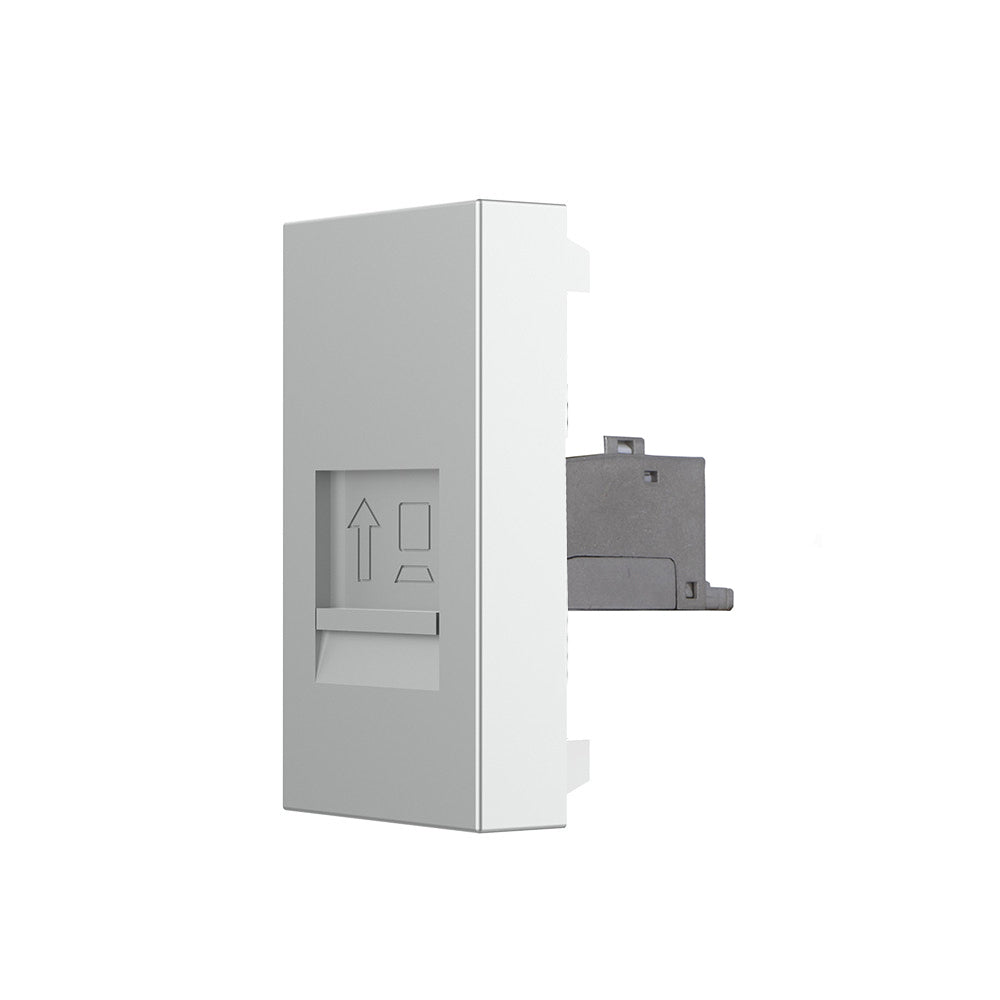

This is a grey Livolo half LAN module for self-wiring. It is a CAT7 module that allows you to connect smart devices to the router via a stable, wired connection.

This module features 360° strain relief, and the module's shielding supports transmission speeds of up to 10 Gbit/s and 500 MHz when CAT7 or higher cables are used. Suitable for wire cross-sections between AWG 22 and 24, and can be installed without special tools.

Suitable for PoE+ (Power over Ethernet).

In combination with the matching glass cover, this module becomes a real eye-catcher. Please note that you will need a metal frame to install it in a glass cover.

Easy and quick installation, both vertically and horizontally.

In our shop you will also find spreading claws (LG-01) in a pack of 2, for flush-mount boxes without screw mounting. Suitable for hollow walls and older buildings (built before 1970). When using spreading claws, 68 mm flush-mount boxes are better suited.

The modules are attached to the flush-mount boxes using the metal frames and screws.
Replacement is carried out like with other rocker switch manufacturers. Simply replace your old rocker switches with a new, durable design. The wiring remains the same.

The light switch and socket modules are suitable for flush-mount boxes with a diameter of 60-68 mm. The hole spacing for multi-gang covers is 71 mm.

With us you get the complete Livolo range; from a simple rocker light switch to a smart home-capable touch roller shutter switch.

Questions? Call us or send us an email.
We are happy to advise you!

Technical data:

Dust cap on the module (removable)

Suitable for: CAT7 cables (Ø 6-10mm), backward compatible

IDC terminals for solid conductor: 0.51 - 0.64 mm Ø AWG 24-22

IDC terminals for stranded conductor: 0.13-0.22 mm² AWG 26 (PE-Foamskin), AWG 24 (PE-solid)

Strain relief/shielding: 360°

Speed: 10 Gbit/s and 500 MHz

Wire cross-sections: AWG 22-24

Re-termination: 10 times

Misinsertion protection: RJ11/12

Compatible: RJ45 network cables

Dimensions:

45 x 22.5 x 40 mm

Scope of delivery:

The delivery includes:

- 1 x Livolo half network module insert, as ordered

- Operating instructions

Attention: insert only! You can find matching glass covers in our shop!
