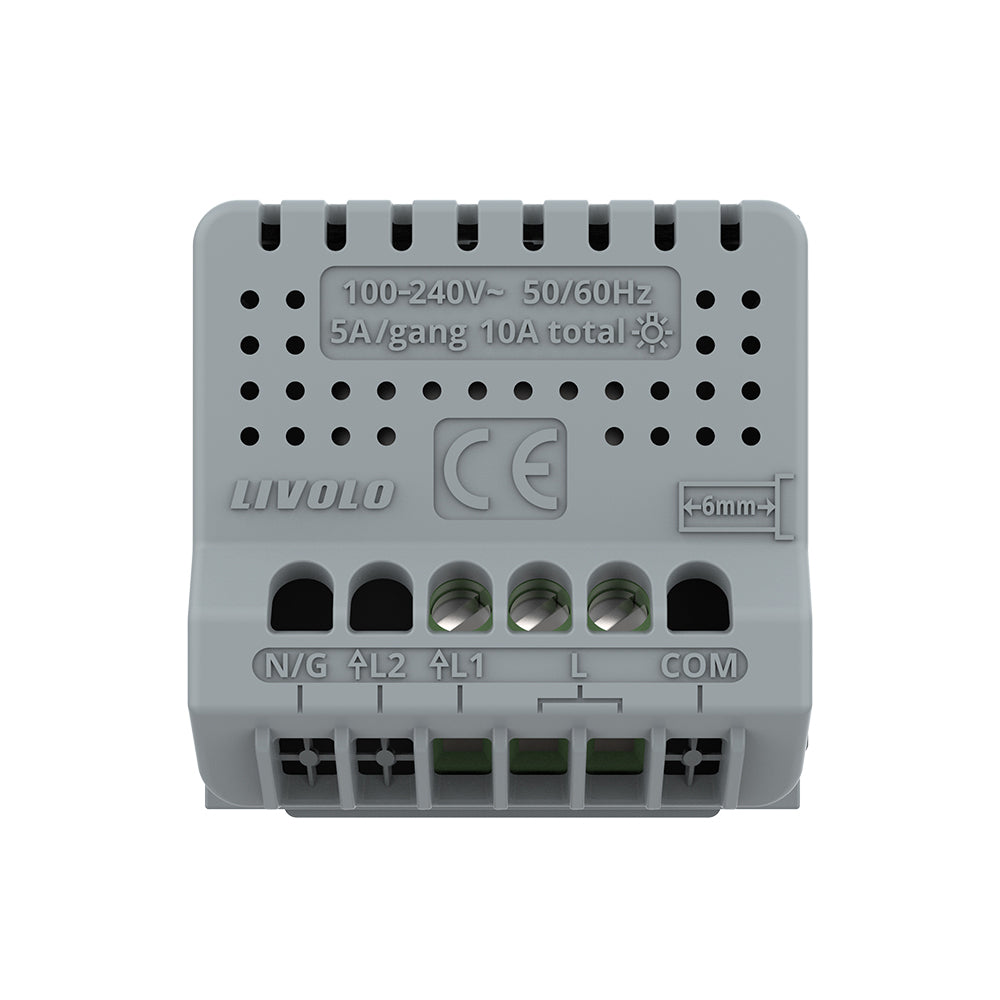

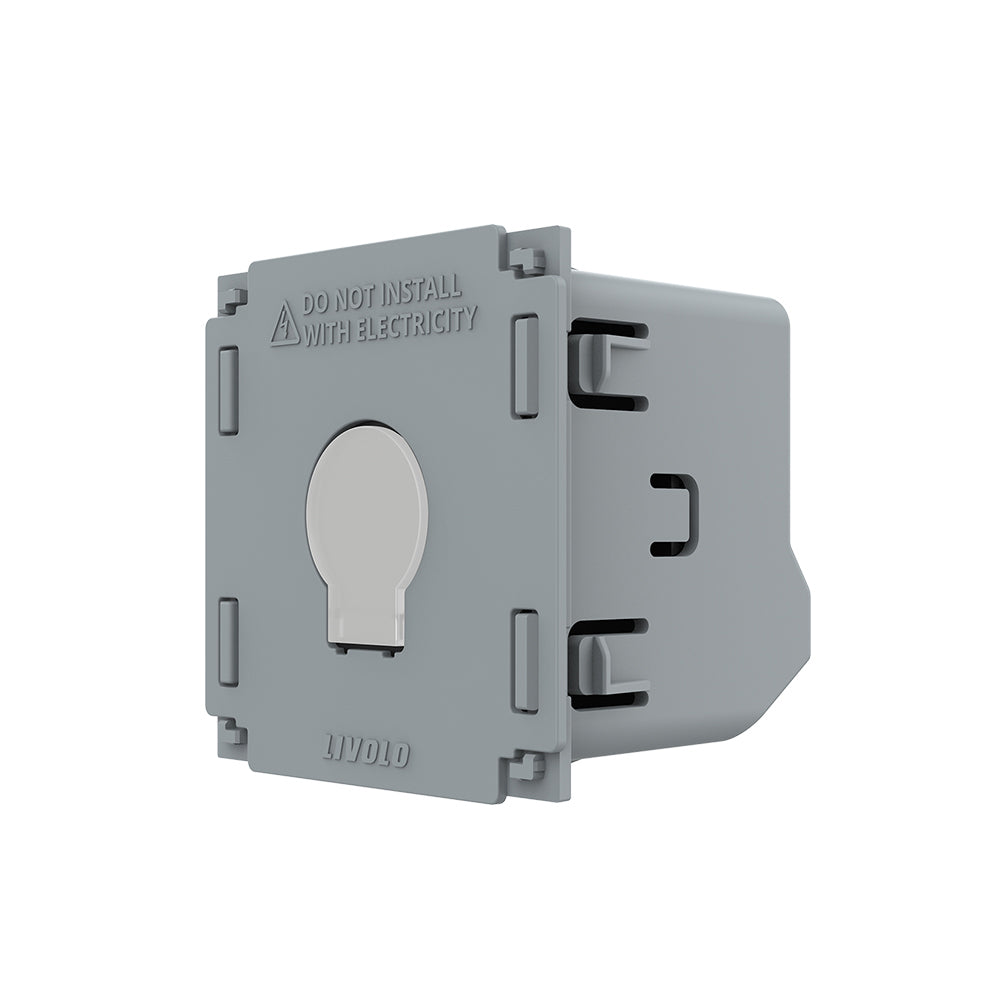

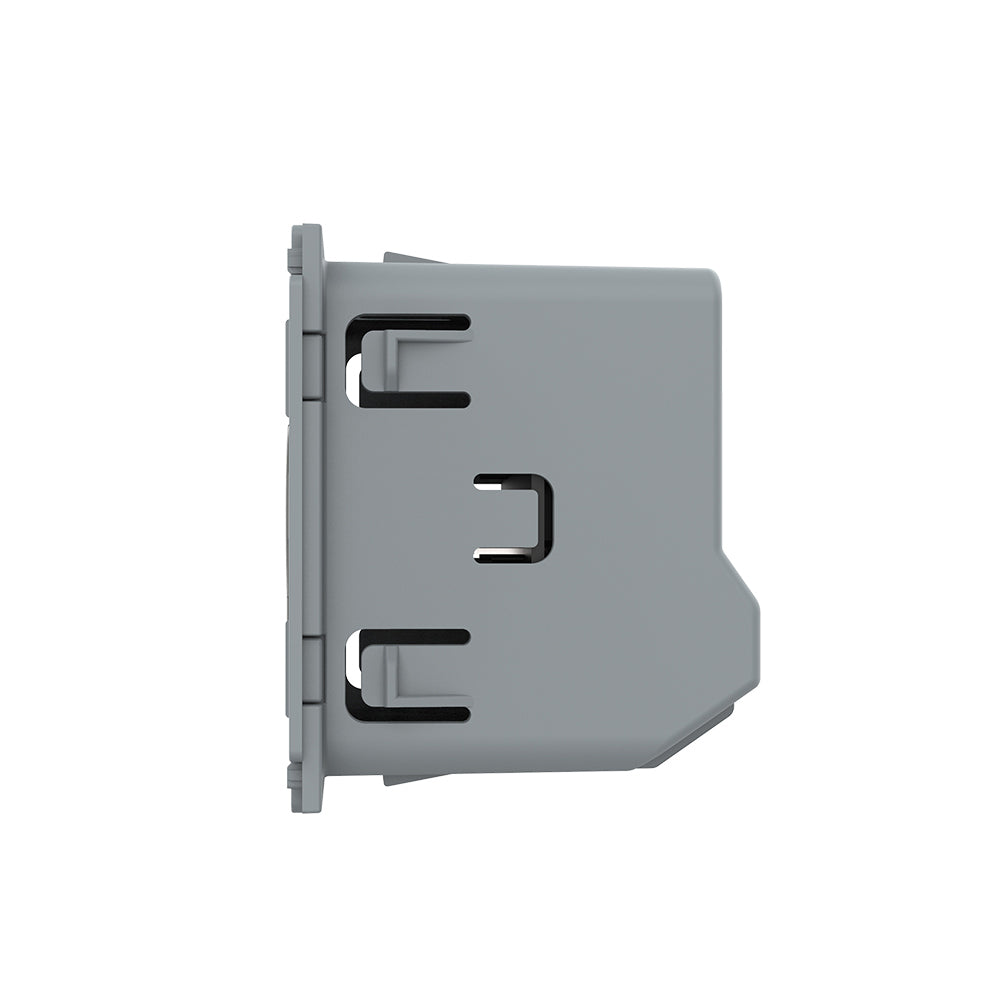

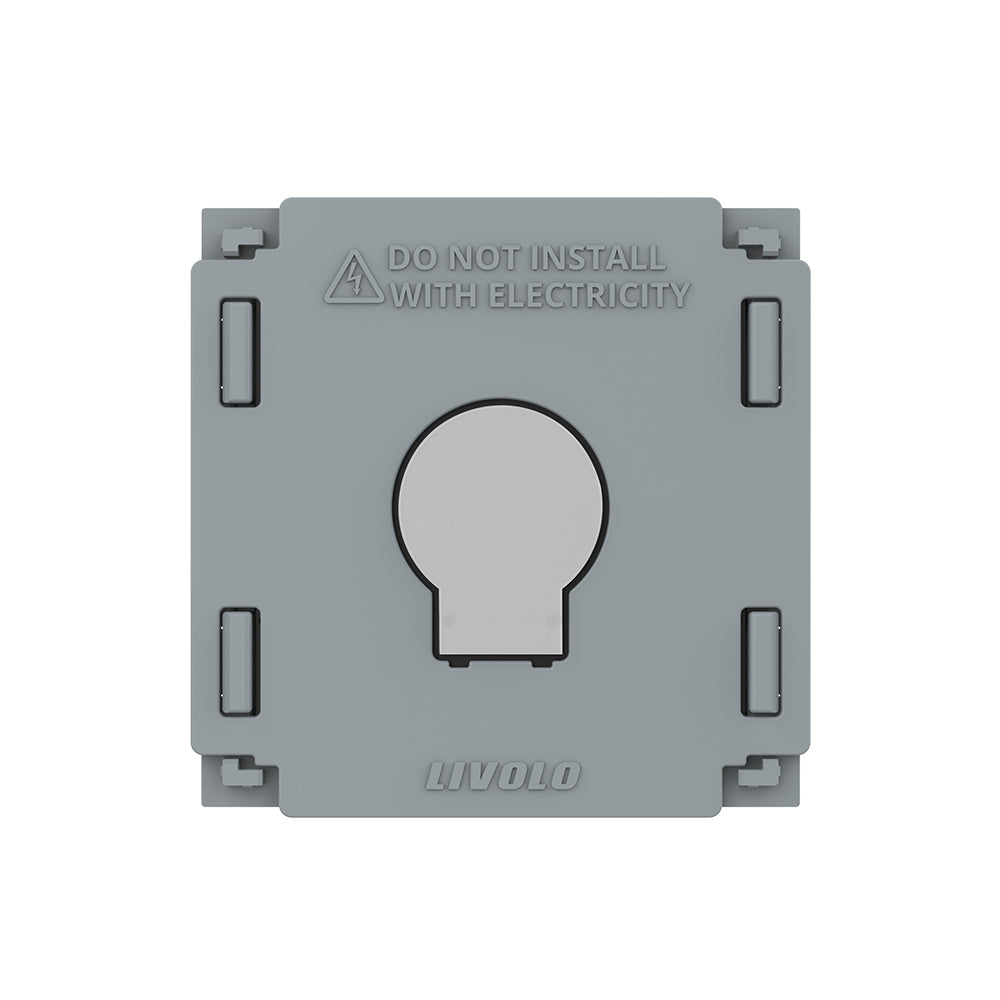

Livolo Dimmable EC Two-Way/Intermediate Switch Module

Please note that this offer includes only a module WITHOUT a glass cover.

This is a simple Livolo EC two-way switch for switching a light or group of lights on and off. It also features two-way switching and dimming functions, so the light can be switched on and off from up to four switches and dimmed from the main switch or via the app.

The Livolo touch two-way switches can also be used as intermediate switches. All corresponding cables from the additional touch two-way switches are connected together to the COM connection of the switch used as an intermediate switch.

Since synchronization (YouTube video) is required after connection, only Livolo touch two-way switches can be used within a two-way circuit.

You can find the synchronization instructions in the user manual.

Additionally, this switch can also be controlled via the app in combination with the Livolo EC Gateway.

In combination with the matching glass cover, this switch becomes a real eye-catcher with modern sensor technology.

Easy and quick installation, both vertically and horizontally.

The light switch is operated by lightly touching the circular surface. The contour of the touch surface is subtly illuminated, making it easy to operate at any time of day. It is especially easy to find the switch in the dark. In the on mode, the border of the touch panel lights up red, in the off mode blue.

Our touch light switches can be used with all types of lamps (total power from 10 watts), including incandescent bulbs, halogen lamps & energy-saving bulbs. Exception: LED strips.

For our LED ceiling spotlights, you do not need a resistor adapter!

The LED ceiling spotlights are compatible with all our Livolo switches.

In our shop you will also find spreading claws (LG-01) in a pack of 2, for flush-mount boxes without a screw-in option. Suitable for hollow walls and older houses (built before 1970). When using spreading claws, 68 mm flush-mount boxes are better suited.

The modules are attached to the flush-mount boxes with screws using the included metal frame.

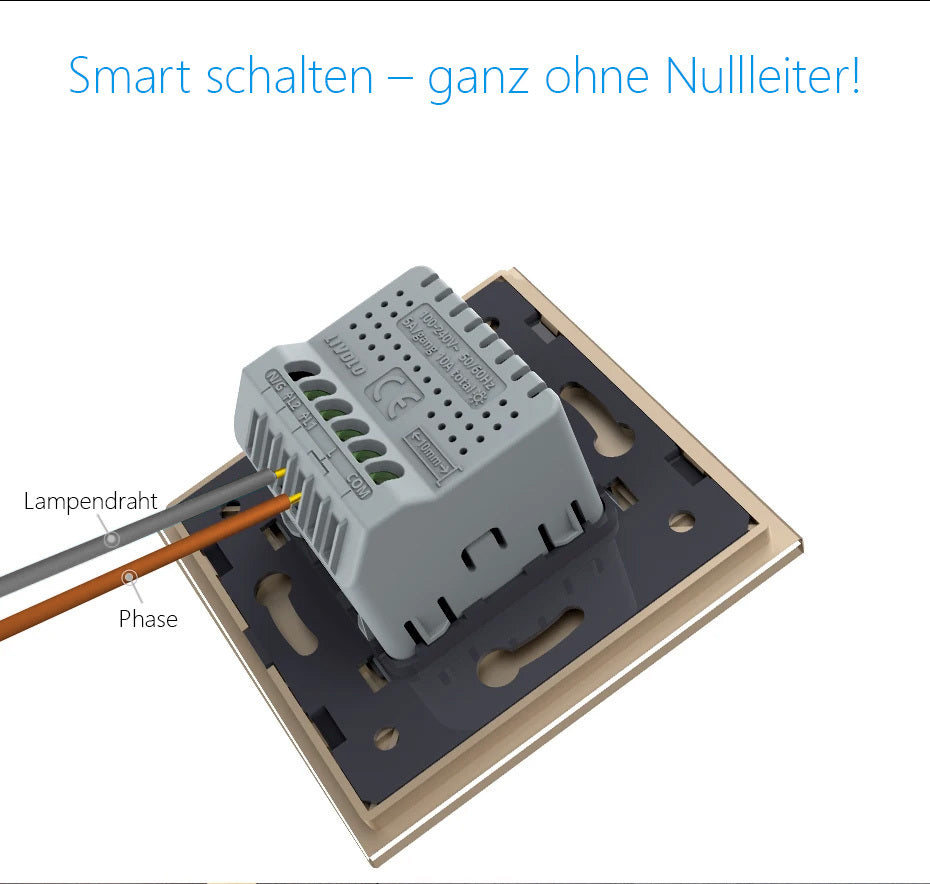

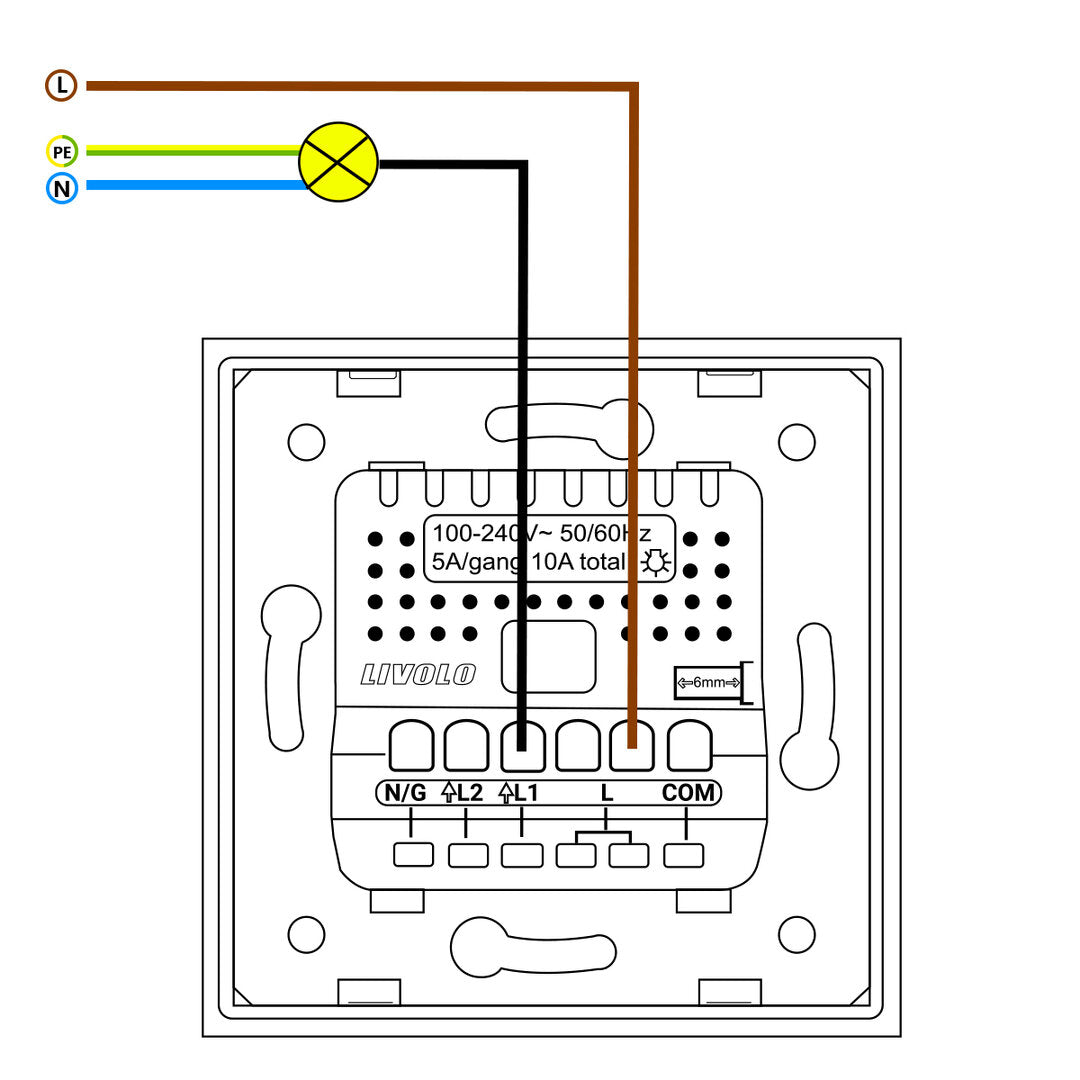

Replacement is carried out as with other rocker switch manufacturers. Simply replace your old rocker switches with a new, durable design. The wiring remains the same.

The light switch and socket modules are suitable for flush-mount boxes with a diameter of 60-68 mm. The hole spacing for multi-gang covers is 71 mm.

With us you get the complete Livolo range; from a simple rocker light switch to a smart home-capable touch roller shutter switch.

Questions? Call us or send us an email.
We are happy to advise you!

Technical data:

Operating voltage: AC110~250V, 50Hz60Hz

max. current per gang: 2A

Power load: 2000W

max. power per gang: 500W/220V or 250W/120V

Standby power consumption: less than 0.1mW

Service life over 100,000 times

Dimensions:

71 x 71 x 34 mm

Scope of delivery:

The delivery includes:

- 1 x Livolo Touch Switch Inner Module, as ordered

- User manual

Attention: inner module only! You can find the matching glass covers in our shop!

Installation info: connection is carried out WITHOUT power and glass cover; after installation, you can attach the glass cover and switch the power back on. Allow the touch switch to rest for 3 minutes before operating it. After the time has elapsed, the light switch can be operated. If you do not follow these instructions, the light switch may not respond.
