Livolo motion sensor with touch switch function

Please note that this offer is for the module only, WITHOUT the glass cover.

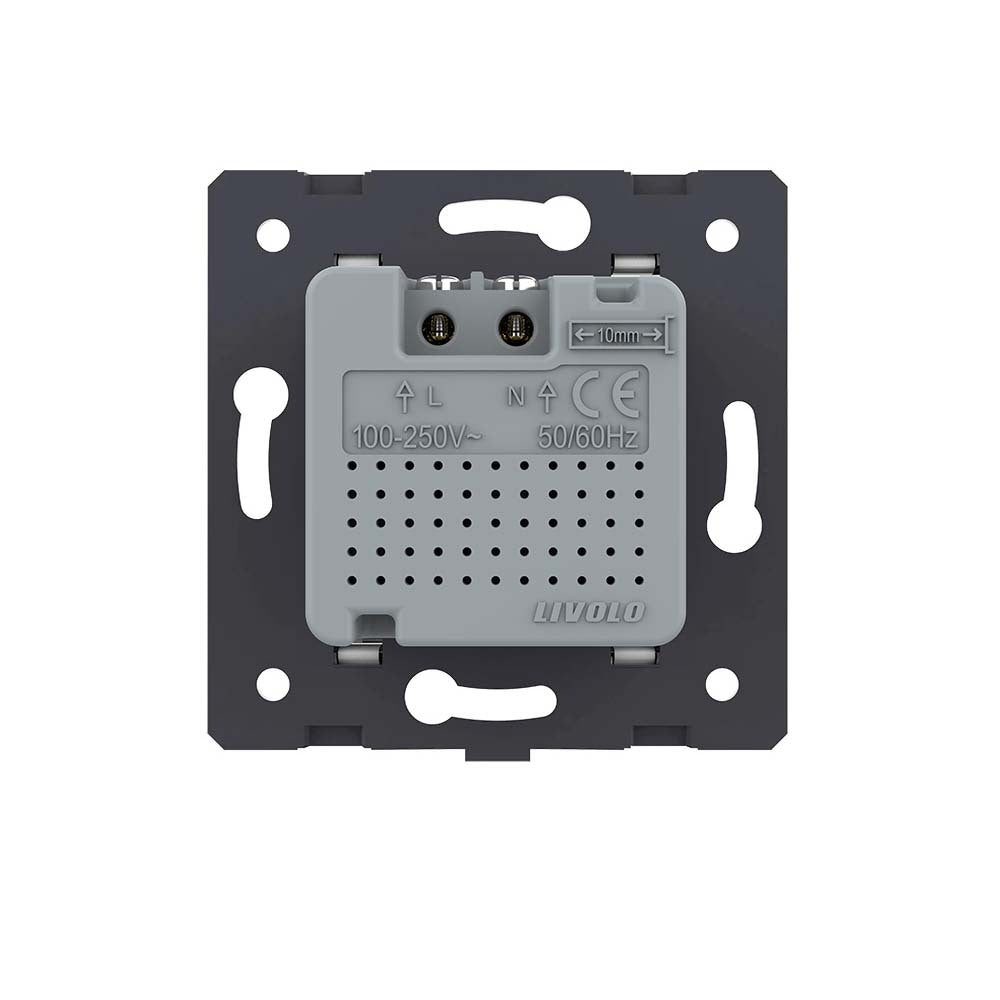

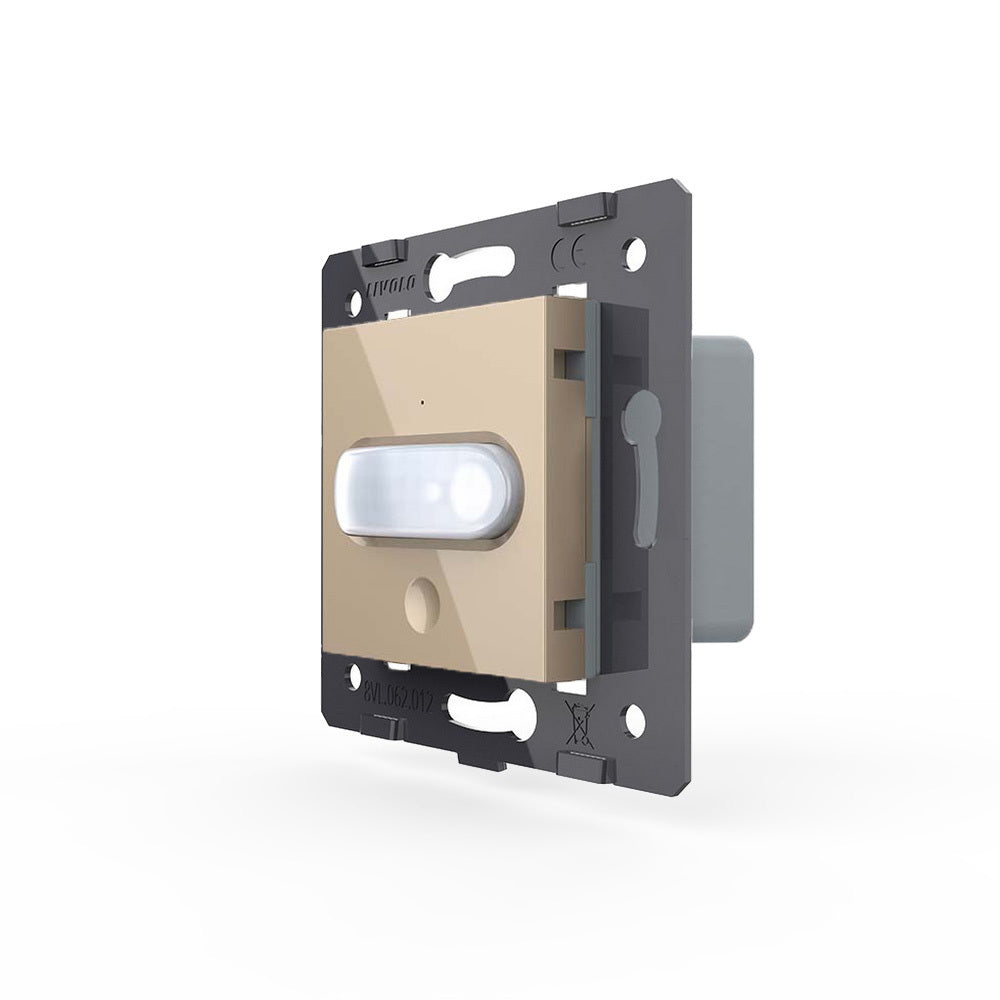

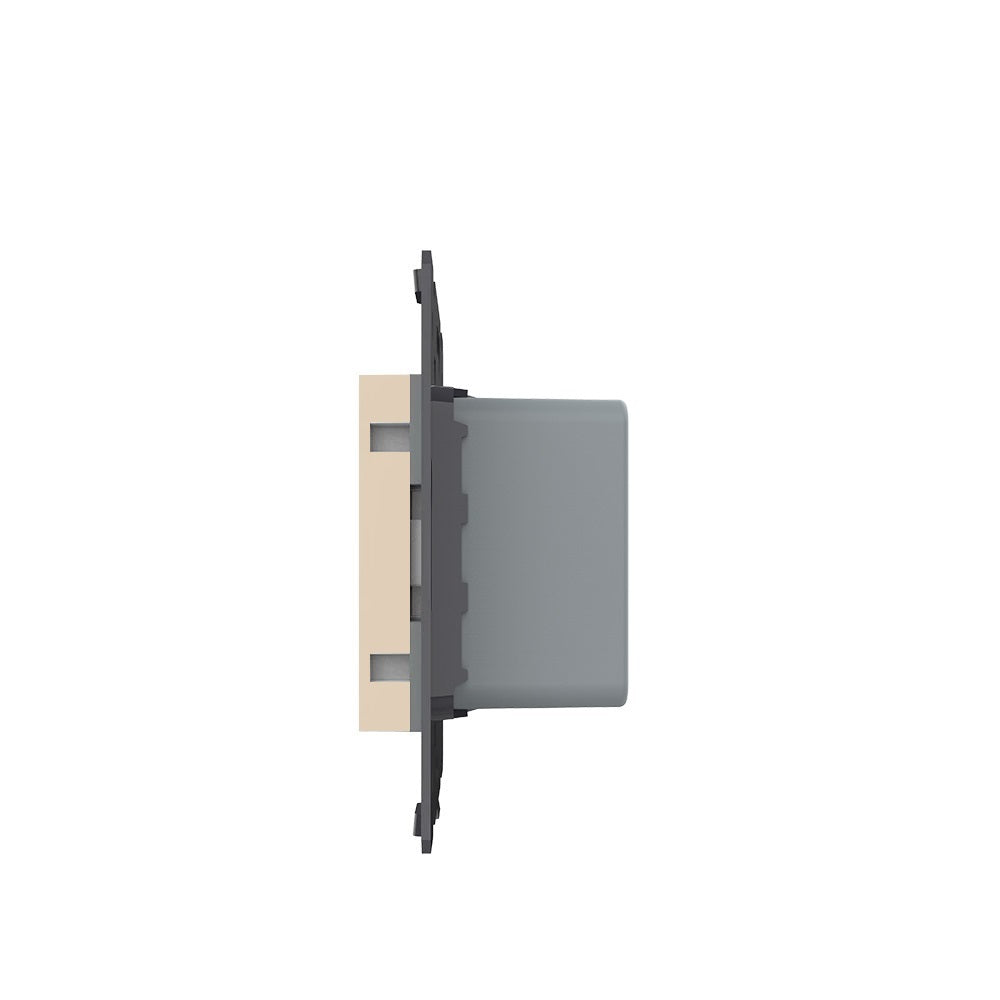

This is a Livolo motion sensor module in gold with touch switch function. An integrated PIR sensor detects moving heat sources within a detection angle of 180°. Thanks to the stepless adjustment of time and lux value (brightness), the lighting can be switched on in an energy-efficient manner. In addition, the switch can also be operated manually via the touch field below the sensor.

In combination with the matching glass cover, this motion sensor becomes a real eye-catcher.

Easy and quick installation, both vertically and horizontally.

In our shop you will also find spreading claws (LG-01) in a 2-pack, for flush-mount boxes without screw-in possibility. Suitable for hollow walls and older houses (built before 1970). When using spreading claws, 68 mm large flush-mount boxes are better suited.

The modules are attached to the flush-mount boxes with screws using the included metal frame.
The replacement is carried out like with other rocker switch manufacturers. Simply replace your old rocker switches with a new, durable design. The wiring remains the same.

The light switch and socket modules are suitable for flush-mount boxes with a diameter of 60-68 mm. The hole spacing for multiple covers is 71 mm.

With us you get the complete Livolo range; from a simple rocker light switch to the smart home-capable touch roller shutter switch.

Questions? Call us or send us an email.
We are happy to advise you!

Technical data:

Human body sensitivity: 0.5-5m

Delay time setting: 8-300s

Efficiency: 180°

Brightness sensitivity: 0.6-2000LUX

Load compatibility: 3-1000W

AC standby current: <0.65Ma

Operating voltage. 100-250VAC

Dimensions:

71 x 71 x 25 mm

Scope of delivery:

The delivery includes:

- 1 x Livolo motion sensor interior, as ordered

- Operating instructions

Attention, interior only! Matching glass covers can be found in our shop!
