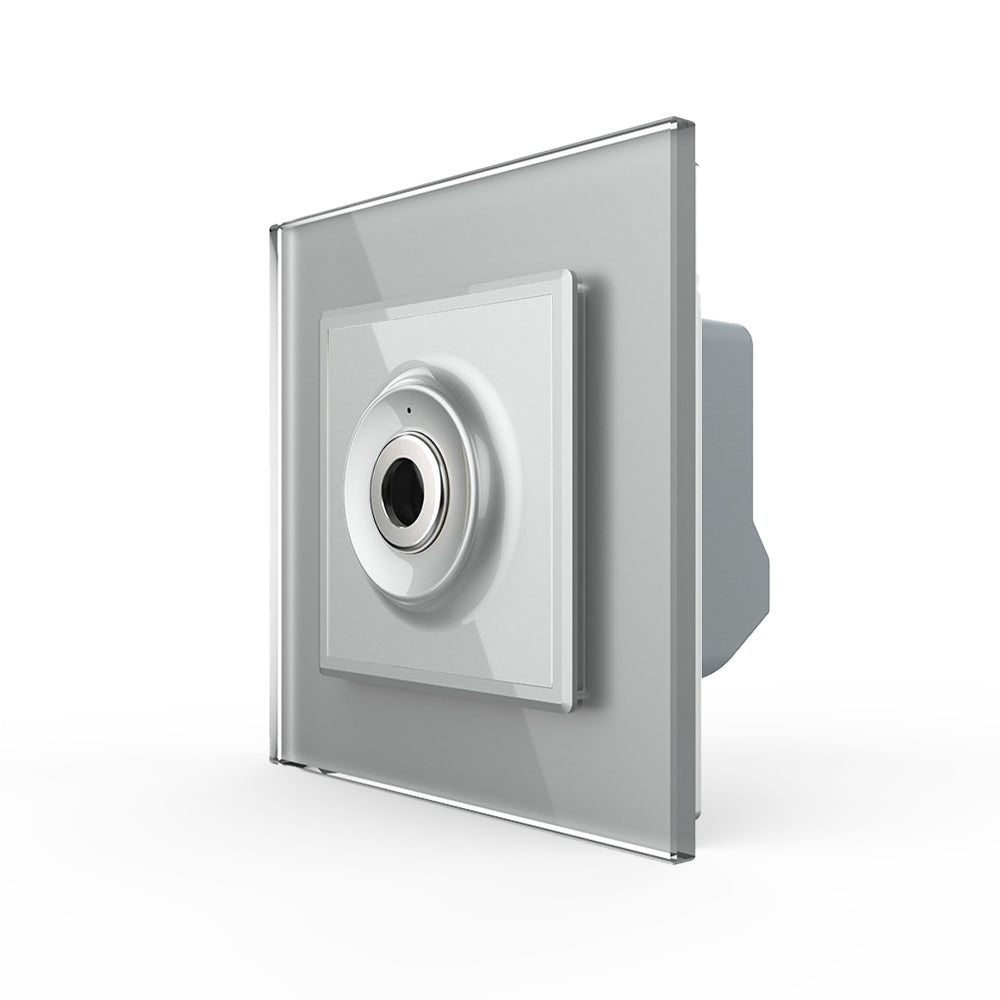

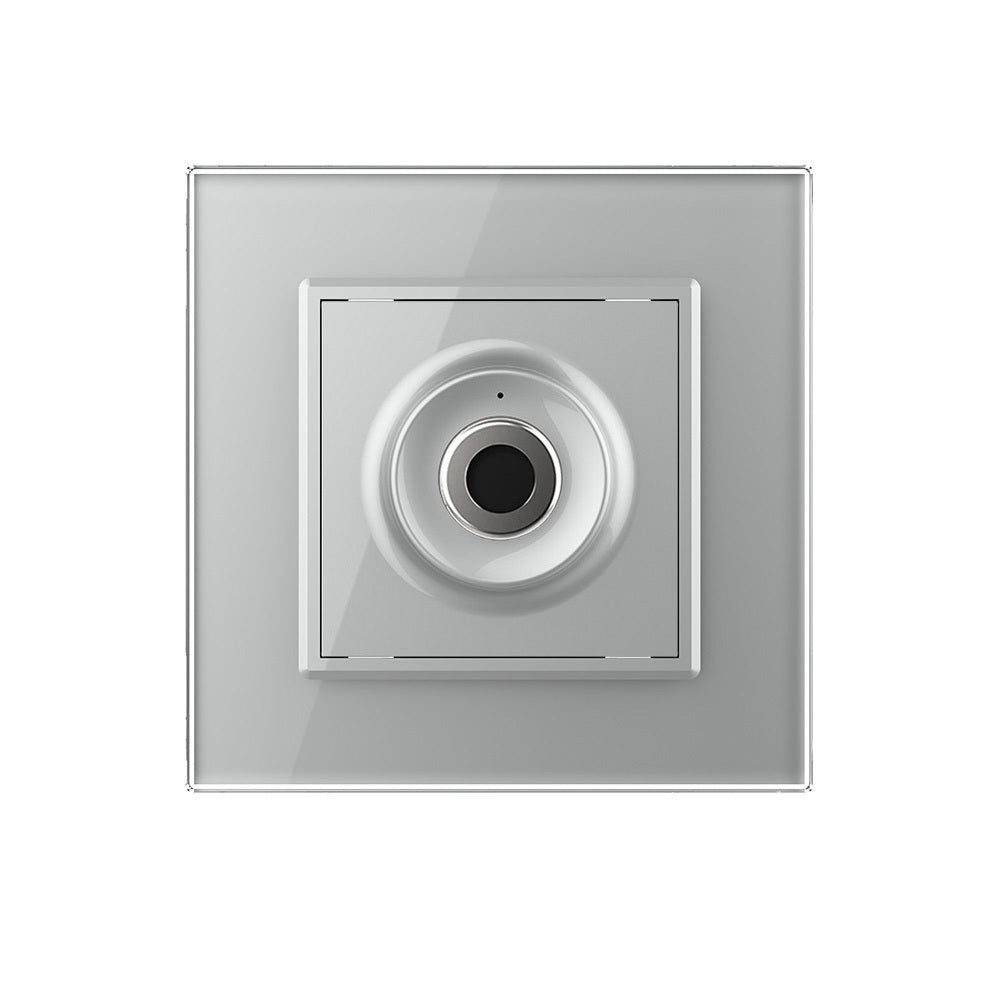

Livolo proximity switch in grey incl. simple, grey glass frame

This is a simple Livolo light switch for switching a light or group of lights on and off. This switch features a proximity sensor, so the switch does not need to be touched. The sensor is triggered by movement at a distance of 0 to 7 cm in front of the switch.

In combination with the matching glass cover, this switch with modern sensor technology becomes a real eye-catcher.

Simple and quick installation, both vertically and horizontally.

Our touch light switches can be used with all types of lamps, including incandescent bulbs, halogen bulbs & energy-saving bulbs. Even for many LED strips and the control of sockets.

The LED ceiling spotlights are compatible with all our Livolo switches.

In our shop you will also find spreading claws (LG-01) in a 2-pack, for flush-mount boxes without a screw-in option. Suitable for hollow walls and older houses (built before 1970). When using spreading claws, 68 mm flush-mount boxes are better suited.

The modules are attached to the flush-mount boxes with screws using the included metal frame.

The replacement is done like with other rocker switch manufacturers. Simply replace your old rocker switches with a new, durable design. The wiring remains the same.

The light switch and socket modules are suitable for flush-mount boxes with a diameter of 60-68 mm. The hole spacing for multiple covers is 71 mm.

With us you get the complete Livolo range; from a simple rocker light switch to a smart home-capable touch roller shutter switch.

Questions? Call us or send us an email.
We are happy to advise you!

Technical data:

Voltage: AC100~250V, 50Hz60Hz

max. electrical current: 1A

Standby power consumption: less than 0.1mW

Lifespan over 100,000 times

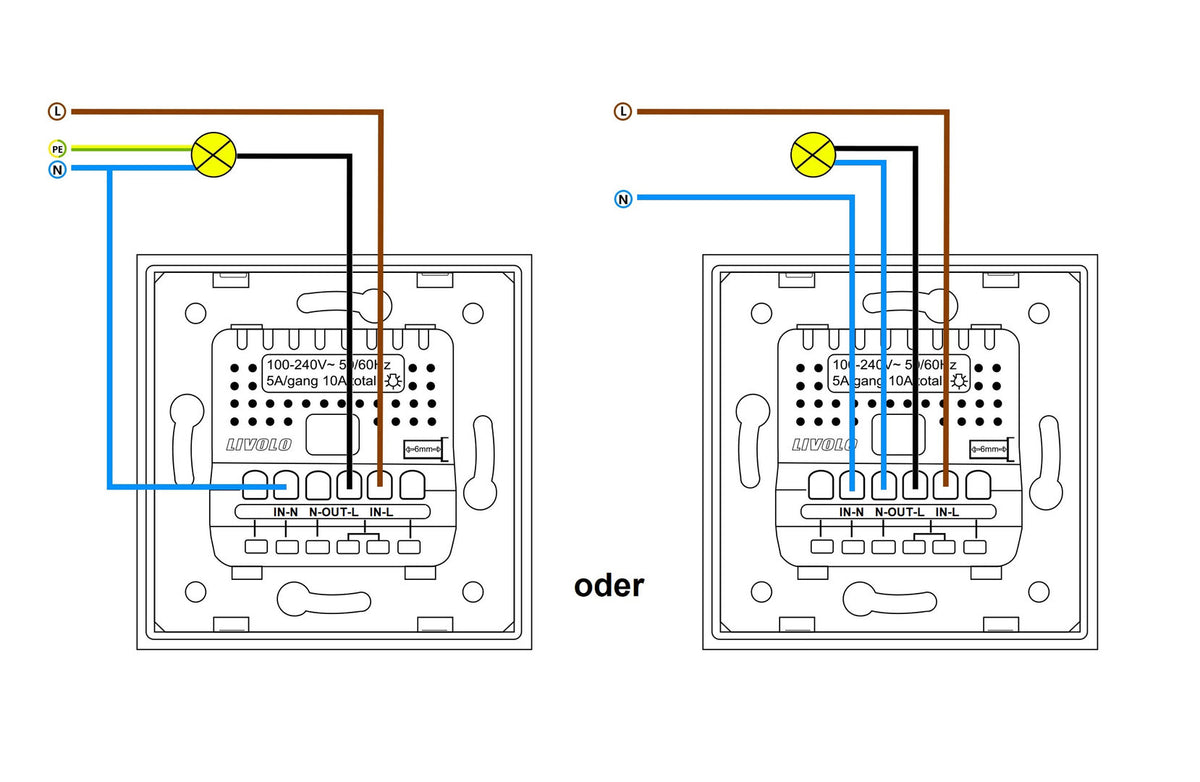

Attention! Neutral conductor required!

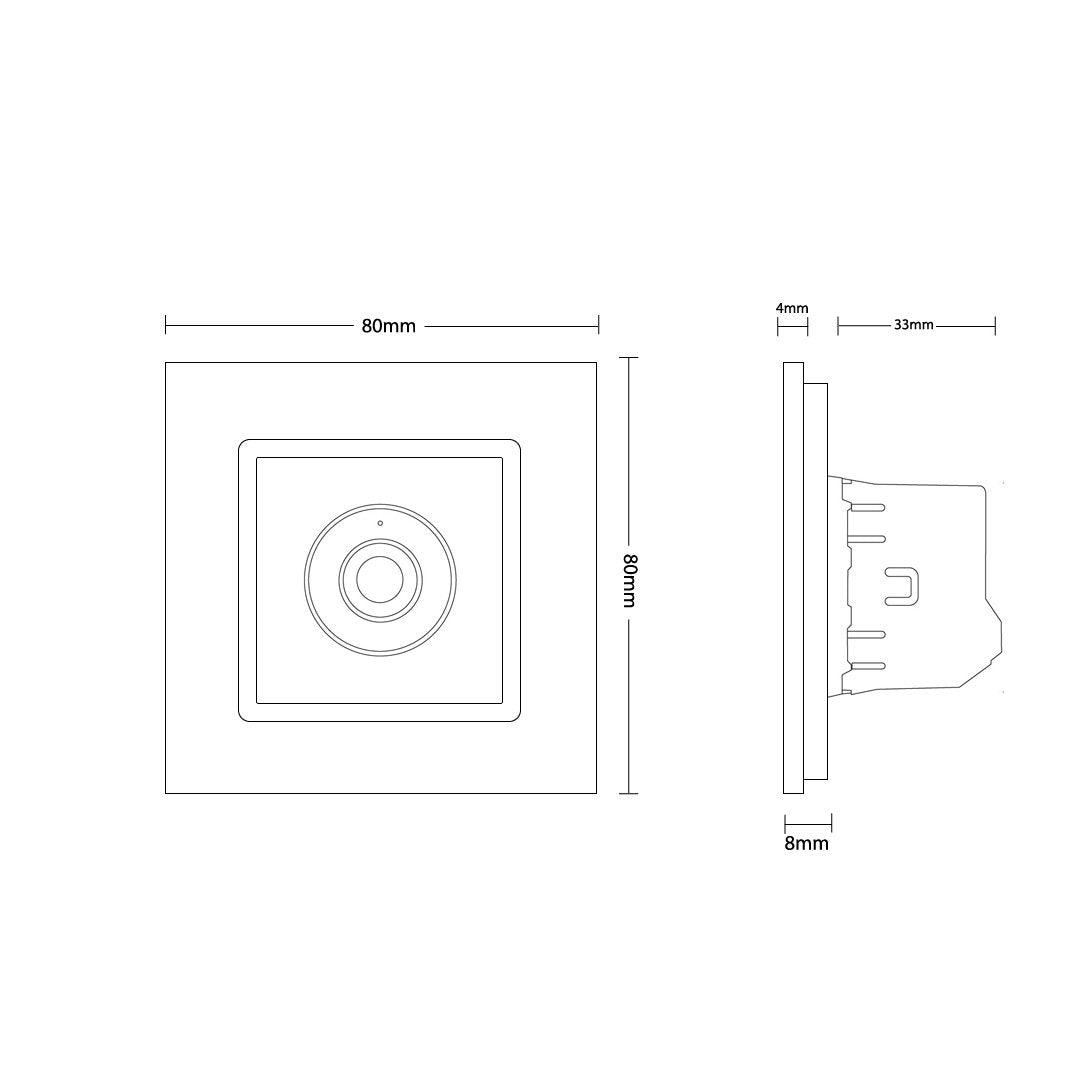

Dimensions:

80 x 80 x 41 mm

Scope of delivery:

The delivery includes:

- 1 x Livolo touch switch internal component, according to order
- 1 x Livolo simple glass frame, according to order
- User manual

Installation info: the connection is made WITHOUT power and glass cover, after installation you can place the glass cover and switch the power back on. Let the touch switch rest for 3 minutes before operating it. After the time has elapsed, the light switch can be operated. If you do not follow these instructions, the light switch may not respond.
