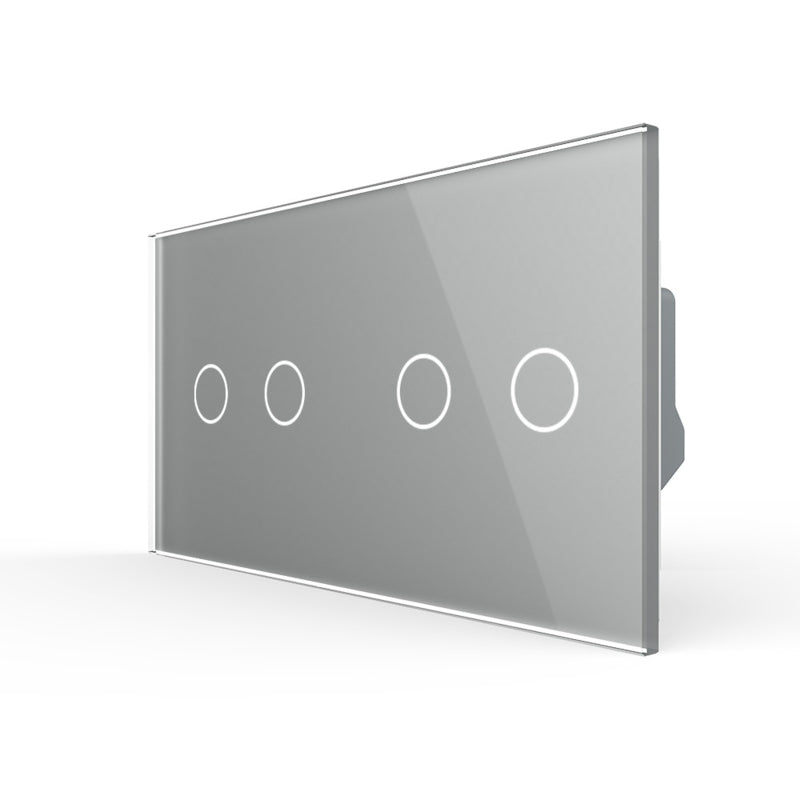

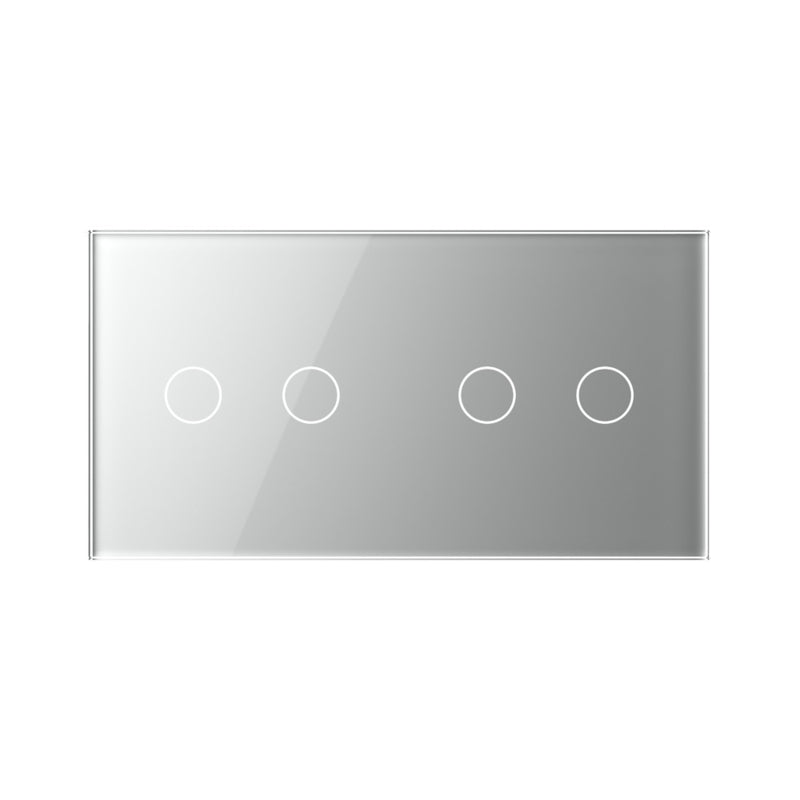

2 Livolo shutter switch modules with glass cover in grey

These are two Livolo shutter switches for raising and lowering as well as pausing a shutter, awning, Venetian blind or roller blind.

The shutter switch can also be controlled via app by using the WRC01 module.

The glass cover turns this combination with modern sensor technology into a real eye-catcher.

Easy and quick installation, both vertically and horizontally.

The shutter switch is operated by lightly touching the circular surface.

The contour of the touch surface is subtly illuminated, making it easy to operate at any time of day. It is especially easy to find the switch in the dark.

In the on mode, the border of the touch field lights up red, in the off mode blue.

By pressing the switch again, you can stop the shutter motor.

In our shop you will also find spreading claws (LG-01) in a 2-pack, for flush-mount boxes without a screw-in option. Suitable for hollow walls and older houses (built before 1970). When using spreading claws, 68 mm flush-mount boxes are better suited.

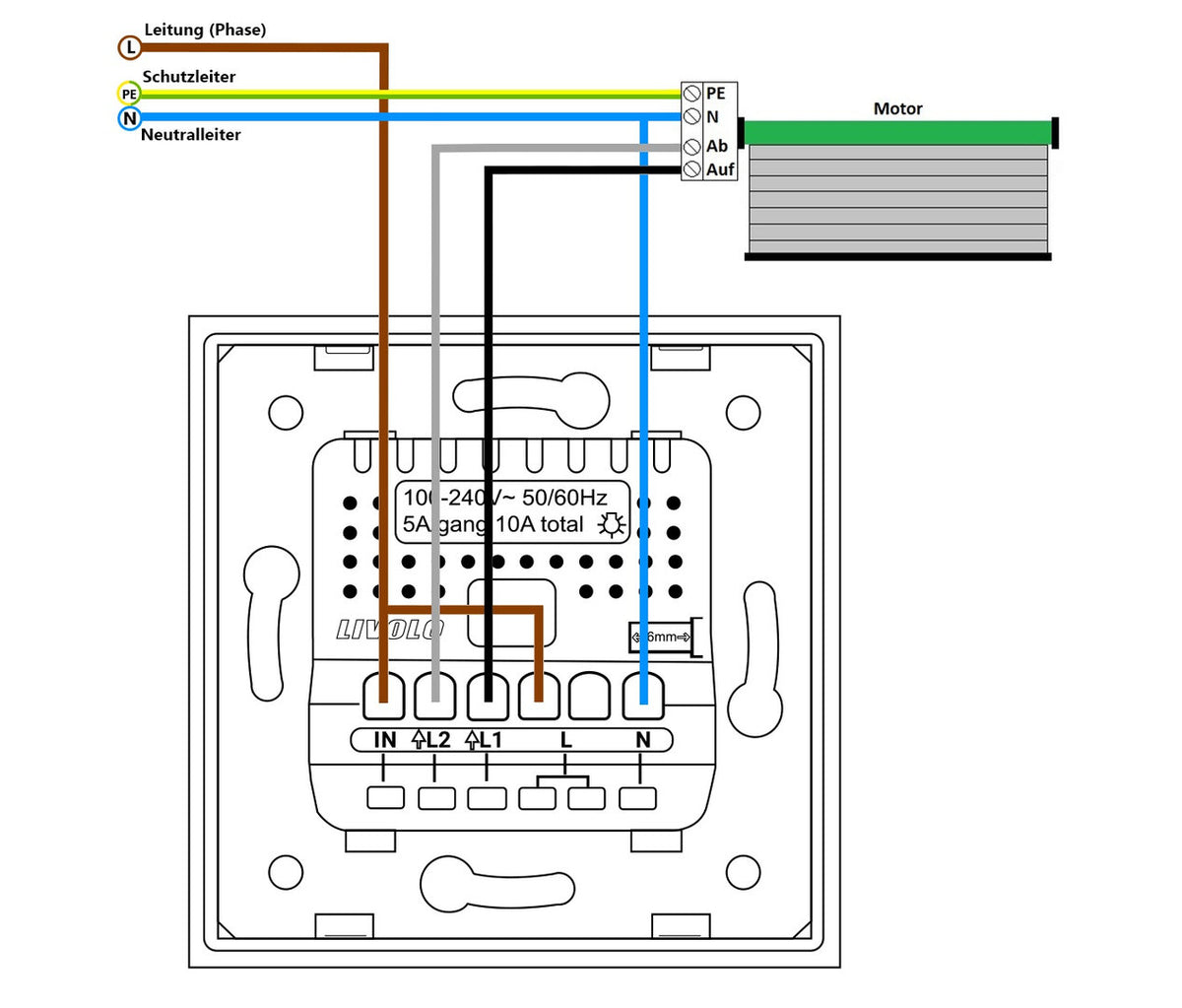

The modules are attached to the flush-mount boxes with screws using the included metal frame. The replacement is carried out like with other shutter switch manufacturers. Simply replace your old switches with a new, durable design. The wiring remains the same.

Our modules are suitable for flush-mount boxes with a diameter of 60-68 mm.

The hole spacing for multiple covers is 71 mm.

With us you receive the complete Livolo range; from a simple rocker light switch to a smart home-capable touch shutter switch.

Questions? Call us or send us an email.

We are happy to advise you!

Technical data:

Operating voltage: AC 220V-250V

Current: 5A

Power load: 2000W

Lifespan over 100,000 times

Operating time: approx. 60 seconds

Dimensions:

151 x 80 x 34 mm

Scope of delivery:

The delivery includes:

• 2 x Livolo touch switch internals, according to order
• 1 x Livolo double glass cover, according to order
• Operating instructions

Installation info: the connection is made WITHOUT power and the glass cover, after installation you can place the glass cover and turn the power back on. Let the touch switch rest for 3 minutes before operating. After the time has elapsed, the shutter switch can be operated. If you do not follow these instructions, the shutter switch may not respond.
