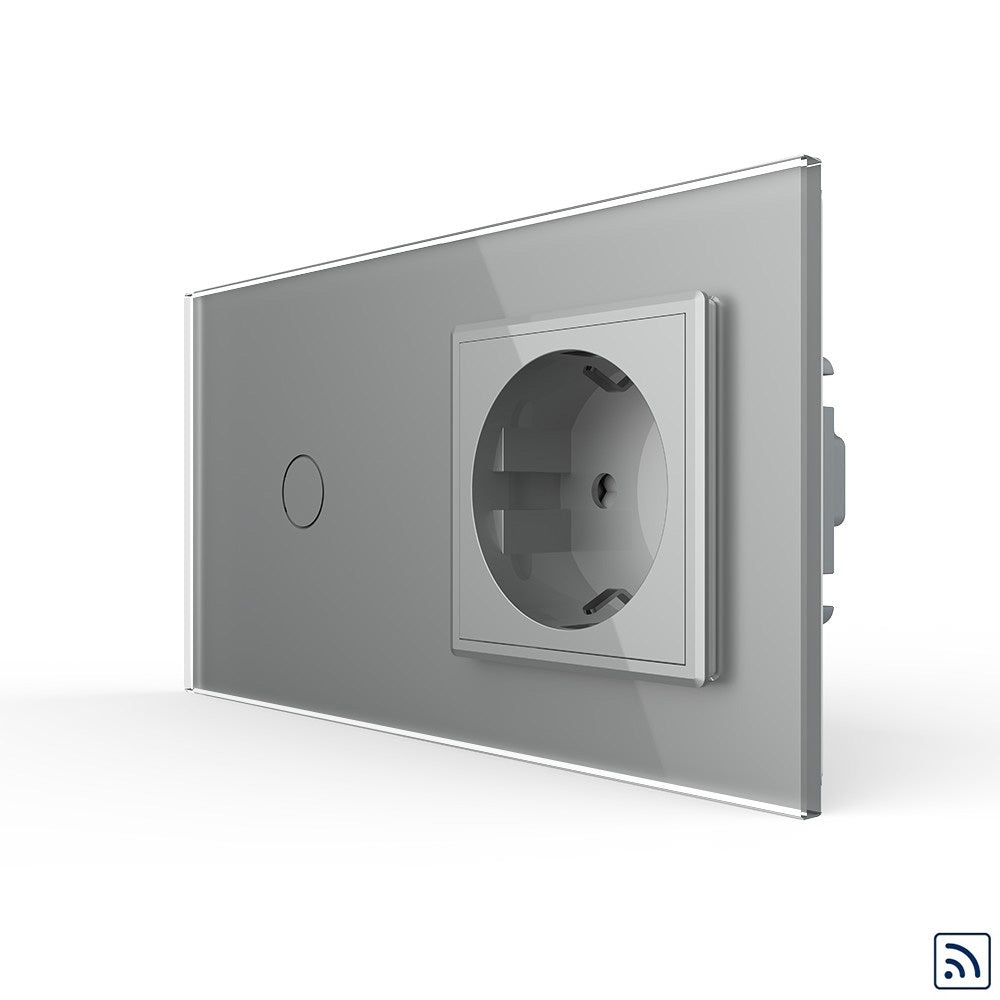

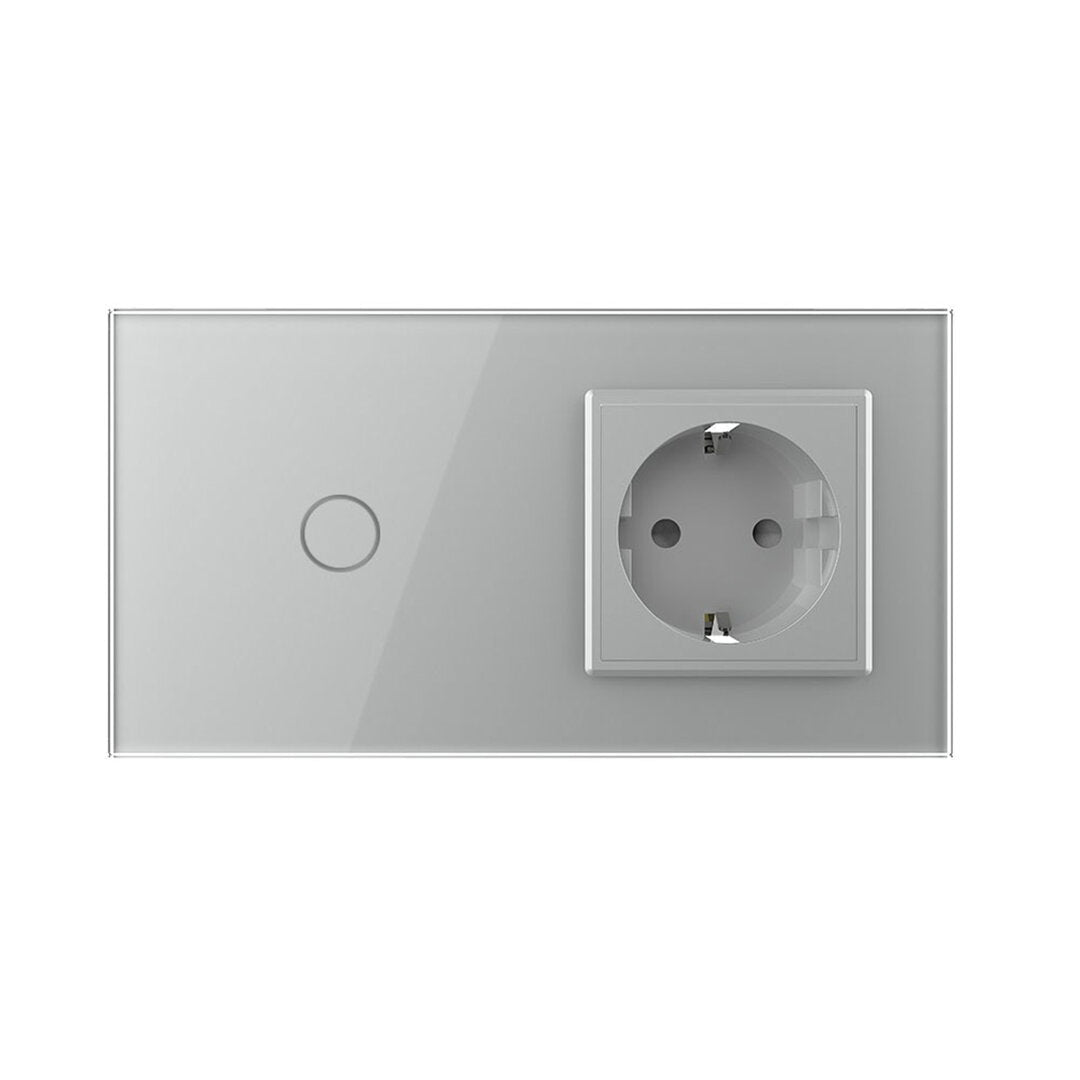

Livolo wireless light switch with socket incl. glass cover in grey

This is a simple Livolo wireless light switch for switching a light or group of lights on and off.

The wireless function allows control via remote control or (with the everHome CloudBox as a gateway) also via app (everHome App).

The socket features a built-in child safety lock and screw terminals.

The glass cover makes this switch with modern sensor technology a real eye-catcher.

Easy and quick installation, both vertically and horizontally.

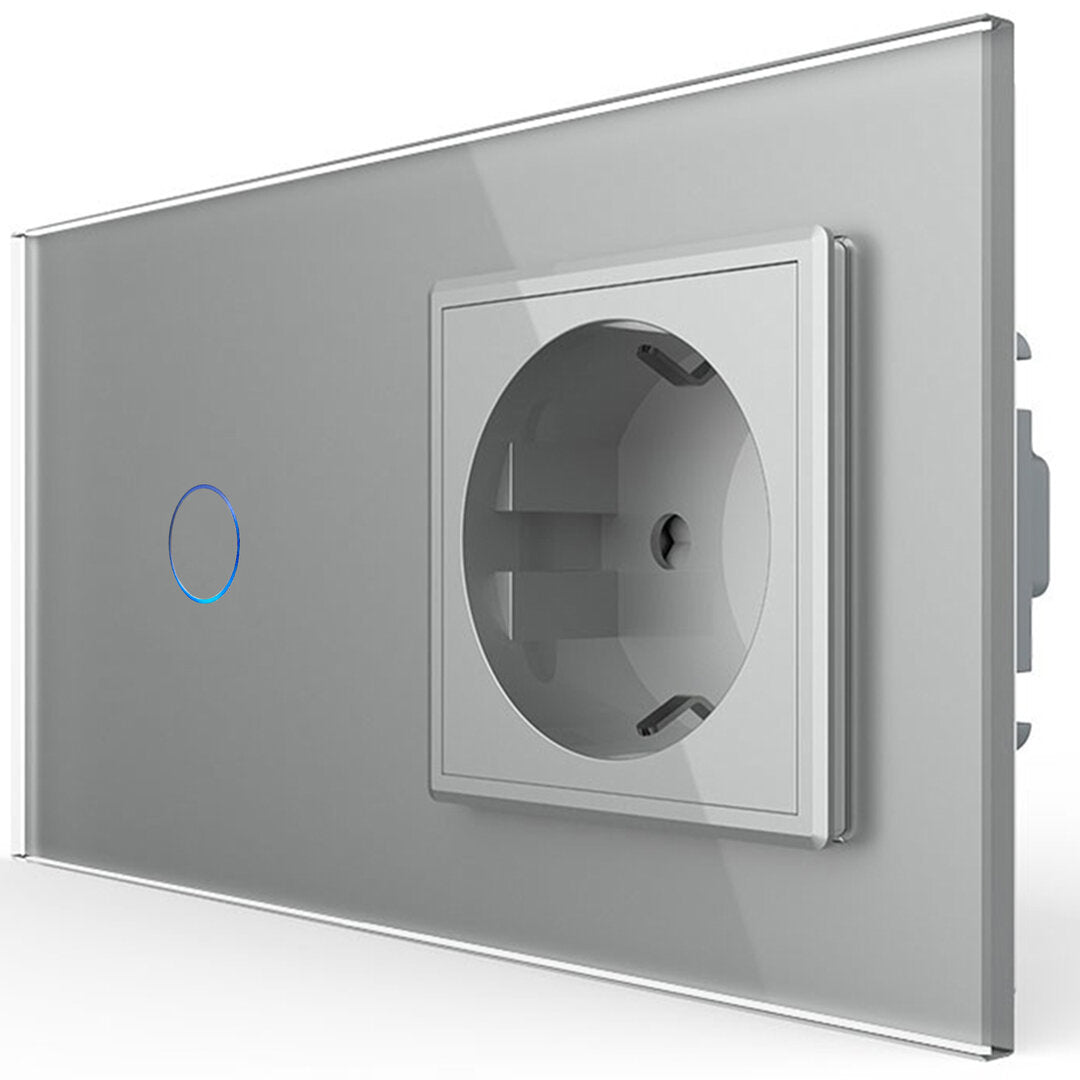

The light switch is operated by lightly touching the circular surface. The contour of the touch surface is subtly illuminated, making it easy to operate at any time of day. It is especially easy to find the switch in the dark. In the on mode, the border of the touch field lights up red, in the off mode blue.

Our touch light switches can be used with all types of lamps, including incandescent bulbs, halogen lamps & energy-saving bulbs. Exception: LED strips.

Attention: With lights under 20 watts (especially LED lights), interference may occur. In this case, a resistor adapter helps in almost all cases.

See under: Miscellaneous > Accessories

For our LED ceiling spotlights, you do not need a resistor adapter!

The LED ceiling spotlights are compatible with all our Livolo switches.

See under: Miscellaneous > LED Lights

In our shop you will also find spreading claws (LG-01) in a 2-pack, for flush-mount boxes without screw-in possibility. Suitable for hollow walls and older houses (built before 1970). When using spreading claws, 68 mm flush-mount boxes are better suited.

The modules are attached to the flush-mount boxes with screws using the metal frame provided.

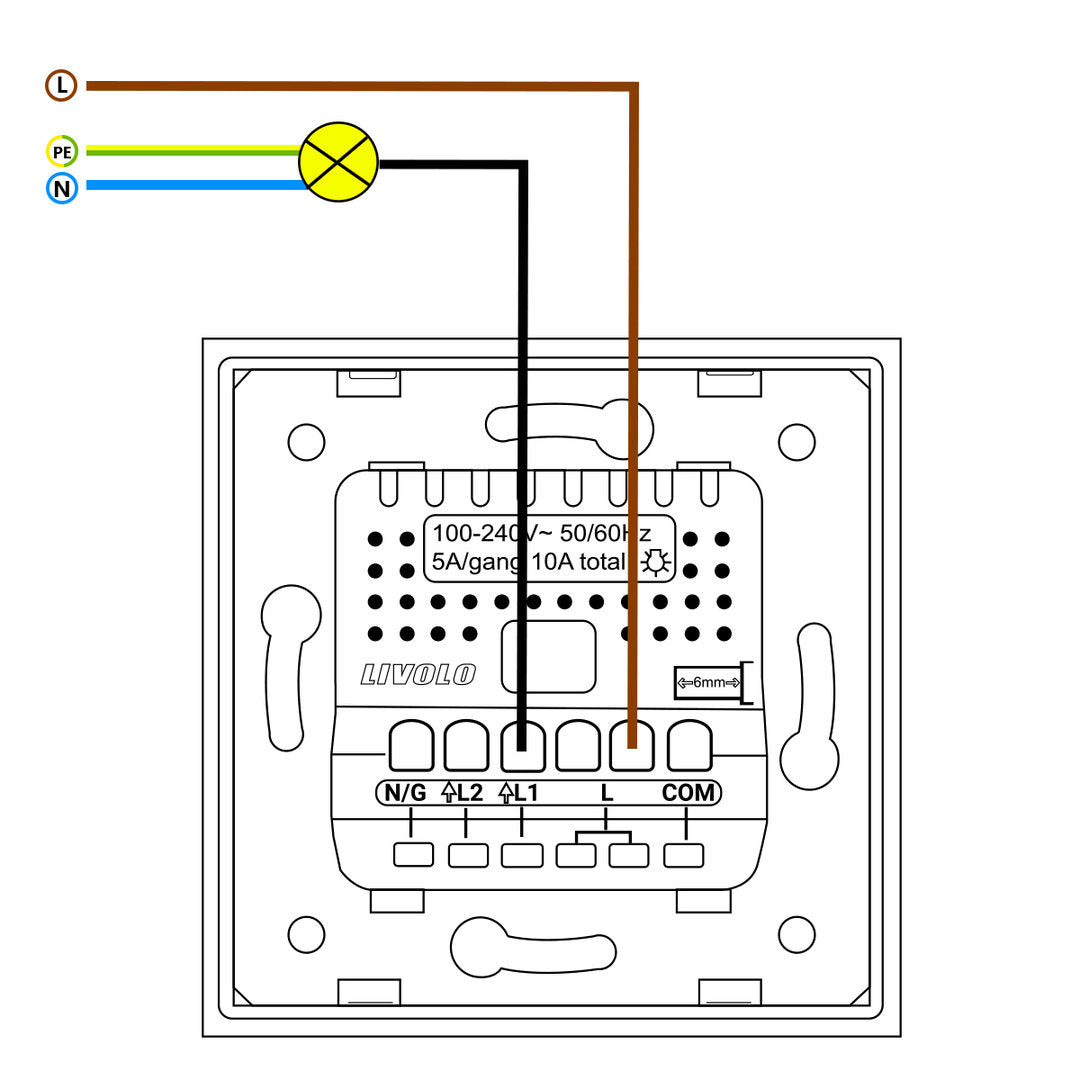

Replacement is carried out like with other rocker switch manufacturers. Simply replace your old rocker switches with a new, durable design. The wiring remains the same.

The light switch and socket modules are suitable for flush-mount boxes with a diameter of 60-68 mm. The hole spacing for multiple covers is 71 mm.

With us you get the complete Livolo range; from a simple rocker light switch to a smart home-capable touch roller shutter switch.

Questions? Call us or send us an email.
We are happy to advise you!

Technical data:

Wireless light switch

Operating voltage: AC110~250V, 50Hz60Hz

max. current per pole: 2.5A

Current load: 2000W

max. power per pole: 500W/220V or 250W/120V

Standby power consumption: less than 0.1mW

Service life over 100,000 times

Socket:

Rated current/voltage: 16A/250V

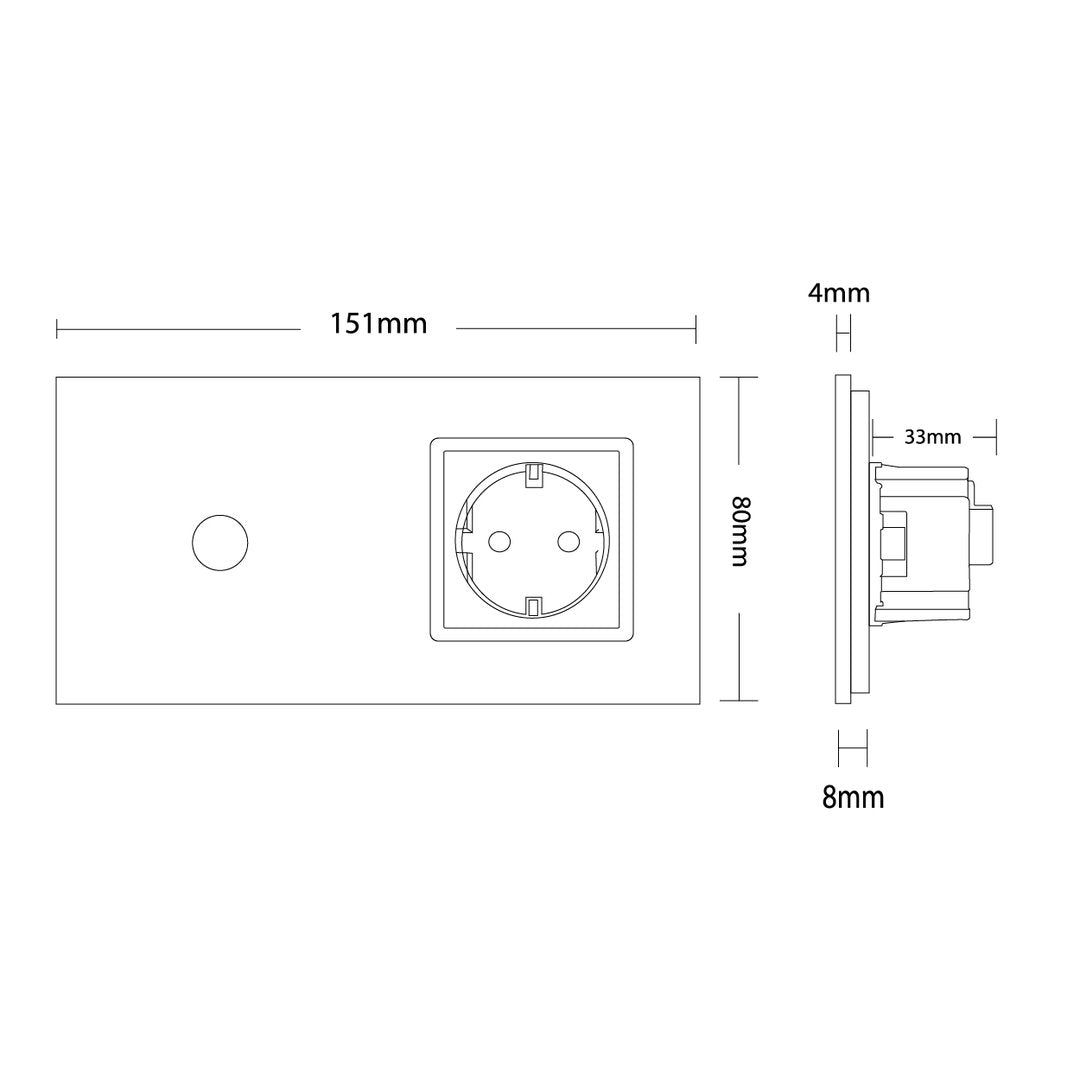

Dimensions:

151 x 80 x 34 mm

Scope of delivery:

The delivery includes:

• 1 x Livolo Touch Switch Internal Module, as ordered
• 1 x Livolo Glass Cover Single, as ordered
• 1 x Livolo Socket, as ordered
• Operating Instructions

Installation Info: the connection is made WITHOUT power and the glass cover, after installation you can place the glass cover and turn the power back on. Let the touch switch rest for 3 minutes before operating. After the time has elapsed, the light switch can be operated. If you do not follow these instructions, the light switch may not respond.
