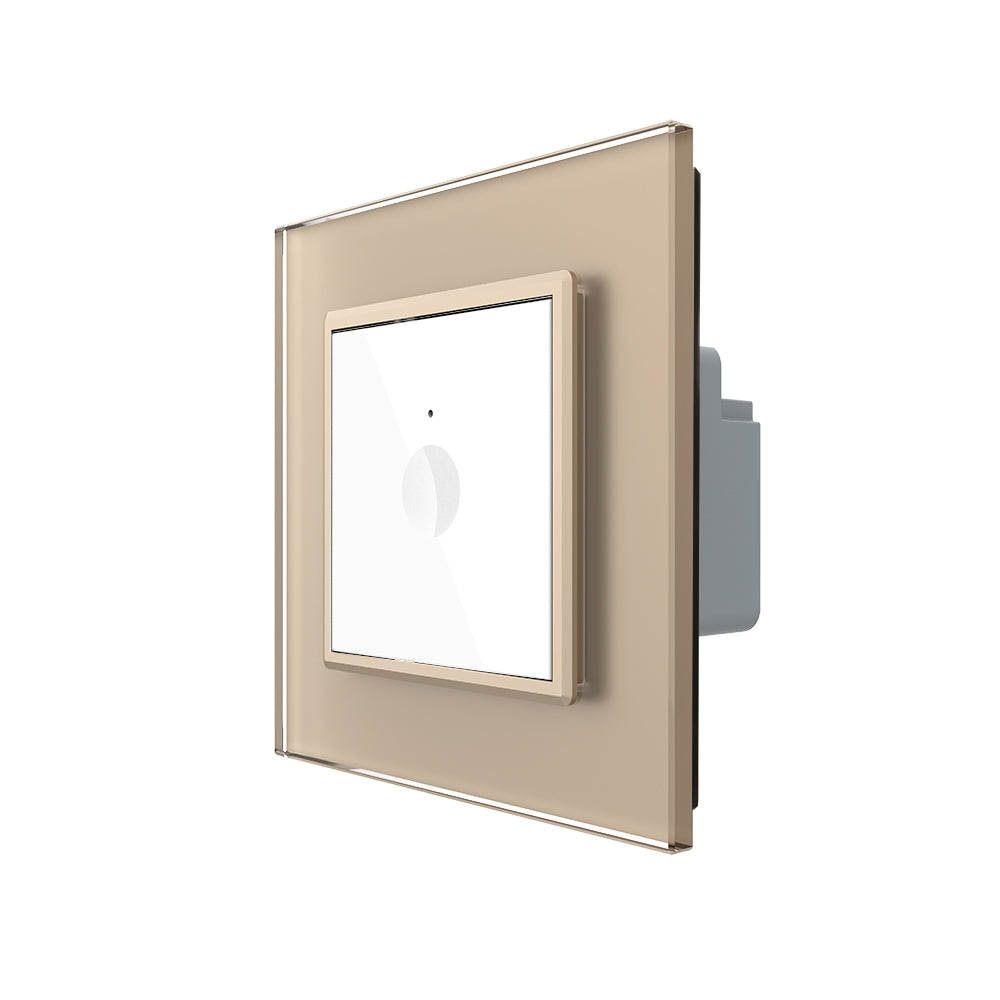

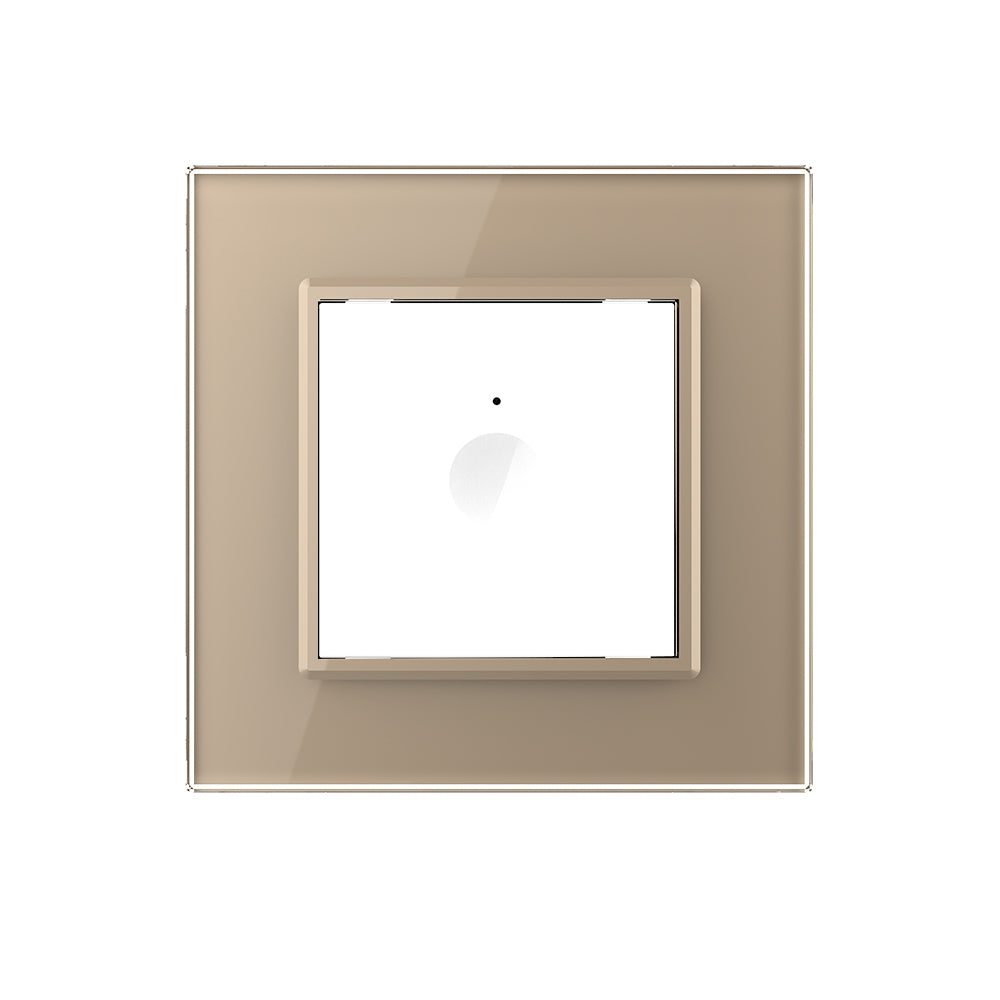

Livolo simple, white Notch two-way switch module with gold glass cover

This is a simple Livolo Notch two-way switch for switching a light or group of lights on and off. The switch also has a two-way switching function, allowing you to control a light from up to four locations.

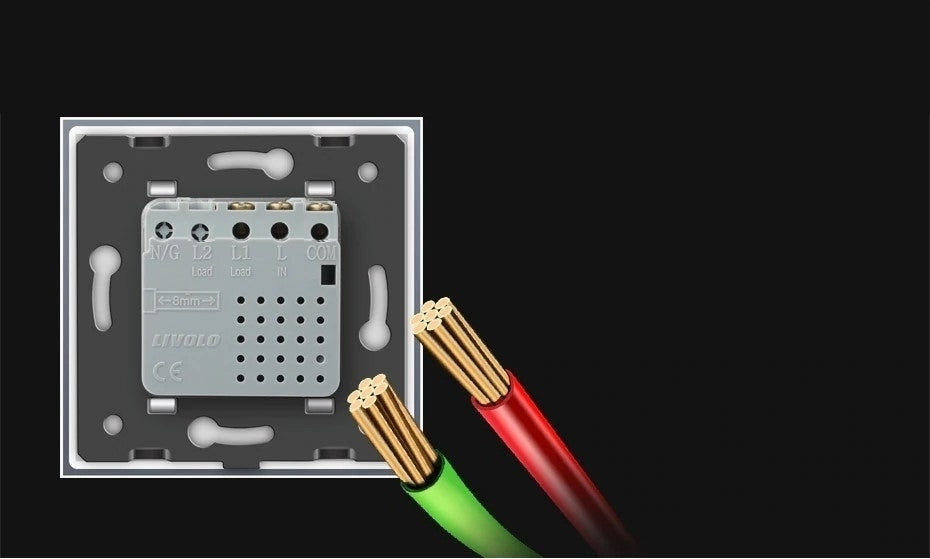

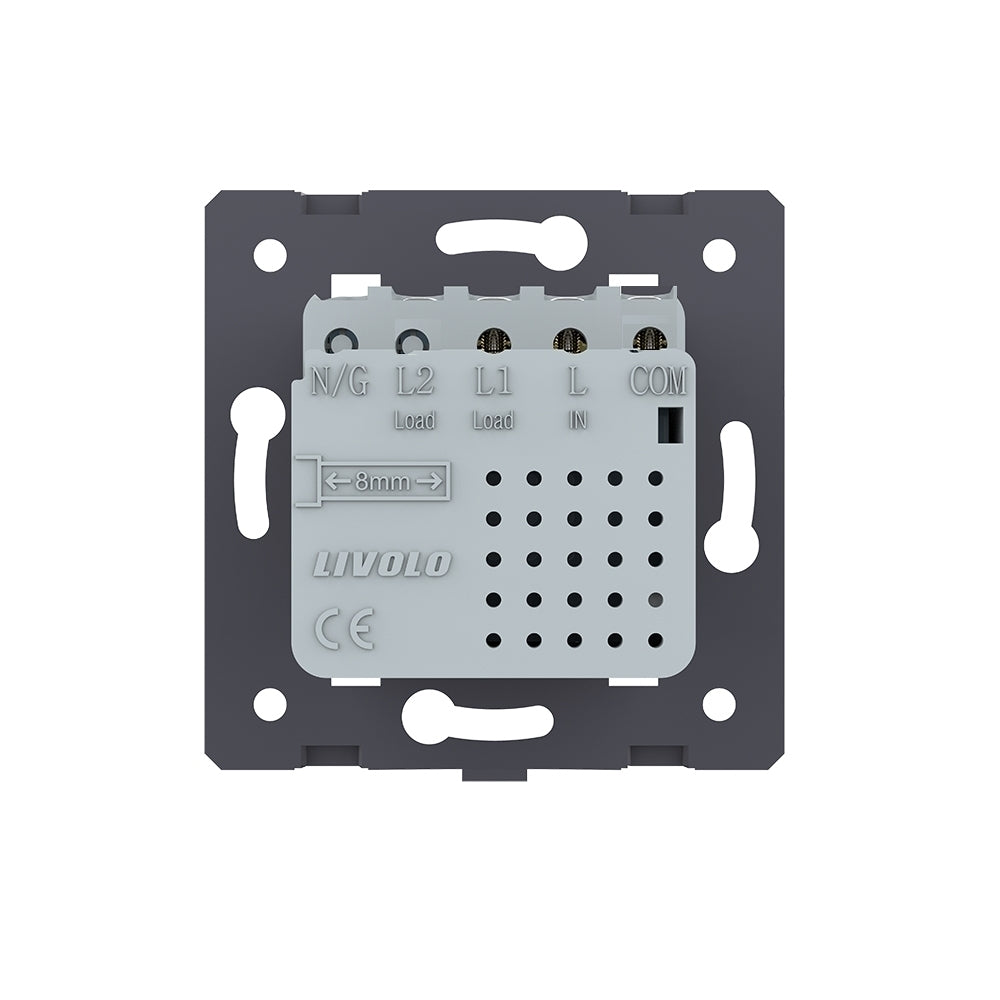

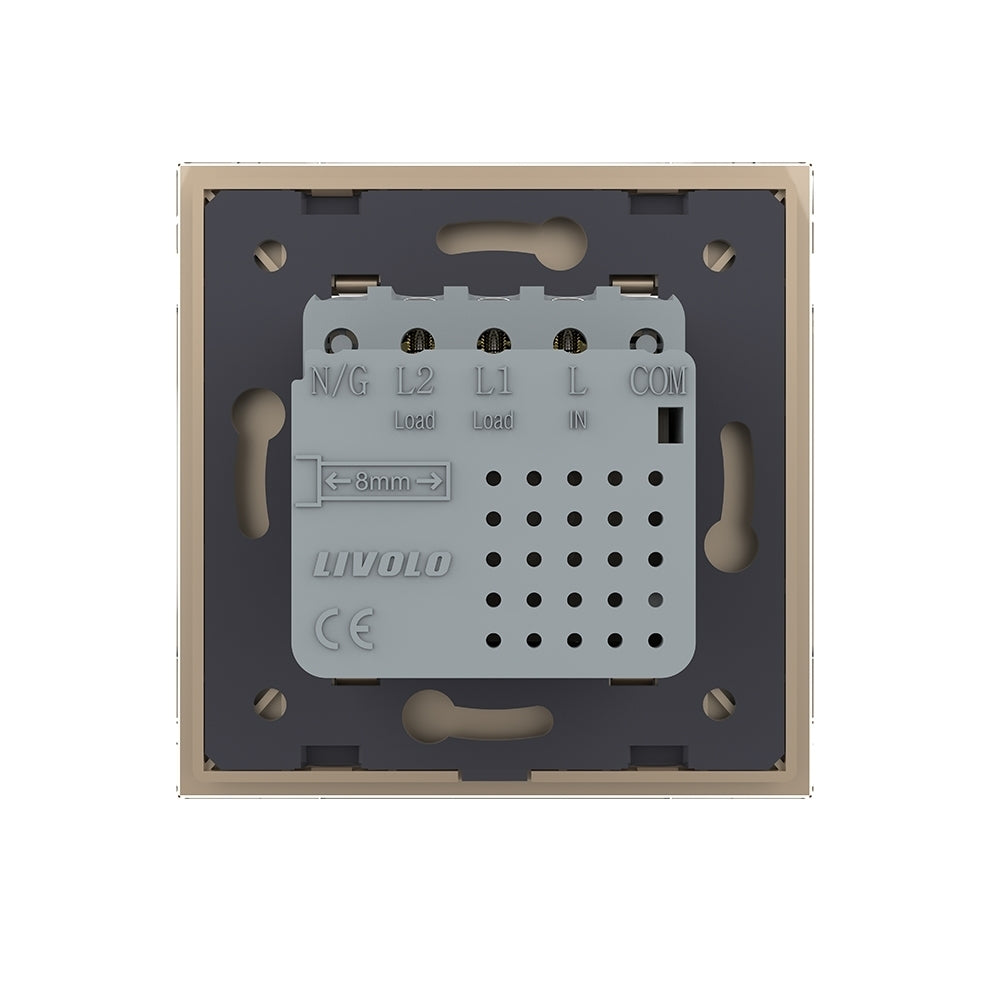

The Livolo Touch two-way switches can also be used as intermediate switches . All corresponding cables from the other Touch two-way switches are connected together to the COM terminal of the switch used as an intermediate switch.

Since the connection requires synchronization (YouTube video), only Livolo Touch two-way switches can be used within a two-way circuit.

You can find the synchronization instructions in the user manual.

With its glass cover and modern sensor technology, this switch is a real eye-catcher.

Simple and quick installation, both vertically and horizontally.

The light switch is operated by lightly touching the recessed circular surface.

Our Touch light switches can be used with all types of lamps, including incandescent bulbs, halogen lamps & energy-saving bulbs. Exception: LED strips.

Attention: With lights under 20 watts (especially LED lights), interference may occur. In almost all cases, a resistor adapter helps.

See under: Miscellaneous > Accessories

Our LED ceiling spotlights do not require a resistor adapter!

The LED ceiling spotlights are compatible with all our Livolo switches.

See under: Miscellaneous > LED Lights

In our shop you can also find spreading claws (LG-01) in a pack of 2, for flush-mount boxes without a screw-in option. Suitable for drywall and older houses (built before 1970). When using spreading claws, 68 mm flush-mount boxes are better suited.

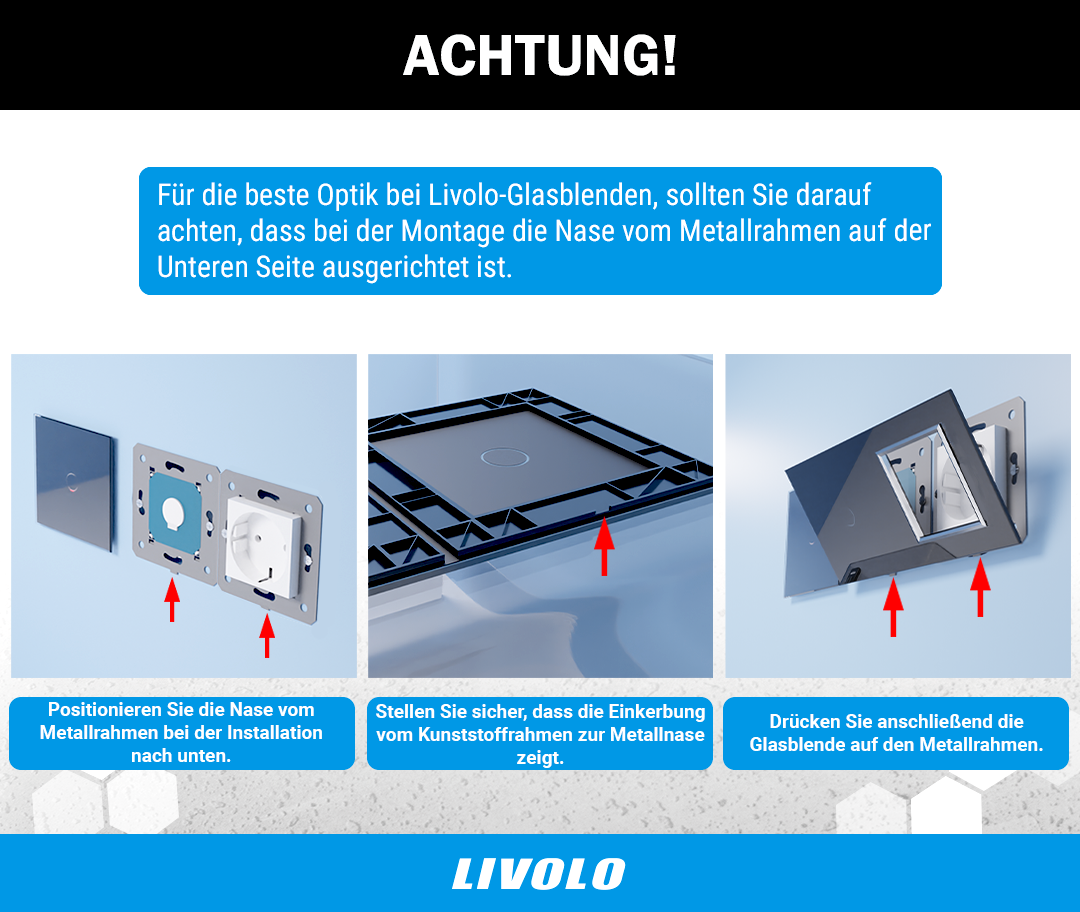

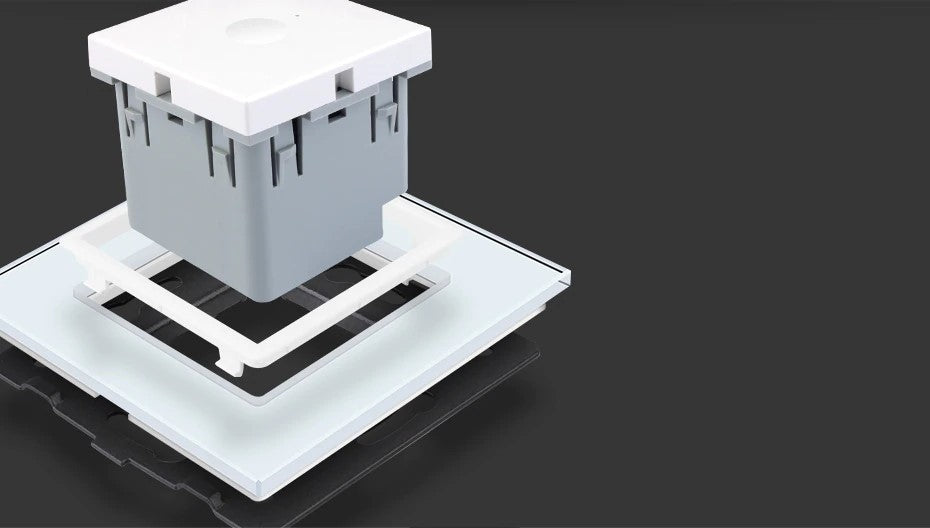

The modules are attached to the flush-mount boxes with screws using the included metal frame.

Replacement is carried out like with other rocker switch manufacturers. Simply replace your old rocker switches with a new, durable design. The wiring remains the same.

The light switch and socket modules are suitable for flush-mount boxes with a diameter of 60-68 mm. The hole spacing for multiple covers is 71 mm.

With us you get the complete Livolo range; from a simple rocker light switch to a smart home-capable Touch roller shutter switch.

Questions? Call us or send us an email.
We are happy to advise you!

Technical data:

Operating voltage: AC110~250V, 50Hz60Hz

max. current per pole: 2.5A

Current load: 2000W

max. power per pole: 500W/220V or 250W/120V

Standby power consumption: less than 0.1mW

Service life over 100,000 times

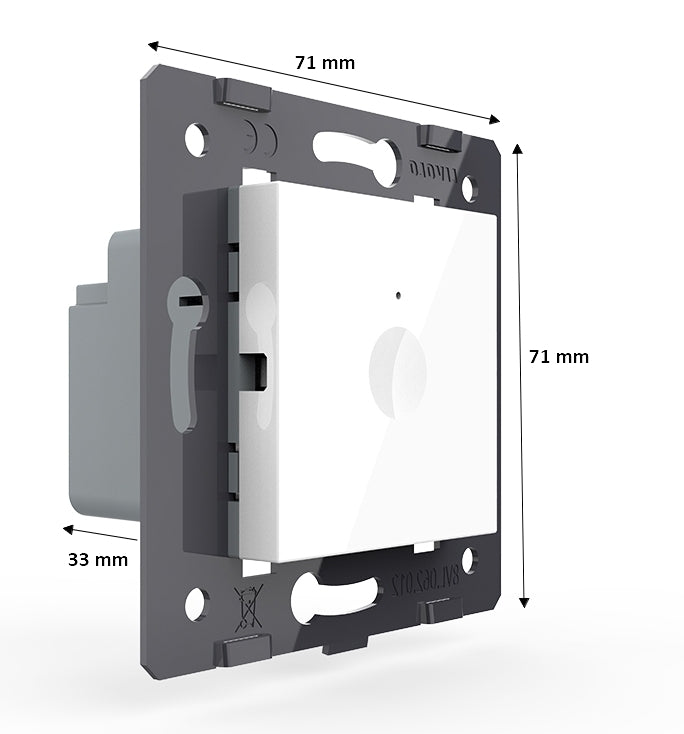

Dimensions:

80 x 80 x 34 mm

Scope of delivery:

The delivery includes:

· 1 x Livolo Touch switch inner module, as ordered

· 1 x Livolo single glass cover, as ordered

· User manual

Installation info: connection is carried out WITHOUT power and the glass cover, after installation you can place the glass cover and switch the power back on. Let the Touch switch rest for 3 minutes before operating. After the time has elapsed, the light switch can be operated. If you do not follow these instructions, the light switch may not respond.
