Stainless Steel Floor-Mounted Floor Socket Box with 4 White Sockets

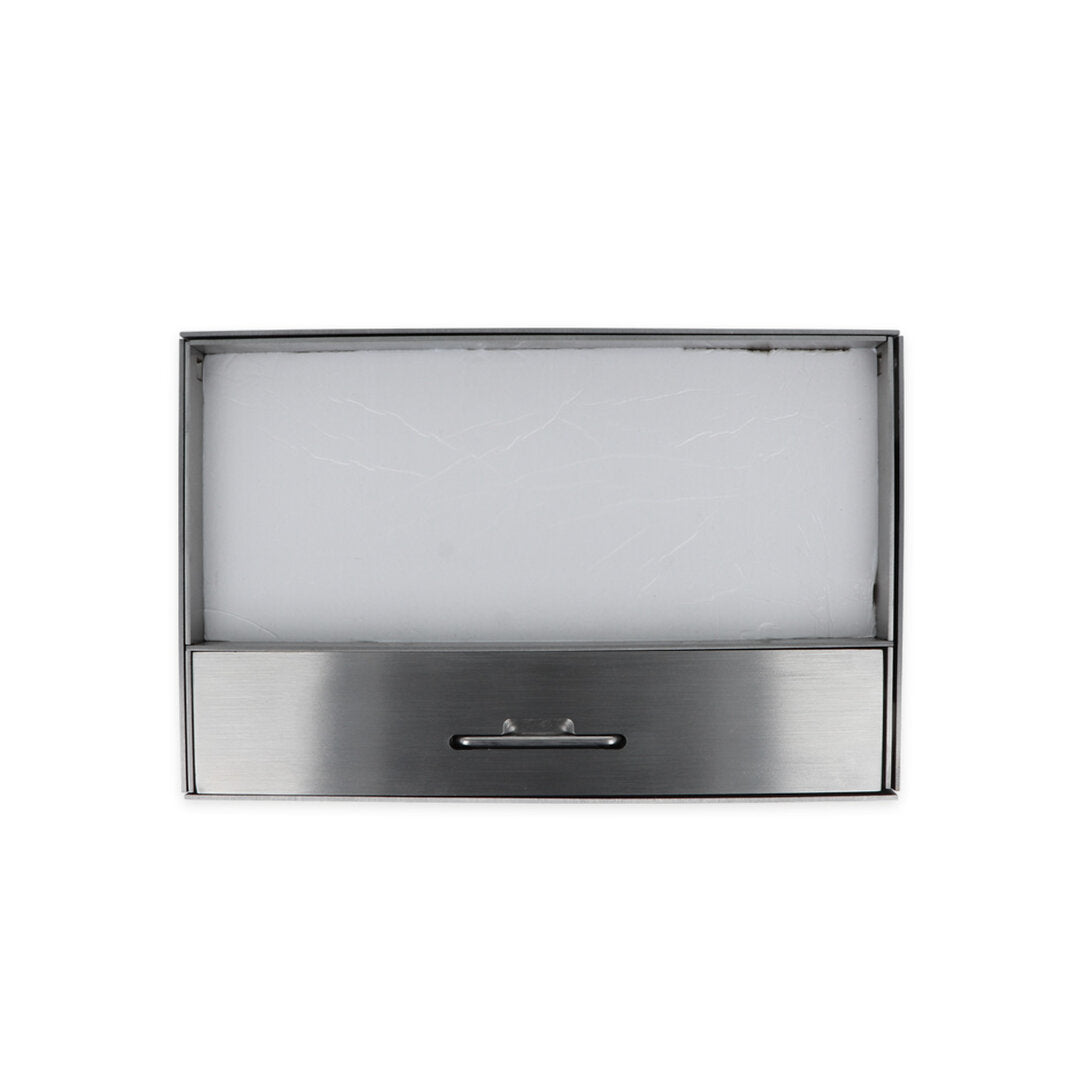

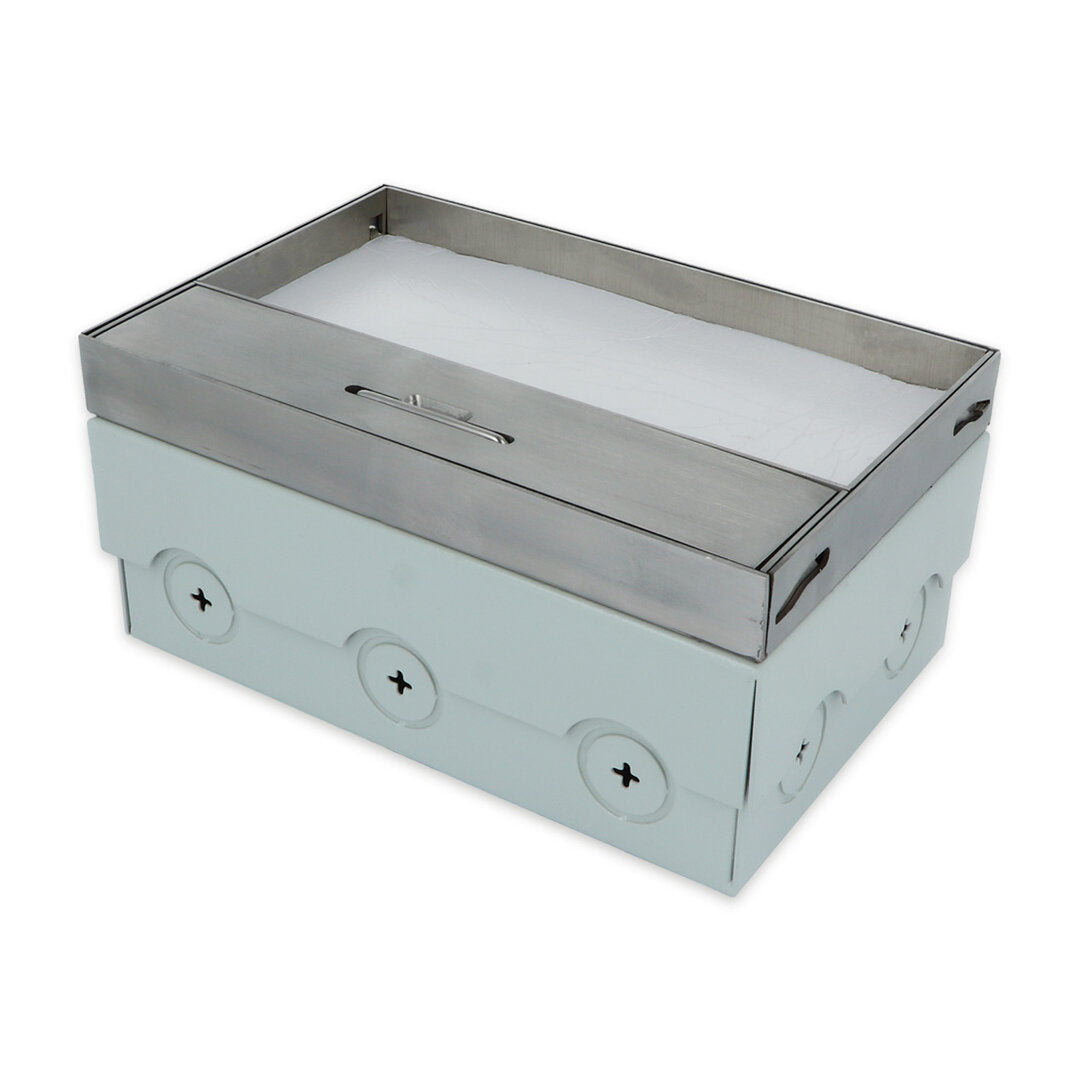

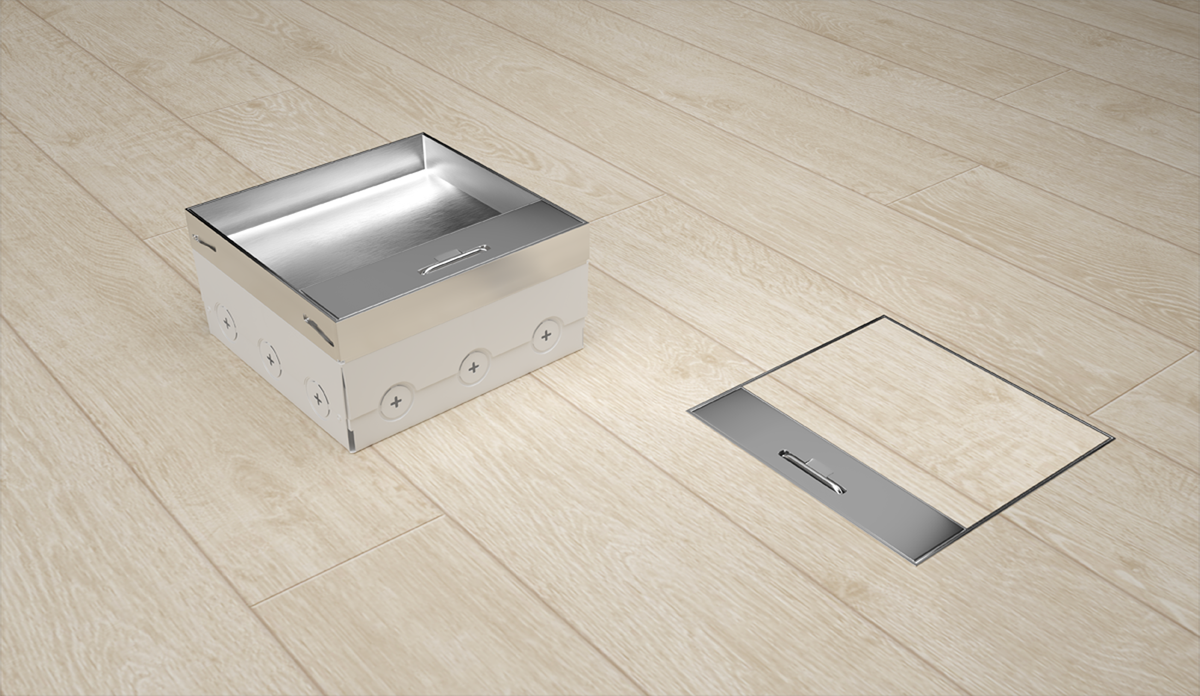

This stainless steel floor-mounted socket box allows a section of the floor covering to be incorporated into the cover. It can be installed in dry-maintained raised floors and screed floors. Livolo modules can be used.

A larger version of the box without modules can be found here.

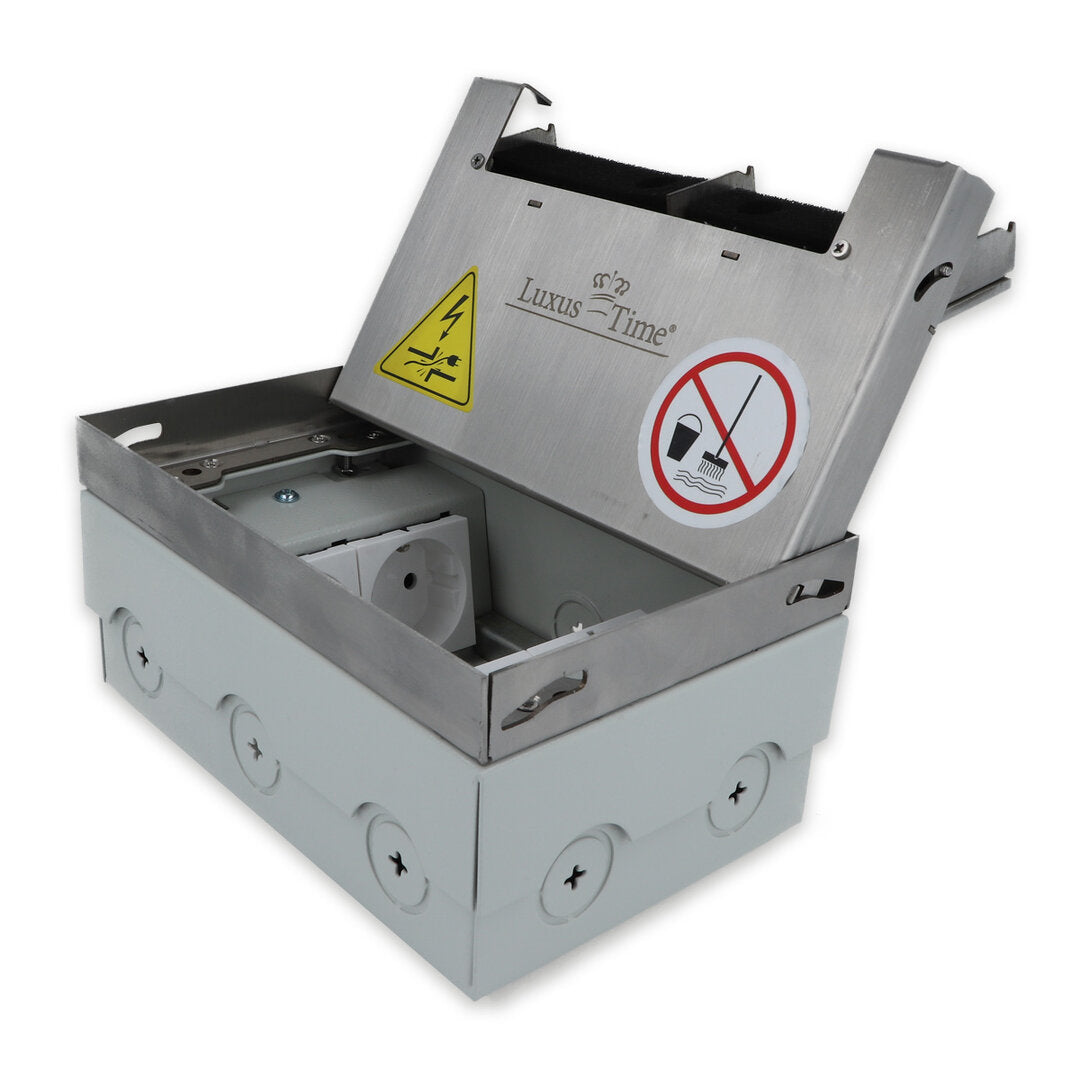

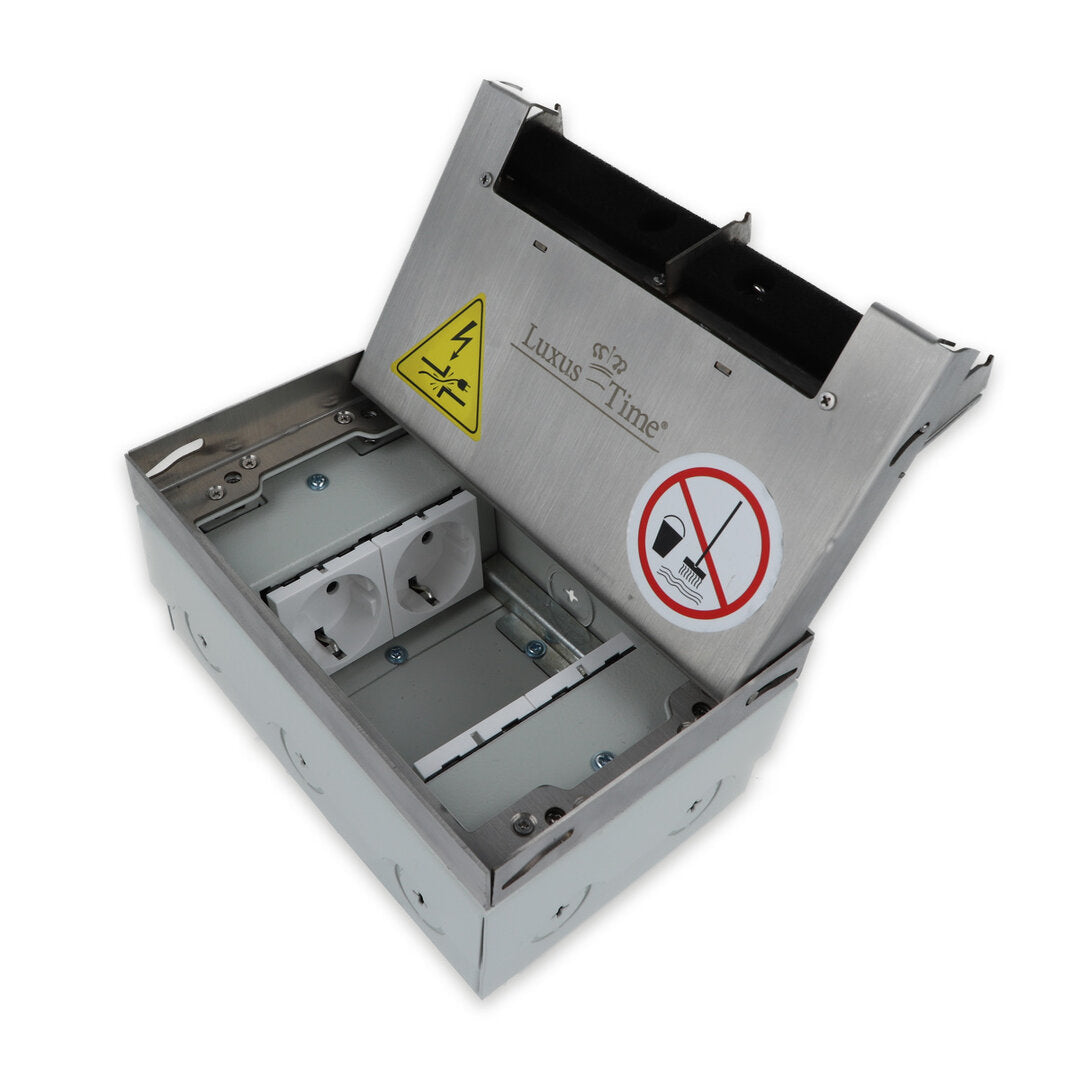

There are various ways to equip this box. The four white sockets supplied can be replaced with other Livolo modules if required.

Ideal for installation in offices, workshops, garages or retail spaces. This high-quality floor-mounted socket box can be used almost anywhere.

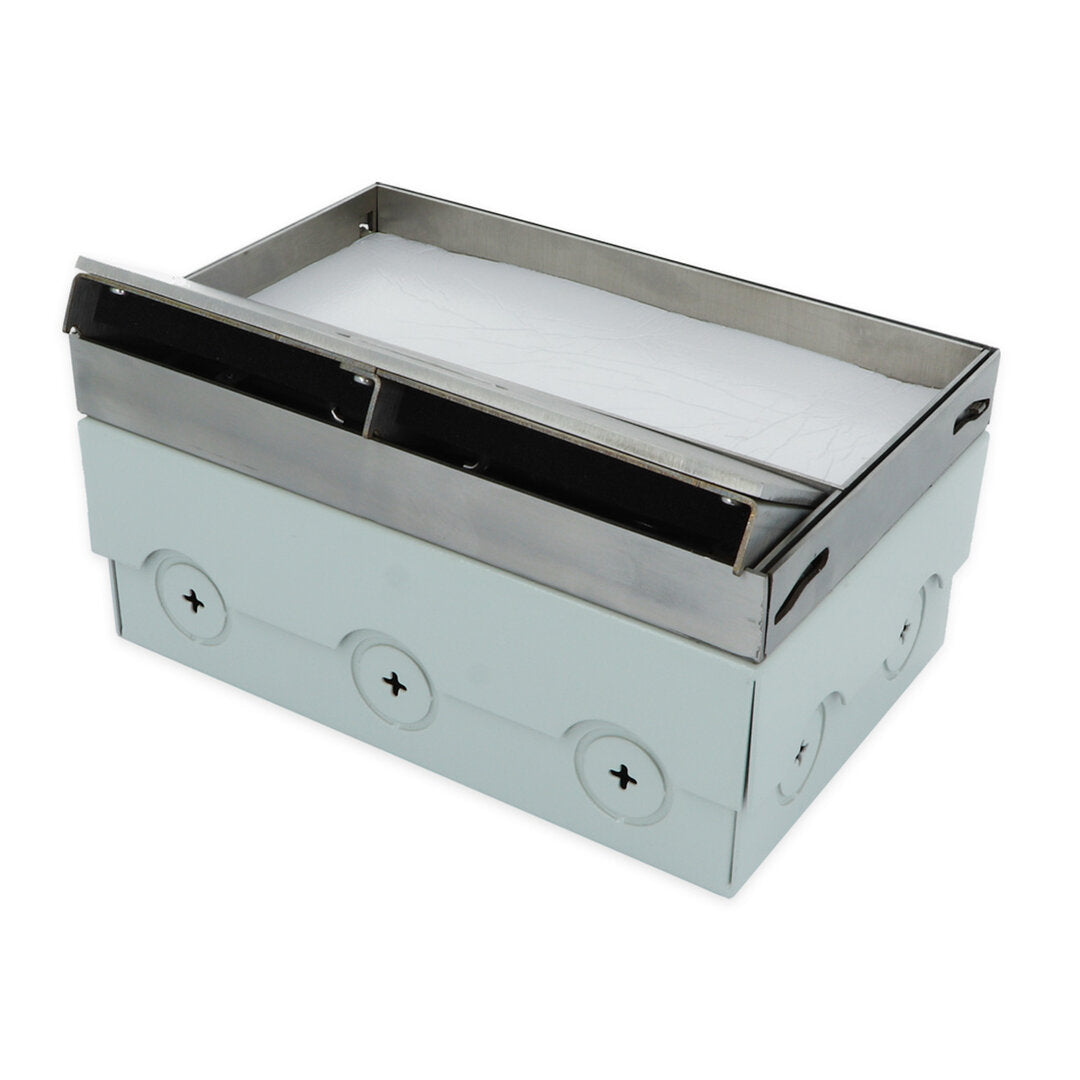

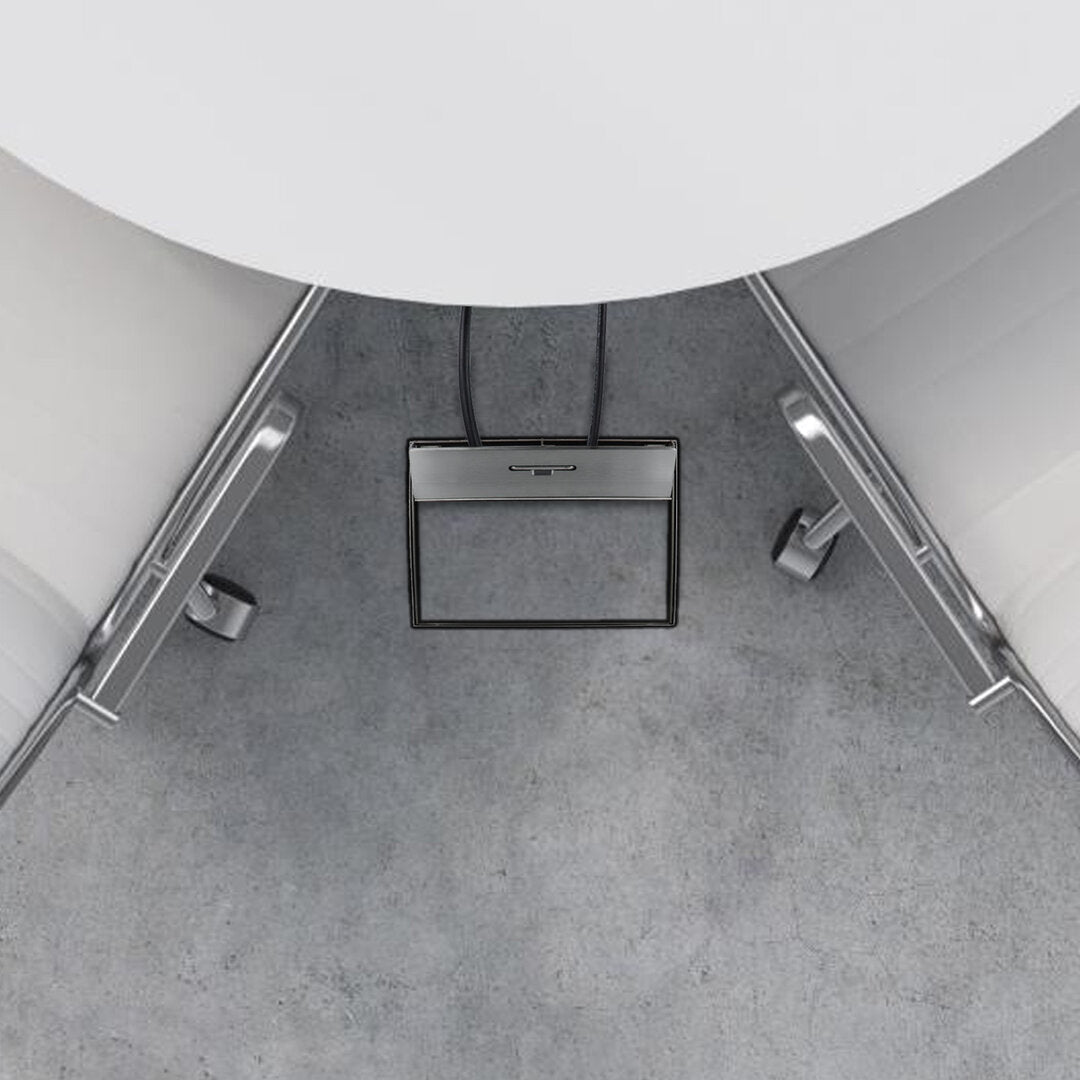

It also offers a high degree of flexibility in everyday use, as the cover can be completely recessed when not in use, making it very discreet. When in use, the cover can usually be closed, and cables can be routed through padded openings in the cover. This also provides dust protection.

For installation in screed, you can find instructions above.

An extension can optionally be used if the box is not high enough for the floor construction.

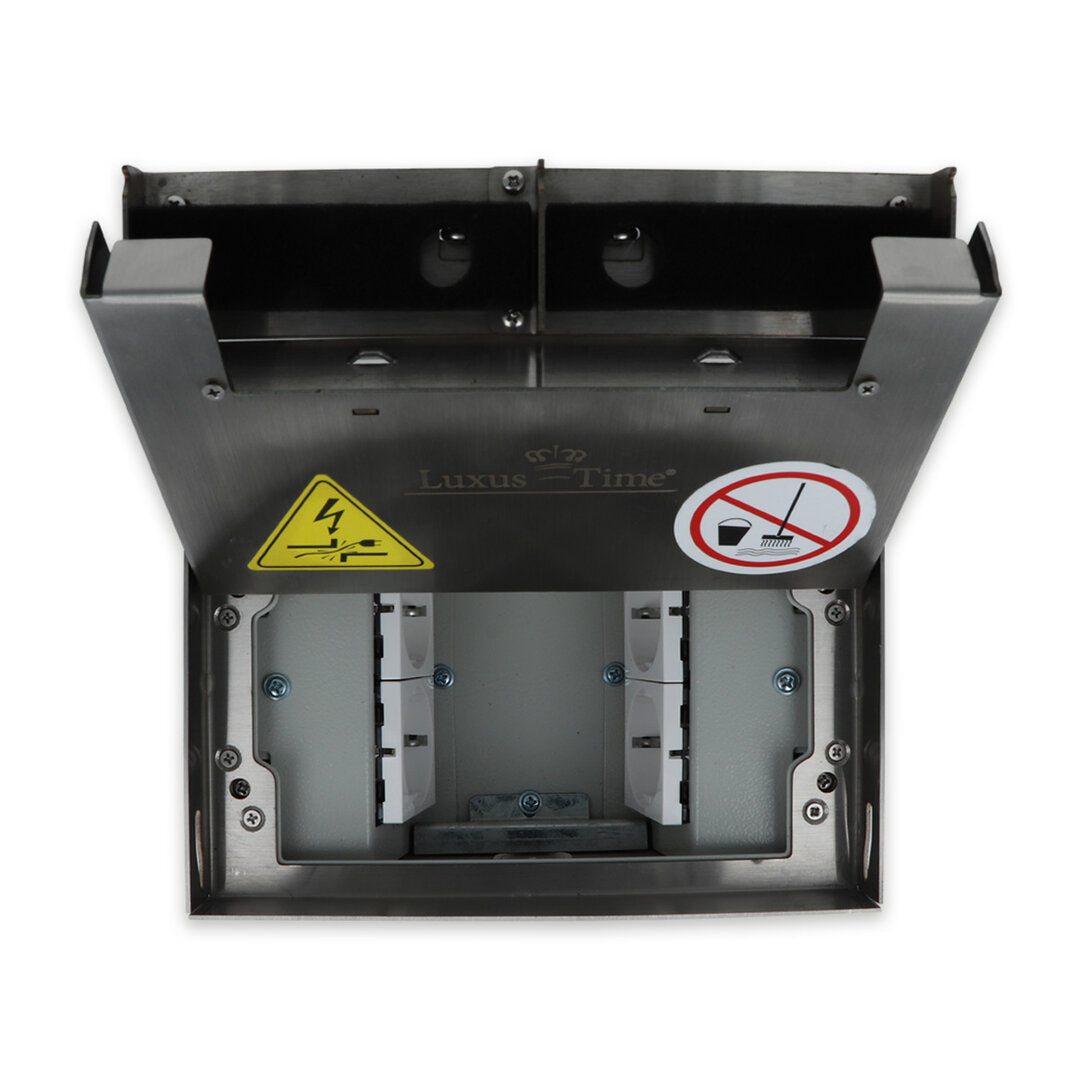

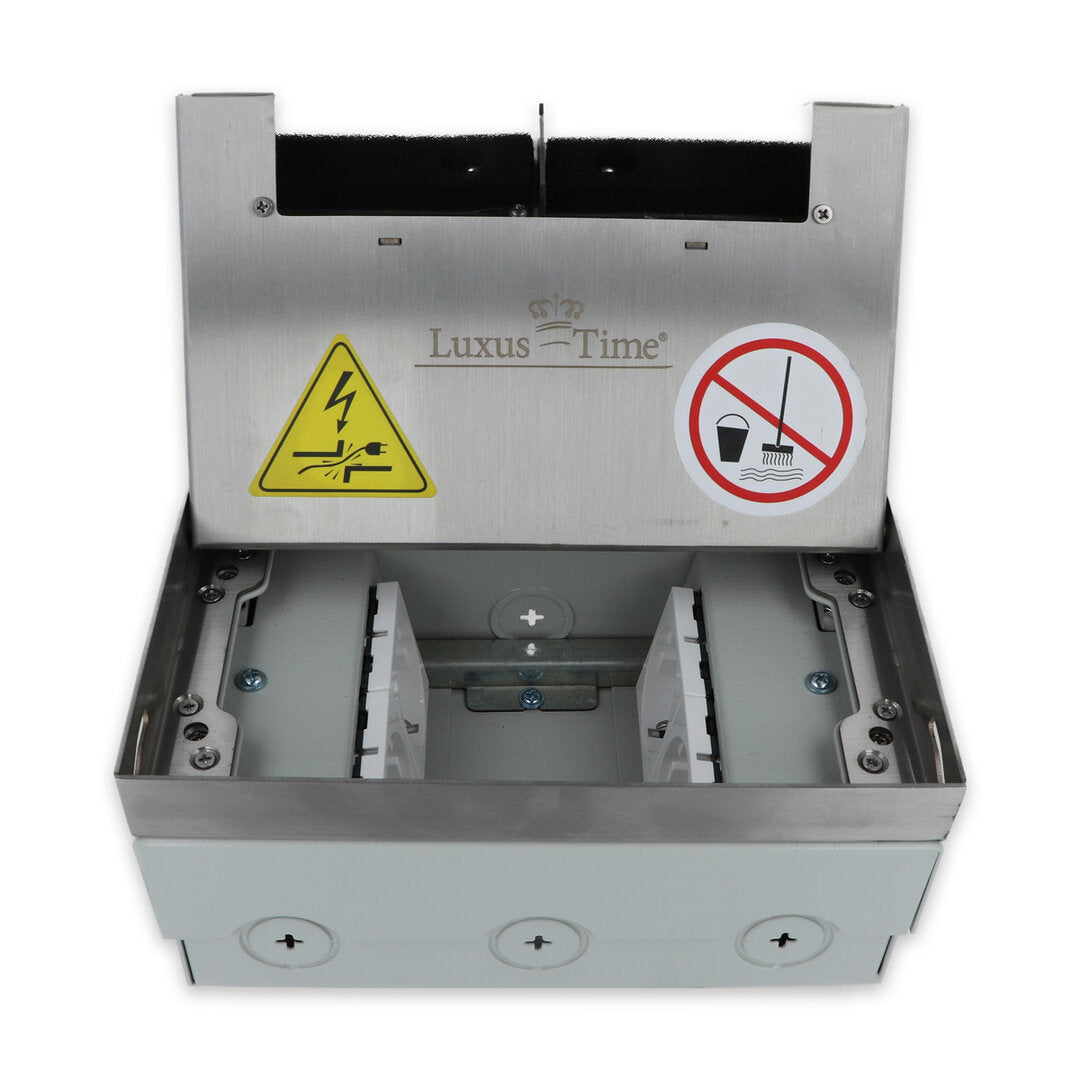

The inserts snap into the unscrewable device cup and are then connected. Finally, the cover is screwed on and the floor covering is bonded in place.

Questions? Call us or send us an email.
We are happy to advise you!

Technical specifications:

• Protection rating: IP20
• Material: Stainless steel
• Cable entries: 10 in total

• Suitable for screed

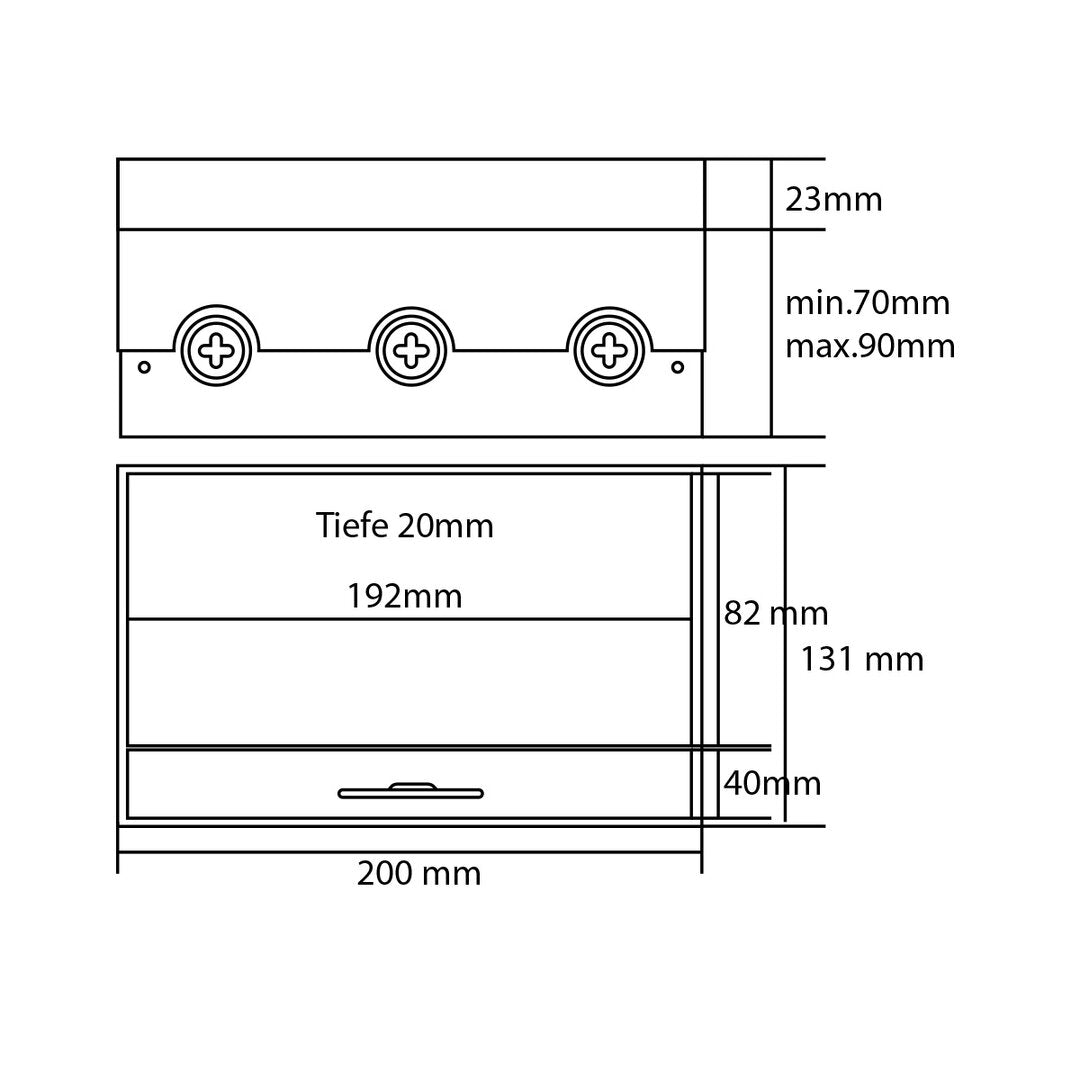

Dimensions:

Tile insert: 190 mm x 82 mm x 20 mm

Cover: 199 x 131 mm

Cable hole dimensions: D-22 & 25 mm (10 entries)

Device cup (recessed): 200 x 131 x 100 mm (unscrewable)

Insert hole dimensions: 45 x 45 mm (4 pieces) or 45 x 22.5 mm (8 pieces)

Scope of delivery:

The following items are included:

• 1x 4-gang floor-mounted socket box
• 4x white socket
