Stainless Steel Floor Box for up to 12 ½ Livolo Modules

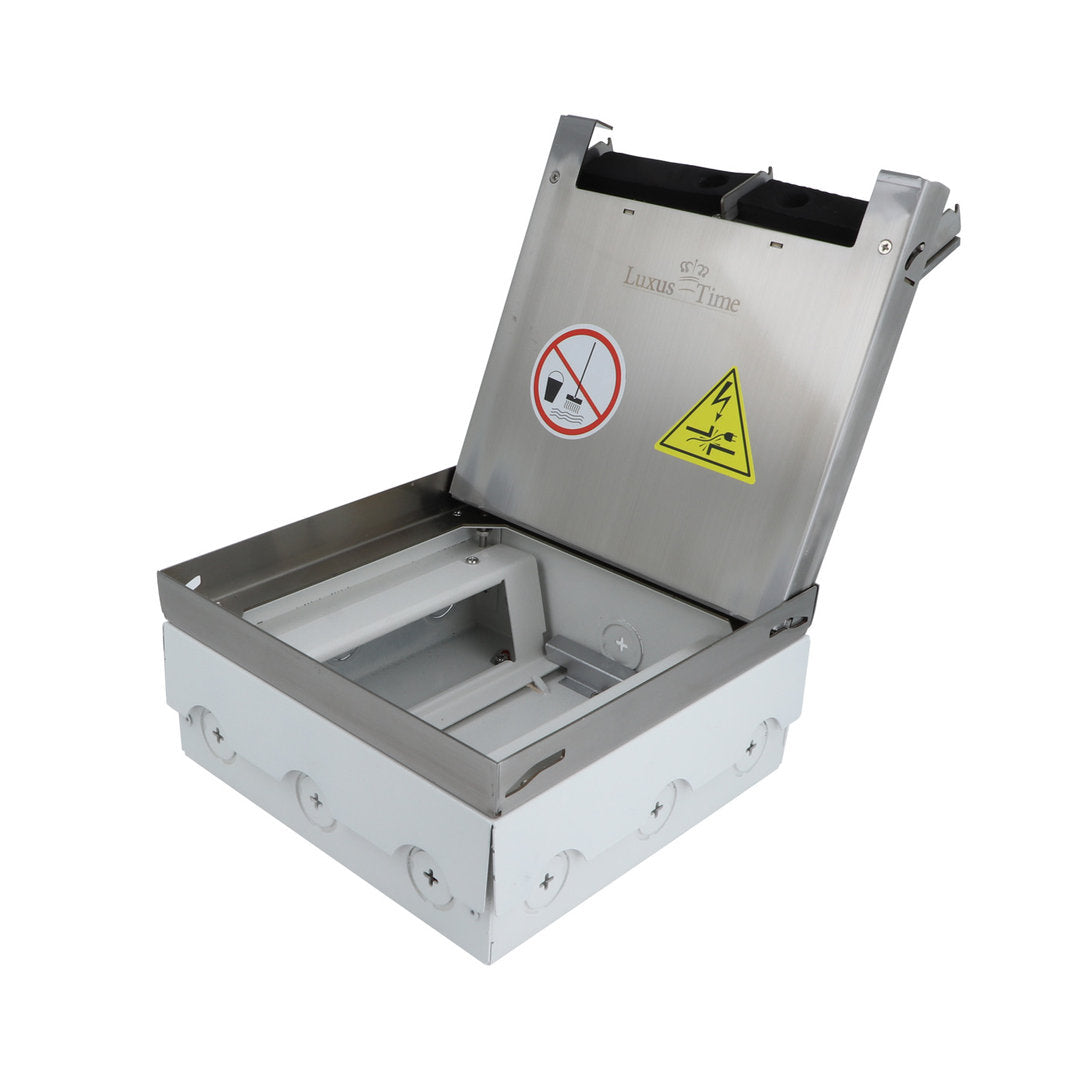

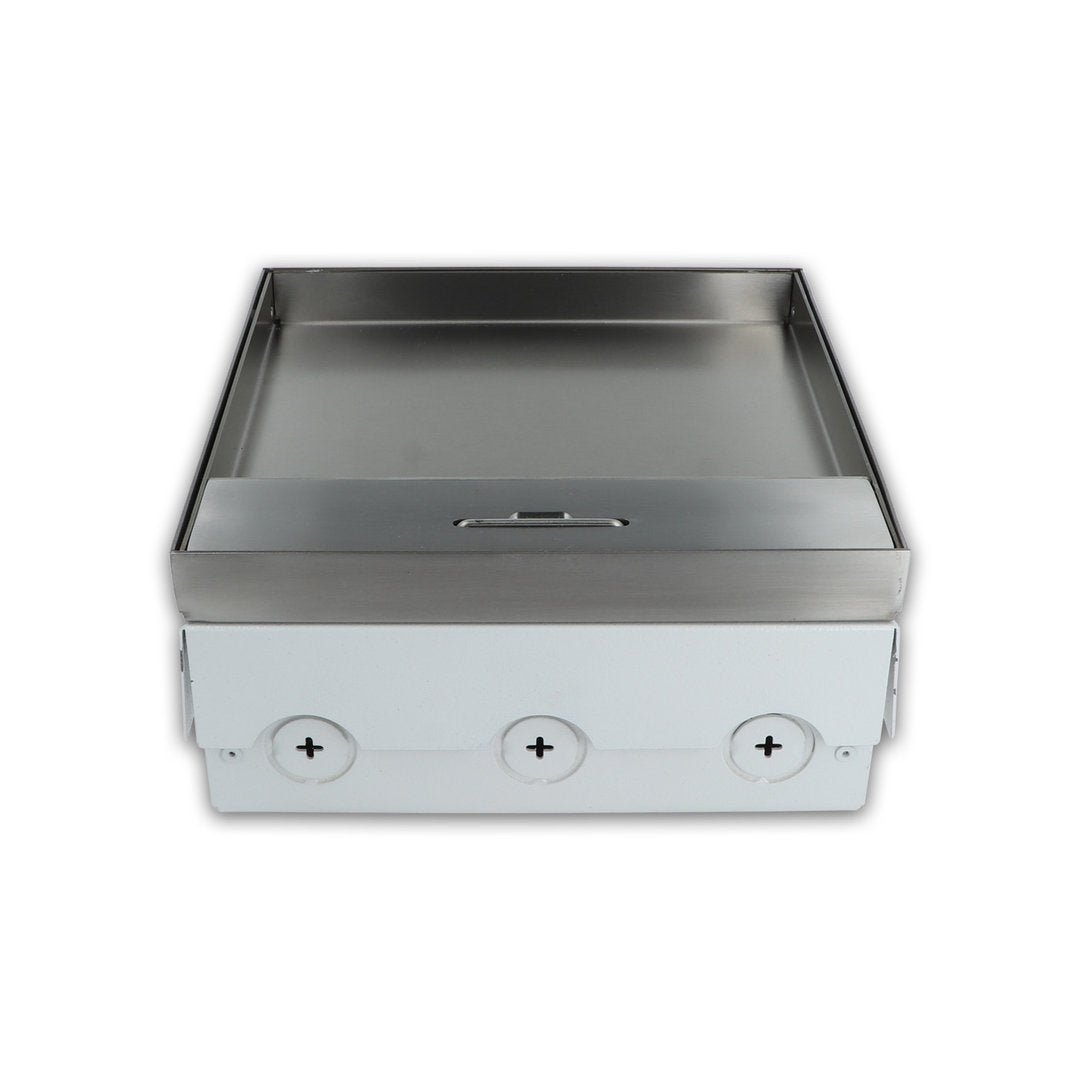

This stainless steel floor box allows a section of the flooring to be incorporated into the cover. It can be installed in dry-maintained raised floors and screed floors. Livolo modules can be used.
There are different ways to equip this box. You can install six full Livolo modules (e.g., six sockets). Or you can use 12 ½ modules (e.g., 6 x ½ network module, 6 x ½ HDMI module).
Here you will find our matching inserts.

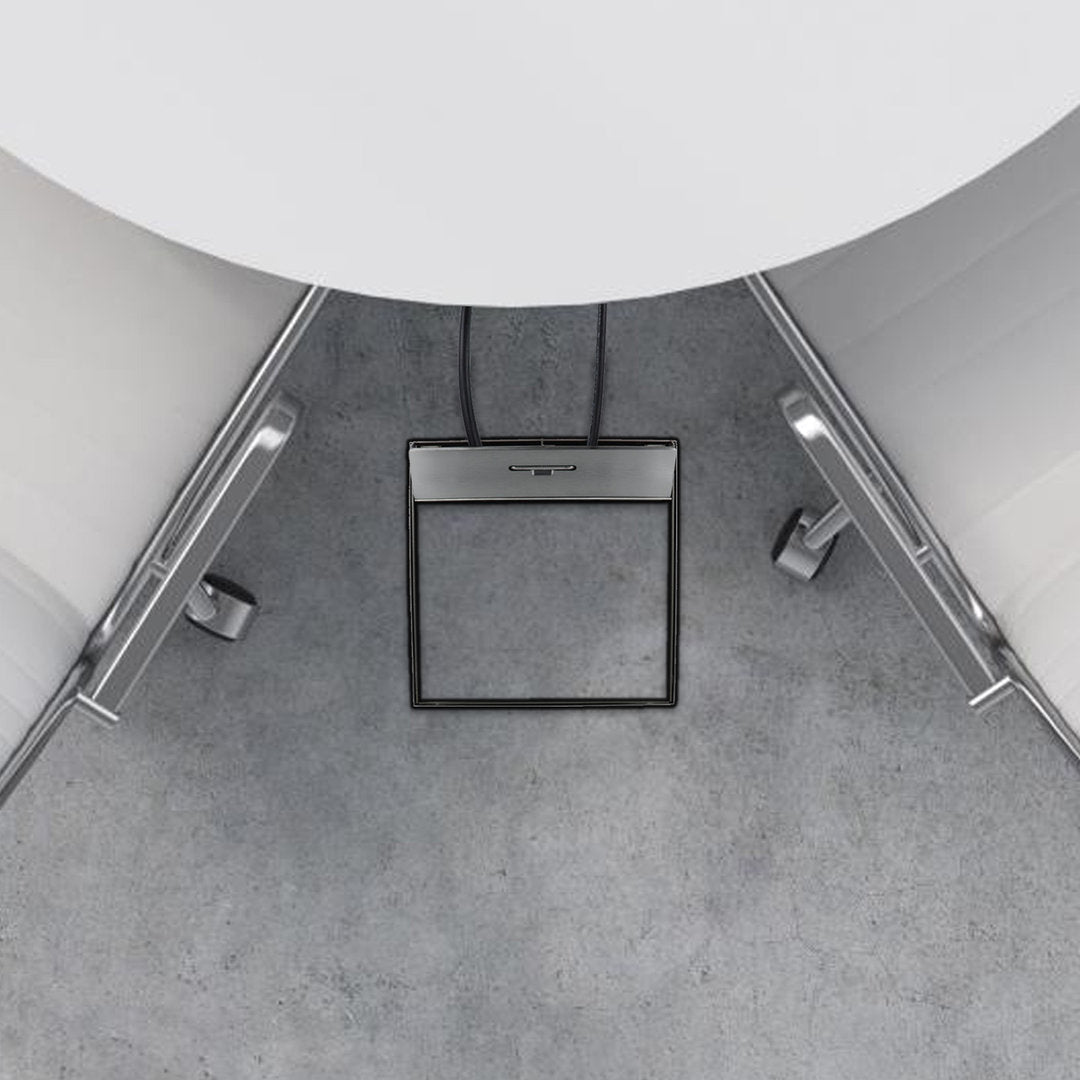

Ideal for installation in offices, workshops, garages, or retail spaces. This high-quality floor box can be used almost anywhere.

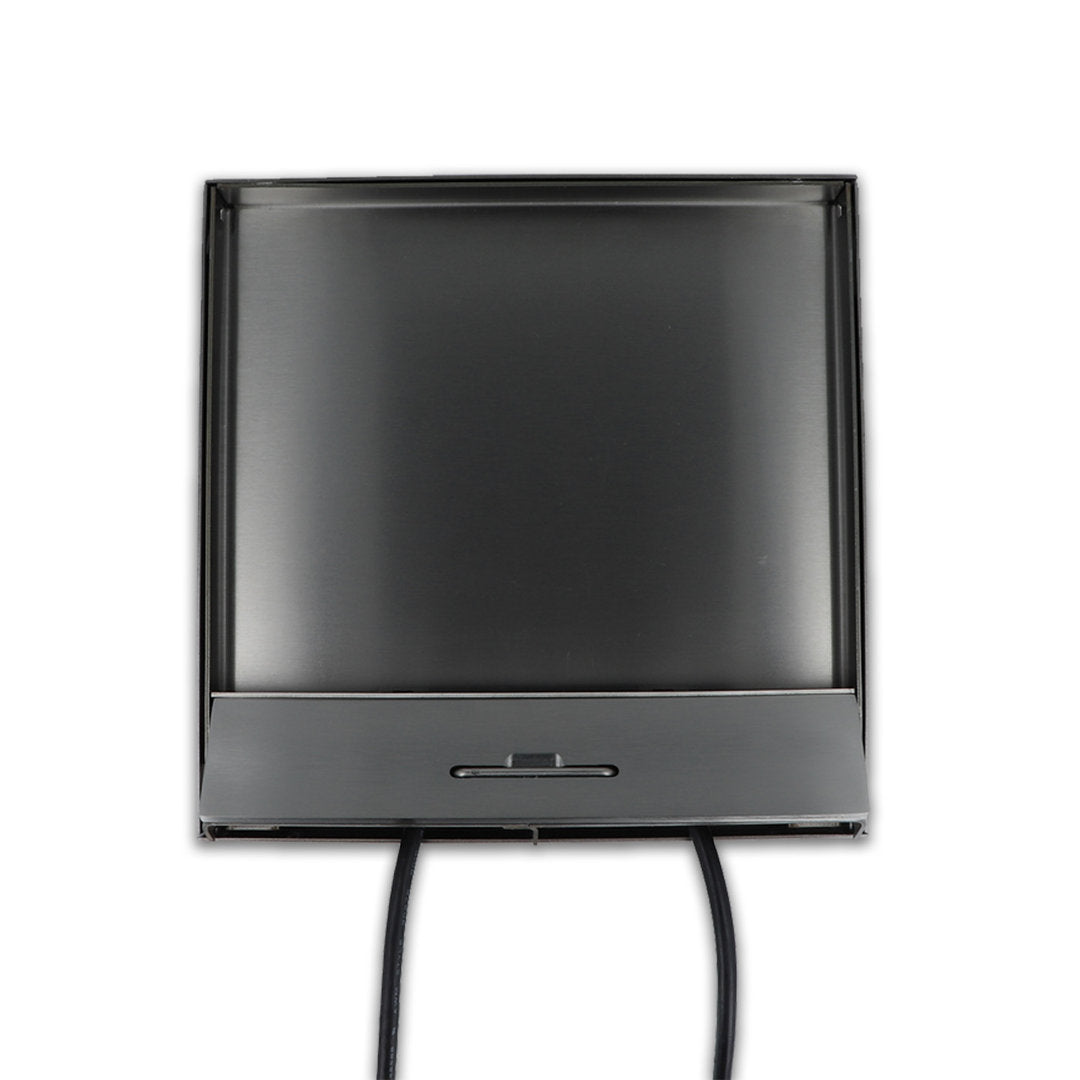

It also offers a high degree of flexibility in everyday use, as the cover can be completely recessed when not in use, making it very discreet. When in use, the cover can usually be closed, and the cables can be routed through padded openings in the cover. These also provide dust protection.
For installation in screed, you will find instructions above.
Optionally, a height extension can be used if the box is not high enough for the floor construction.

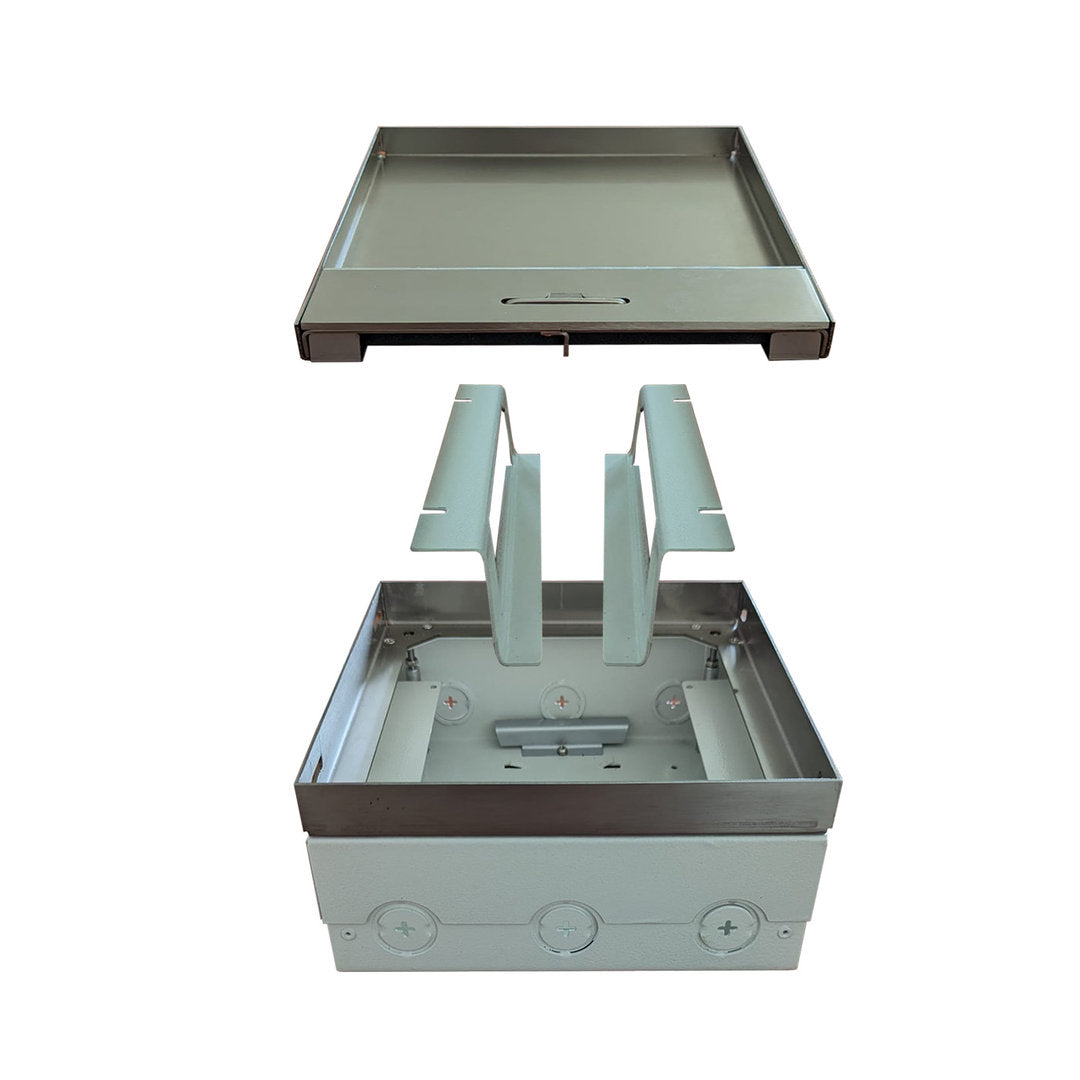

The inserts snap into the unscrewable device cup and are then connected. Finally, the cover is screwed on and the flooring is glued in.
Questions? Call us or send us an email.
We are happy to advise you!
Technical Data:
- Protection rating: IP20
- Material: Stainless steel
- Cable openings: 12 in total (3 per side)
- Suitable for screed
Dimensions:
Tile insert: 190 mm x 150 mm x 20 mm
Cover: 200 x 200 mm
Cable hole dimensions: D-22 & 25 mm
Device cup (recessed): 200 x 200 x 100 mm (removable)
Insert hole dimensions: 45 x 45 mm (6 pieces) or 45 x 22.5 mm (12 pieces)
Scope of Delivery:
The delivery includes:
