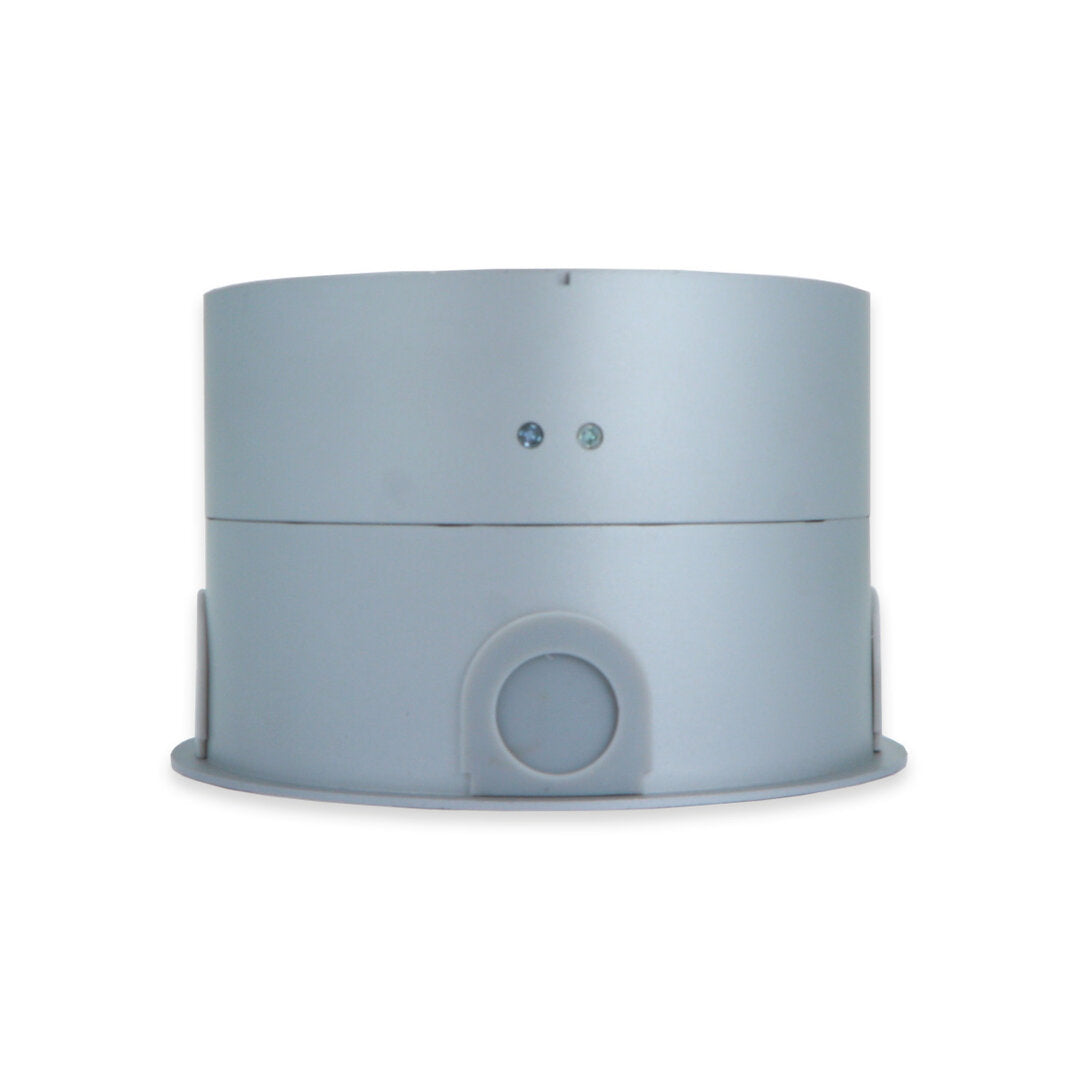

Stainless steel floor box with two standard sockets + one socket with 18W USB-C in white

This steel floor box allows a piece of the flooring to be incorporated into the cover and can be installed in dry-laid floors and screeded floors. Livolo modules can be used.

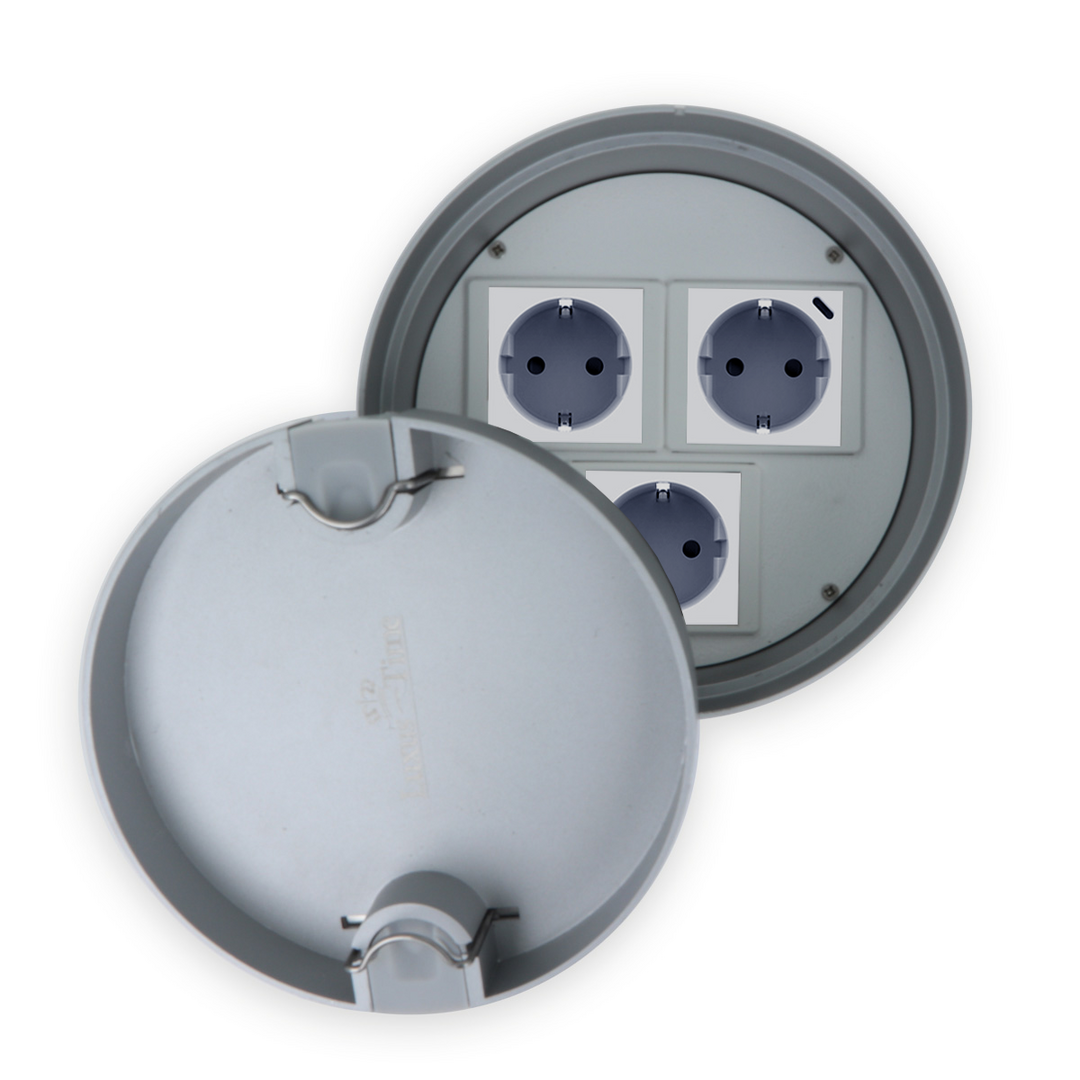

The box is supplied with two standard sockets and one socket with 18W USB-C.

Ideal for installation in offices, workshops, garages or retail spaces.

This high-quality floor box can be used almost anywhere and can also be driven over.

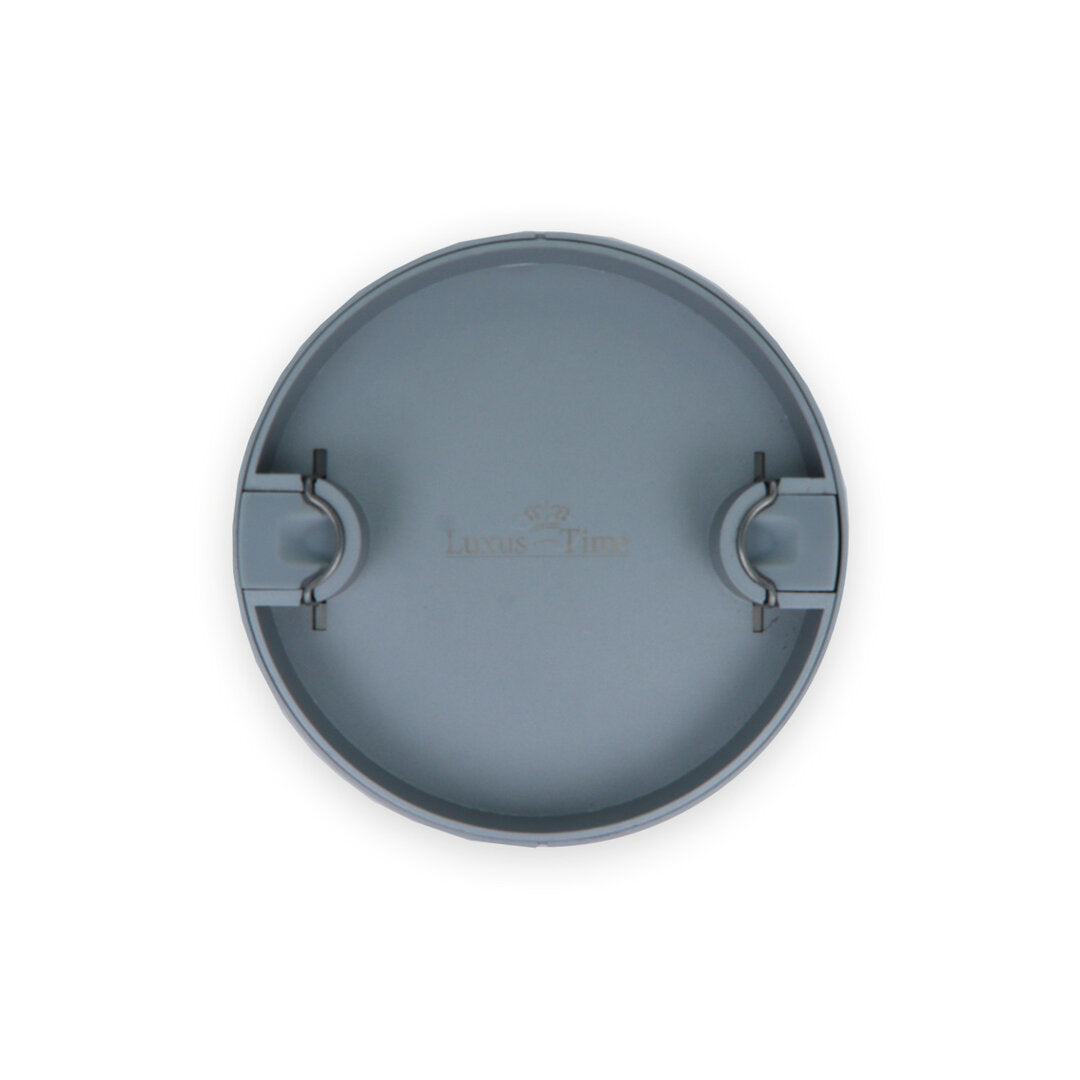

It also offers a high degree of flexibility in everyday use, as the cover can be completely recessed when not in use, making it very discreet.

When in use, the cover can usually be closed and the cables can be routed out through openings in the cover.

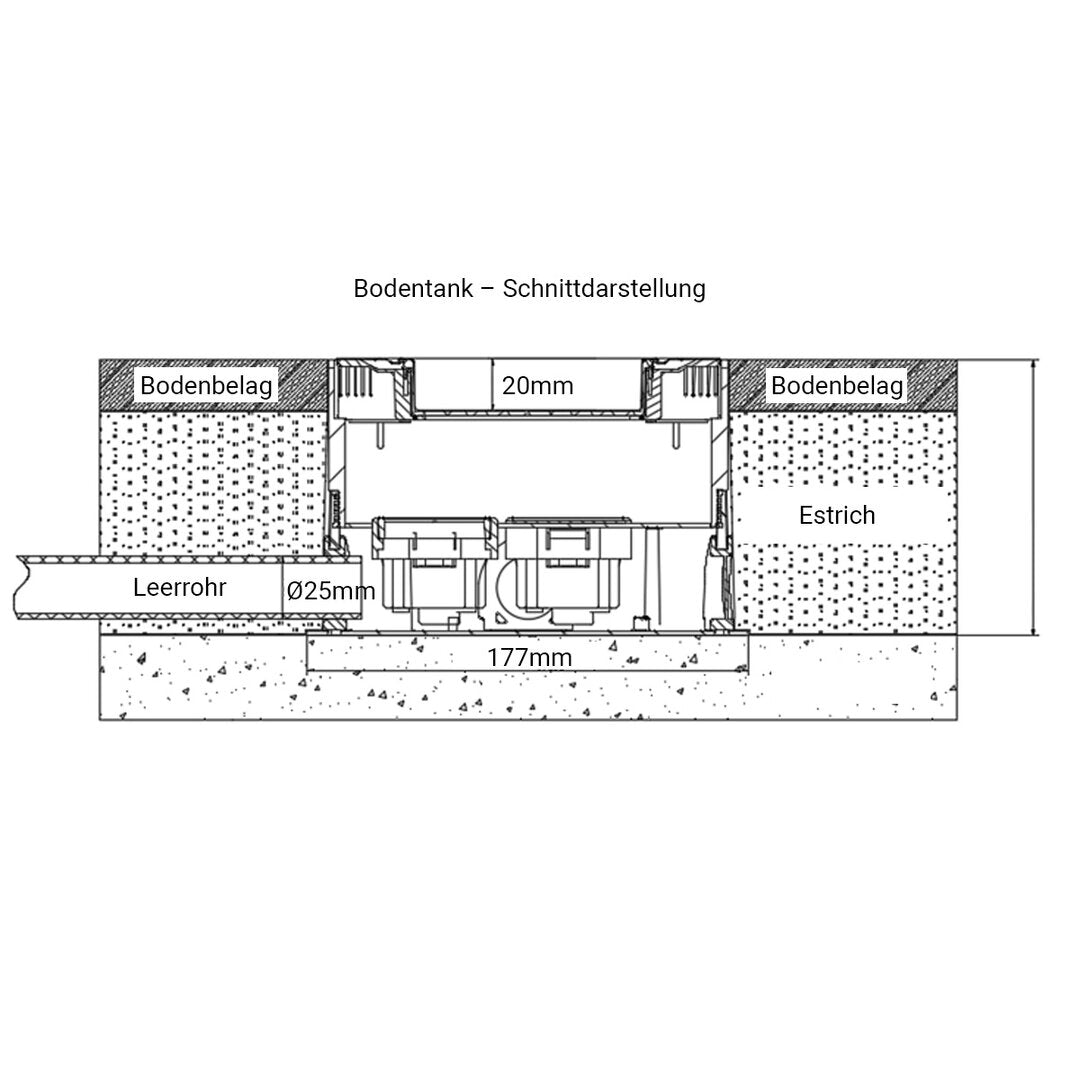

For installation in screed, a so-called protective cover is required. This is not included in the delivery.

Optionally, a height extension can be used if the box is not high enough for the floor construction.

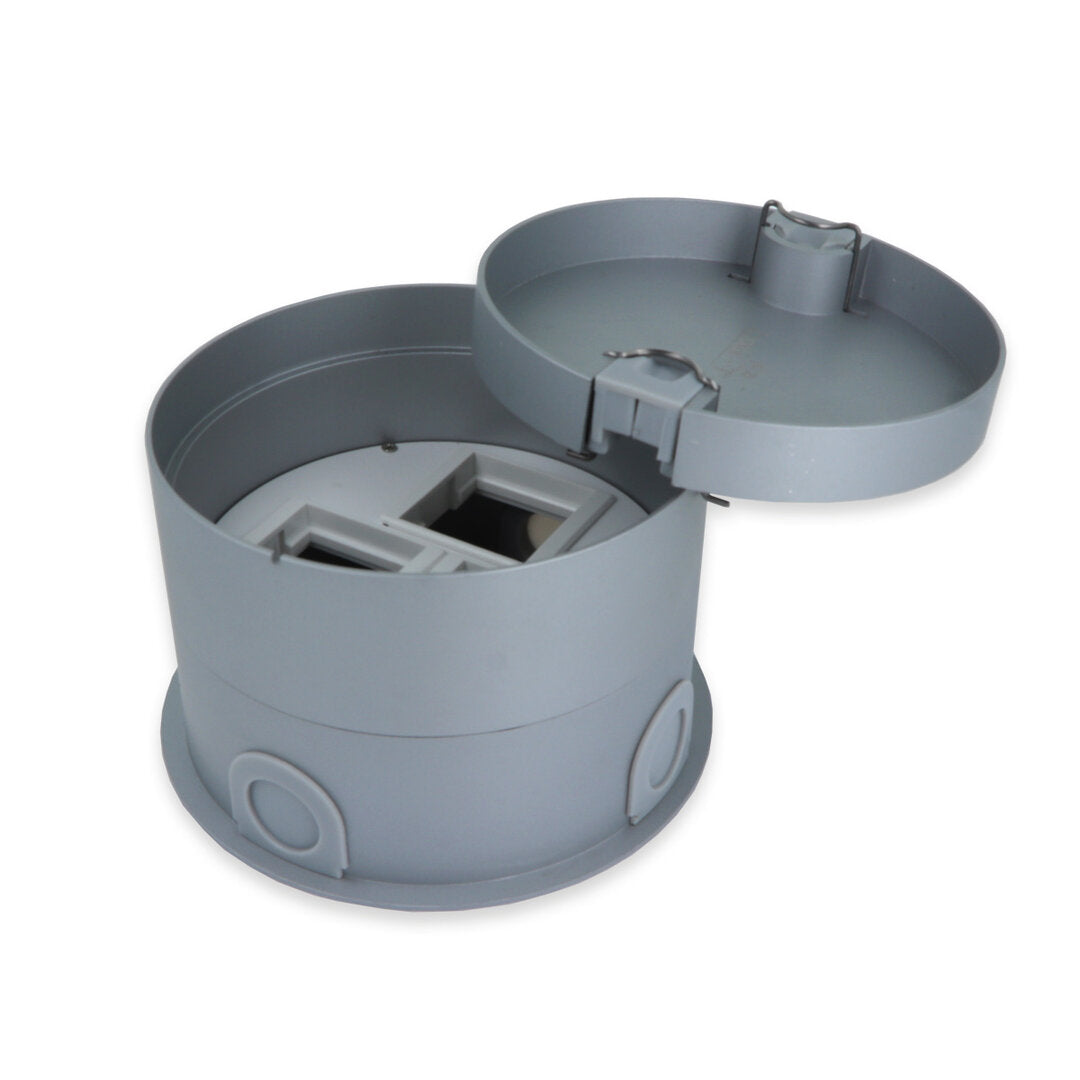

The inserts snap into the unscrewable device cup and are then connected. Finally, the stainless steel cover is screwed on and the flooring piece is inserted into the cover.

Questions? Call us or send us an email.
We are happy to advise you!

Technical data:

• Protection rating: IP20
• Holes: 4
• Suitable for screed
• Number of device cups: 1
• Operating voltage of sockets: 250V, 16A

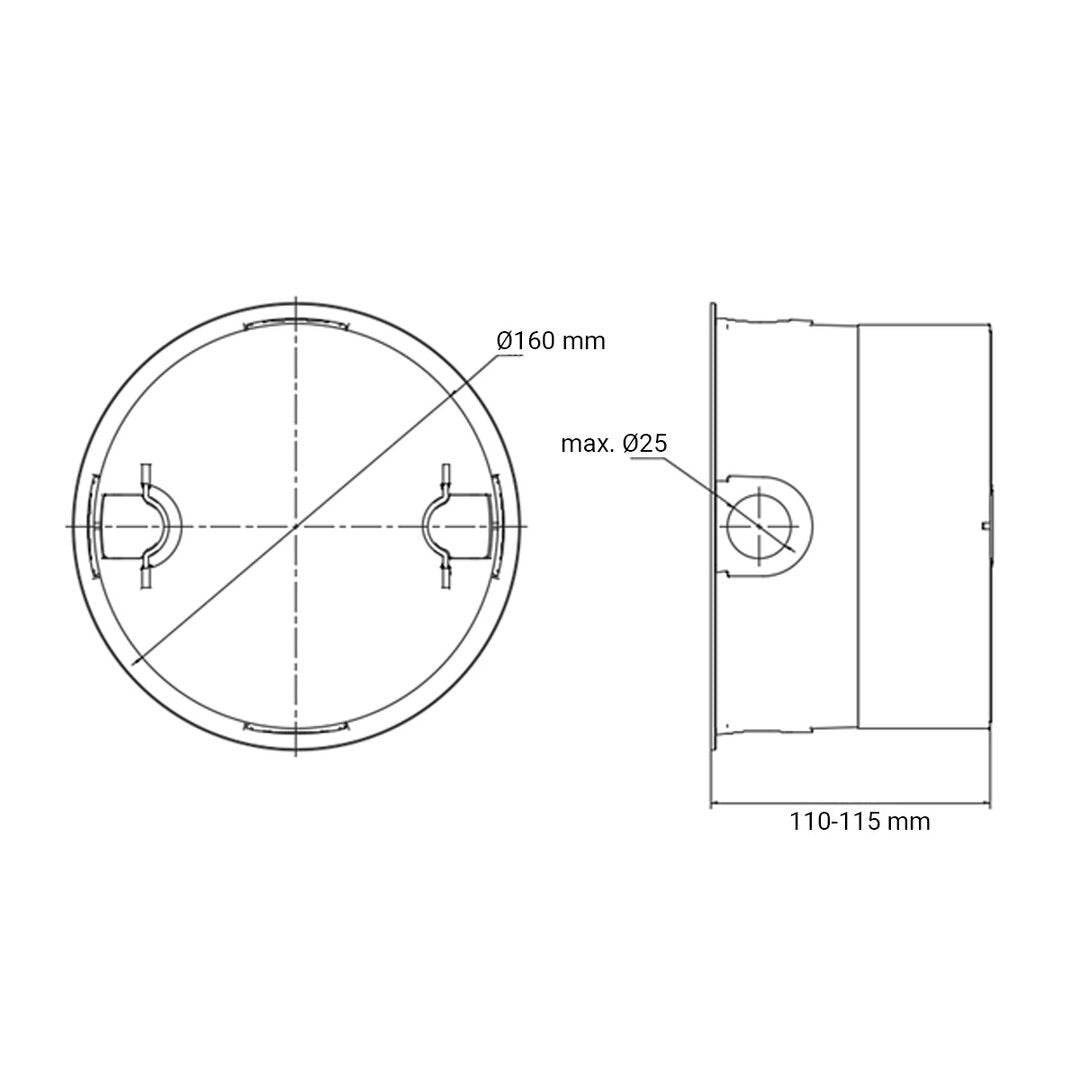

Dimensions:

Box: ø 160 mm

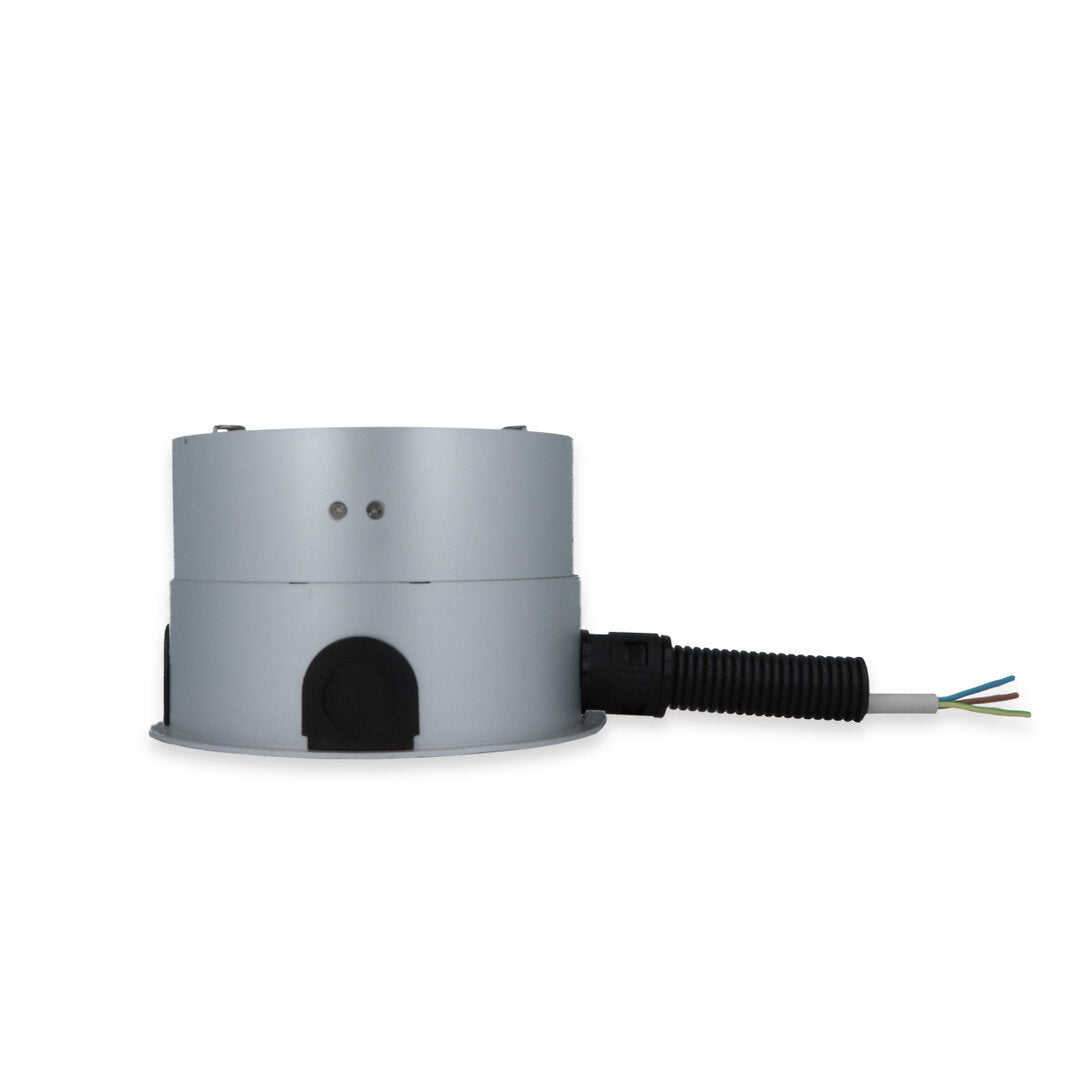

Hole size for cables: ø 5-25 mm

Depth (box): 110-115 mm

Hole size for inserts: 45mm x 45mm

Scope of delivery:

The delivery includes:

• 1x round floor box with 1 compartment
• 2x VDE sockets, white
• 1x socket with 18W USB-C, white
• 4x screws for stainless steel hinged cover
