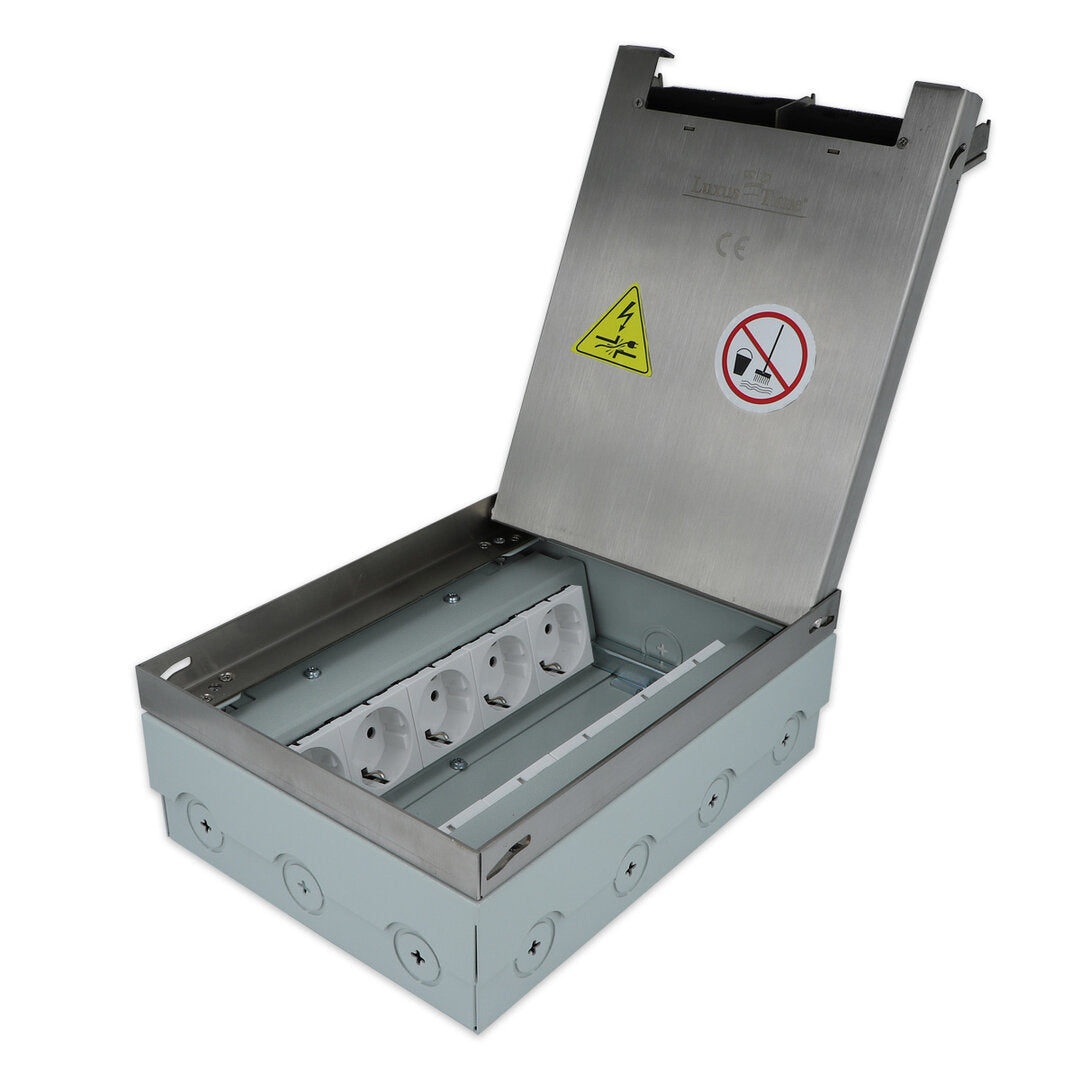

Stainless steel floor box with ten white sockets

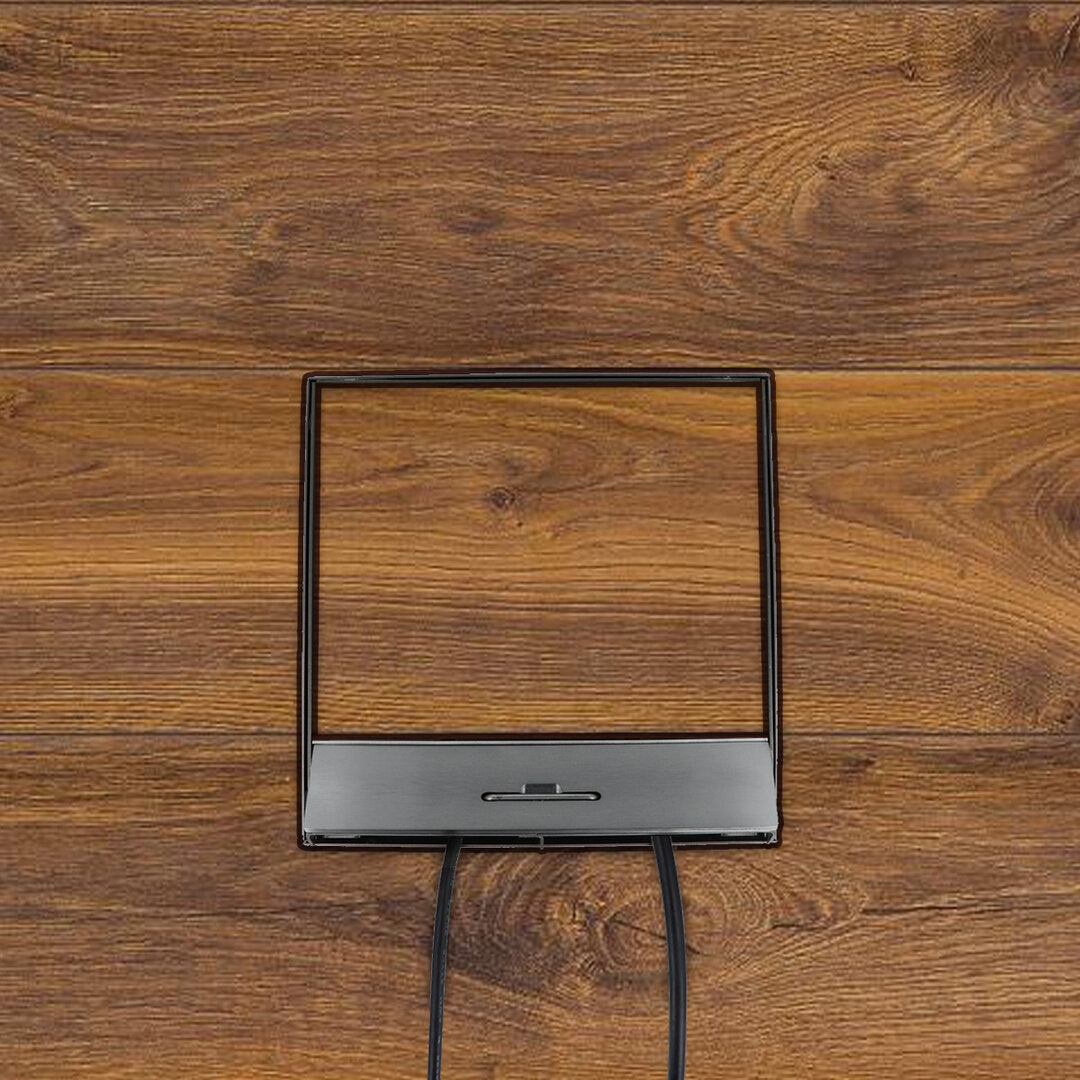

This stainless steel floor box allows a section of the flooring to be incorporated into the cover. It can be installed in dry-maintained raised floors and screed floors. Livolo modules can be used.

The box is supplied with 10 white VDE sockets.

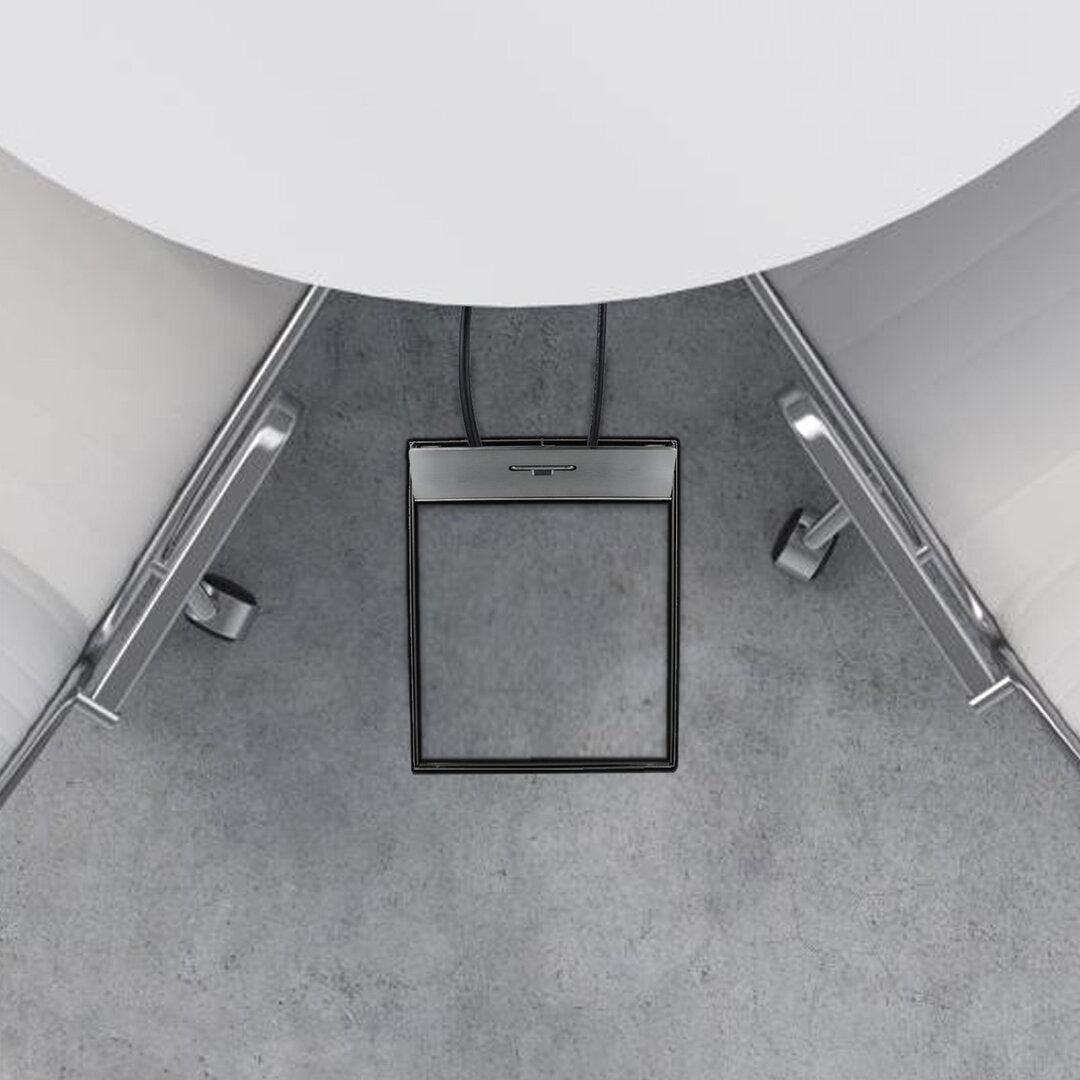

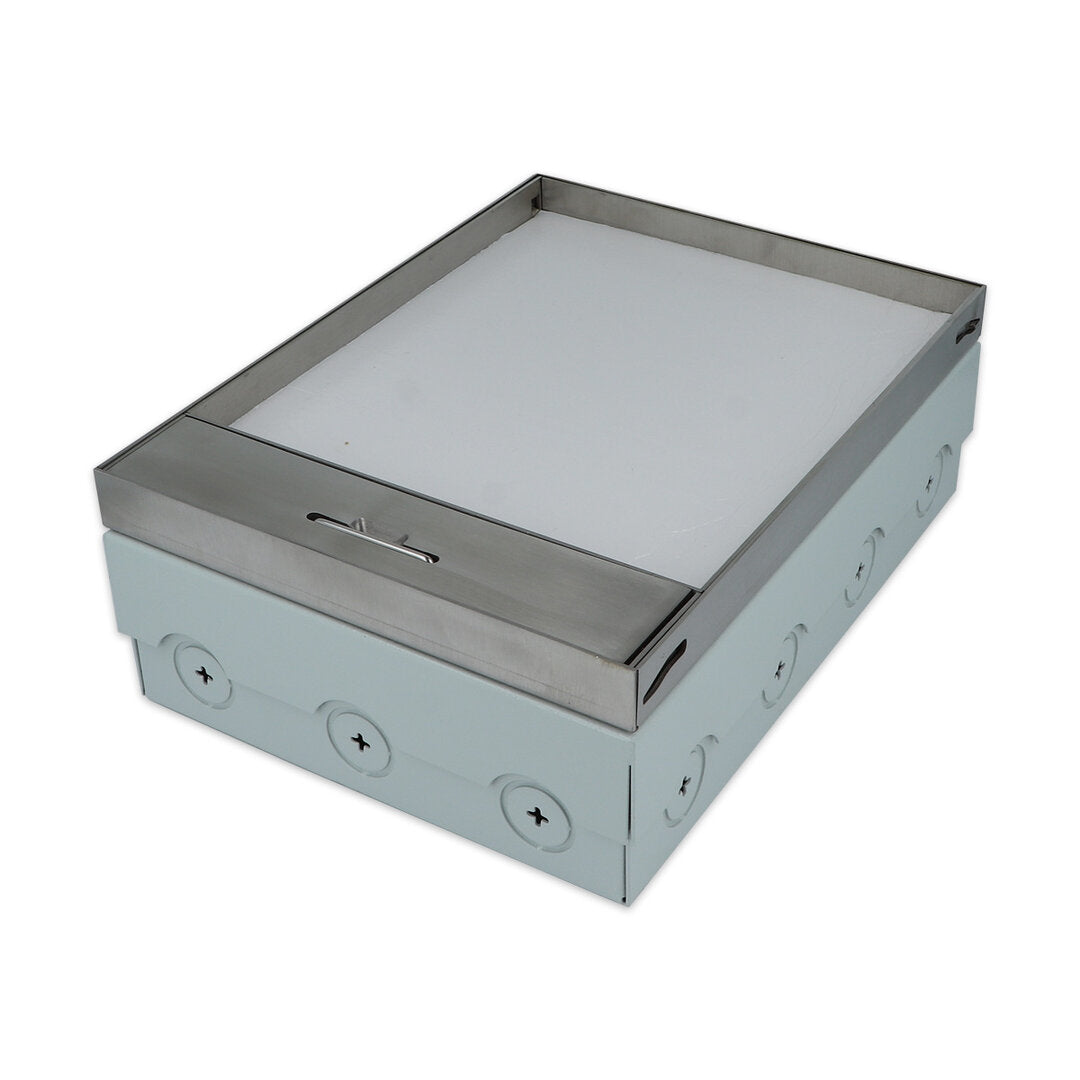

Ideal for installation in offices, workshops, garages, or retail spaces. This high-quality floor box can be used almost anywhere. It also offers a high degree of flexibility in everyday use, as the cover can be completely recessed when not in use, making it very discreet.

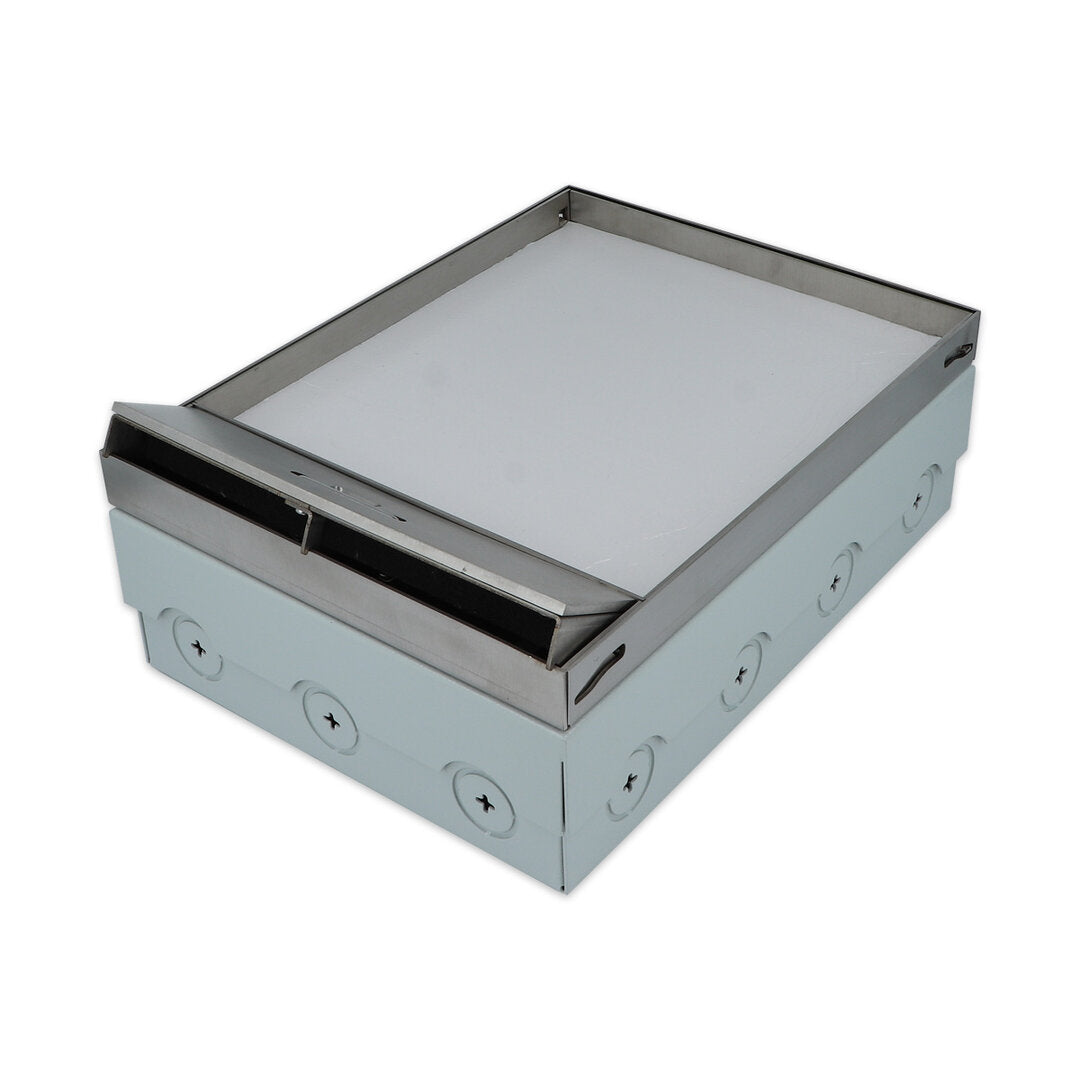

When in use, the cover can be closed in most cases, and the cables can be routed through padded outlets in the cover. This also provides dust protection.

An extension height can optionally be used if the box is not high enough for the floor construction.

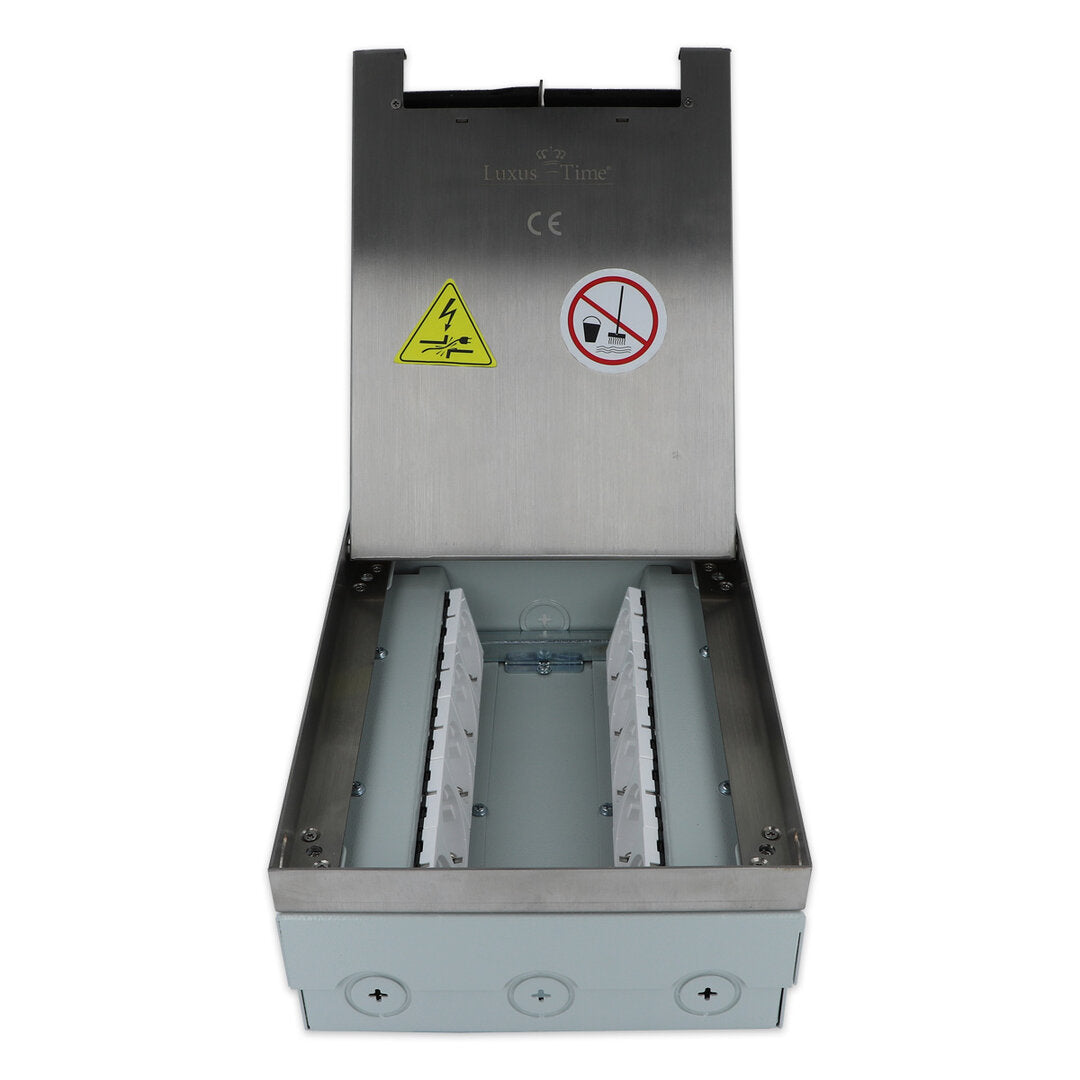

The inserts snap into the unscrewable device cup and are then connected. Finally, the cover is screwed on and the flooring is glued in.

Questions? Call us or send us an email.
We are happy to advise you!

Technical data:

• Protection rating: IP20
• Material: Stainless steel
• Cable entries: 14 in total
• Suitable for screed

Dimensions:

Tile insert: 224 mm x 194 mm x 20 mm

Cover: 270 x 200 mm

Cable hole dimensions: D-22 & 25 mm (14 entries)
Device cup (recessed): 200 x 200 x 100 mm (unscrewable)

Insert hole dimensions: 45 x 45 mm (10 pieces) or 45 x 22.5 mm (20 pieces)

Scope of delivery:

The following are included:

• 1x 10-gang floor box
• 10x VDE white socket
