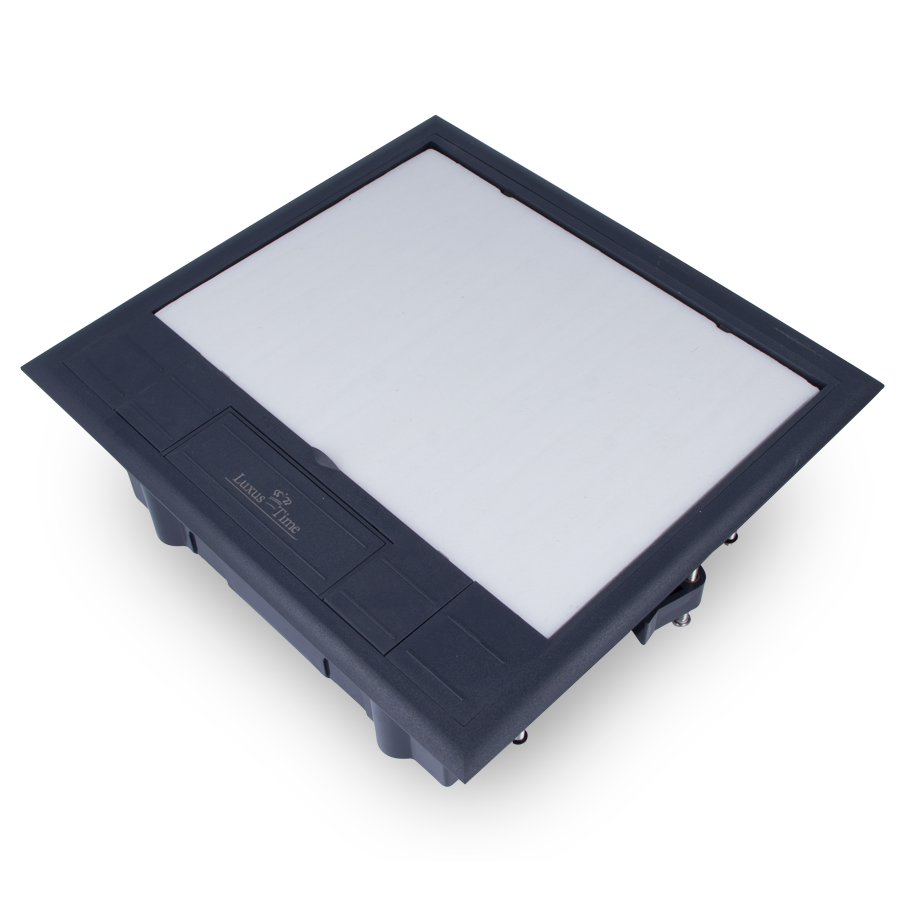

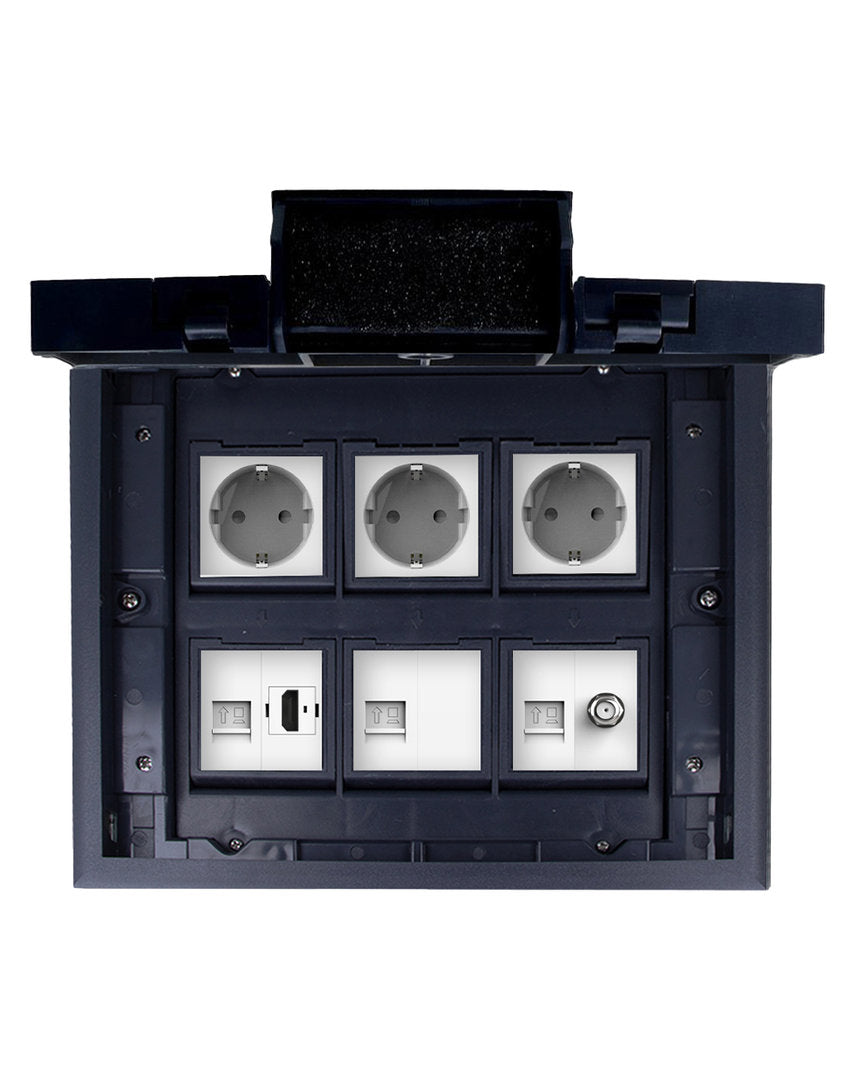

Plastic floor box with three sockets, one HDMI module, three network modules and one SAT module, as well as a blanking plate

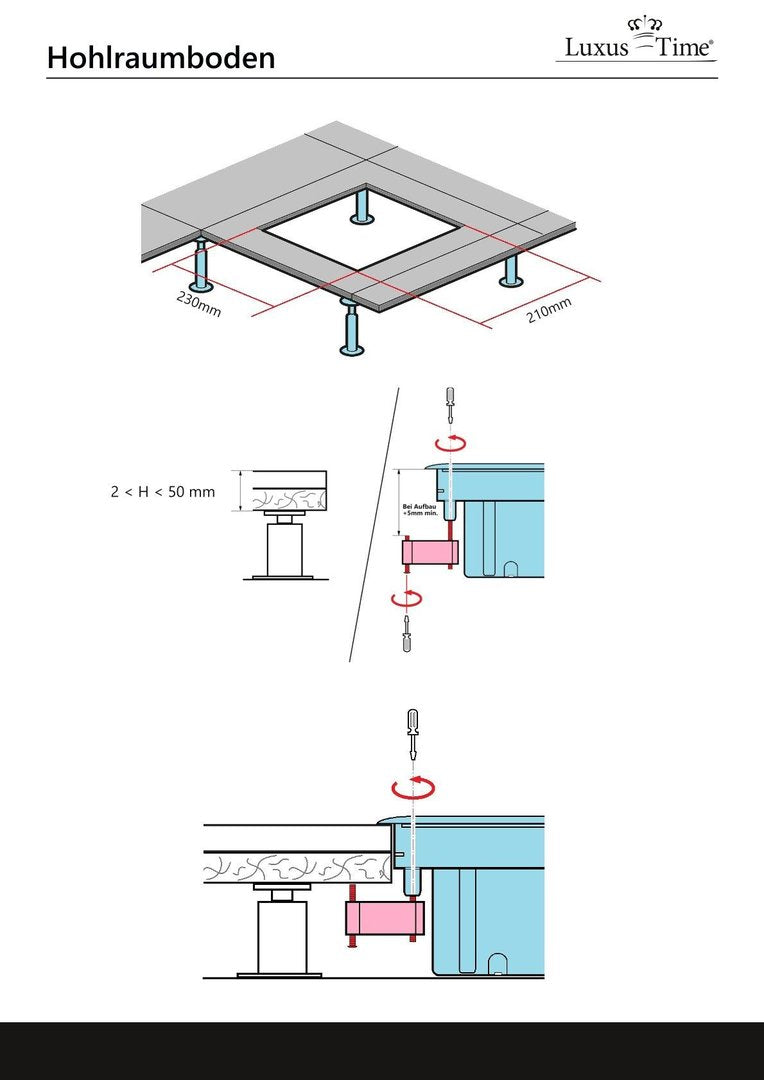

This plastic floor box allows a section of the floor covering to be incorporated into the cover. It can be installed in dry-maintained raised floors and screed floors .

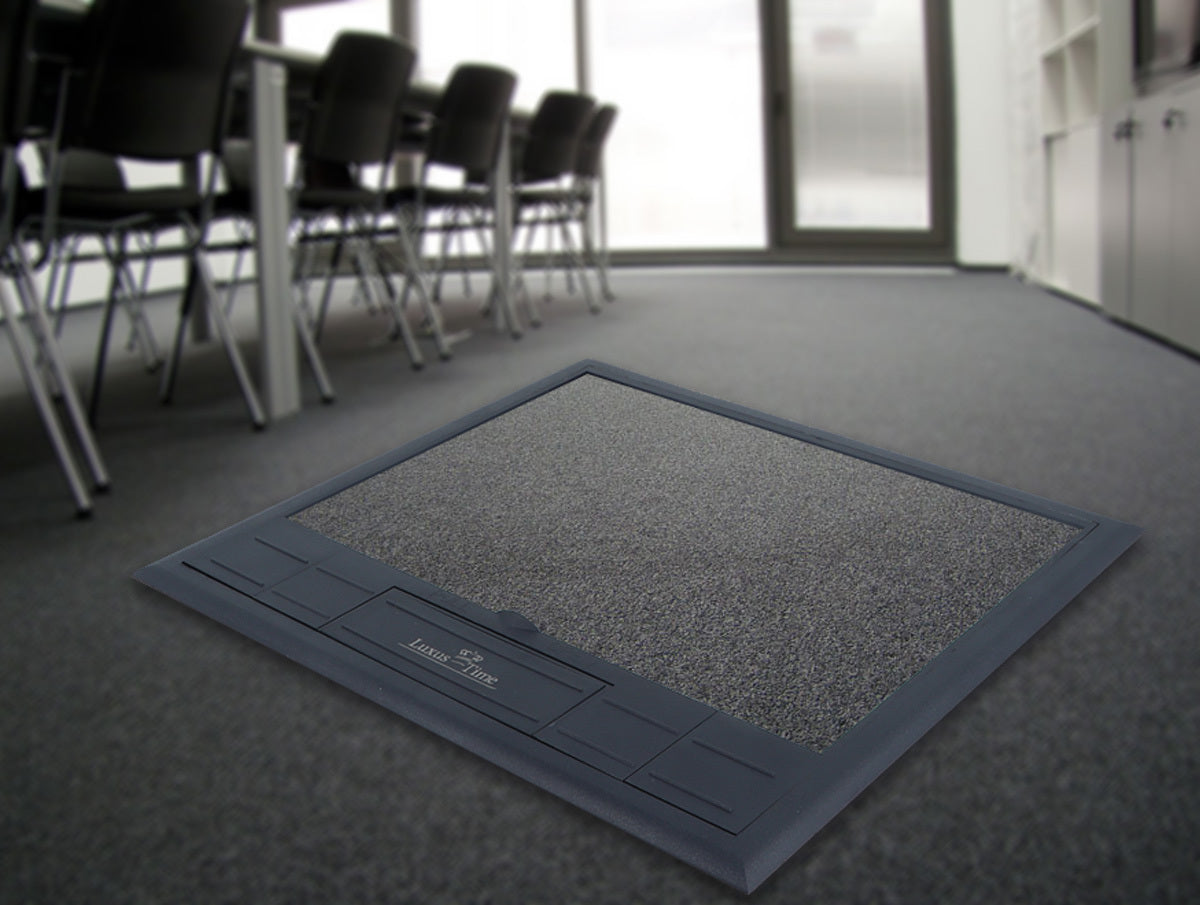

Ideal for installation in offices, workshops, garages or retail spaces. This high-quality floor box can be used almost anywhere.

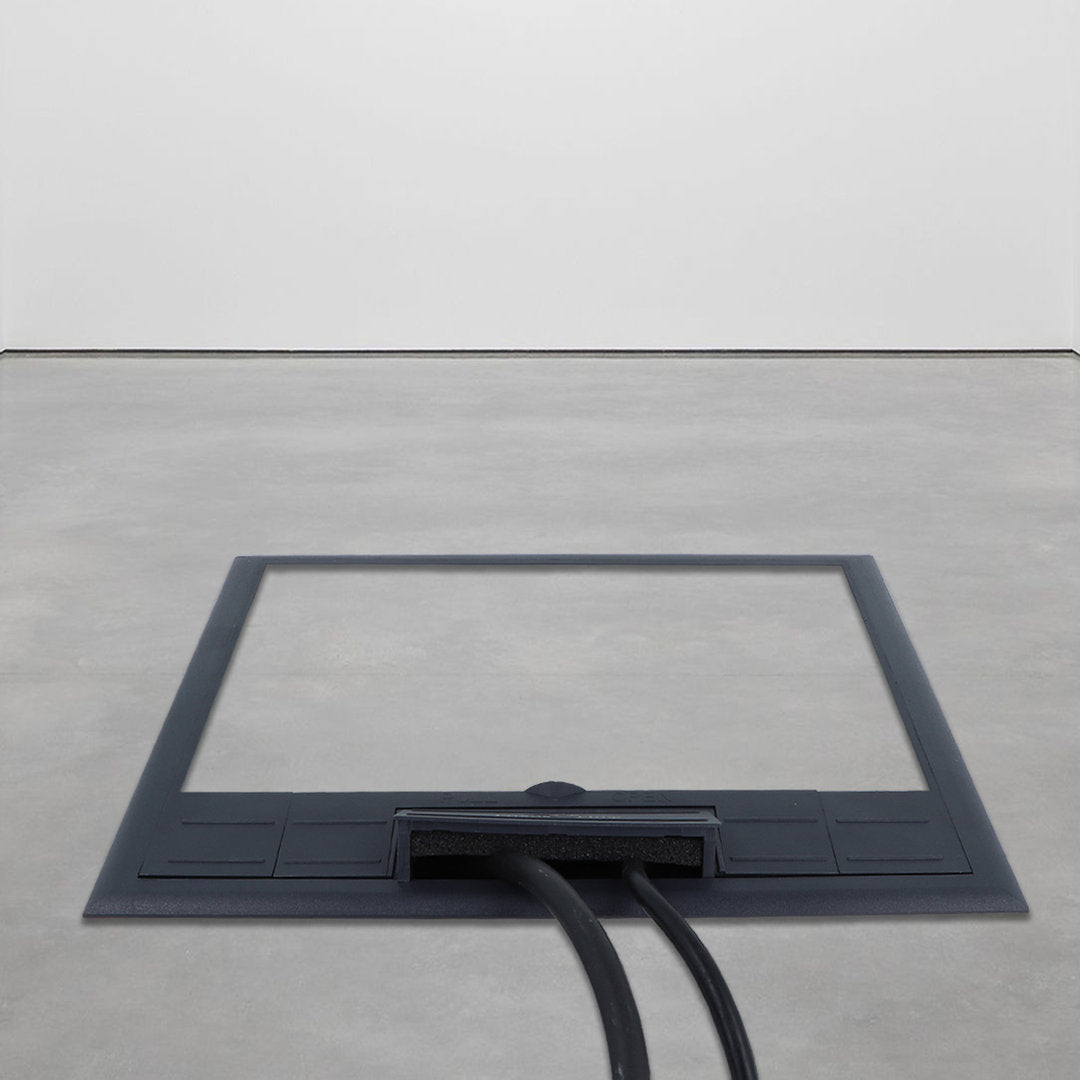

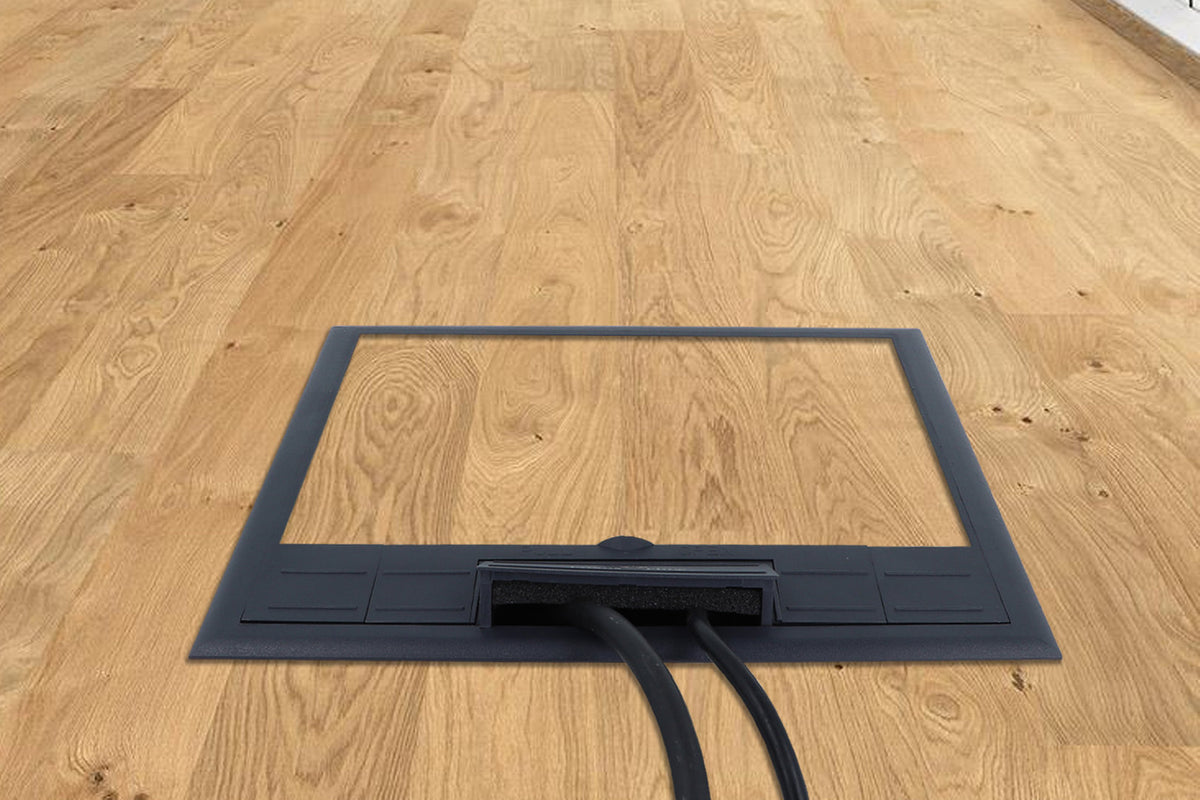

It also offers a high degree of flexibility in everyday use, as the cover can be completely recessed when not in use, making it very discreet. When in use, the cover can usually be closed, and cables can be routed through outlets in the cover.

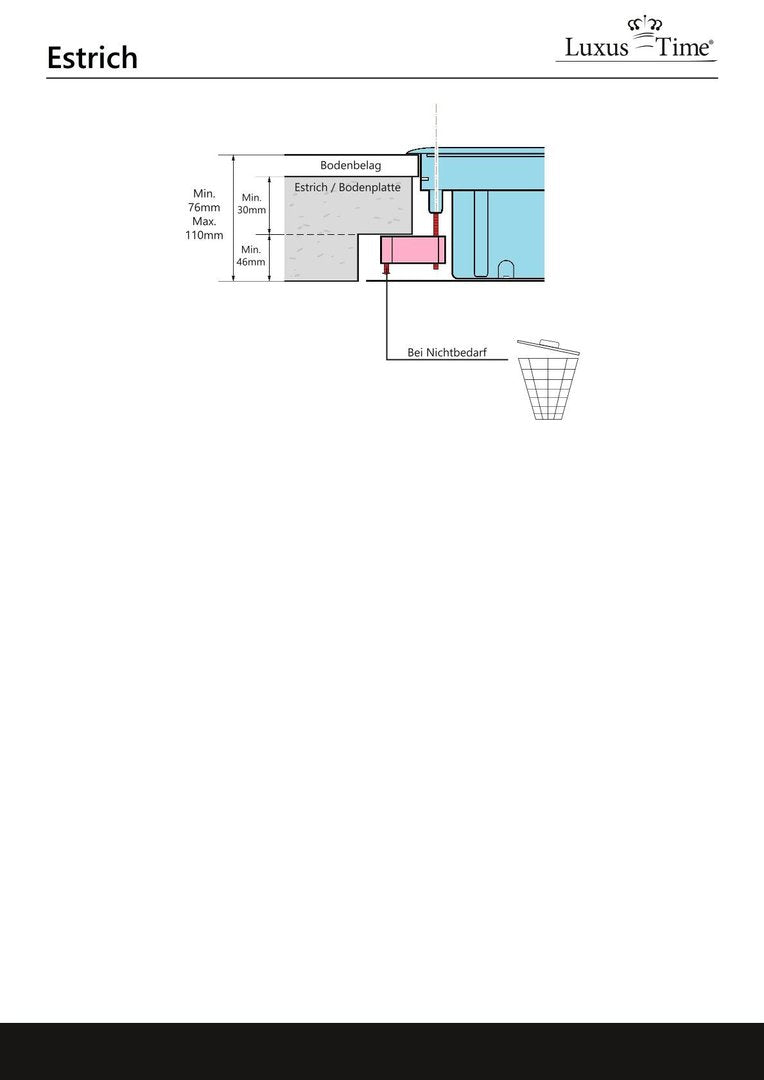

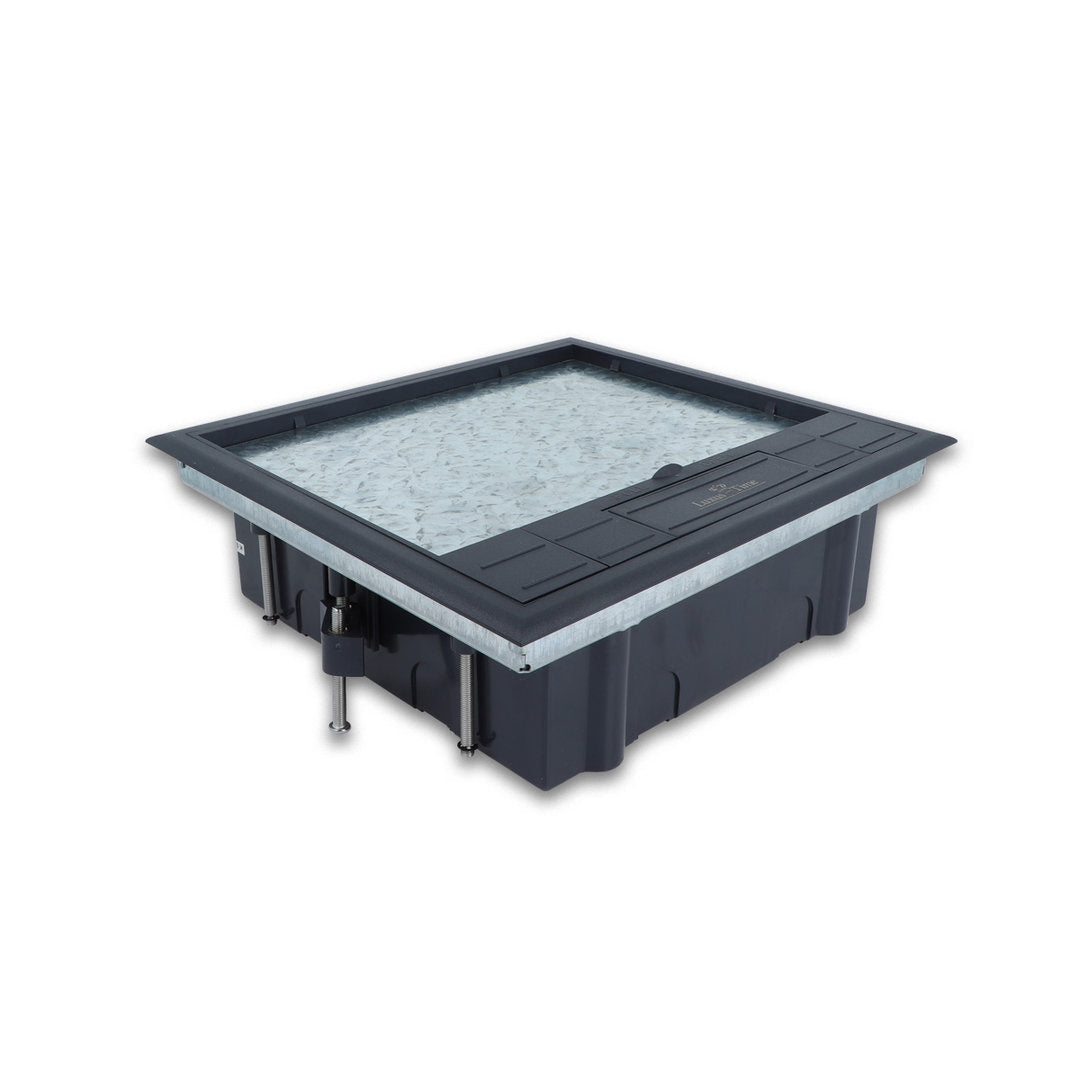

Instructions for installation in screed can be found at the top of the product data sheet. Instructions are also included with the product. When installing in dry screed, a mounting box can be used.

An extension height can optionally be used if the box is not high enough for the floor construction.

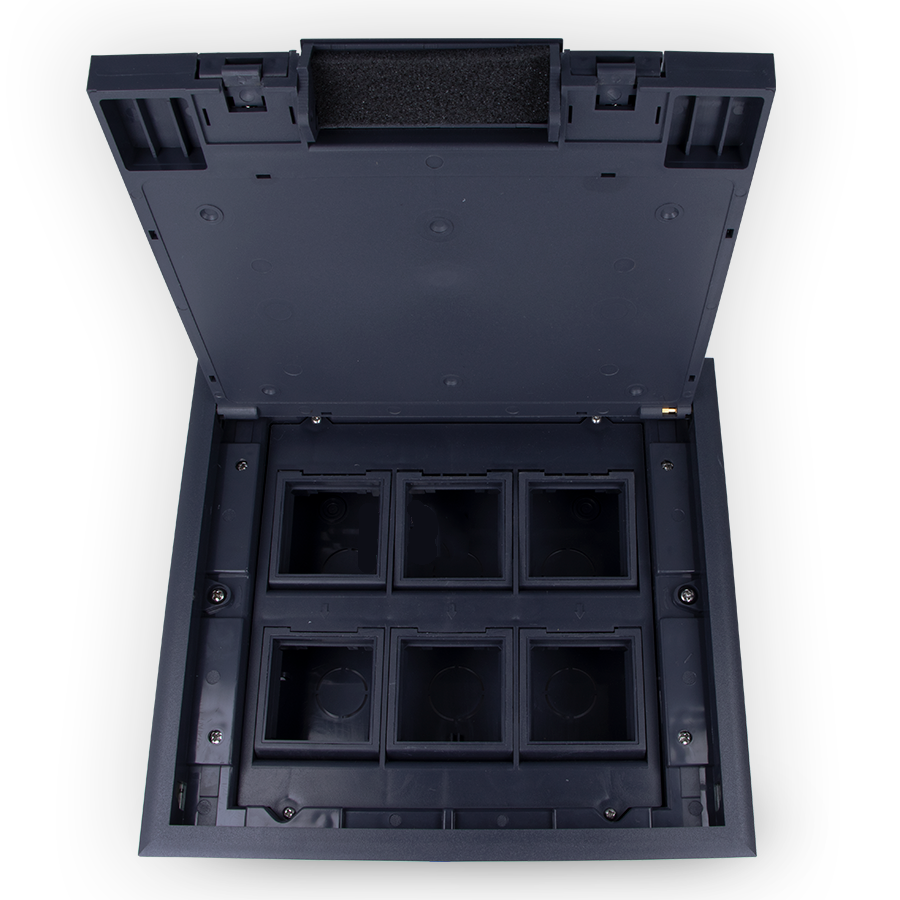

The inserts snap into the unscrewable device cup and are then connected. Alternatively, vertical device cups can be used if more space is required.

Finally, the plastic cover is screwed on and the floor covering is glued in.

The adapters installed in the device cup can be removed to allow the modules to be installed vertically or horizontally.

Questions? Call us or send us an email.
We are happy to advise you!

Technical data:

Protection rating: IP20
Material: Plastic
Holes: 6
Suitable for screed

Dimensions:

Tile insert: 22.4 cm x 15.4 cm x 1.1 cm

Cover: 22.9 x 20.0 cm

Box: 24.50 x 22.50 cm

Cable hole dimensions: D-2.50 cm

Depth (box): 7.50 cm

Device cup: 19.0 x 19.0 cm (unscrewable)

Insert hole dimensions: 4.50 x 4.50 cm

Scope of delivery:

The delivery includes:

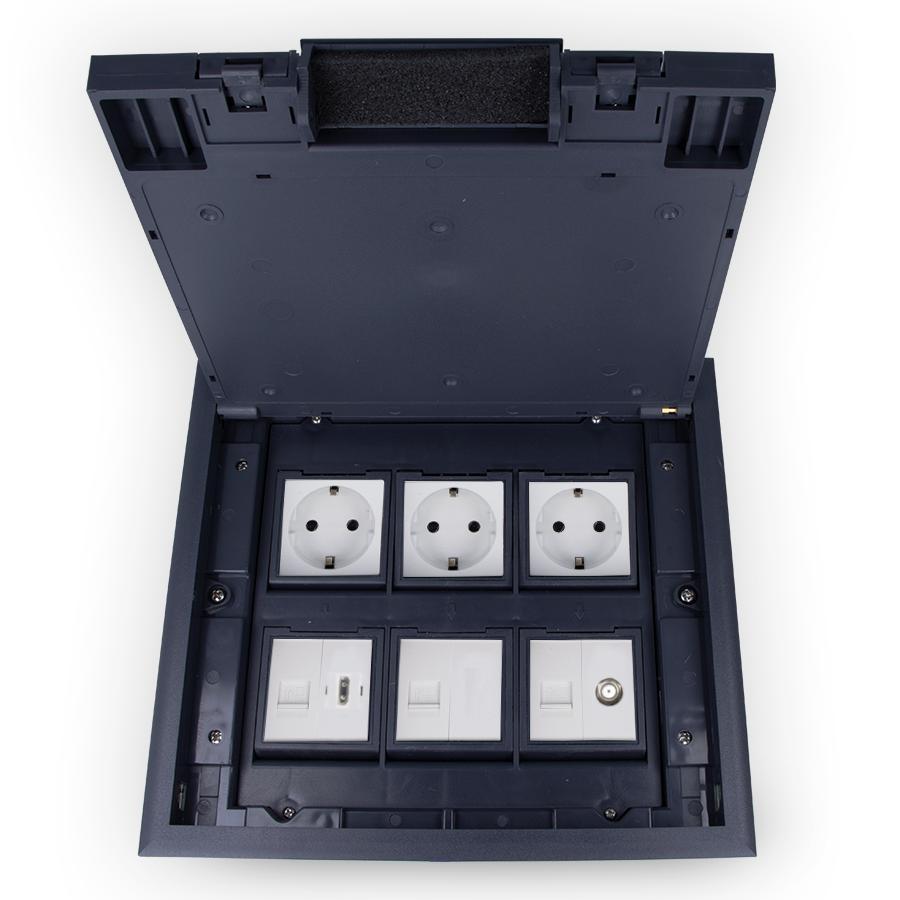

• 1x 6-gang floor box
• 3x VDE white sockets
• 3x white CAT6 network modules
• 1x white HDMI terminal module
• 1x white SAT module
• 1x white blanking plate
