Stainless Steel Floor-Mounted Outlet Box with Power Outlet, Network, SAT and USB A/C Modules

This floor-mounted box with a stainless steel cover can be installed in dry-laid void floors and screed floors.

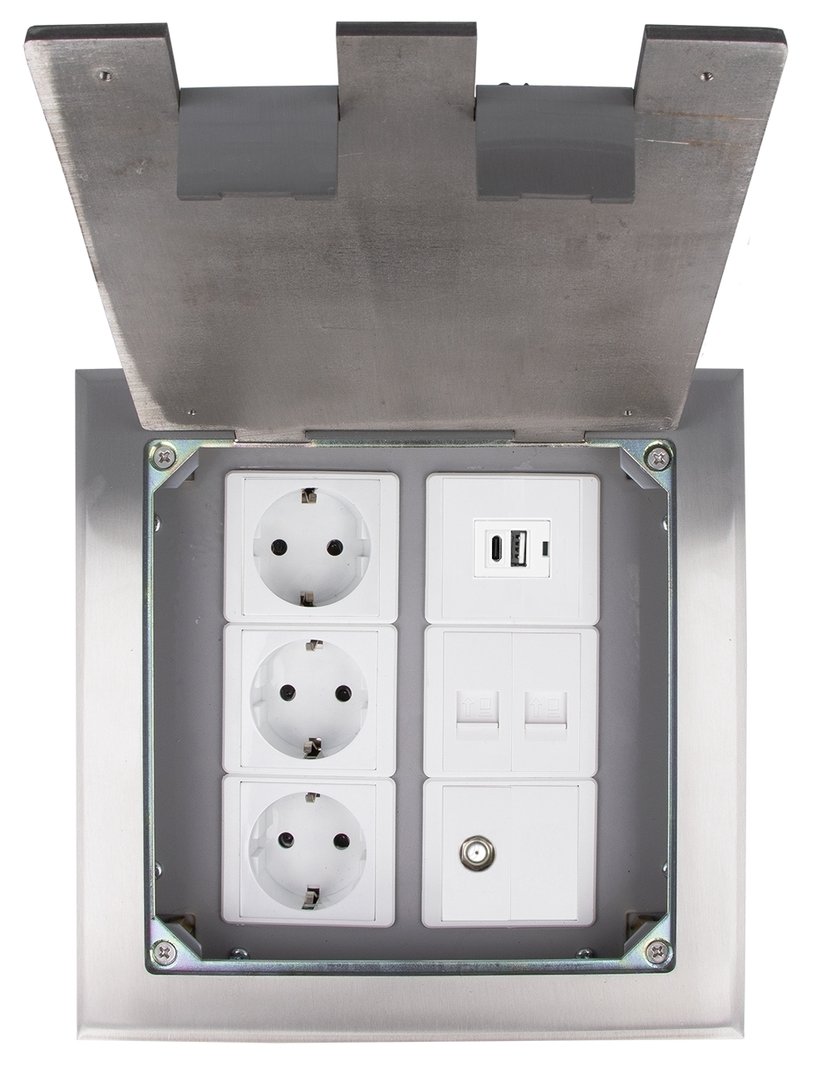

The floor-mounted box includes a Livolo VDE power outlet insert, network/computer module, SAT module, USB A/C module and blank cover (empty).

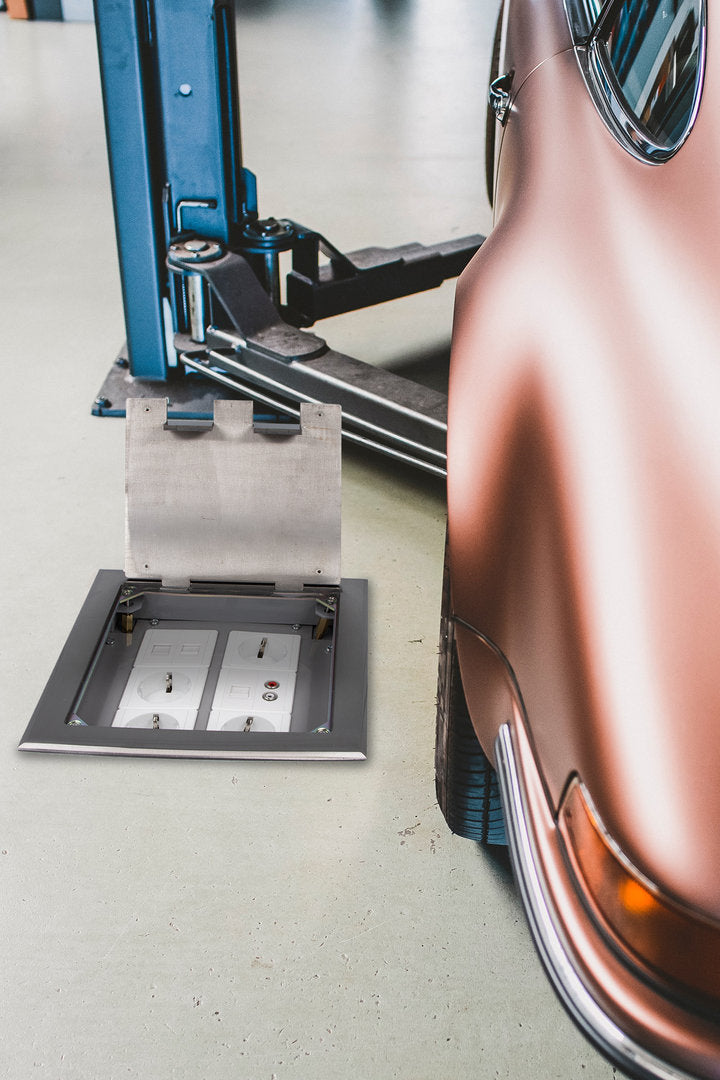

Ideal for installation in offices, workshops, garages or retail spaces. This high-quality floor-mounted box can be used almost anywhere and can also be driven over.

It also offers a high degree of flexibility in everyday use, as the cover can be completely recessed when not in use, making it very discreet. When in use, the cover can usually be closed and the cables can be routed out through openings in the cover.

A so-called protective cover is required for installation in screed. This is included in the delivery.

Optionally, a height extension can be used if the box is not high enough for the floor construction.

The inserts snap into the unscrewable device cups and are then connected. Finally, the stainless steel cover is screwed on.

Questions? Call us or send us an email.
We are happy to advise you!

Technical Data:

Protection rating: IP20

Material: Brushed stainless steel

Holes: 6

Suitable for screed

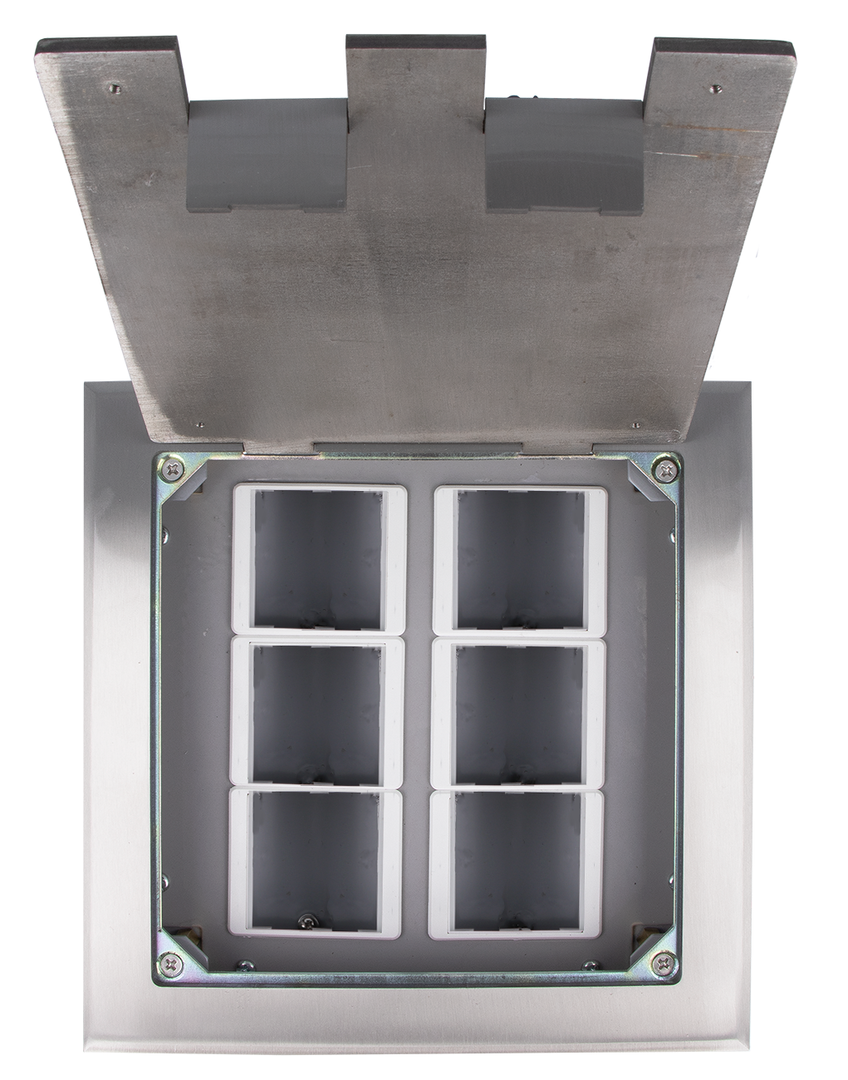

Number of device cups: 2

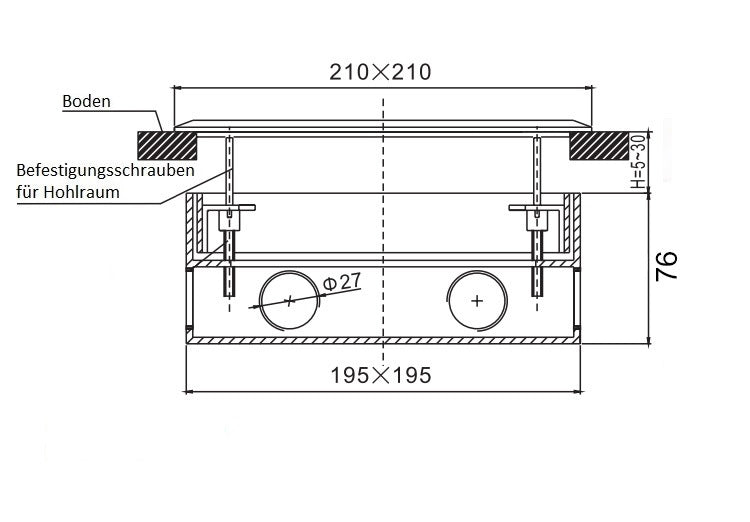

Dimensions:

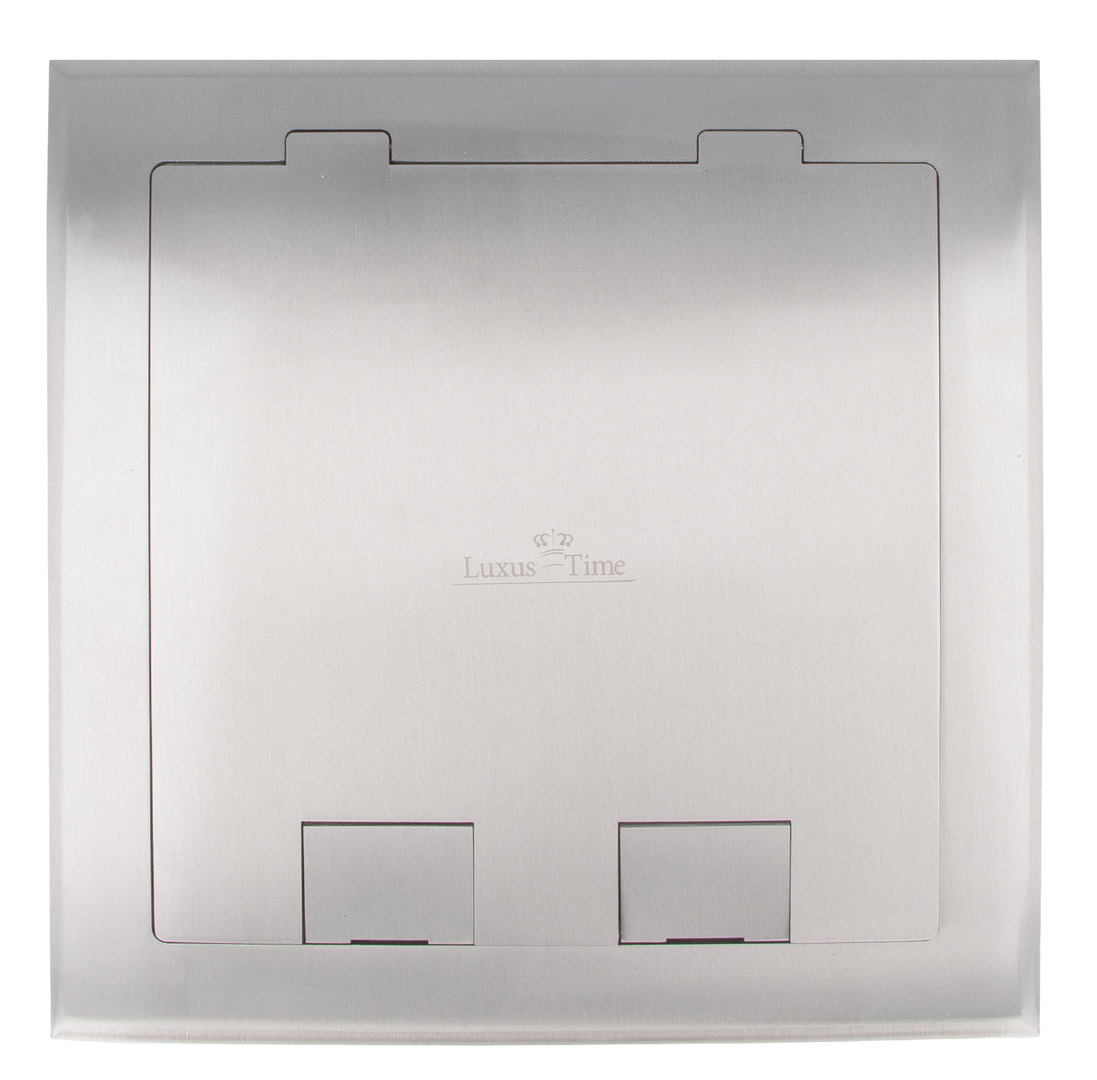

Cover: 20.10 x 20.10 cm

Box: 19.00 x 19.00 cm

Cable hole dimensions: D-2.50 cm

Depth (box): 7.50 cm

Device cups: 15.50 x 15.50 cm (removable)

Insert hole dimensions: 4.50 x 4.50 cm (6x)

Scope of Delivery:

The delivery includes:

• 1x 6-compartment floor-mounted box
• 1x Separate protective cover for screed installation
• 4x Screws for stainless steel hinged cover
• 4x Screws for separate protective cover
• 3x VDE power outlets, white
• 1x USB A/C, white
• 2x Network modules CAT6, white
• 1x SAT module, white
• 1x Blank cover, white
