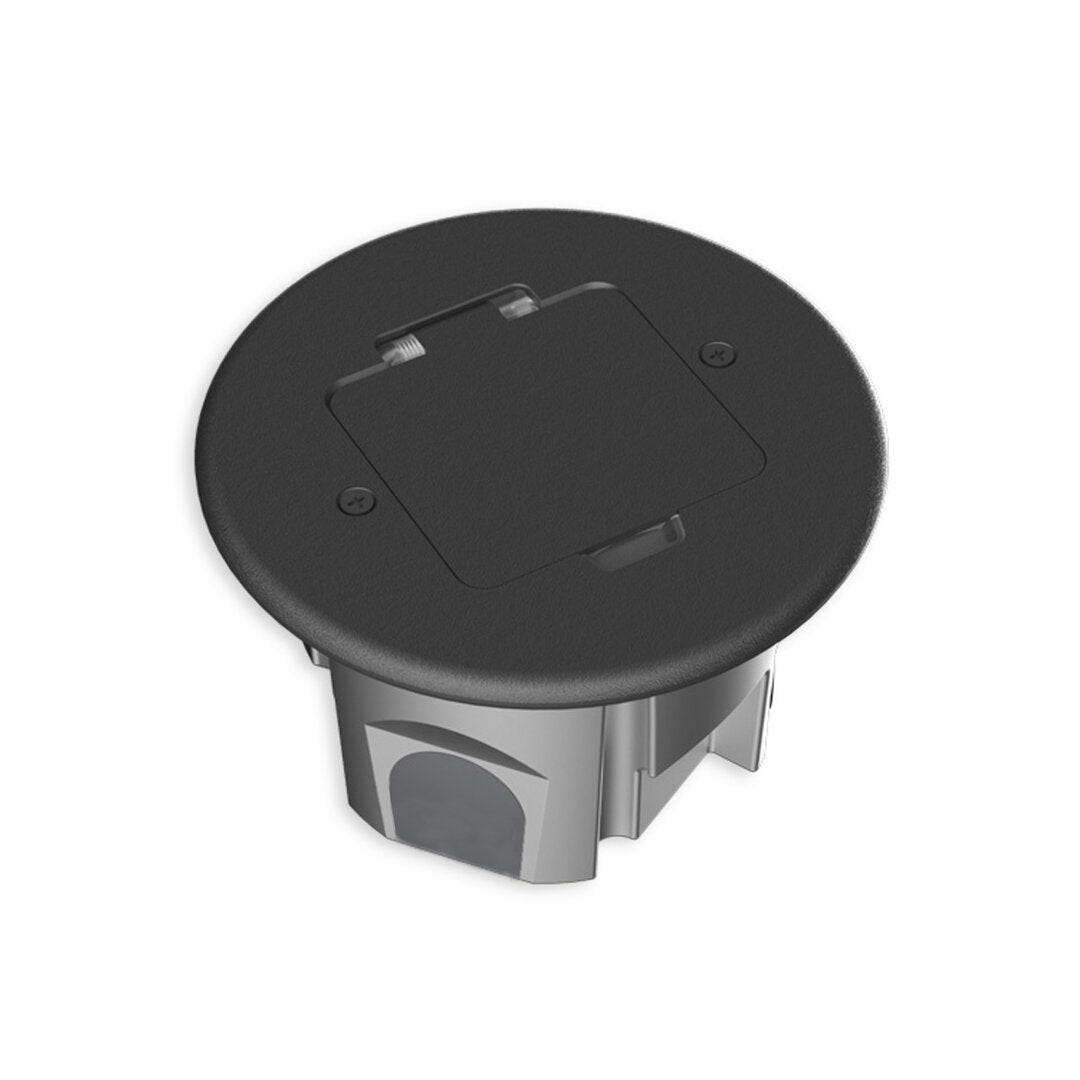

Stainless Steel Floor-Mounted Floor Socket Enclosure

This floor-mounted enclosure with a stainless steel cover can be installed in dry-laid hollow floors and screed floors. Livolo modules can be used.

A full Livolo module (e.g. a socket or USB module) can be installed.

Attention: Please note that due to the design, the socket with a USB-C port and the 1/2 modules cannot be used optimally.

Ideal for installation in offices, workshops, garages or retail spaces. This high-quality floor-mounted enclosure can be used almost anywhere and can also be driven over.

It also offers a high degree of flexibility in everyday use, as the cover can be completely recessed when not in use, making it very discreet.

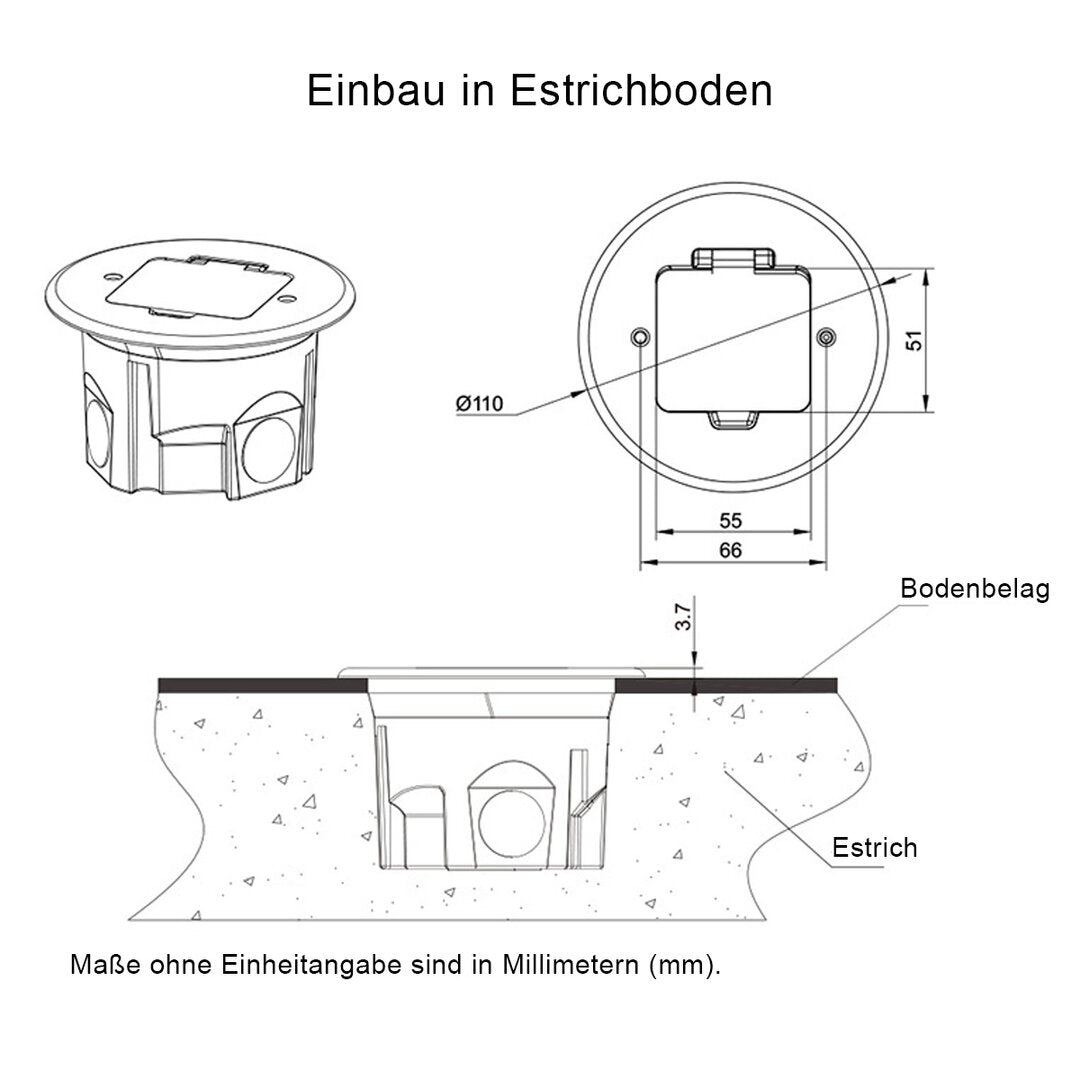

For installation in screed, a so-called protective cover is required. This is not included in the delivery.

An extension can optionally be used if the enclosure is not high enough for the floor construction.

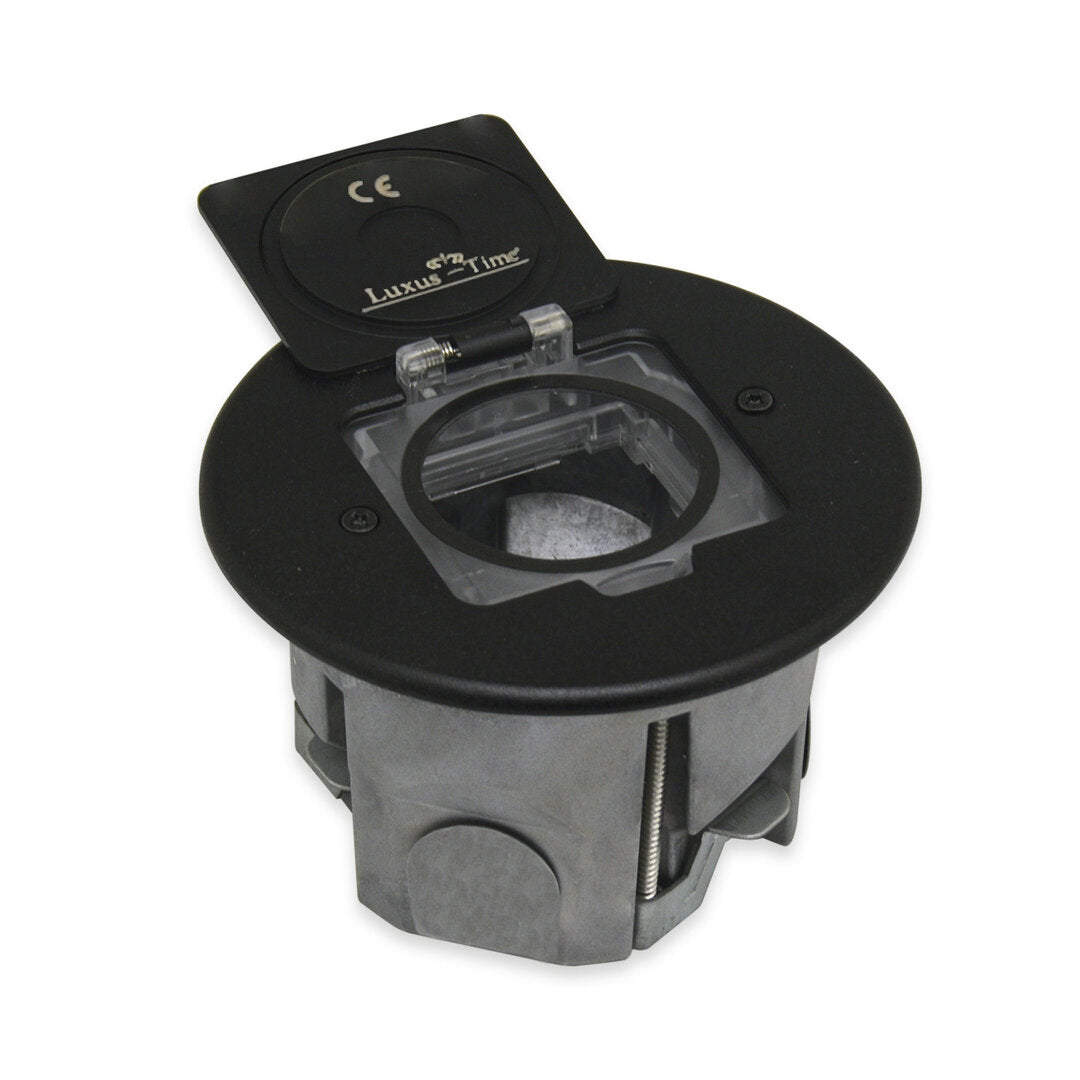

The inserts snap into the unscrewable device cup and are then connected. Finally, the stainless steel cover is screwed on.

Questions? Call us or send us an email.
We are happy to advise you!

Technical Data:

• Protection rating: IP20
• Material: Brushed stainless steel
• Holes: 4
• Suitable for screed
• Number of device cups: 1

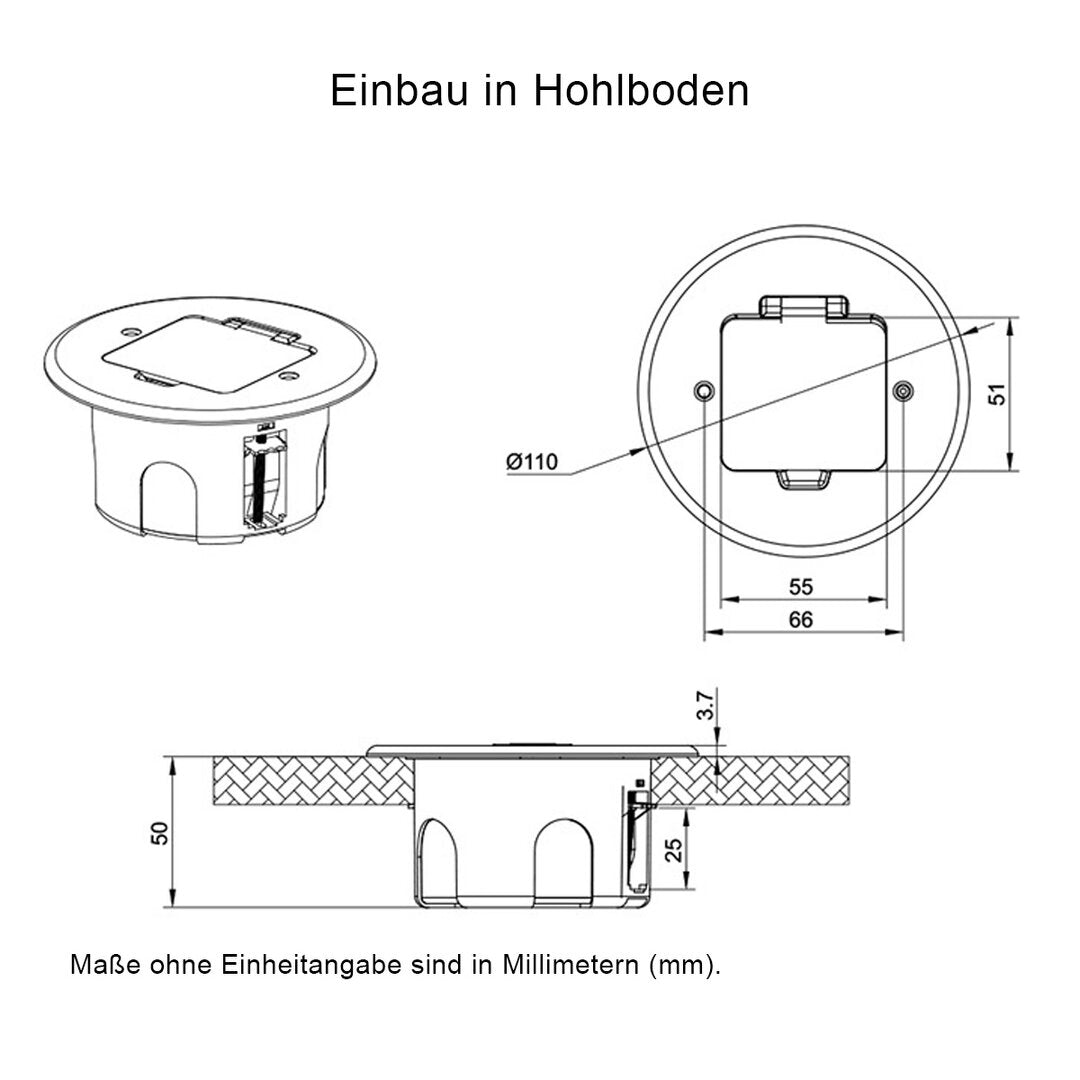

Dimensions:

Cover: ø 110 mm

Enclosure: ø 66 mm

Cable hole: ø 20 mm

Depth (enclosure): 50 mm

Insert dimensions: 45mm x 45mm

Scope of Delivery:

The following are included:

• 1x round floor-mounted enclosure with 1 compartment
• 4x screws for stainless steel hinged cover
