LIVOLO Keystone Module Cat.6A – Short, RJ45

This shielded Livolo 10GB Universal Keystone Module Cat.6A is a powerful and reliable connection solution for modern structured network installations. It was specially developed for use in 10-Gigabit Ethernet networks and supports a transmission bandwidth of up to 500 MHz. This makes the module ideal for demanding applications in both residential and commercial environments.

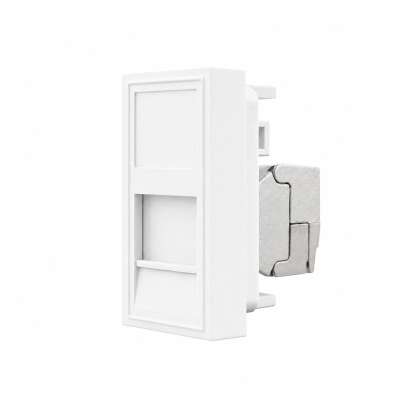

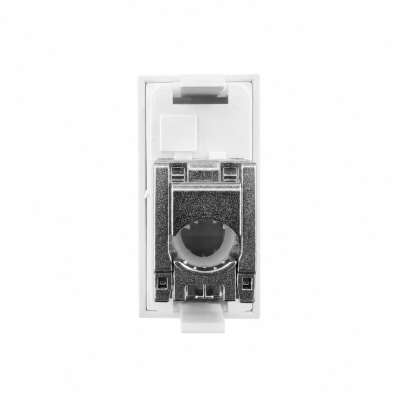

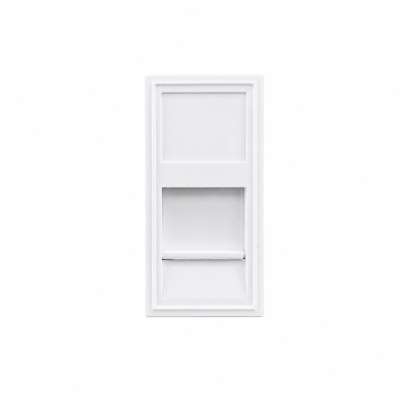

The module features one RJ45 jack opening and takes up half a socket space in our floor boxes. With its robust die-cast zinc construction with a nickel-plated housing surface, it offers high mechanical stability as well as effective electromagnetic shielding.

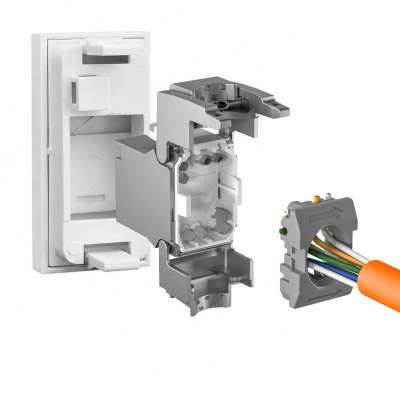

A 360° shield in combination with integrated strain relief ensures reliable signal transmission and permanently protects the connected data cable. The keystone module is designed for network cables with a diameter of 6 to 10 mm and supports both solid conductors (AWG 24–22) and flexible conductors (AWG 26 / AWG 24) via high-quality IDC contact terminals. One wire can be connected per contact; re-termination is possible up to ten times (with the same or larger conductor cross-section).

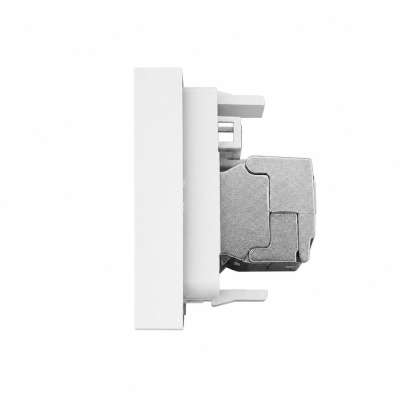

The particularly short design facilitates installation, especially in confined spaces such as floor boxes. Installation is carried out without special tools, ensuring a quick and uncomplicated installation.

The module is compatible with modern power and data standards such as PoE++ / 4PPoE according to IEEE 802.3bt, UPOE, as well as HDBaseT, and is therefore ideally suited for applications such as IP cameras, access points, smart building components, or multimedia transmission. The dust cap protects the contacts from contamination and can be removed or replaced if necessary.

This Cat.6A keystone module is thus the ideal solution for future-proof, powerful, and standards-compliant network installations in residential, office, and industrial environments.

Questions? Call us or send us an email.
We are happy to advise you!

Technical data:

Dust cap on the module (removable)

Suitable for: Cat.6 and Cat.7 cables (Ø 6-10mm)

IDC terminals for solid conductors: 0.51 - 0.64 mm Ø AWG 24-22

IDC terminals for one conductor: 0.13-0.22 mm² AWG 26 (PE-Foamskin), AWG 24 (PE-solid)

Strain relief/shielding: 360°

Speed: 10 Gbit/s and 250 MHz

Wire cross-sections: AWG 22-24

Re-termination: 10 times

Misinsertion protection: RJ11/12

Compatible: RJ45 network cables

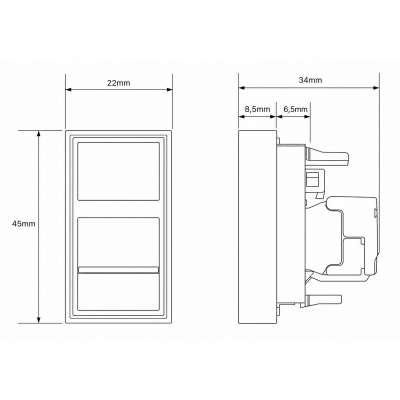

Dimensions:

45 x 22.5 x 29.18 mm

Scope of delivery:

The delivery includes:

- 1 x Livolo internal network module 1/2, according to order
